Genesis
G624-3Q
G624

DUAL CABLE CROSS

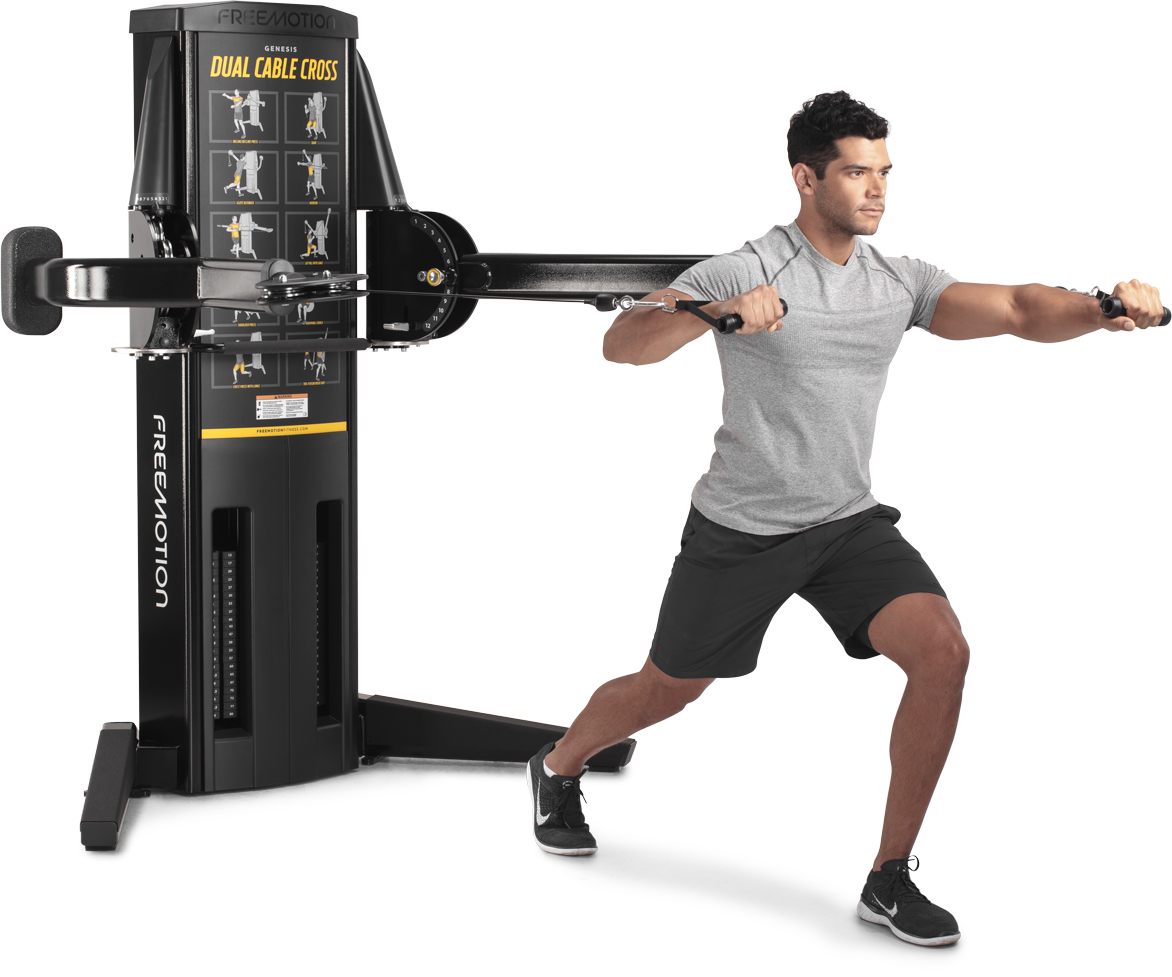

The Genesis Dual Cable Cross enhances strength by allowing users to perform movements that mimic activities in everyday life. Every muscle and plane of motion can be worked and challenged on this unique machine. Lead one-on-one personal training sessions or small group circuits for a strength, stability, and balance component you won't find on fixed-isolated machines. The open design makes it wheelchair accessible and welcoming for all fitness levels. Add a bench or stability ball to create a truly customized workout for members who want to focus on ab work.

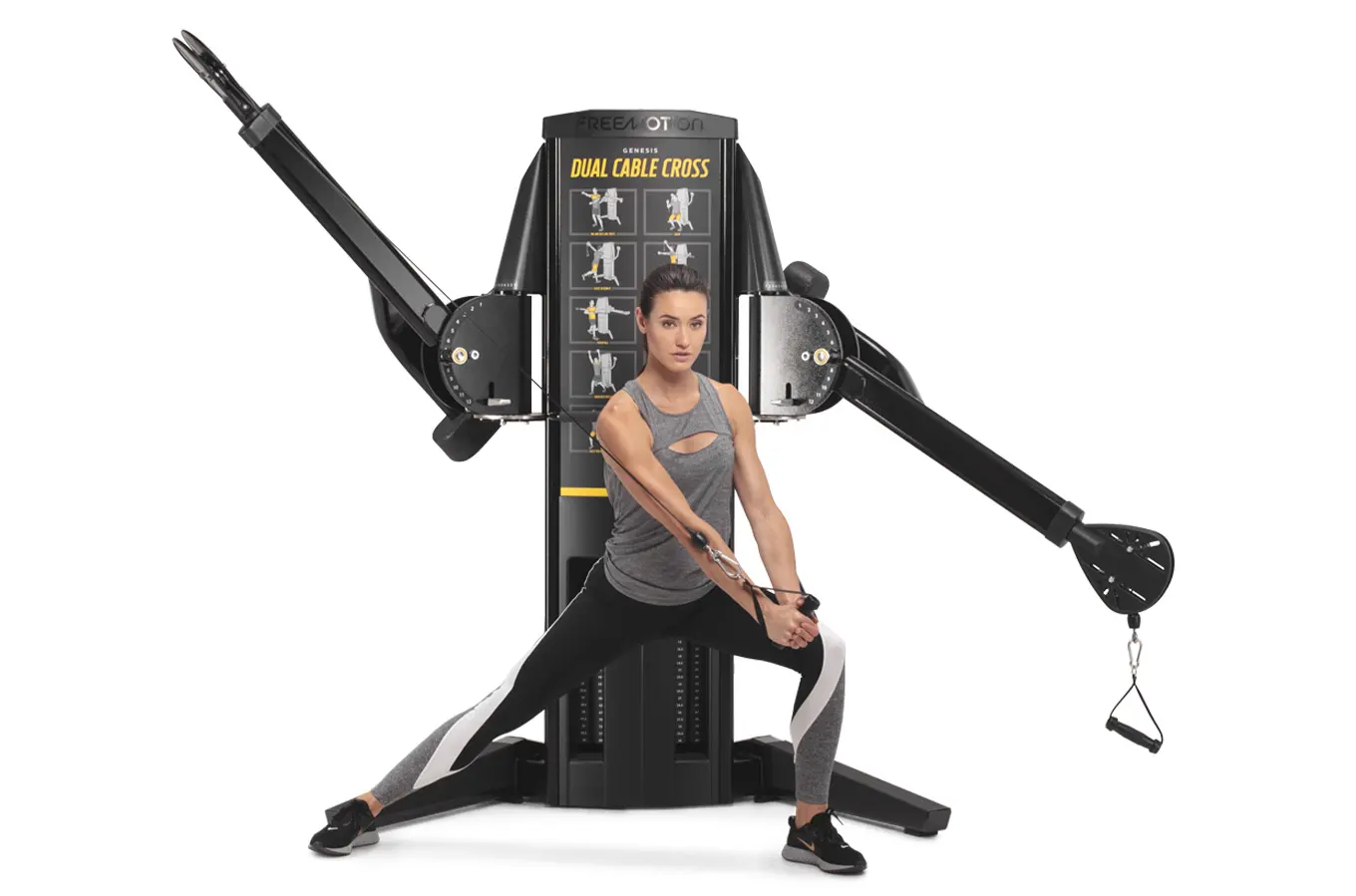

G624-Front-fm

User-Defined Movement

Independent arm rotation with 12 vertical and nine horizontal settings, in virtually any movement pattern.

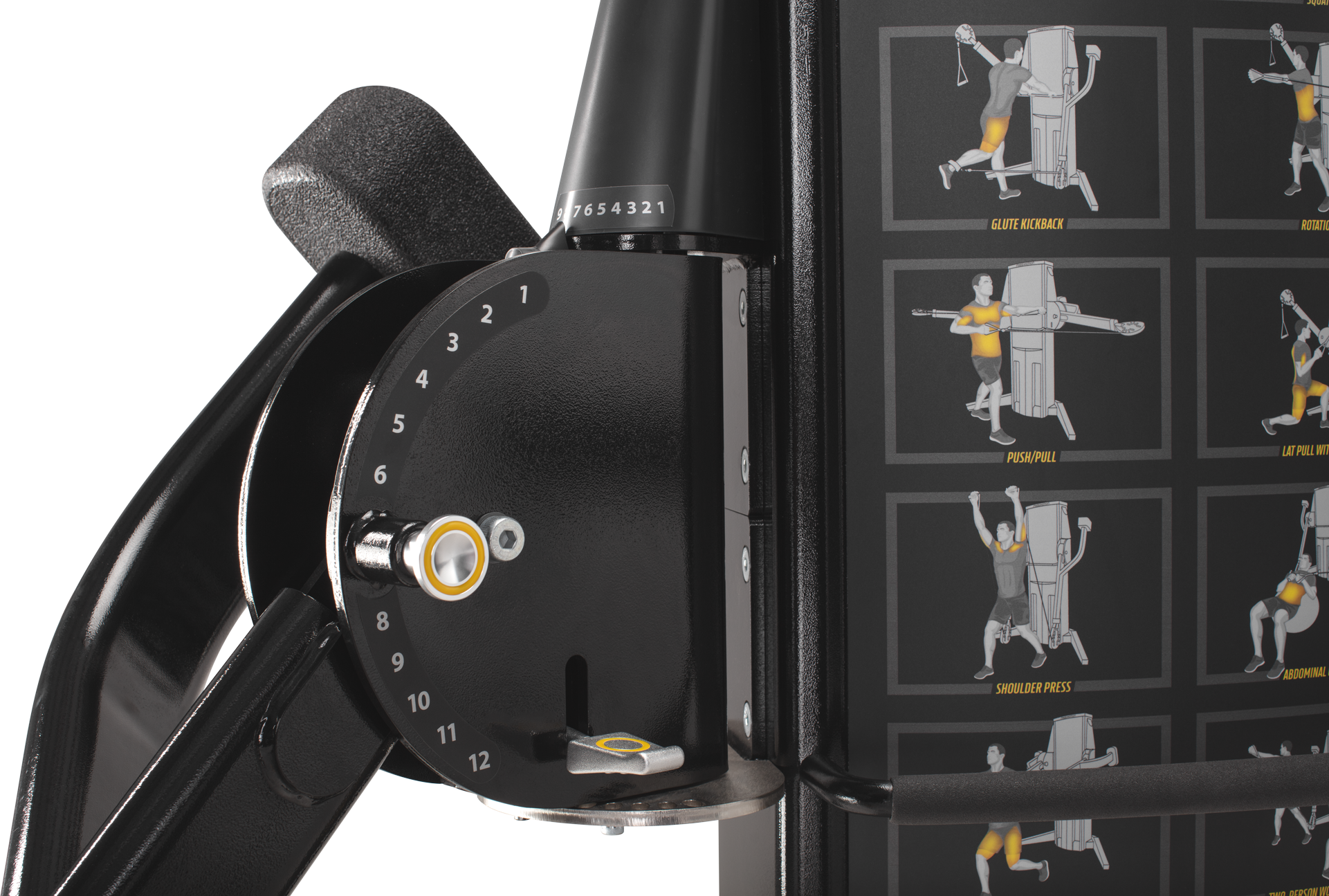

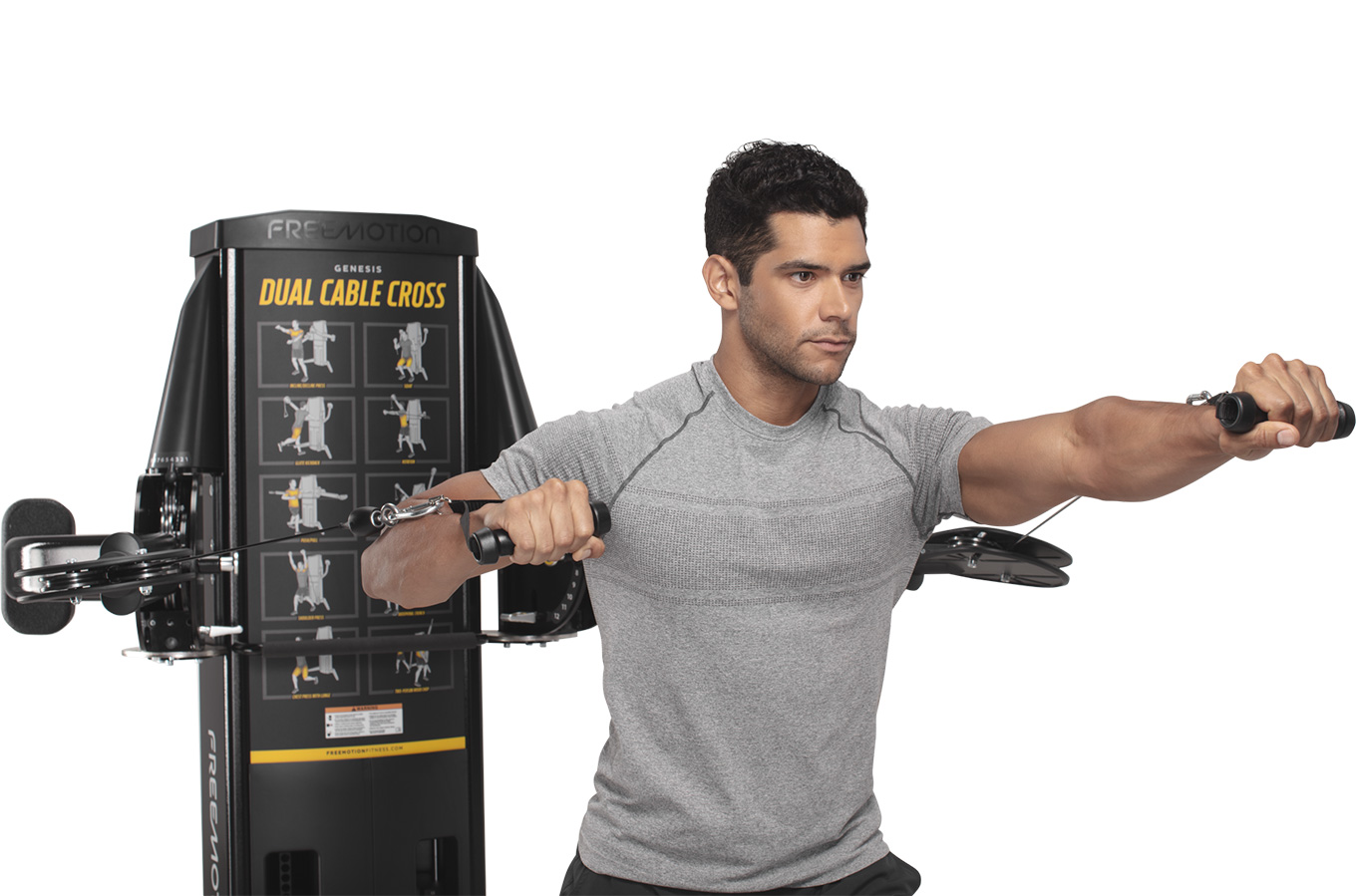

G624-3Q-mt-CloseUp

Live Unlimited

Handles move independently to create unlimited exercise options.

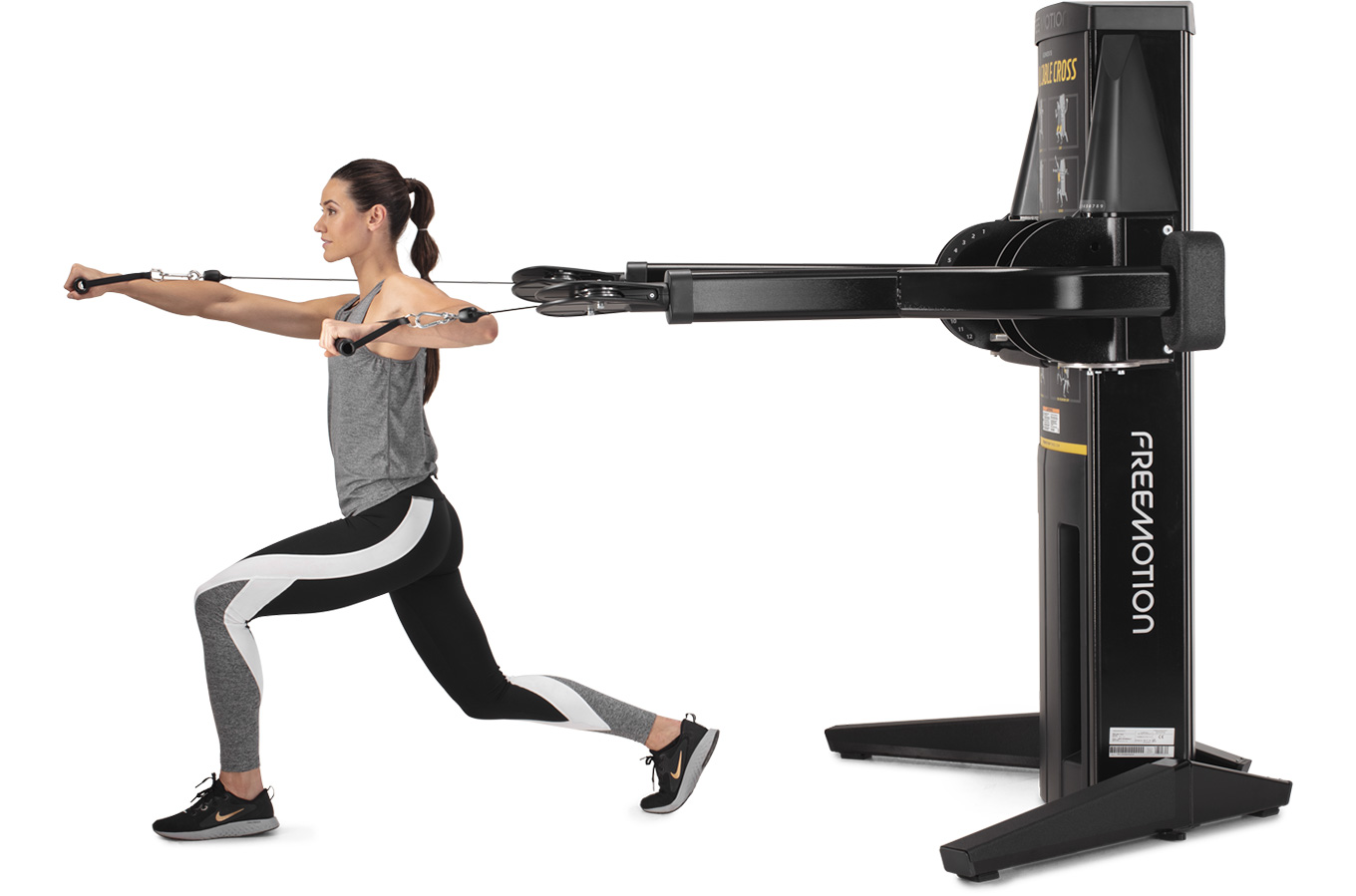

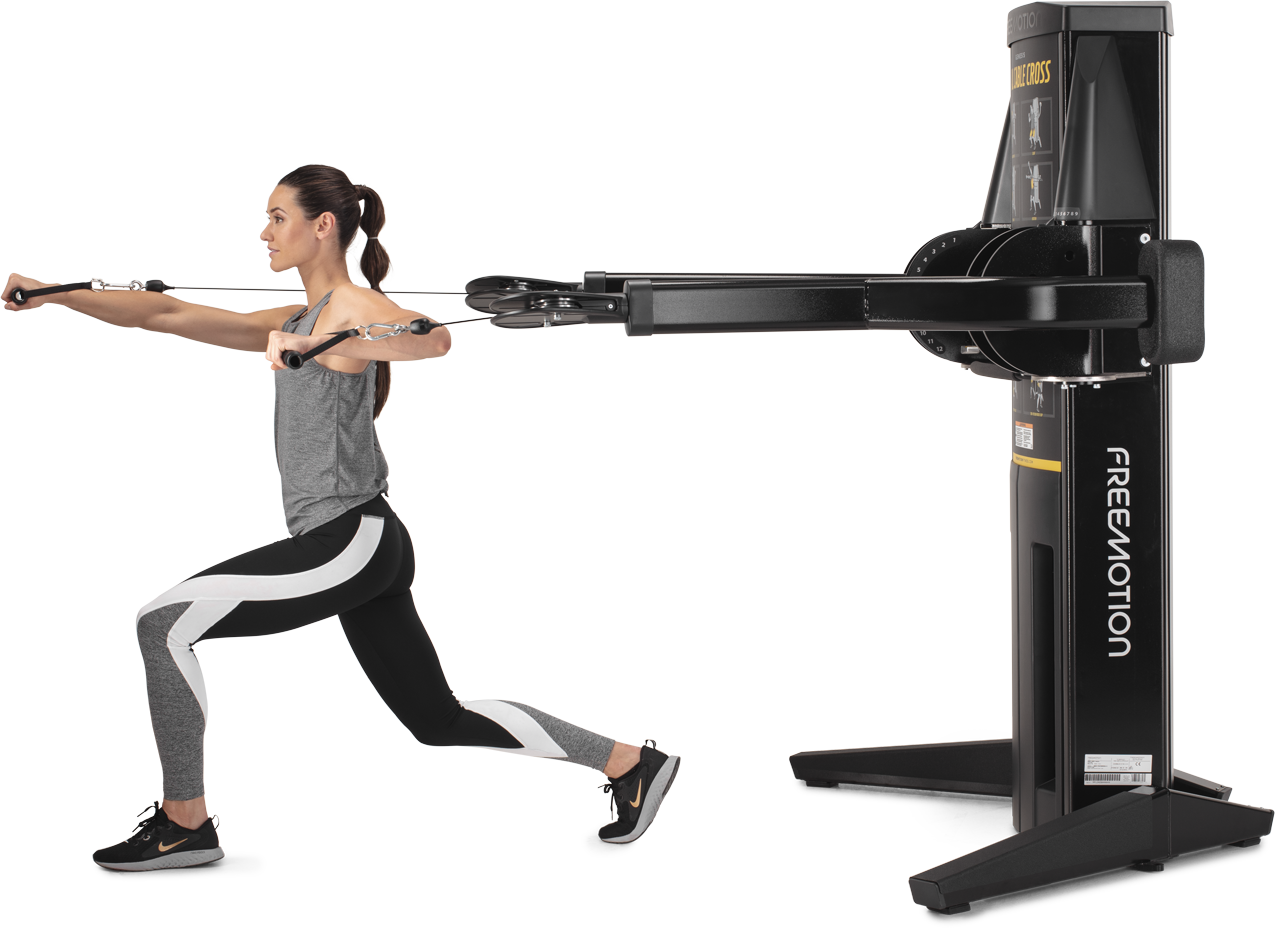

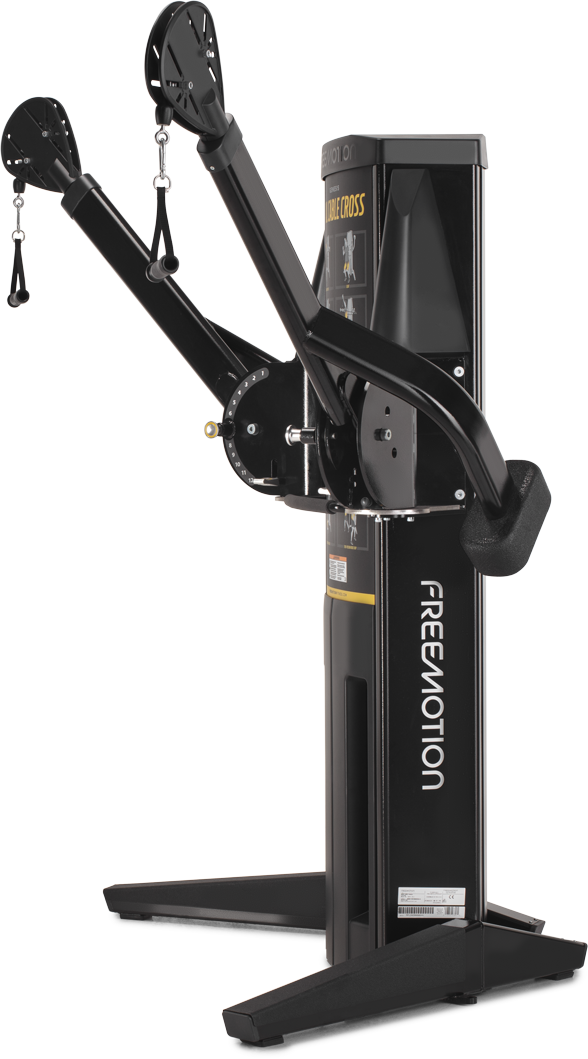

G624-Profile-fm

Free To Be You

The intelligent, swivel pulley design creates fluid cable travel and a nearly unlimited range of motion.

Details & Specs

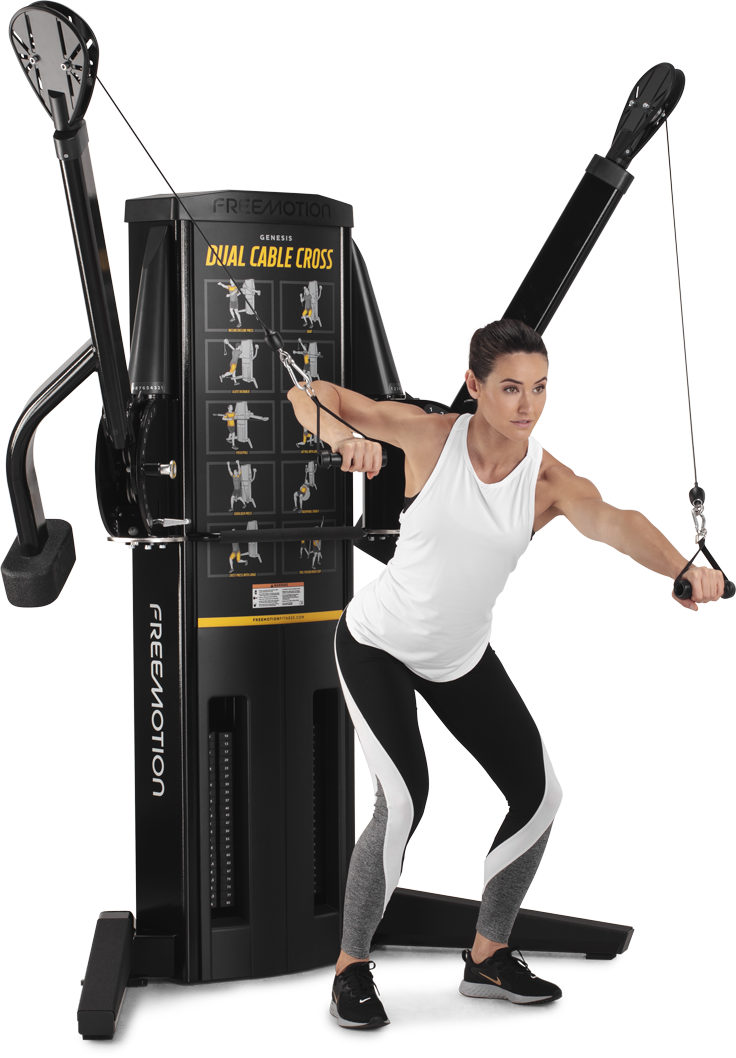

G624-3Q
  • Features
    Endless Possibilities

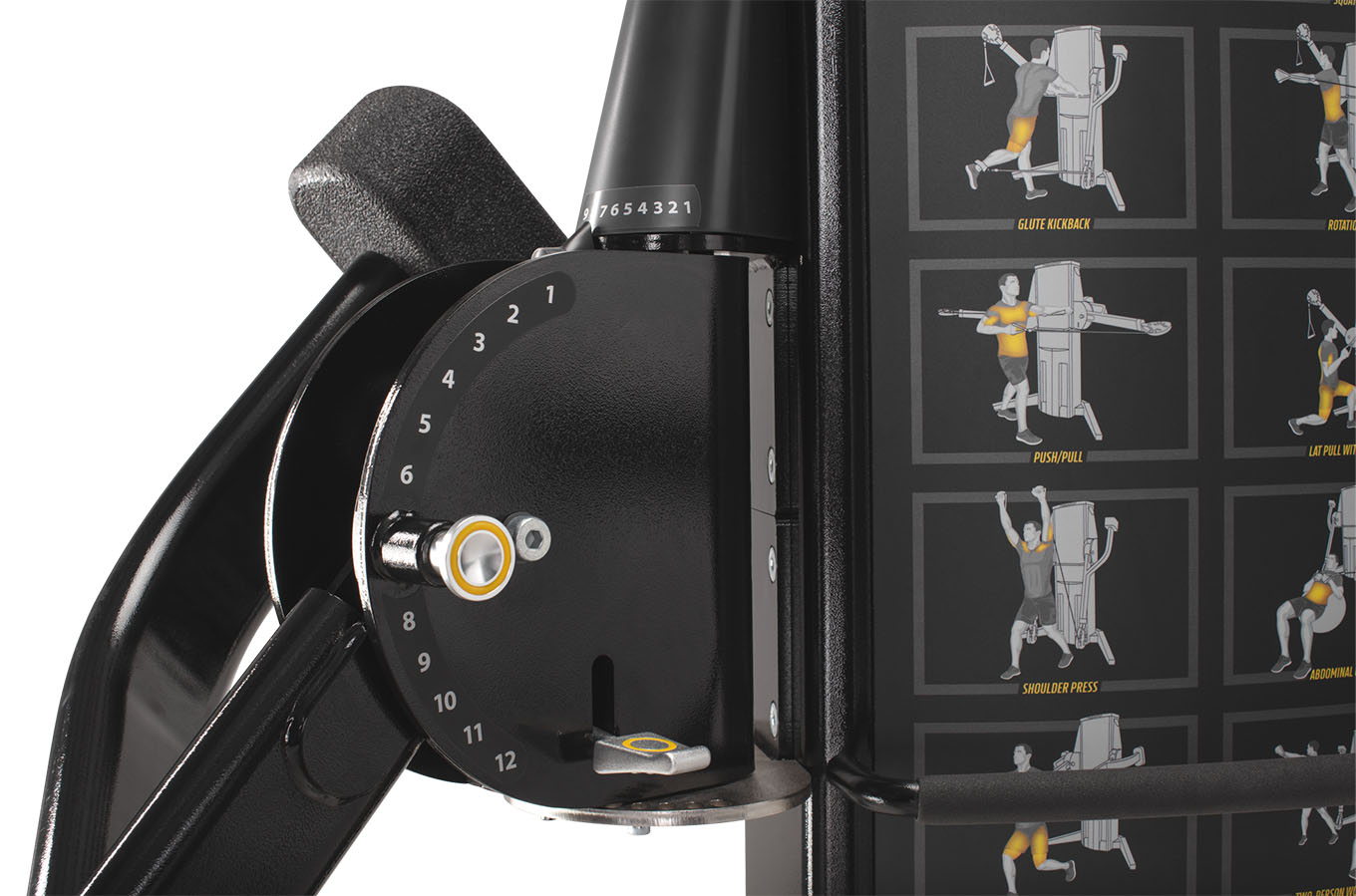

    Each independently rotating arm has 12 vertical and 9 horizontal settings to accommodate virtually any movement pattern. Arms are counterbalanced for easy positioning.

    Personalize Your Workout

    Unilateral arms move independently to create single or dual-arm exercises that build strength with balance and symmetry.

    Swivel Pulleys

    Pulley design ensures fluid cable travel and creates a nearly unlimited range of motion.

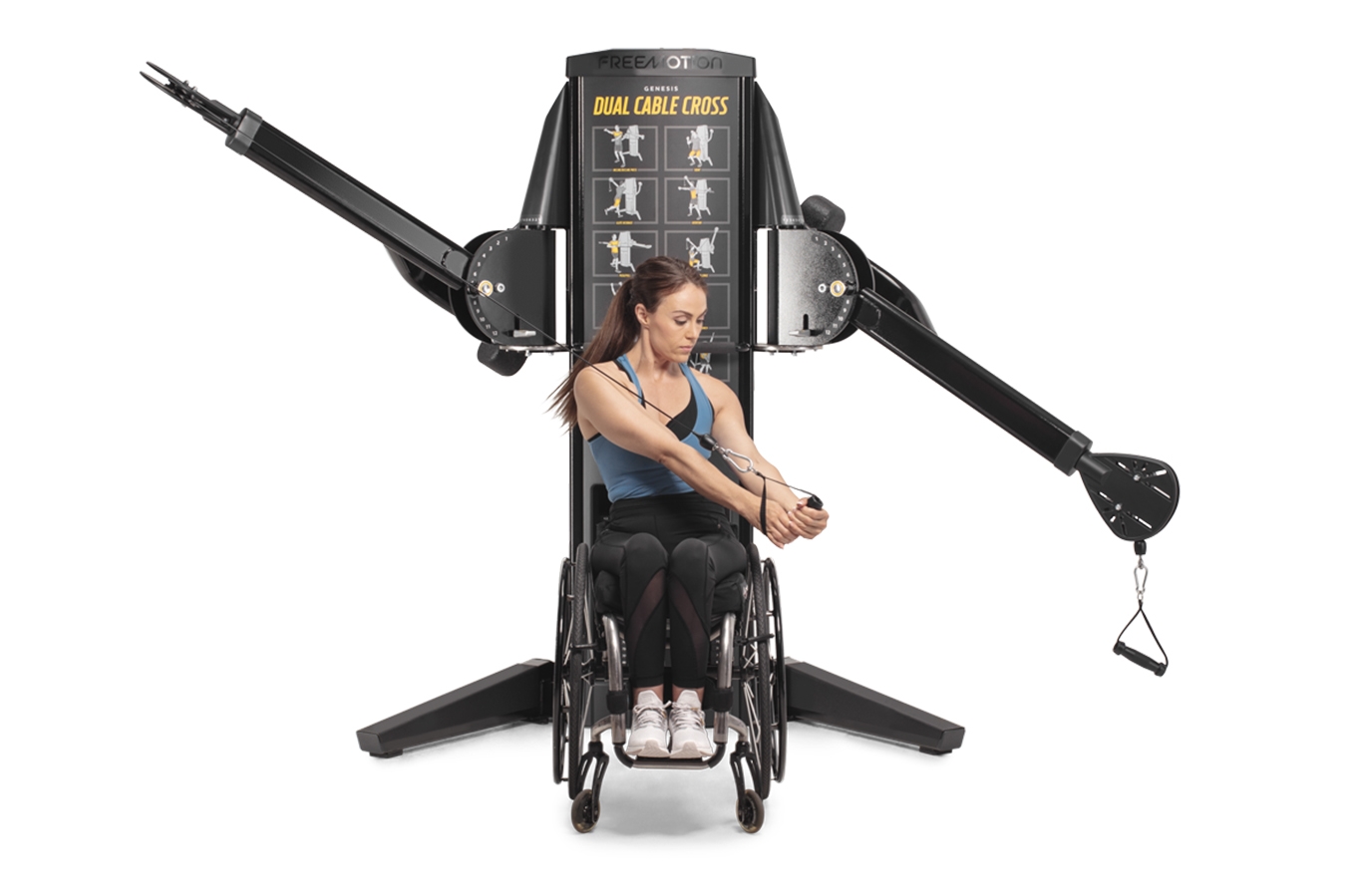

    Wheelchair Accessible

    The open design of this piece makes it wheelchair accessible and welcoming to users of all fitness levels.

    Cable Travel

    The long cable length and flexibility allows for full exercise extension. Two arms: 97 in (246 cm).

    Weight Stacks

    Enclosed weight stacks limit access to moving parts for safety. Dual independent stacks allow two members to workout simultaneously.

    Industrial Construction

    Built with 11 and 7-gauge steel, this machine is also electrostatically powder-coated.

    Kick Plates

    Strong 16-gauge, stainless steel kick plates protect the machine from wear and tear.

    User-Defined Movement

    Independent arm rotation with 12 vertical and nine horizontal settings, in virtually any movement pattern.

    Live Unlimited

    Handles move independently to create unlimited exercise options.

    Free To Be You

    The intelligent, swivel pulley design creates fluid cable travel and a nearly unlimited range of motion.

  • Specifications
    Product Specifications

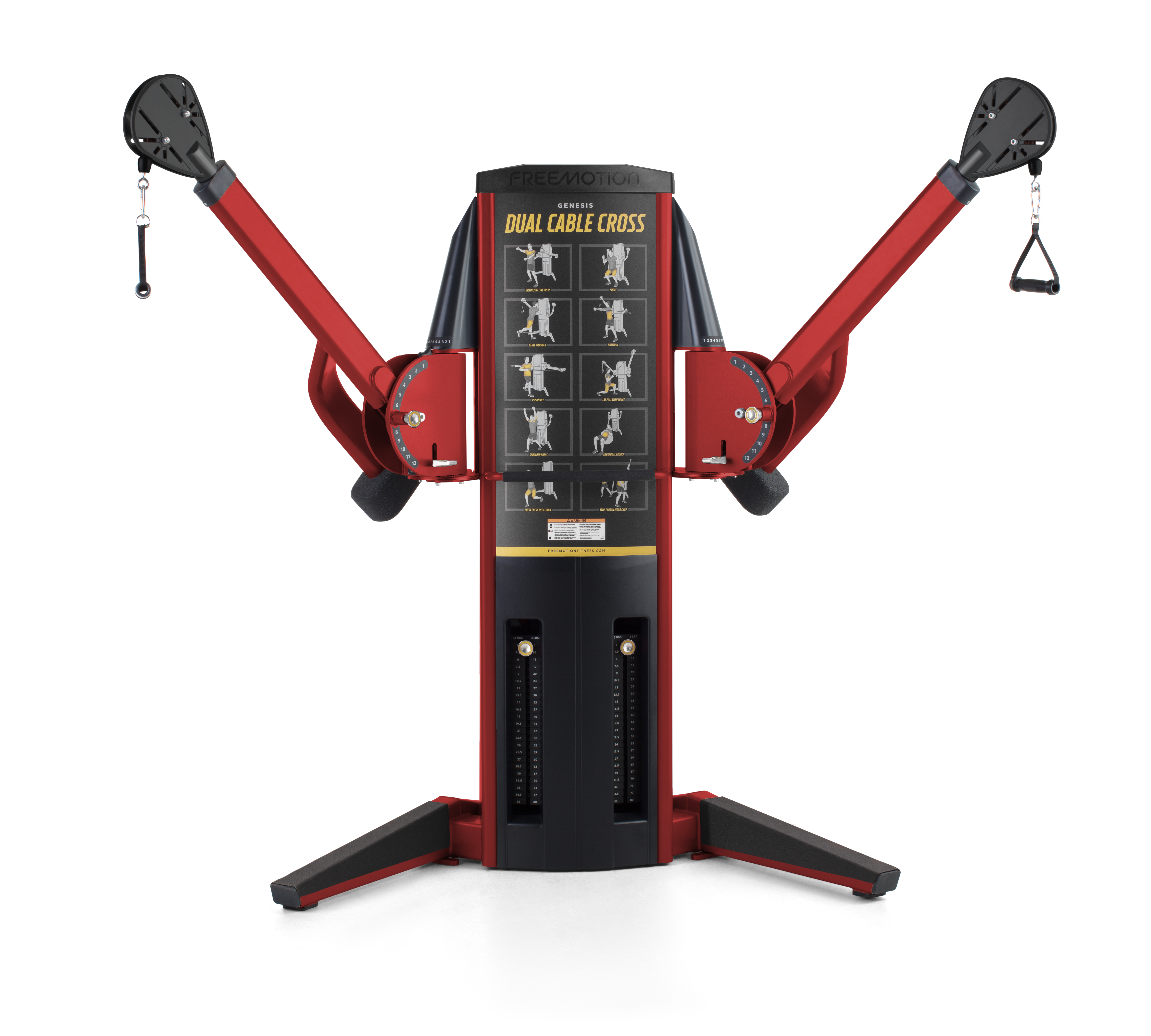

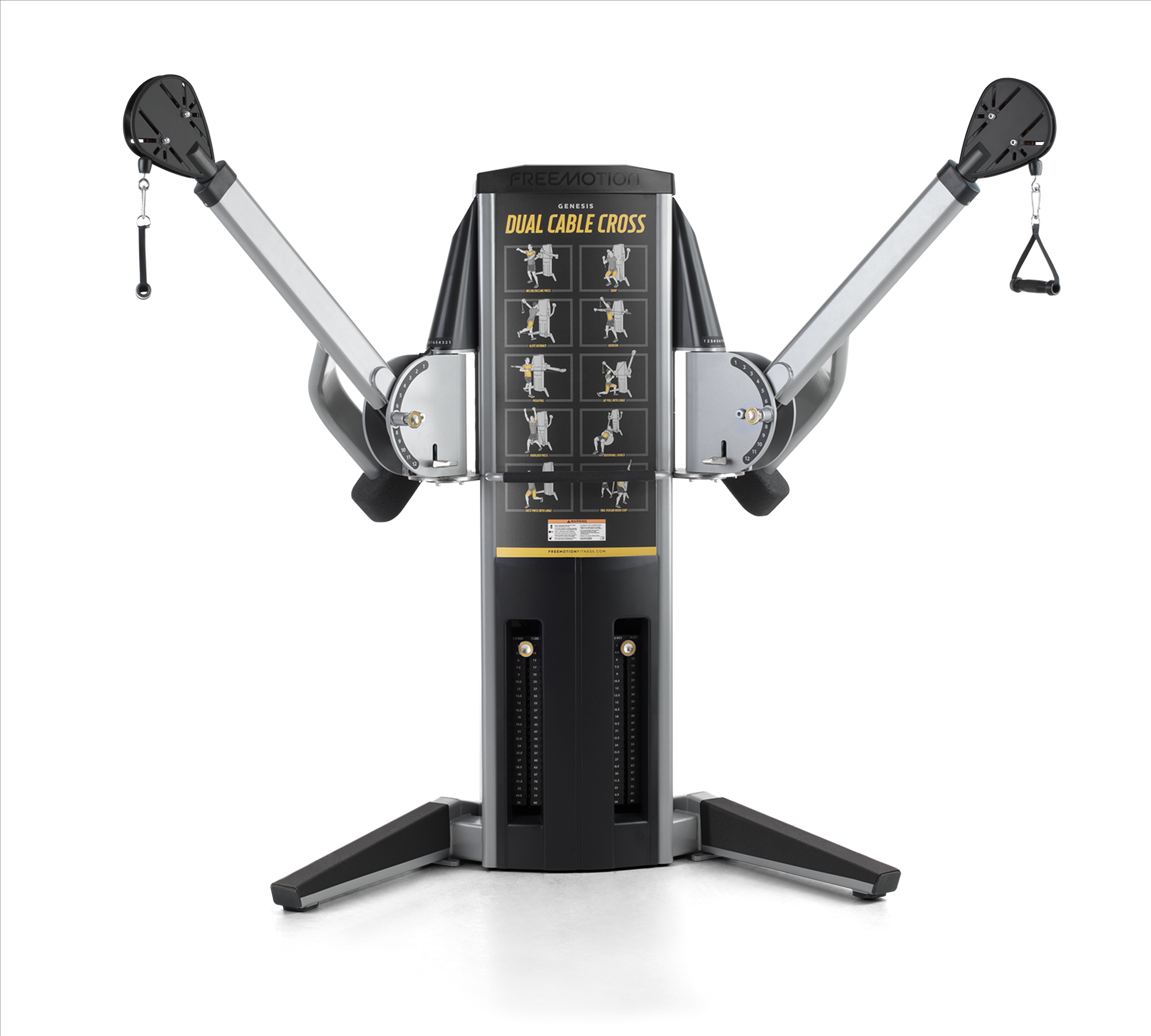

    • Standard Frame Colors Platinum Sparkle, Red Baron, Black, White
    • Optional Frame Colors On Request
    • Plastic Colors Ebony
    • Weight Stack lb (kg) Dual Weight Stacks
      Stack 1: 240 lbs (108.8 kg)
      Stack 2: 240 lbs (108.8 kg)
    • Weight Stack Configuration lb (kg) 3.3 - 80 lbs each (36 kg)
    Equipment Features
    • Adjustments Vertical and horizontal arm rotation adjustments
    • Pulleys Dual swivel pulleys
    • Cable Travel in (cm) 97 in (246 cm) per side
    • Rubber Feet Molded floor protectors
    • ADA Compliant Wheelchair Accessible
    • Resistance lb (kg) 80 lbs (36 kg) each stack

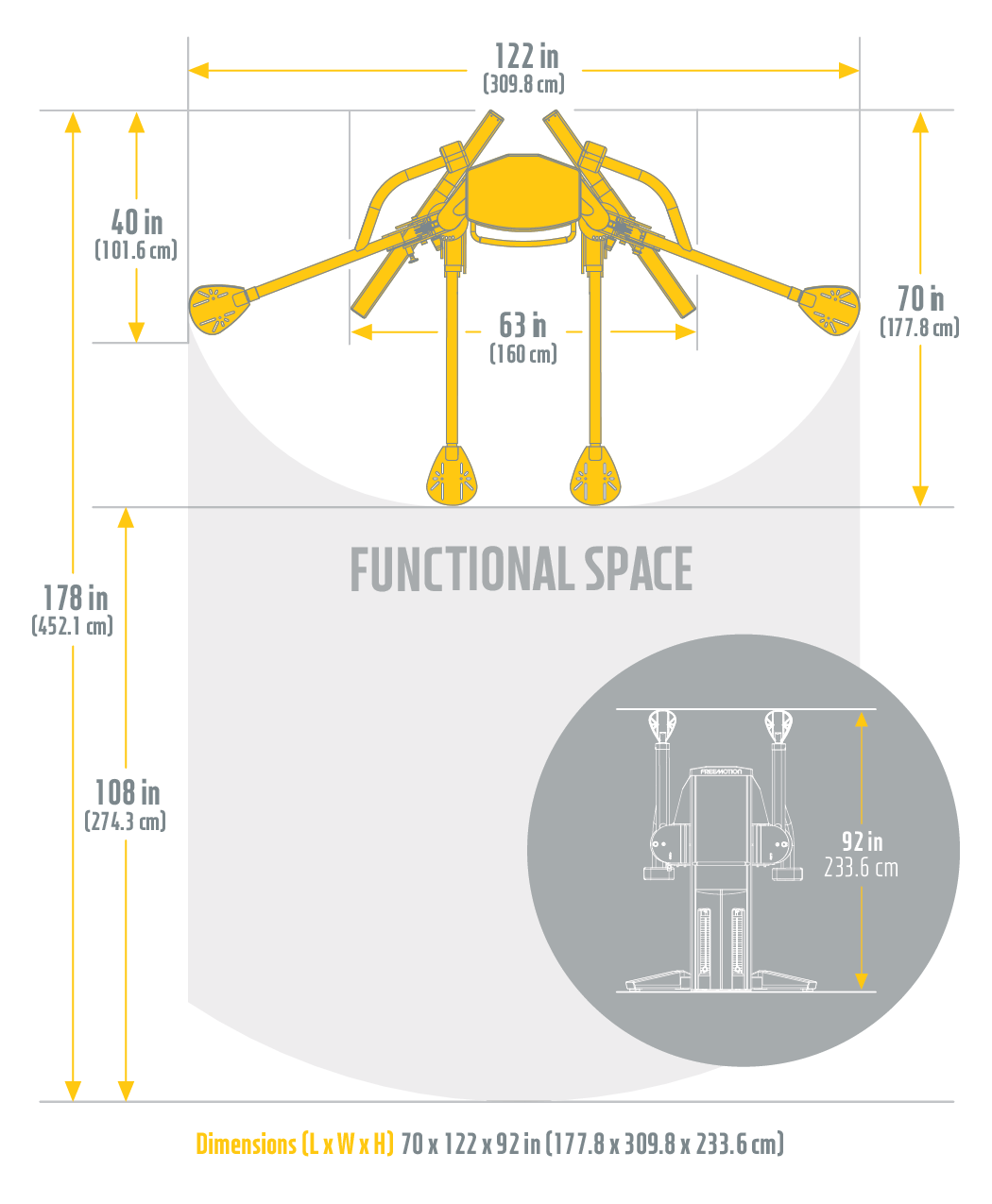

    Product Dimensions & Weight
    • Min Footprint L x W x H in (cm) 40 x 63 x 74 in
      (177.8 x 160 x 188 cm)
    • Max Extensions L x W x H in (cm) 70 x 122 x 92 in
      (177.8 x 309.8 x 233.6 cm)
    • Machine Weight lb (kg) 1,246 lbs (565.1 kg)
    Shipping Dimensions & Weight
    • Shipping Weight lb (kg) 1,246 lbs (565.17 kg)
    • Shipping L x W x H in (cm) 62 x 42 x 76 in
      (157.4 x 106.6 x 193 cm)
    Regulatory Approvals
    • Approvals EN957, CE
    Warranty (US)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Labor 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
  • Documents
    PDF Downloads
G624-3Q

Build Your Complete Space

G424-3Q
DUAL CABLE CROSS LITE
G625-3Q
CABLE COLUMN
GD500 3Q Black
CHEST / SHOULDER
G600-3Q
MULTI-PLANE CHEST
G601-3Q
MULTI-PLANE SHOULDER
G626-3Q
MULTI-PULL / ROTATION LOW
G627-3Q
MULTI-PULL / ROTATION HIGH
G604-3Q
ROW
G607-3Q
MULTI-PLANE CALF
G628-3Q
TOTAL QUAD / HIP
G629-3Q
TOTAL GLUTE / HAMSTRING
G612-3Q
MULTI-PLANE LIFT

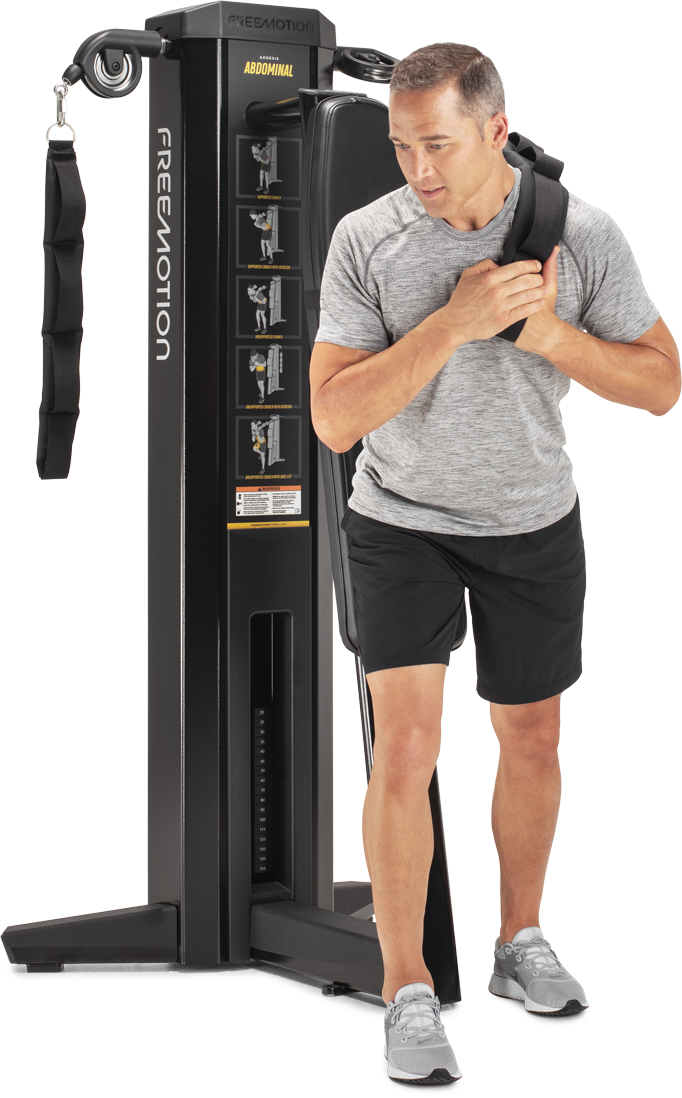

G611-3Q
