Ellipticals
e10.9b-Elliptical_3Q
FMEL84418

e10.9b ELLIPTICAL

Low impact, all adventure. The e10.9b Elliptical comes with a simplified console that can be upgraded with the addition of a smart device. Sync the iFit-compatible machine with a smart device and the elliptical will match the resistance to recreate the actual route on the screen. The elliptical's foot placement makes the run, walk or ski easier on the knees, joints and back.
e10.9b_FMEL84418_2

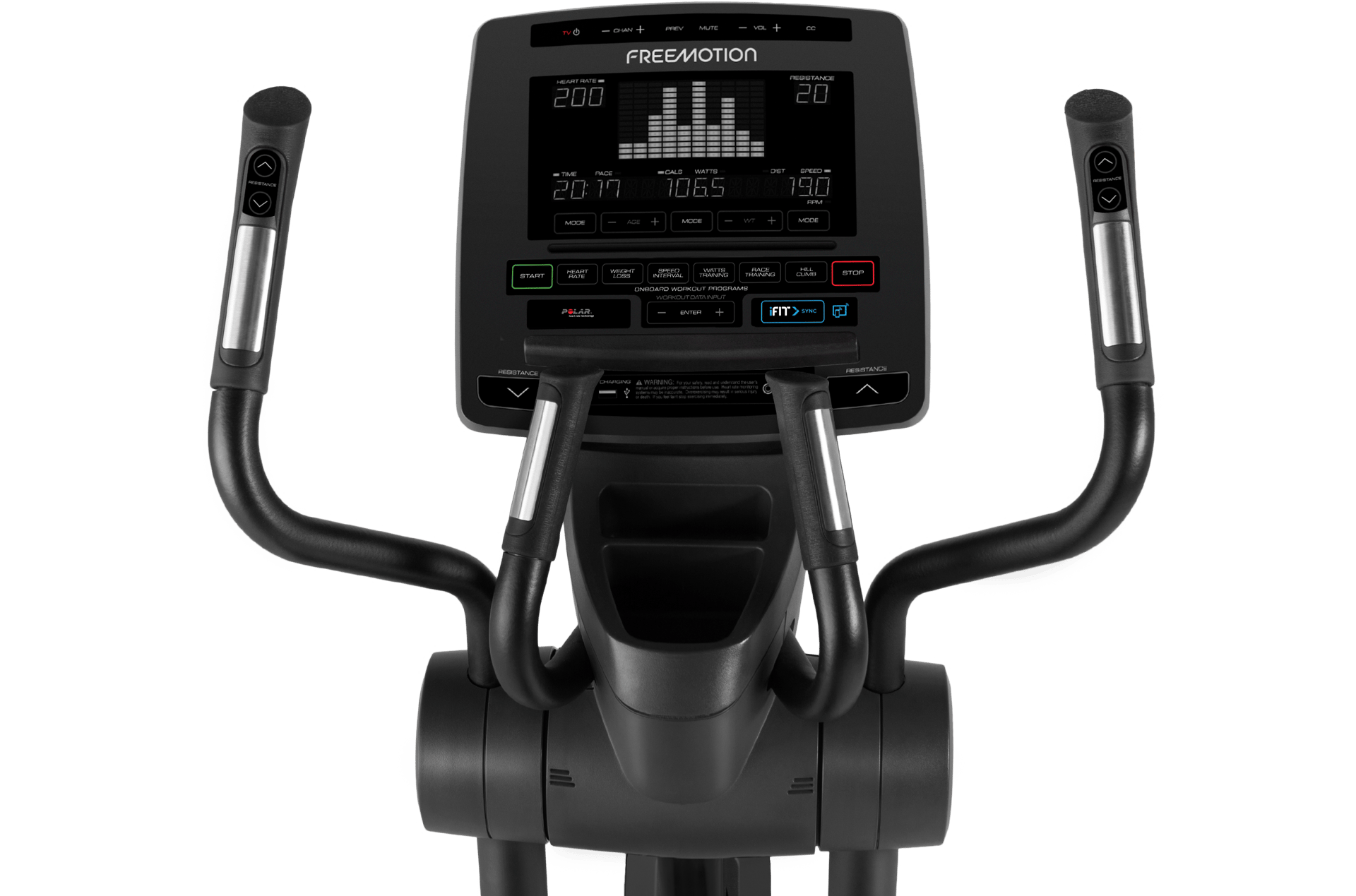

Simplified User Interface

Get all the workout information you need in one place. Easy-to-read results lets you know what you’ve accomplished during the workout.

e10.9b_FMEL84418_4

IFit® Sync

The console of the e10.9b Elliptical goes from simple to interactive when synced with a smart device. As the industry’s first “Bring Your Own Device”-solution, the elliptical has resistance matching technology to recreate the actual terrain of video workouts filmed around the world.

e10b-Grips

Upper-Body Workout Arms With Soft Grips

Get a total-body, low-impact workout with upper-body workout arms. Elliptical training engages the entire body, burns more calories and tones more muscle for faster results.

Details & Specs

e10.9b-Elliptical_3Q
  • Features
    Built-in Workouts

    Choose between preset workouts, fitness tests, or heart rate control workouts with the touch of a button.

    Quick Select Start & Stop

    Start and stop the workout at anytime with the simple touch of a button.

    Non-Skid Traction Control Cushion Pedals

    Stay stable and comfortable through every stride with non-skid, traction control cushion pedals designed to fit multiple users with a secure grip.

    24 Levels of Digital Resistance

    To burn more calories, increase intensity and improve muscle tone, simply adjust the elliptical's resistance with convenient one-touch resistance controls.

    Dual-Grip Pulse Sensors

    Get in the heart-healthy zone with these built-in handlebar sensors.

    Rear-access design

    To maximize floor space and increase user safety, the e10.6 Elliptical was built with a rear-access design. It saves space and allows the user to enter and exit the machine in one easy step.

    Rear mobility wheels

    The nice-to-have wheels make this machine as mobile as it is effective. Tip up one end to move the elliptical from one place to another.

    Electronic Readouts

    A simplified console lists Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace

    Upper body workout arms with pulse sensors

    Get a total-body, low-impact workout with upper-body workout arms. Elliptical training engages the entire body, burns more calories and tones more muscle for faster results.

    Personal Entertainment

    Entertainment capabilities make the workout experience even better. Add an optional 15.6 in (39 cm) Personal HDTV Screen.

  • Specifications
    Equipment Features
    • Accessories Holder(s) Water bottle holder
    • Resistance System 400 Watt self-generator resistance system
    • Drive System Quiet Belt Drive System, Hutchinson J10 Space-efficient rear drive
    • Grips Soft touch upper body grips
    • Gear Ratio 8.85:1
    • Stride Length (in/cm) 20 in (50.8 cm) stride length
    • Transport Wheels 3.3 in (8.38 cm) plastic wheels
    Drive Train
    • Pulley 12.2 in (30.9 cm)
    • Crank Axle Axle with crank arms
    • Crank 2 PC, 20 in (50.8 cm) Stroke
    • Drive Belt Quiet Belt Drive System
    • Pedals Non-skid, traction control cushion pedals
    Entertainment
    • Optional Upgrades 15.6 in (39 cm) Personal TV with on-console controls (FMTV84414),
      900/800 MHz TV receiver (MYE900RCVR)
    • WiFi Requirements 10Mpbs per unit download
      500Kpbs per unit upload
    • CSAFE Enabled Yes
    Console Features
    • Display Type Simplified User Interface
    • Console Language(s) EN, ES, DE, IT, PT, CH, NL, FR
    • Preset Programs 8 Weight Loss
      8 Speed Interval
      3 Race Training
      3 Hill Climb
      Heart Rate
      Watt Training
    • Number of Programs 24
    • Electronic Readouts Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace
    • Maximum Workout Time 99:59 (99 Minutes + 59 Seconds)
    • Maximum Pause Time 60 Seconds
    • Controls Digital resistance control
    Equipment Dimensions & Weight
    • Machine Weight lbs (kg) 286.4 lbs (130.2 kg)
    • Equipment L x W x H in (cm) 85 x 27 x 63 in (215.9 x 68.5 x 160 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lbs (kg) 301.8 lbs (137.2 kg)
    • Shipping L x W x H in (cm) 91.7 x 32.6 x 25.9 in (232.9 x 82.8 x 65.7 cm)
    Equipment Specifications
    • Step-up Height in (cm) 9.5 in (24.1 cm)
    • Maximum User Weight lbs (kg) 400 lbs (182 kgs)
    Power Requirements
    • U.S. & Canada Input 110~240V Output 15V 3A
    • International Input 240 VAC
    Regulatory Approvals
    • Approvals FCC, BQB
    Warranty (US)
    • Frame 7 Years
    • Parts (Electronic) 2 Years
    • Parts (Mechanical) 2 Years
    • Console 1 Year
    • Labor 1 Year
    Warranty (International)
    • Frame 7 Years
    • Parts (Mechanical) 2 Years
    • Parts (Electronic) 2 Years
    • Console 2 Years
  • Warranties
    High-Usage (US & Canada)
    • Frame (not including coatings), Drive Motor 7 Years
    • Parts and Console 2 Years
    • Labor 1 Year
    • Cosmetic & Wear Items* 6 Months

      *Includes Non-warning Decals, Deck Rails, Pulse Grips, USB, Audio Jack, Handrails, Motor Hood, Fan Levers, Water Bottle Holders, Pedals, Pedal Straps, Seats, Handles/Levers/Knobs, Hand Grips, Removable Trays, Weight Pins, Springs, Belts (except Walking Belts), Accessories, Rust on Any Metal Components.
    High-Usage (International)
    • Frame (not including coatings), Drive Motor 7 Years
    • Parts and Console 2 Years
    • Labor 1 Year
    • Cosmetic & Wear Items* 6 Months

      *Includes Non-warning Decals, Deck Rails, Pulse Grips, USB, Audio Jack, Handrails, Motor Hood, Fan Levers, Water Bottle Holders, Pedals, Pedal Straps, Seats, Handles/Levers/Knobs, Hand Grips, Removable Trays, Weight Pins, Springs, Belts (except Walking Belts), Accessories, Rust on Any Metal Components.
    Low-Usage (US & Canada)**
    • Low-Usage (**) Meaning For non-dues paying facilities with machine usage of 6 hours or less per day.
    • Frame (not including coatings), Drive Motor 7 Years
    • Parts and Console 3 Years
    • Labor 3 Years
    • Cosmetic & Wear Items* 6 Months

      *Includes Non-warning Decals, Deck Rails, Pulse Grips, USB, Audio Jack, Handrails, Motor Hood, Fan Levers, Water Bottle Holders, Pedals, Pedal Straps, Seats, Handles/Levers/Knobs, Hand Grips, Removable Trays, Weight Pins, Springs, Belts (except Walking Belts), Accessories, Rust on Any Metal Components.
    Low-Usage (International)**
    • Low-Usage (**) Meaning For non-dues paying facilities with machine usage of 6 hours or less per day.
    • Frame (not including coatings), Drive Motor 7 Years
    • Parts and Console 3 Years
    • Labor 1 Year
    • Cosmetic & Wear Items* 6 Months

      *Includes Non-warning Decals, Deck Rails, Pulse Grips, USB, Audio Jack, Handrails, Motor Hood, Fan Levers, Water Bottle Holders, Pedals, Pedal Straps, Seats, Handles/Levers/Knobs, Hand Grips, Removable Trays, Weight Pins, Springs, Belts (except Walking Belts), Accessories, Rust on Any Metal Components.
  • Documents
    PDF Downloads
