FMDY14MBR

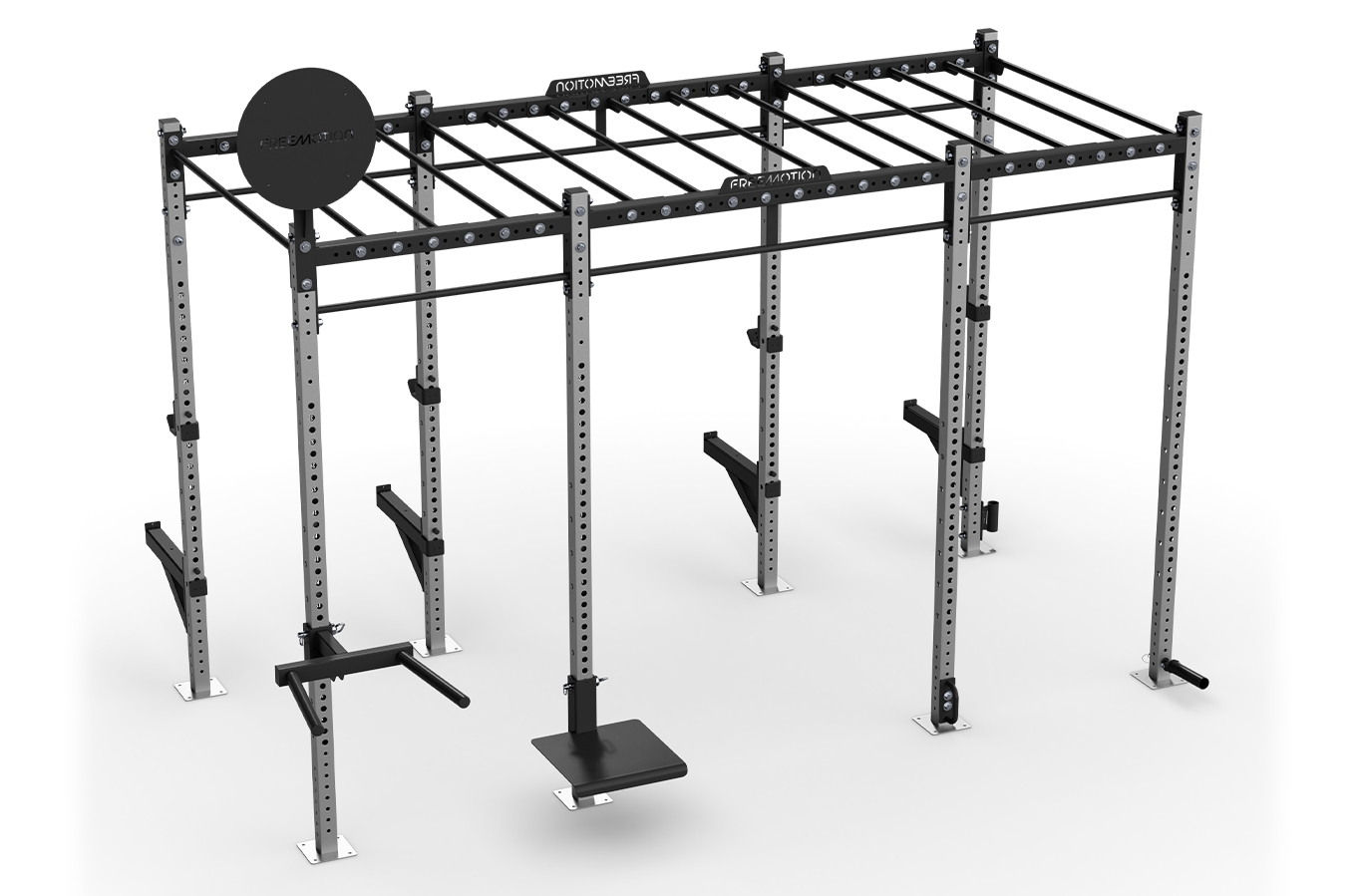

14′ MONKEY BAR RIG

Invigorate members and bring in new traffic with functional, circuit training on your new Freemotion 14 ft (4.2 m) Monkey Bar Rig. Supporting a training group of eight to ten people, this Monkey Bar Rig has multiple workout stations to create cardio, strength and stability training. A dip station, squat rack, monkey bars, landmine, ball target, plyo step, battle rope, chin-up bar, pull-up bar, suspension trainers and add on options like Olympic bars and plates, this rig maximizes your square footage and creates more than new revenue, it builds a fitness community. Optional rolling plate storage keeps the area safe and clutter-free. The accessory upgrade package FMDY14MBR-99 (as pictured) is sold separately.

Details & Specs

14'-Monkey-Bar-Rig-FMDY14MBR(750px)
  • Features
    PT expanded

    Support 8-10 people simultaneously.

    Mix it up

    Dip station, squat rack, monkey bars, landmine, ball target, plyo step, battle rope, chin-up bar, pull-up bar, optional Olympic bars and plates, suspension trainers and so much more.

    Do more

    Optional rolling plate storage keeps the area safe and clutter-free.

  • Specifications
    Product Specifications
    • Standard Frame Colors Eagle White-03-T, Sky White-29-G, Black-01-T, Bike Black-24-G, Ebony Chrome-02-T, Ebony Chrome-02-G, Silvadillo-22-T, Sun Gold-21-T, Sun Gold-21-G, Dynamic Yellow-20-T, Dynamic Yellow-20-G, Sgnl Yellow-12-T, Sgnl Yellow-12-G, Sgnl Orange-14-T, Sgnl Orange-14-G, River Red-04-T, Red Baron-30-G, Maroon-23-T, Maroon-23-G, Purple Wave-19-T, Purple Wave-19-G, Navy Blue-25-T, Navy Blue-25-G, Royal Blue-26-T, Royal Blue-26-G, Sky Blue-27-T, Sky Blue-27-G, Pastel Blue-28-T, Pastel Blue-28-G, Leaf Green-10-T, Leaf Green-10-G, Mint Green-17-T, Mint Green-17-G, Yellow Green-11-T, Yellow Green-11-G
    • Included Attachments • 2- Pair Take Off J-Cups

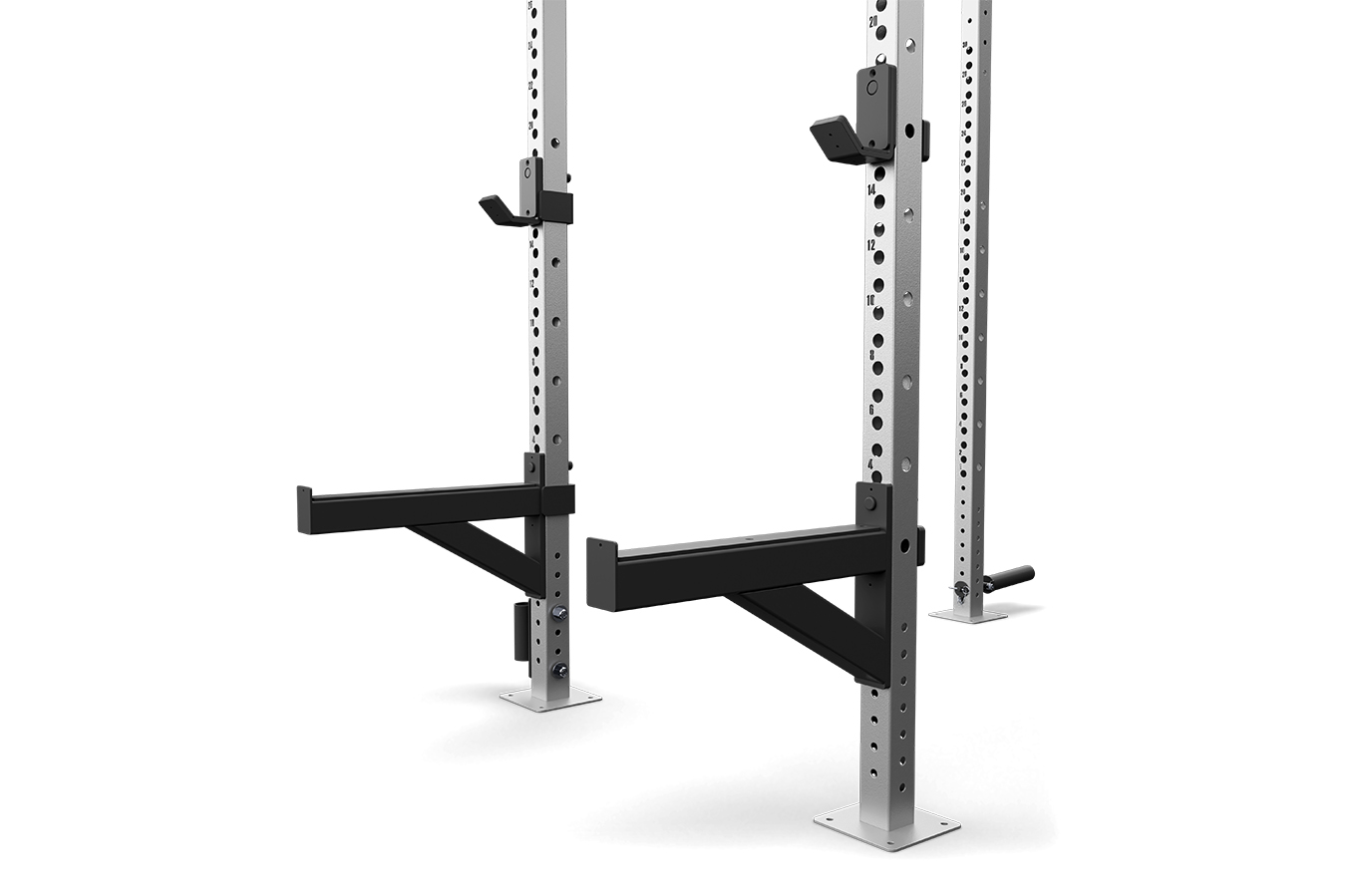

      • 2- Pair Safety Arms

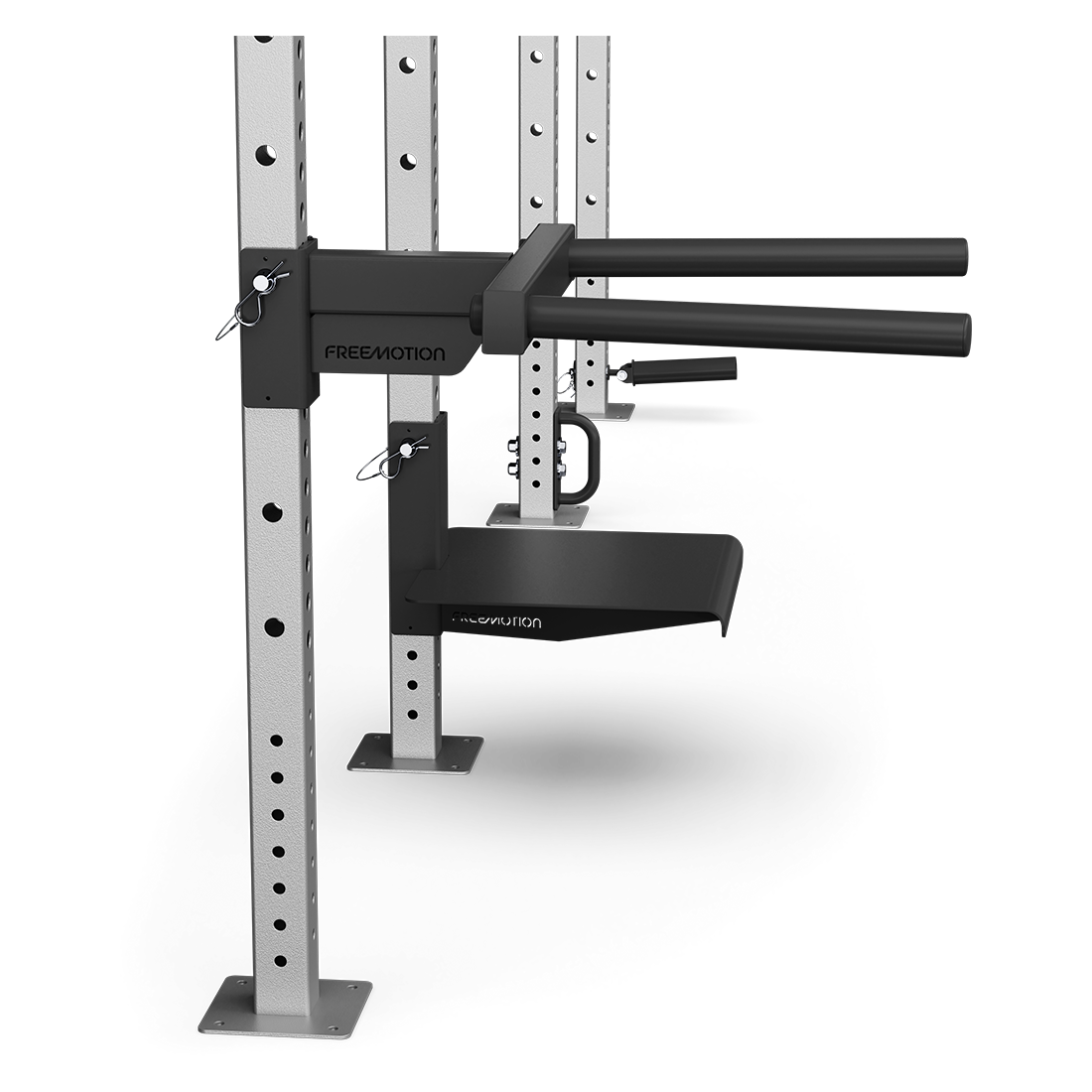

      • 1- Dip Station
      • 1- Landmine

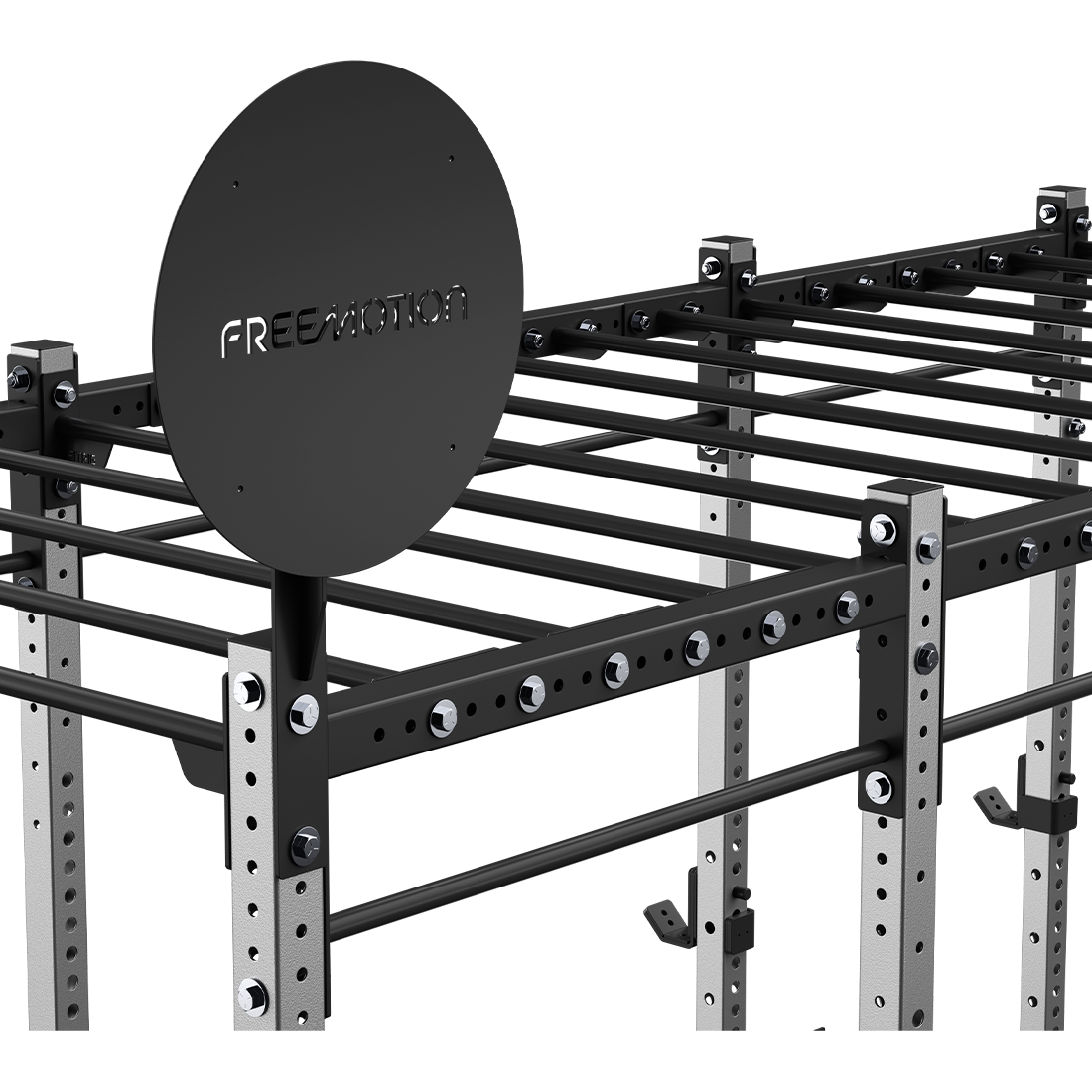

      • 1- 22 in (55.8 cm) Ball Target W/ Logo
      • 1- D-Handle
      • 1- Plyo Step
      • 1- Single Bar Frame Storage
    • Accessory Upgrade Package • 3- Olympic Bars
      • 4- Spring Collars
      • 8- 45 lbs (20.4 kg) Bumper Plates
      • 6- 25 lbs (11.3 kg) Bumper Plates
      • 6- 10 lbs (4.6 kg) Bumper Plates
      • 1- 30 ft x 1.5 in (9.1 m x 3.8 cm) Battle Rope
      • 2- Rolling Plate Storage
      • 3- Rip:60 Suspension Trainers
    • Workout Area L x D ft (m) 16 x 24 ft (4.8 x 7.3 m)
    Equipment Features

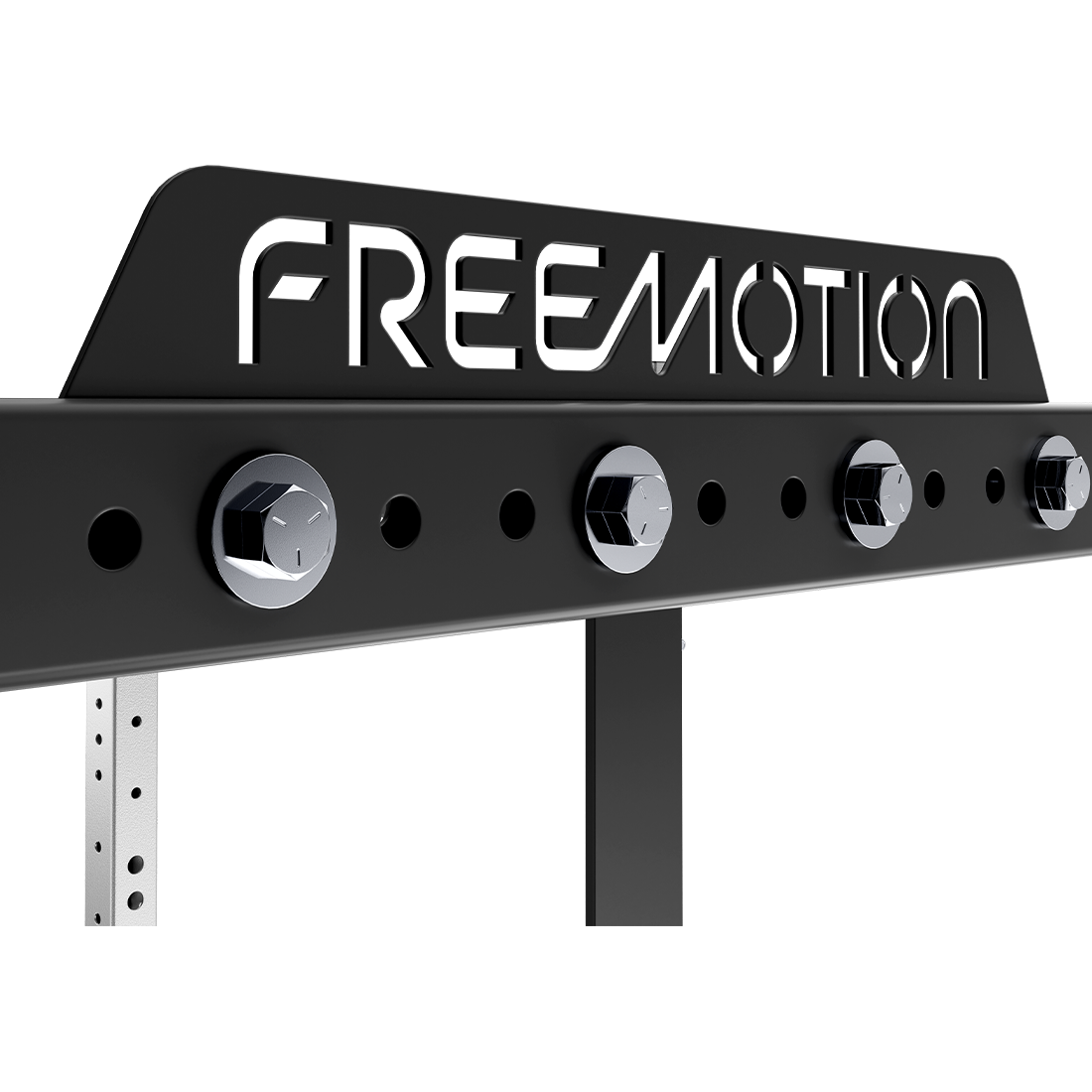

    • Frame and Finish 11-Gauge 3 x 3 in (7.6 x 7.6 cm) Tubular Steel Frame
    • Frame Contents • 8- Uprights 9 ft (2.7 m)
      • 4- Single Bars 6 ft (1.8 m)
      • 2- XD Doubles 6 ft (1.8 m)
      • 4- XD Double Bars 4 ft (1.2 m)

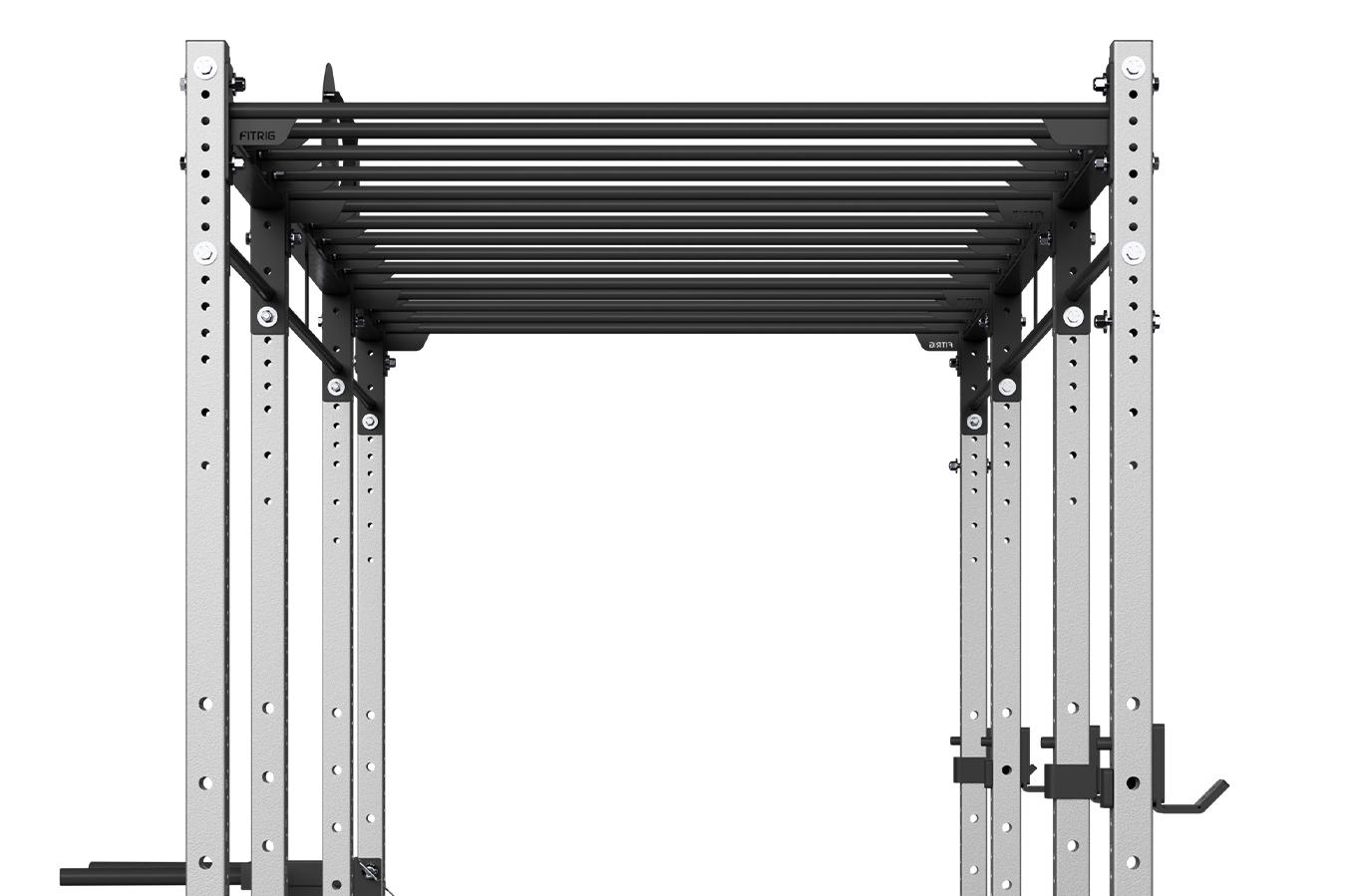

      • 11- Single Monkey Bars 6 ft (1.8 m)
      • 8- Hex Anchor Bolt Kits (4 Ea.)
    Product Dimensions & Weight
    • L x W x H in (cm) 192 x 96 x 135.6 in
      (487.6 x 243.8 x 344.4 cm)
    Warranty (US)
    • Structural Steel Frame Lifetime
    • Wear Guards/UHMW 5 Years
    • Rubber and Plastic 5 Years
    • Finish 5 Years
    • Fitness Products 1 Year
    • Pads, Grips, Components 1 Year
    • Accessory Products 90 Days
