Genesis DS

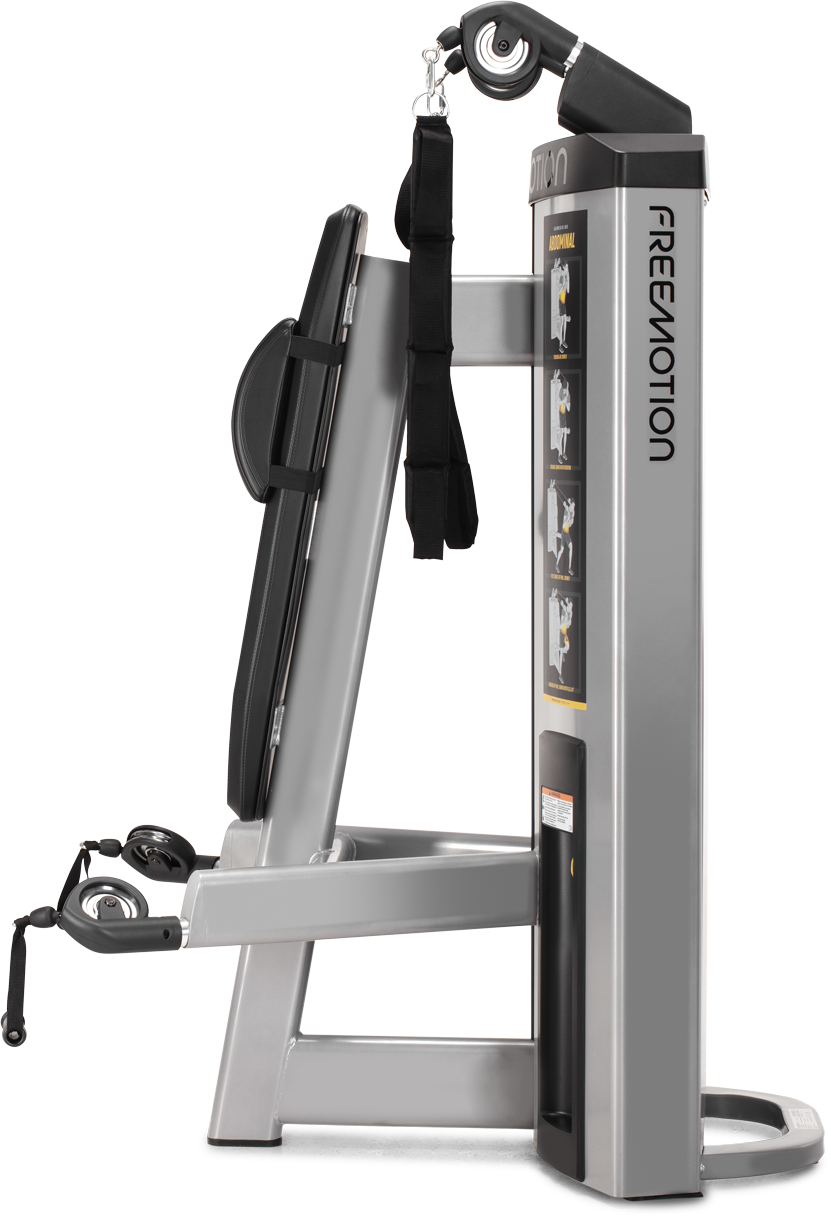

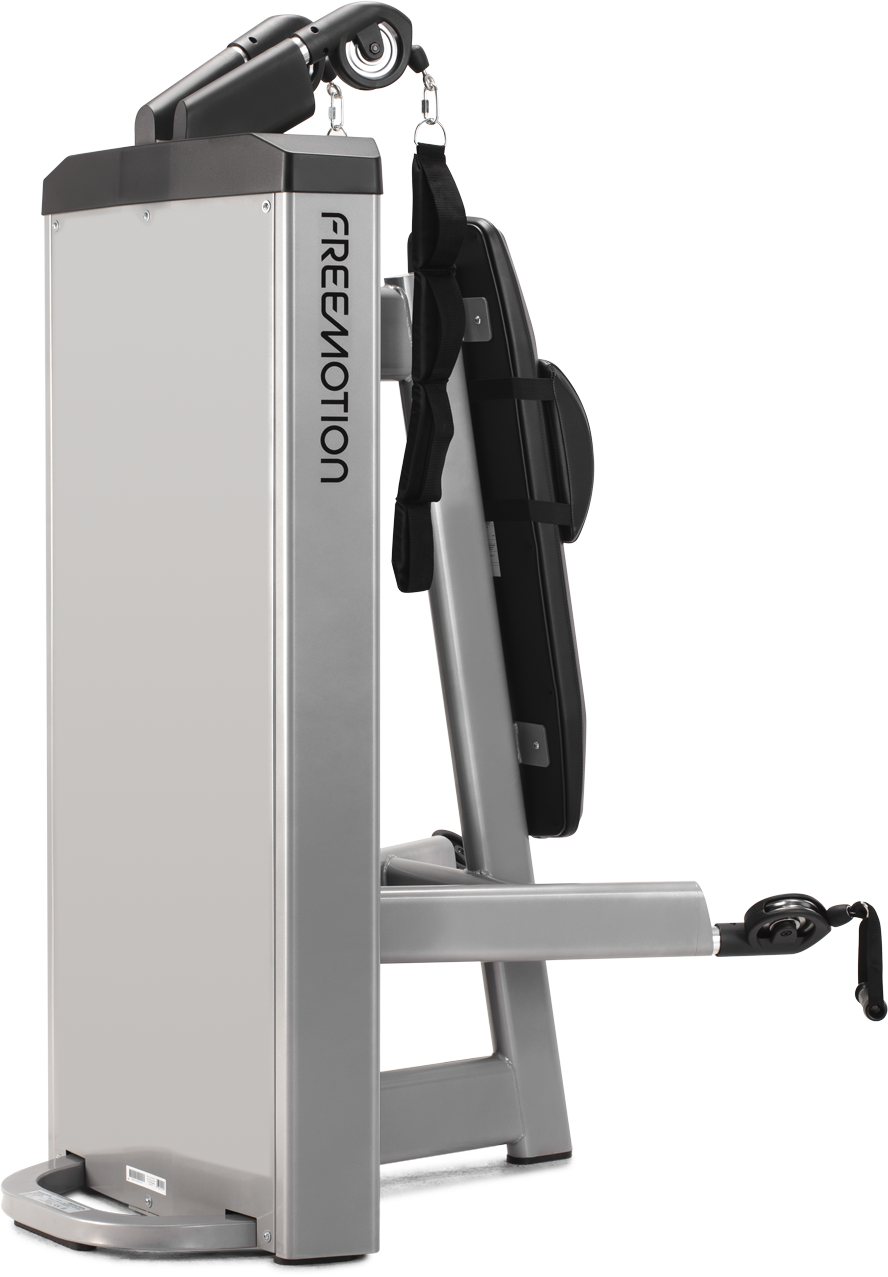

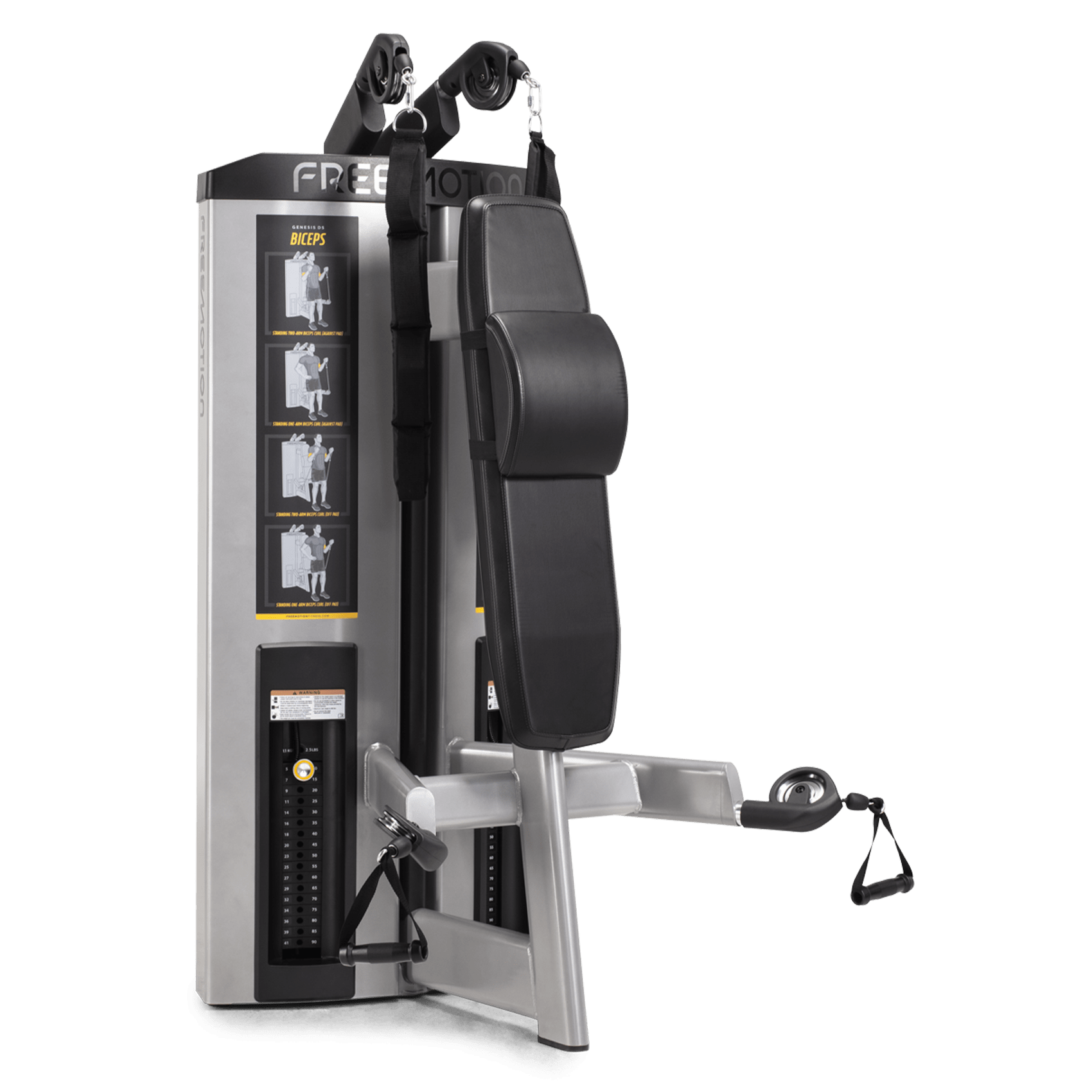

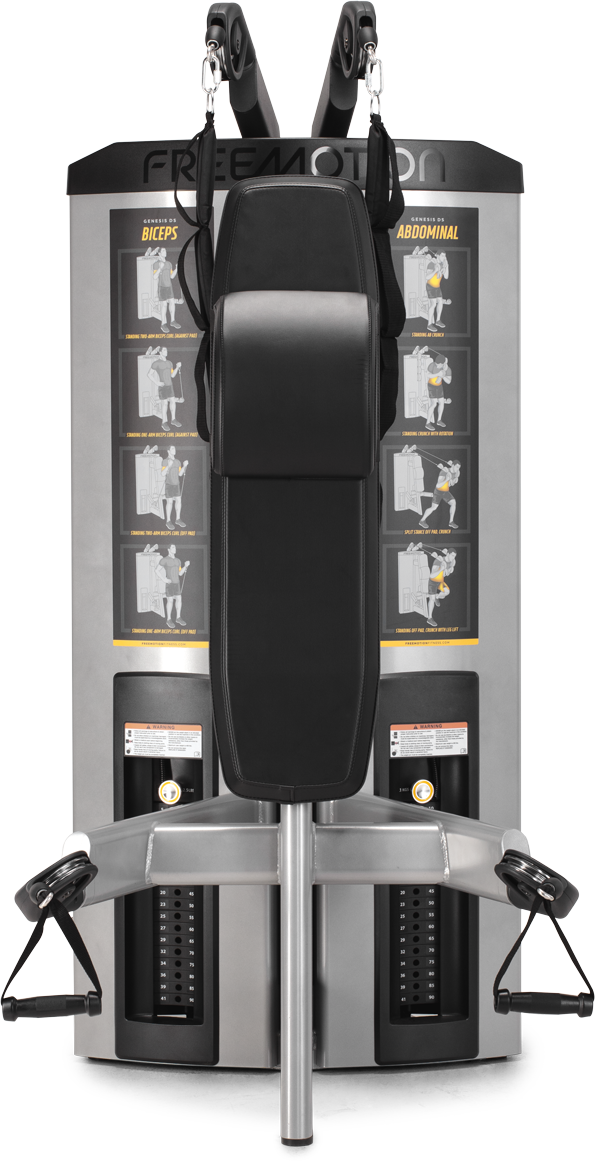

GD501 STUDIO 1314 Black
GD501

ABDOMINAL / BICEPS

Freemotion has combined biceps strength training with abdominal training in one dynamic machine. The Genesis DS Abdominal/Biceps creates a cable-based workout with aluminum swivel pulleys that target the core, upper, lower and oblique abdominals, arms and shoulders.

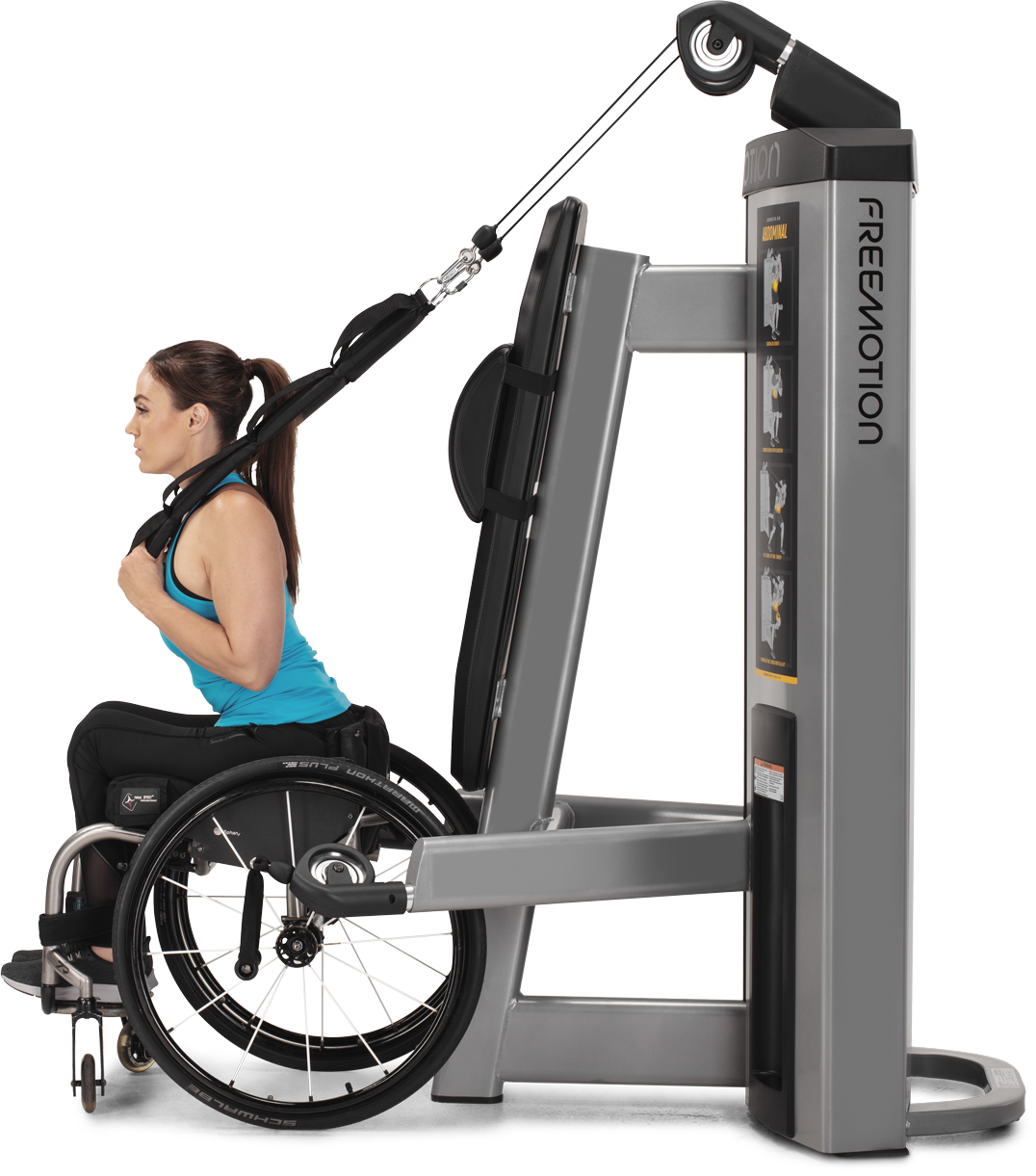

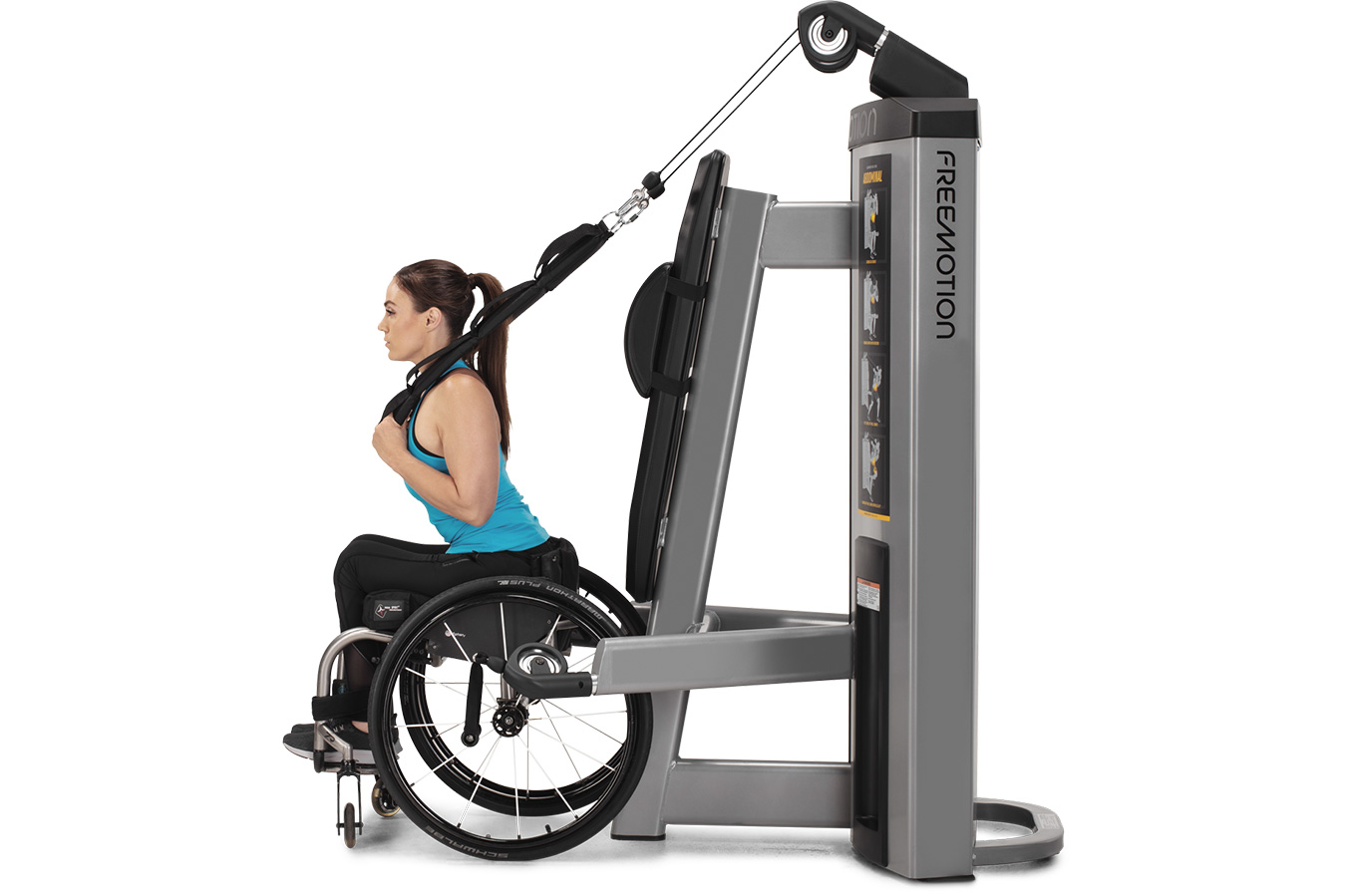

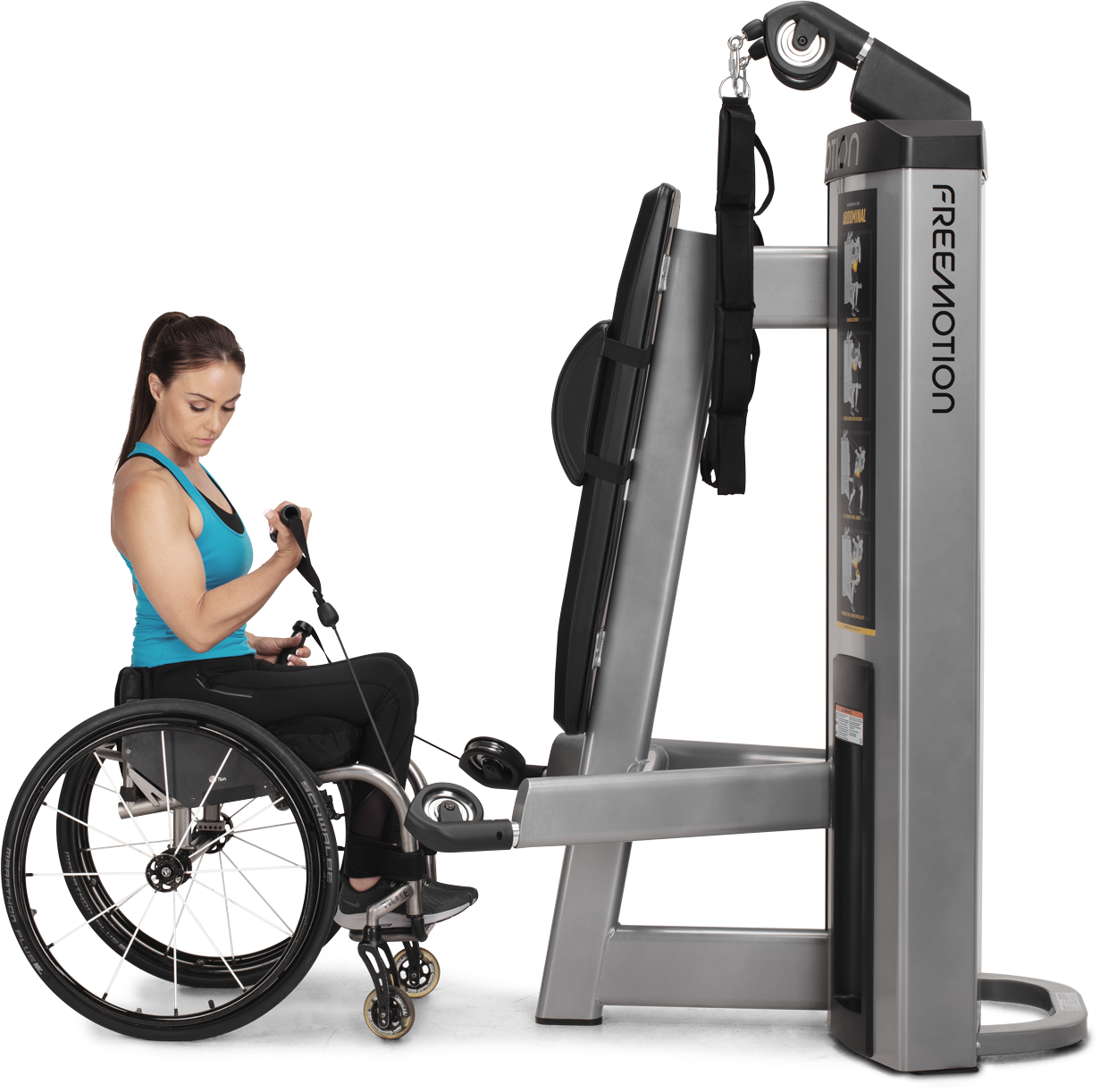

GD501-Profile-ft-Wheele

Wheelchair Accessible

The open design of this piece makes it wheelchair accessible and welcoming to users of all fitness levels.

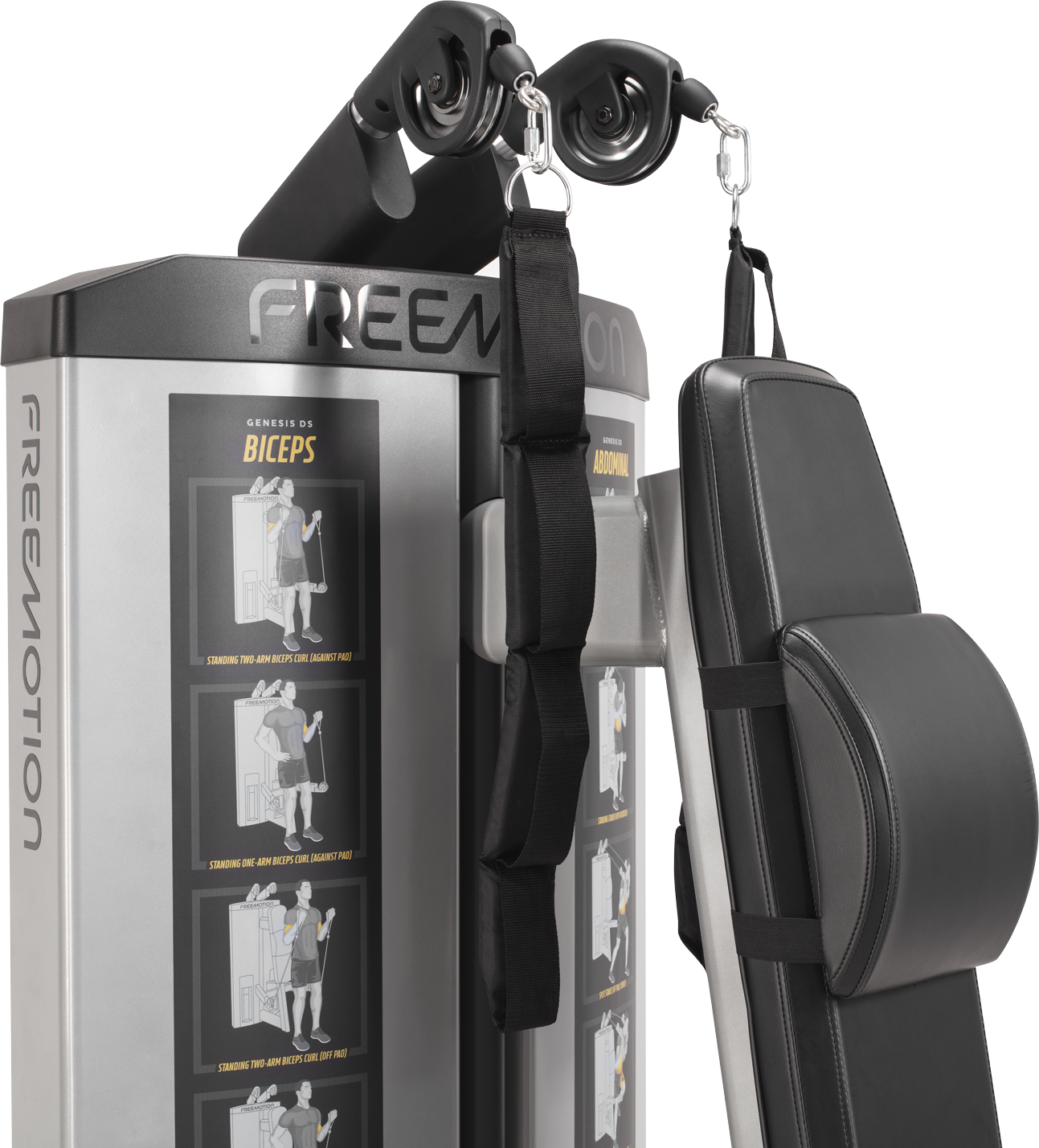

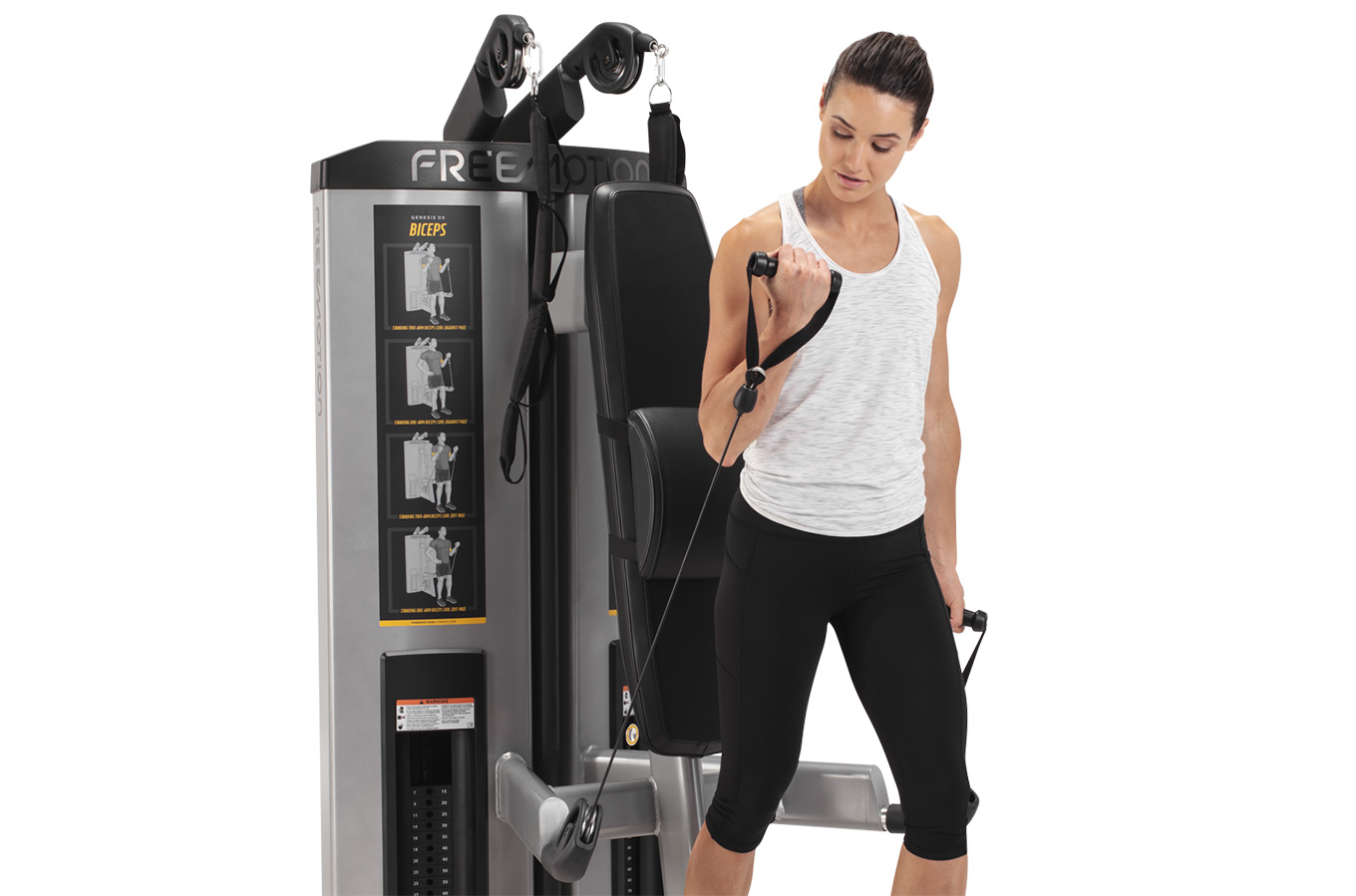

GD501-3Q-ft-crop

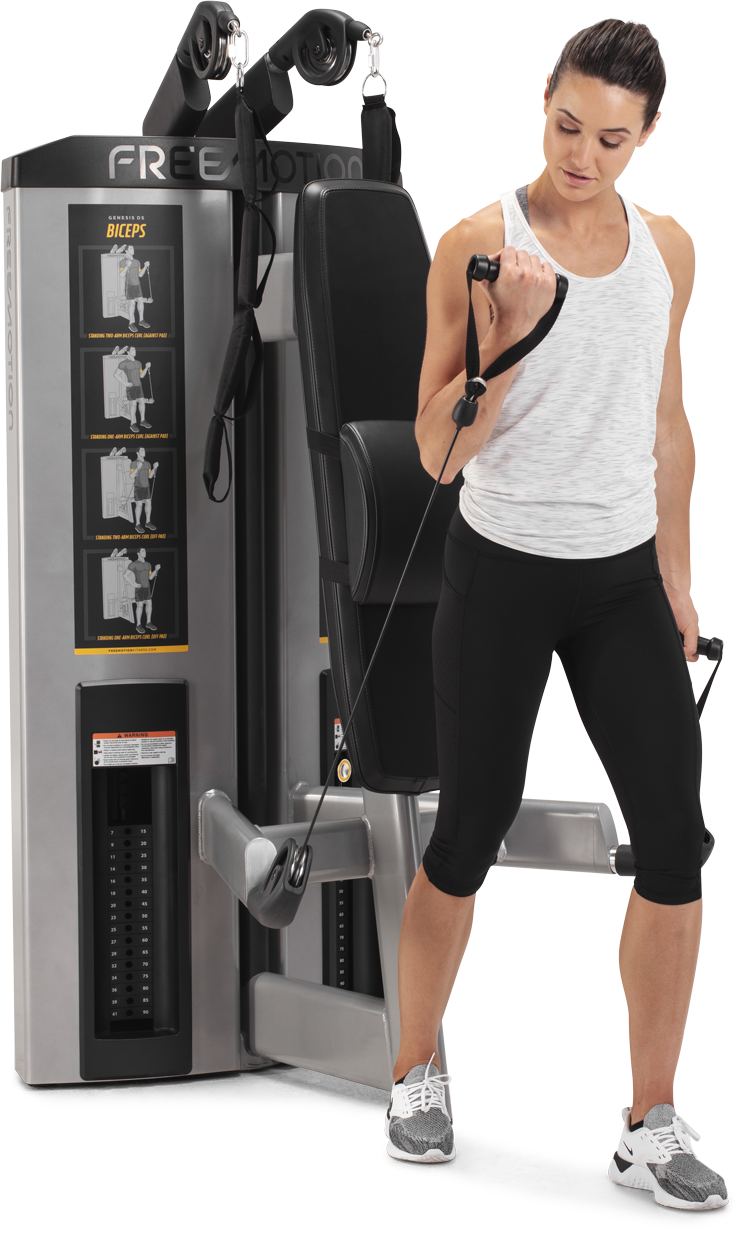

Take The Lead

Handles move one at a time to create shoulder exercises that also target abdominal and bicep muscles.

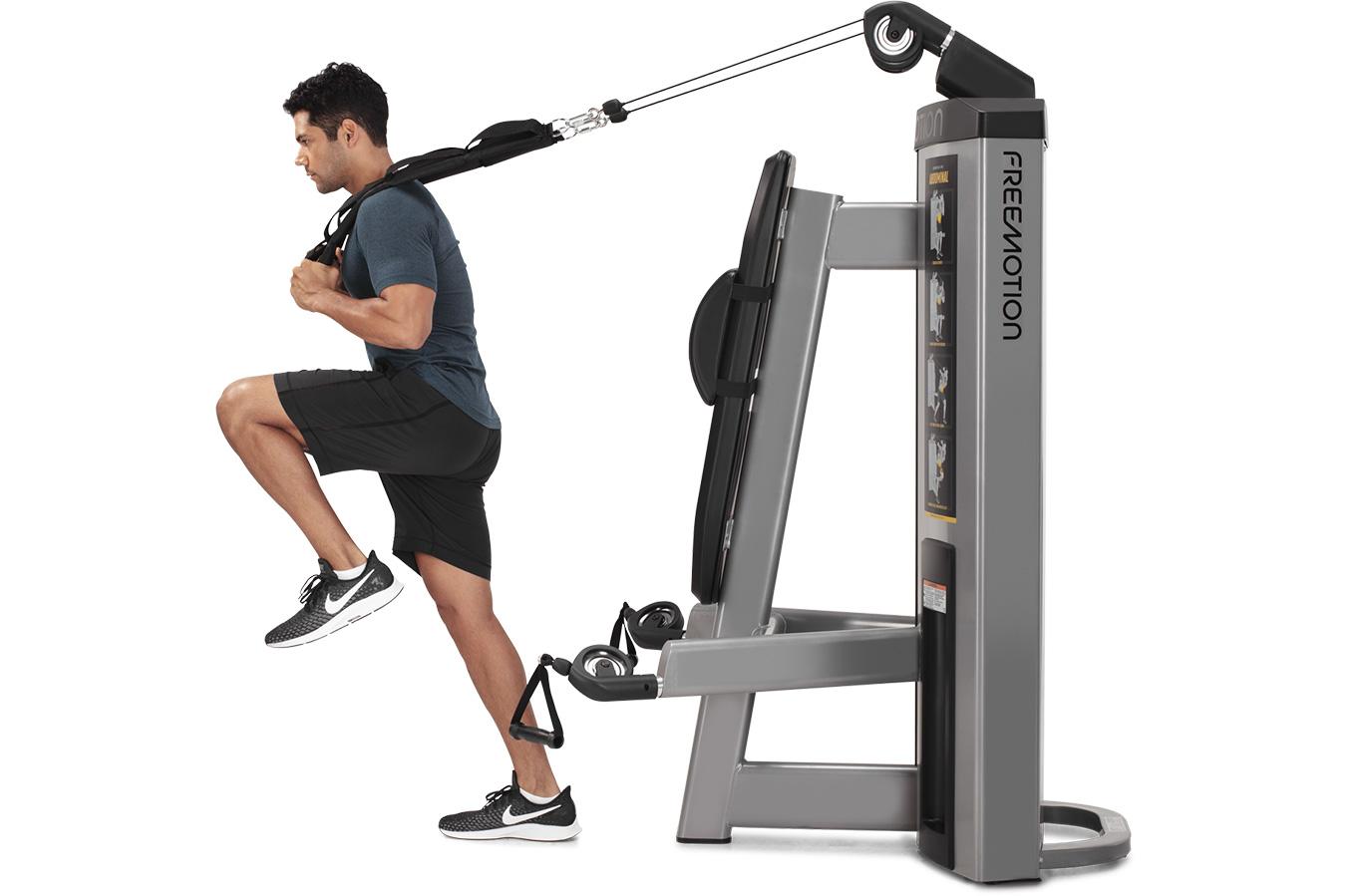

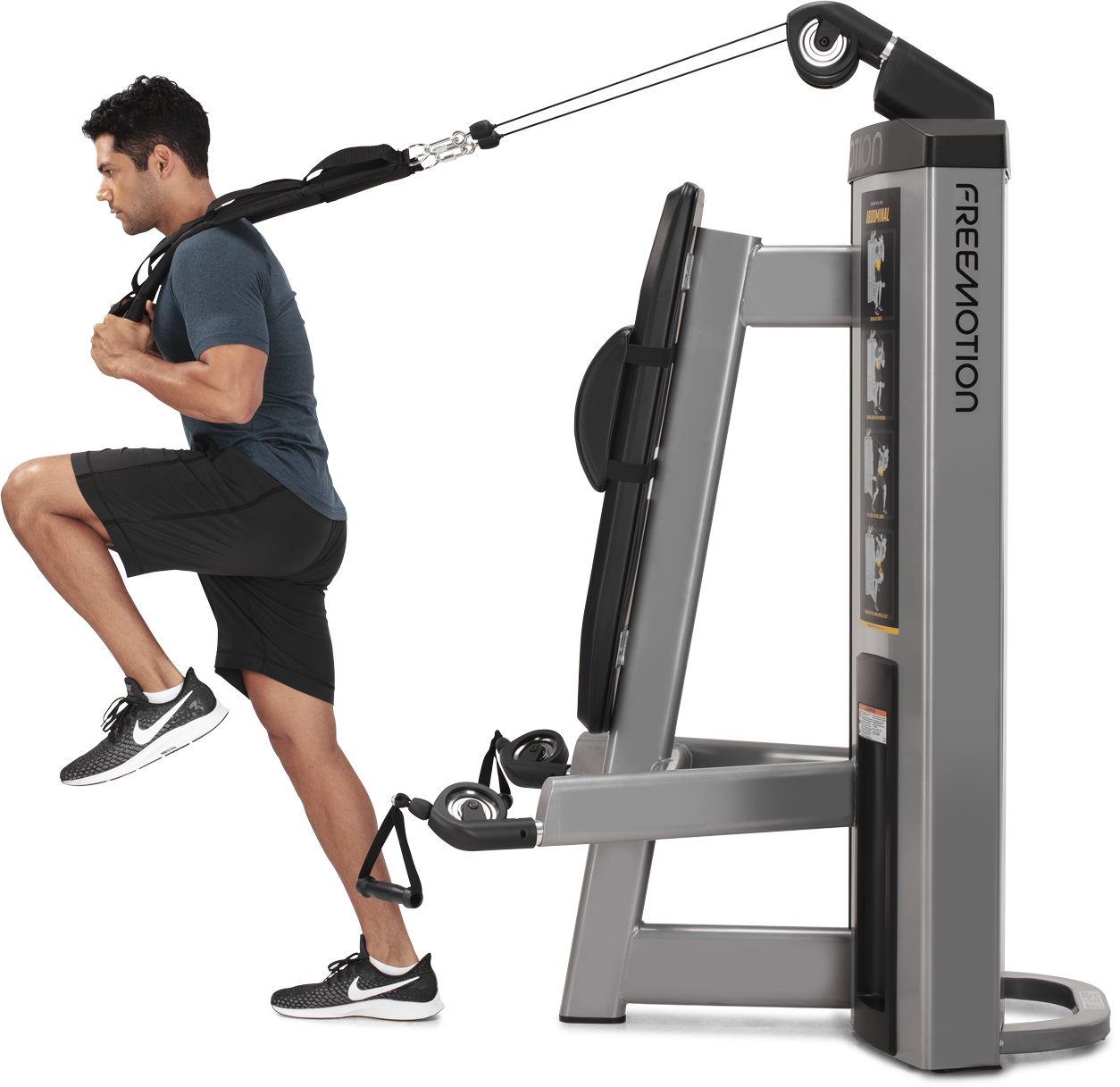

GD501-Profile-mt

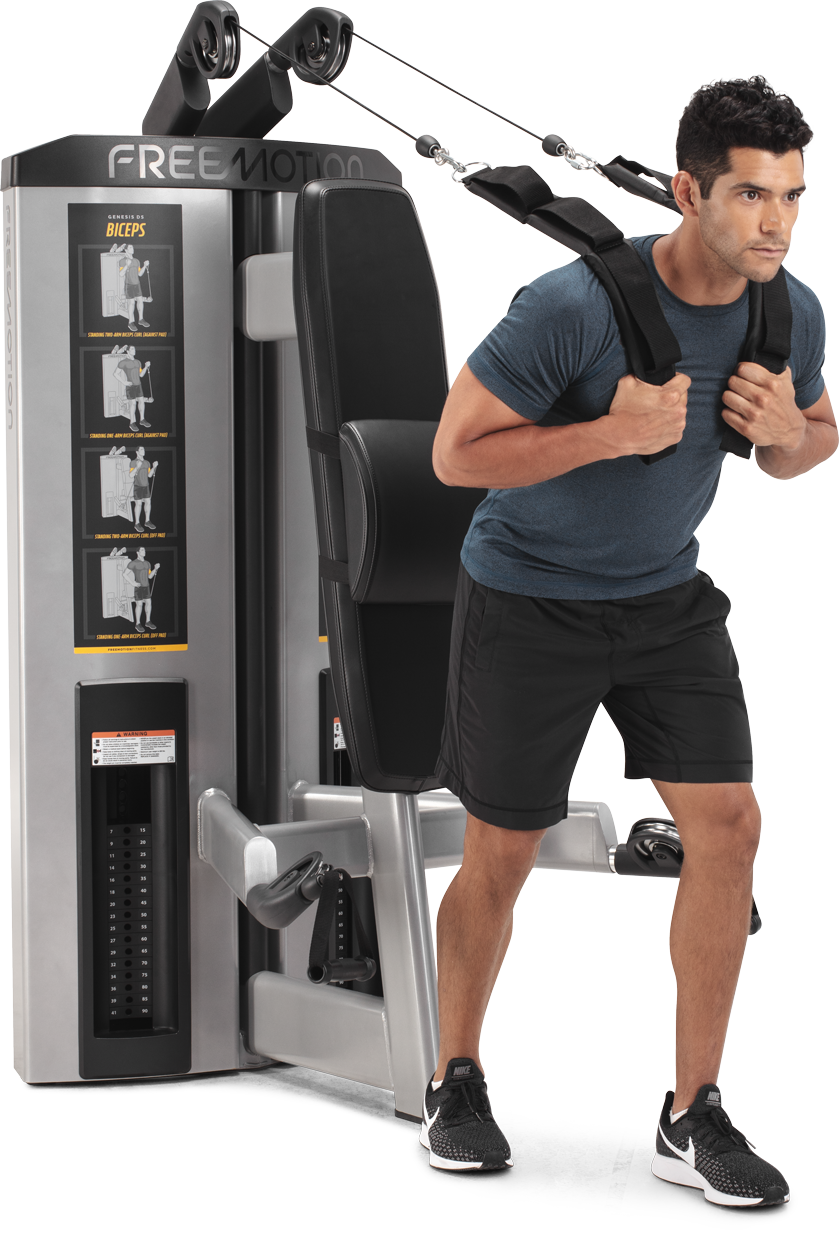

Pinpoint Your Focus

Because the aluminum pulleys on this Freemotion machine swivel, it’s easy to target specific muscles groups while strengthening stabilization and balance.

Details & Specs

GD501 STUDIO 1314 Black
  • Features
    Made To Last

    Built tough and made to last, the Genesis DS Ab/Bicep can accommodate up to 400 lbs (181 kg).

    Natural Movement

    Handles move independently to create a wide variety of shoulder exercises that target abdominal and bicep muscles.

    Cable Travel

    Extensive cable travel allows for a full exercise flexion of 72 inches (183 cm) per arm.

    Two Enclosed Weight Stacks

    Protected, limited access to moving parts is safer for your members and trainers.

    Industrial Construction

    This Freemotion machine is built with 11 and 7-gauge steel tubing and is electrostatically powder-coated with paint that has undergone 2,000 hours of salt spray testing.

    Multiple Abdominal Crunch/Bicep Curl Options

    Engage abdominals and biceps in a wide variety of workout options including basic and oblique crunches, core rotation, and pronated, supined and hammer bicep curls.

    Aluminum Swivel Pulleys

    Because the pulleys swivel, specific muscles groups can be targeted and used to stabilize and balance the body.

    Wheelchair Accessible

    The open design of this piece makes it wheelchair accessible and welcoming to users of all fitness levels.

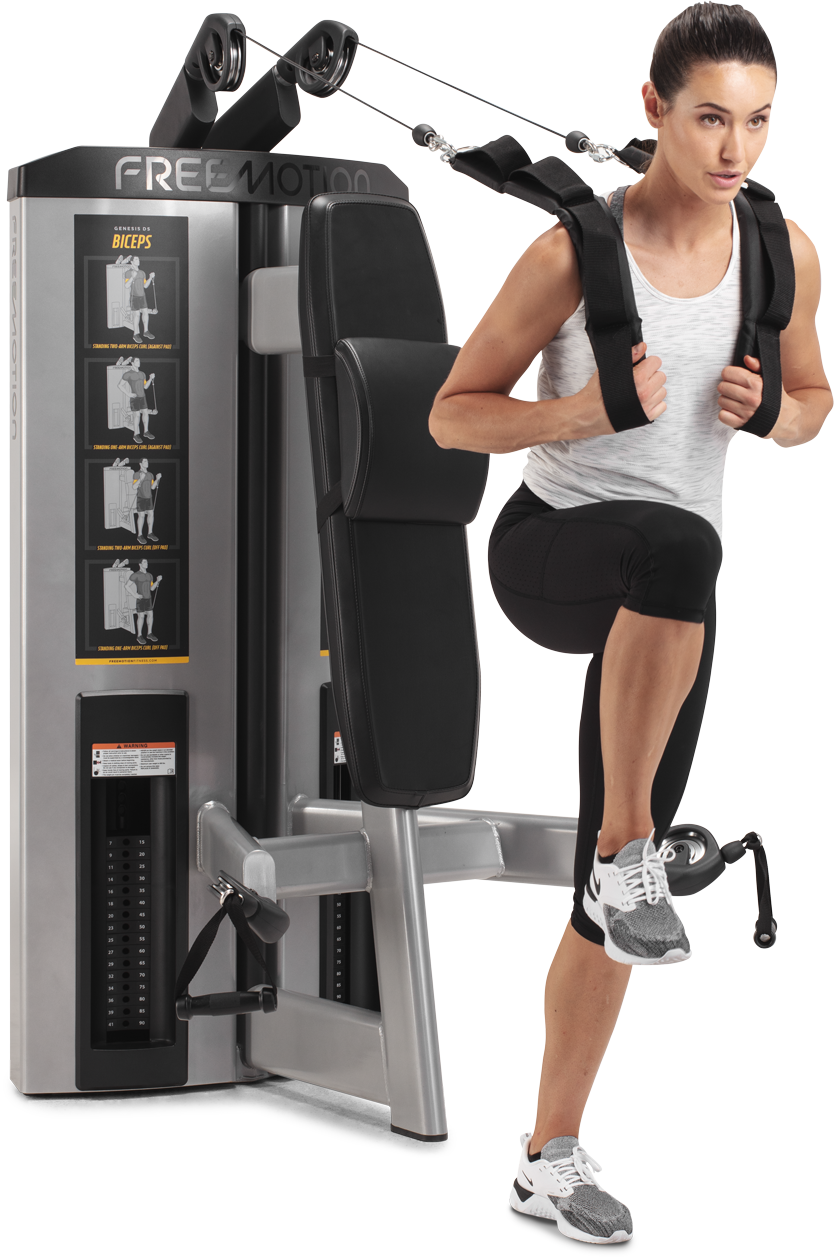

    Hit The Core And More

    Pull in the abdominals and biceps in a solid mix of workout options including basic and oblique crunches, core rotation, and pronated, supined and hammer bicep curls.

    Take The Lead

    Handles move one at a time to create shoulder exercises that also target abdominal and bicep muscles.

    Pinpoint Your Focus

    Because the aluminum pulleys on this Freemotion machine swivel, it's easy to target specific muscles groups while strengthening stabilization and balance.

  • Specifications
    Product Specifications
    • Standard Frame Colors Dell Gray
    • Plastic Colors Black, Platinum Metallic Silver, Bordeaux Red, Dell Gray
    • Standard Upholstery Colors Black Vinyl
    Equipment Features
    • Instructional Placards Yes
    • Weight Stack lbs (kg) QTY 2 - 180 lbs weight stacks (81.6 kg)
    • Upholstery Vinyl with 2 in (5 cm) thick foam
    • Pulleys Aluminum swivel pulleys
    • Cable Travel in (cm) 72 in (182.8 cm) per arm
    • Rubber Feet Soft PVC
    • Resistance lbs (kg) 1 arm: 90 lbs (40.8 kg)
      2 arms: 180 lbs (81.6 kg)
    • Weight Stack Configuration lbs (kg) 2 - 10 lbs top plates, 34 - 10 lbs plates
      (2 - 4.5 kg top plates, 34 - 4.5 kg plates)
    Product Dimensions & Weight
    • Machine Weight lb (kg) 608.6 lbs (276.1 kg)
    • Product L x W x H in (cm) 51 x 37 x 72 in (129.5 x 93.9 x 182.8 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lb (kg) 731.9 lbs (332 kg)
    • Shipping L x W x H in (cm) Box 1: 74.8 x 38.9 x 47.5 in (198.9 x 99 x 120.7 cm)
      Box 2: 38.9 x 11.8 x 5.1 in (99 x 29.9 x 13 cm)
    Regulatory Approvals
    • Approvals EN957,CE
    Warranty (US)
    • Frame 10 Years
    • Cables 1 Year
    • Parts 3 Years
    • Other 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Cables 1 Year
    • Labor 1 Year
    • Parts 3 Years
    • Other 120 Days
  • Documents
    PDF Downloads
GD501 STUDIO 1314 Black
