Epic Selectorized
ES813_3Q
ES813

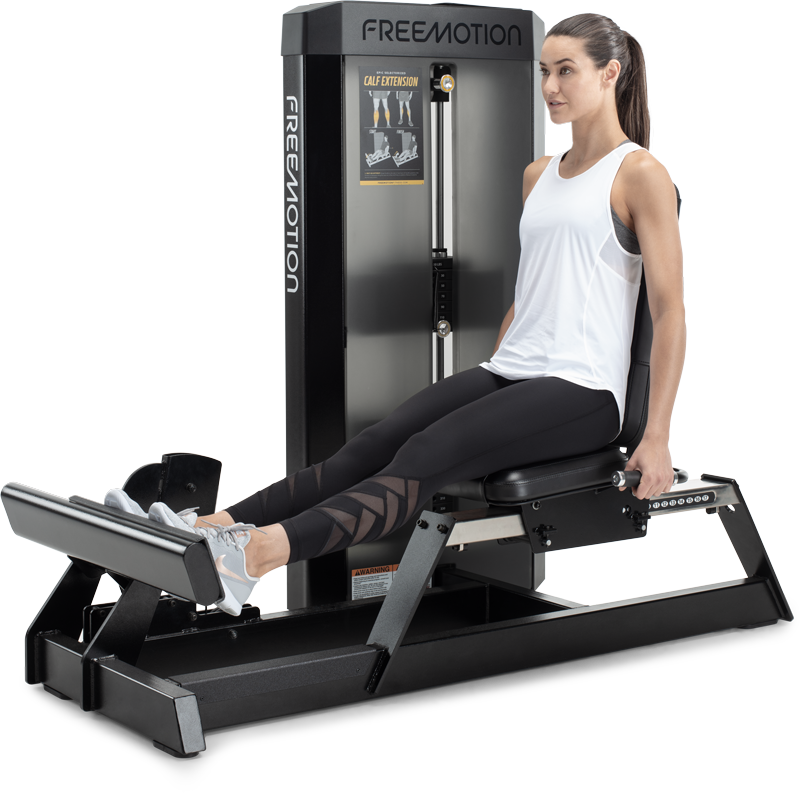

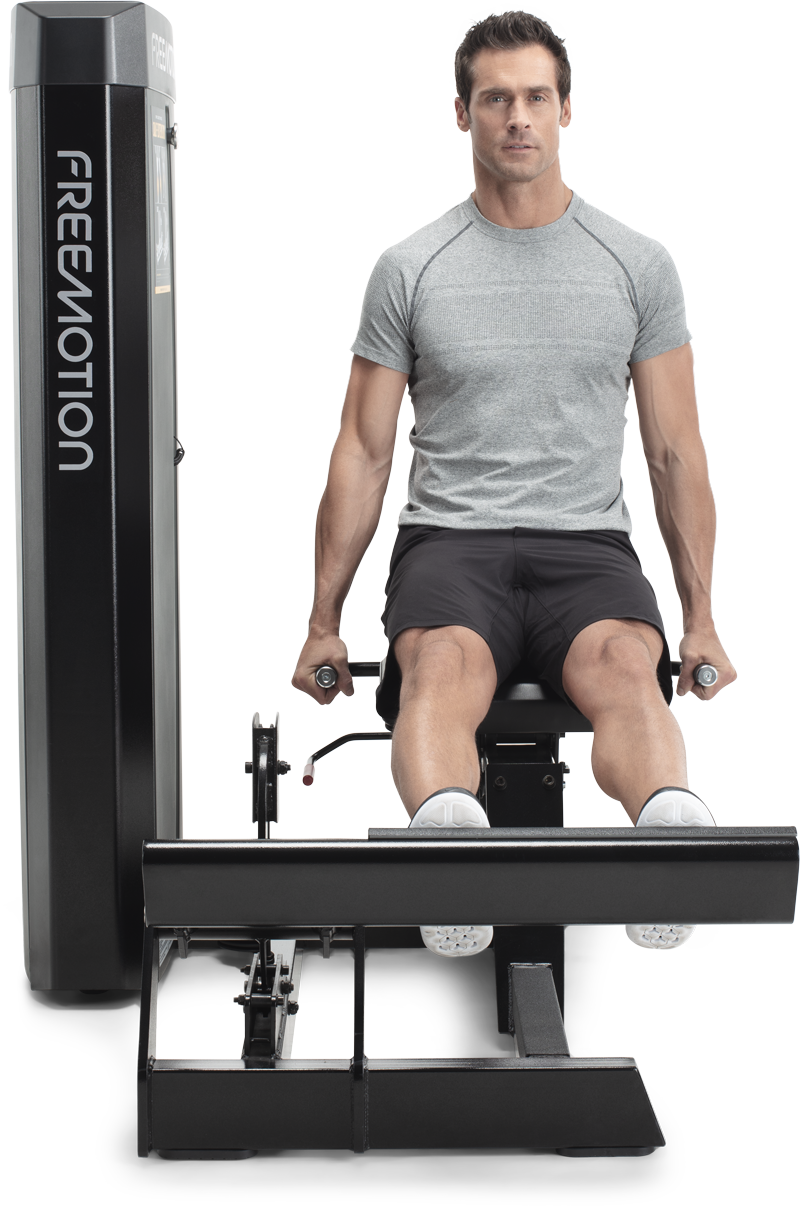

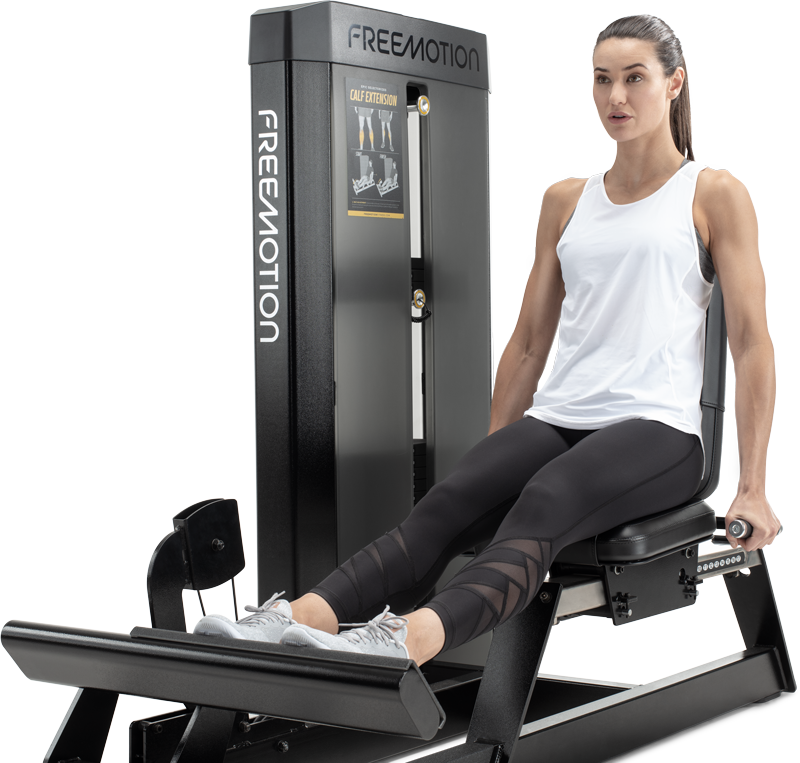

CALF EXTENSION

Comfortably isolate the effort on the calves with the support of the adjustable, comfort-padded seat. The EPIC Selectorized Calf Extension features a textured foot bar for sure-footed movement. Seat adjusts to fit users of varying heights.

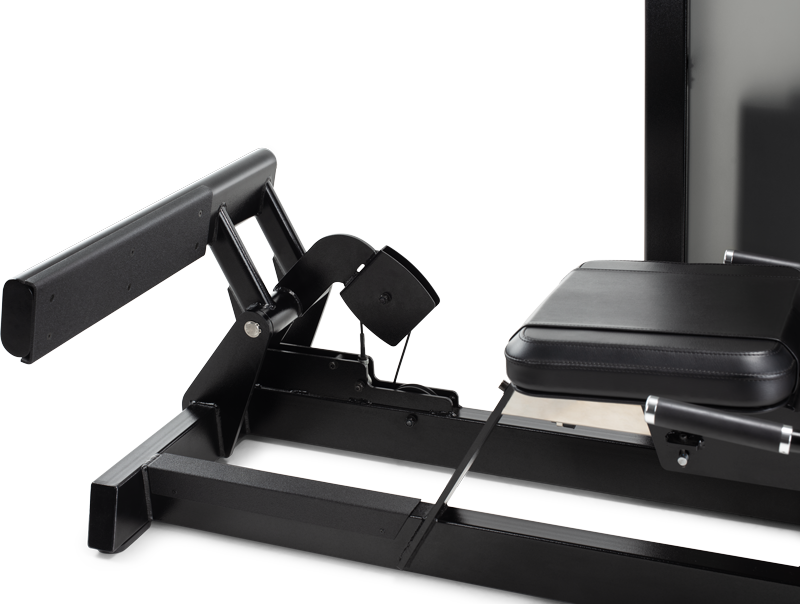

ES813_Foot_Grip

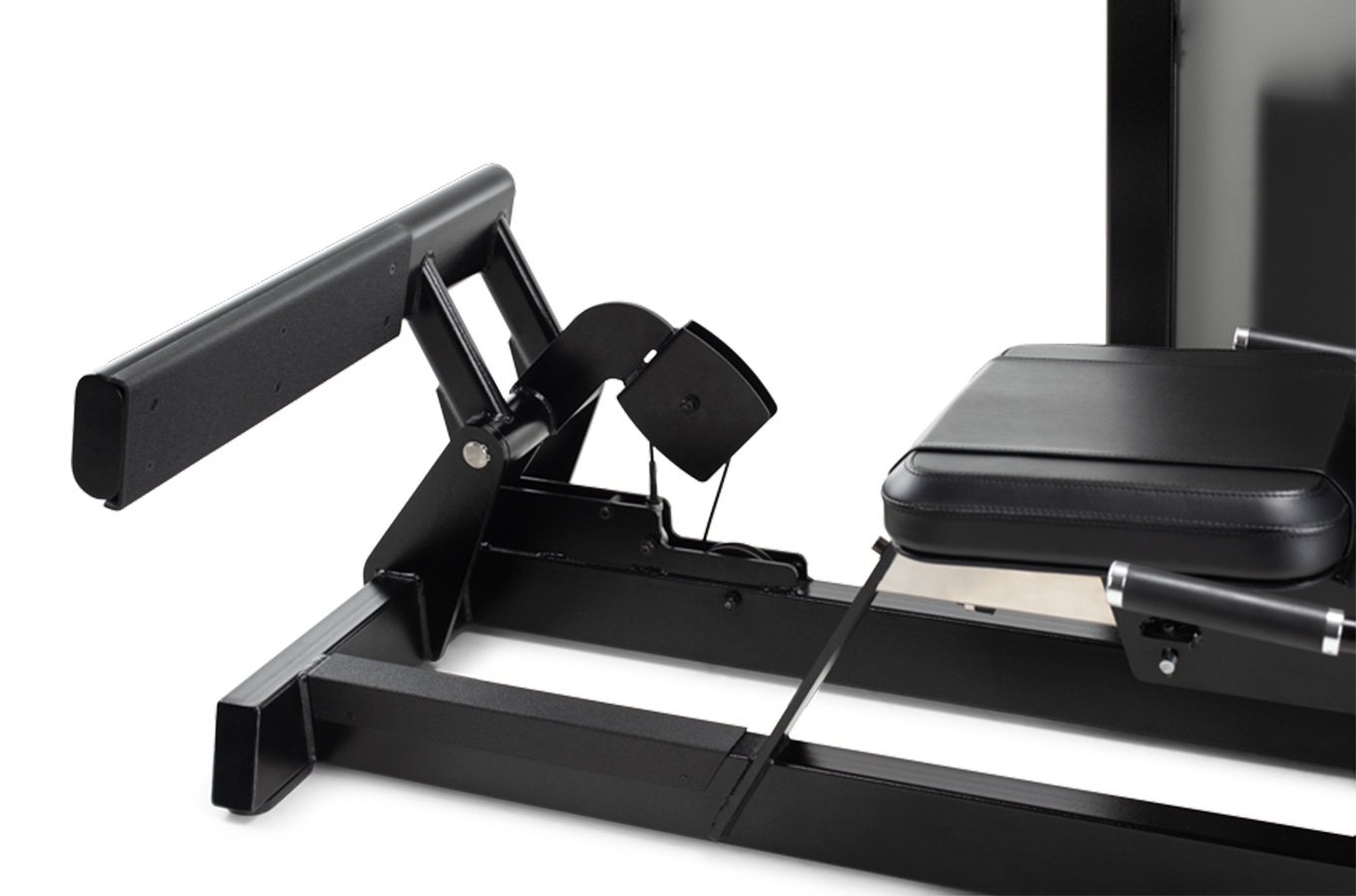

Sure Footing

Textured foot bar helps ensure secure foot placement even under heavy loads.

ES813_Adjustmet

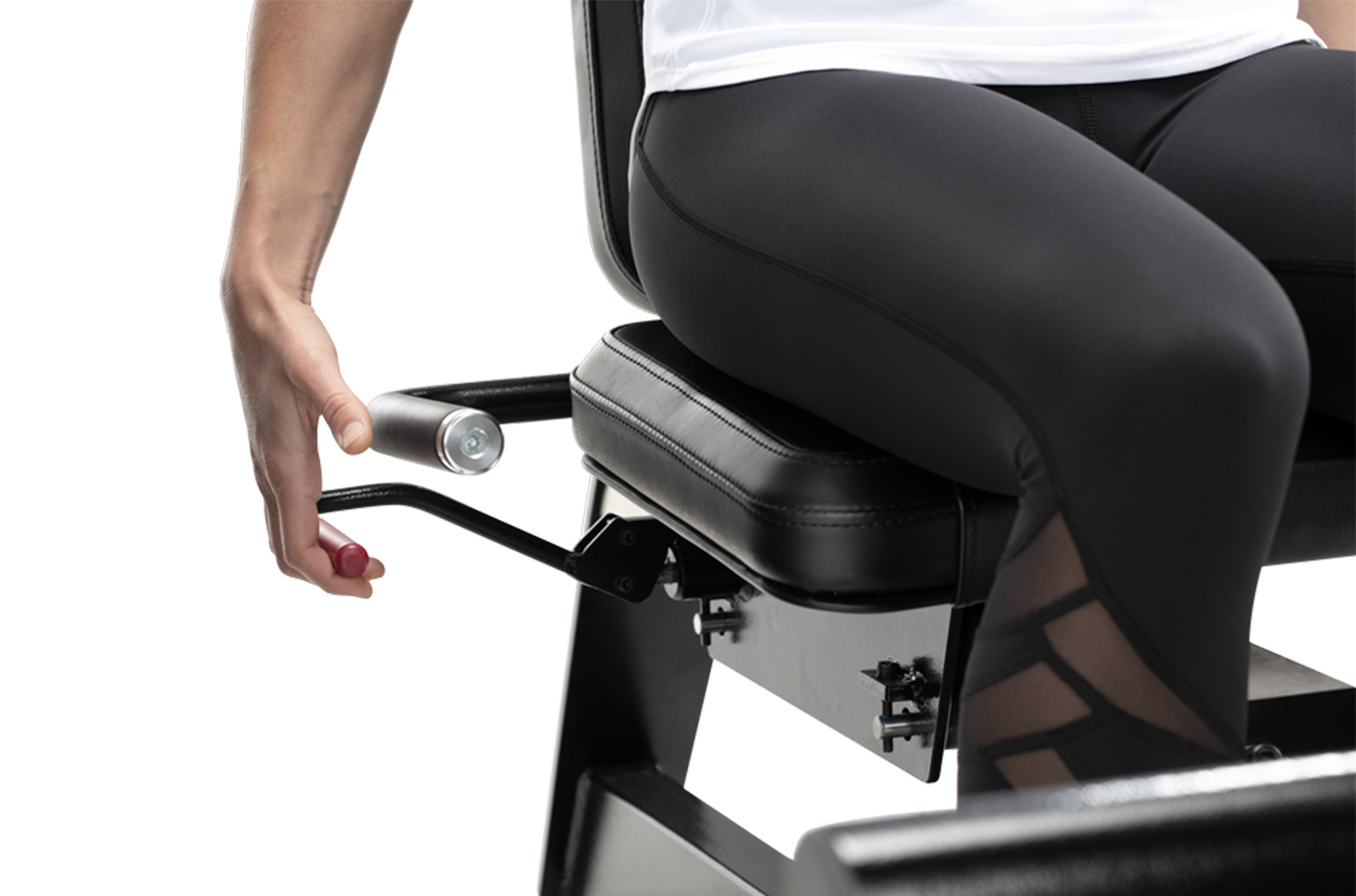

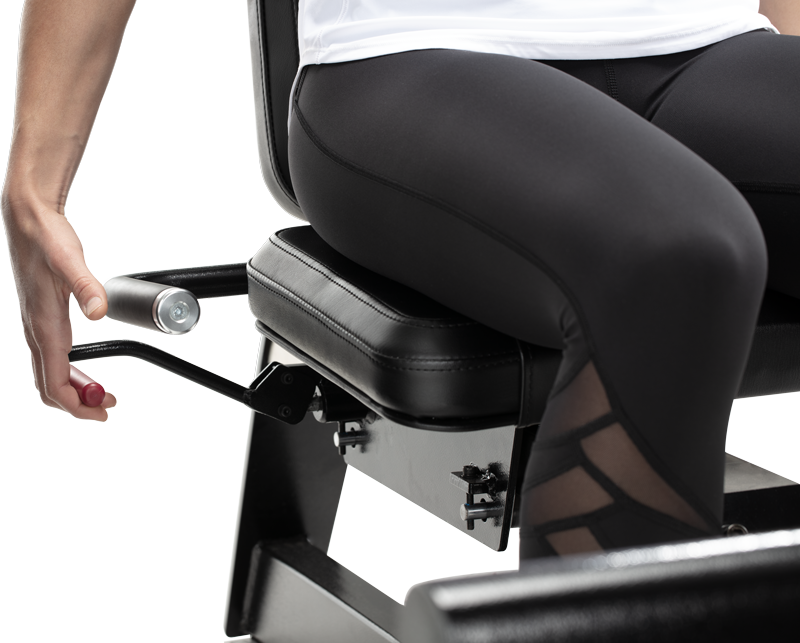

Comfortable by Design

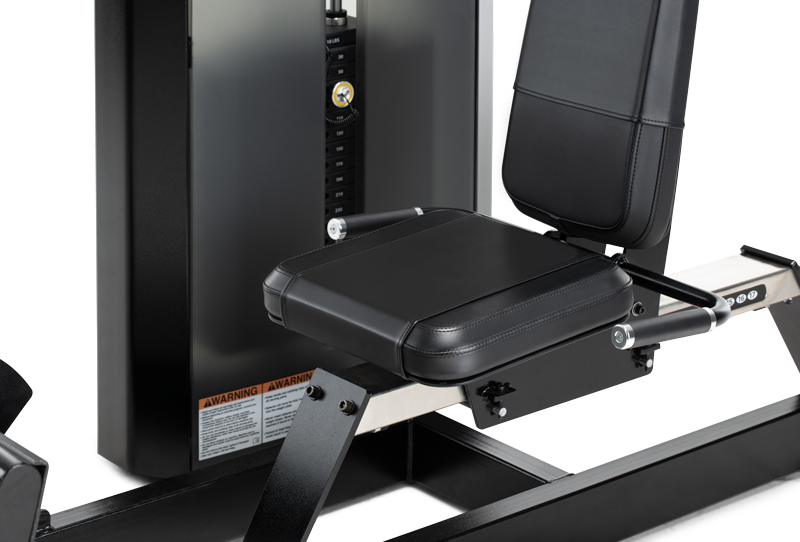

Seat assembly is contoured, padded, and adjusts for precise fit.

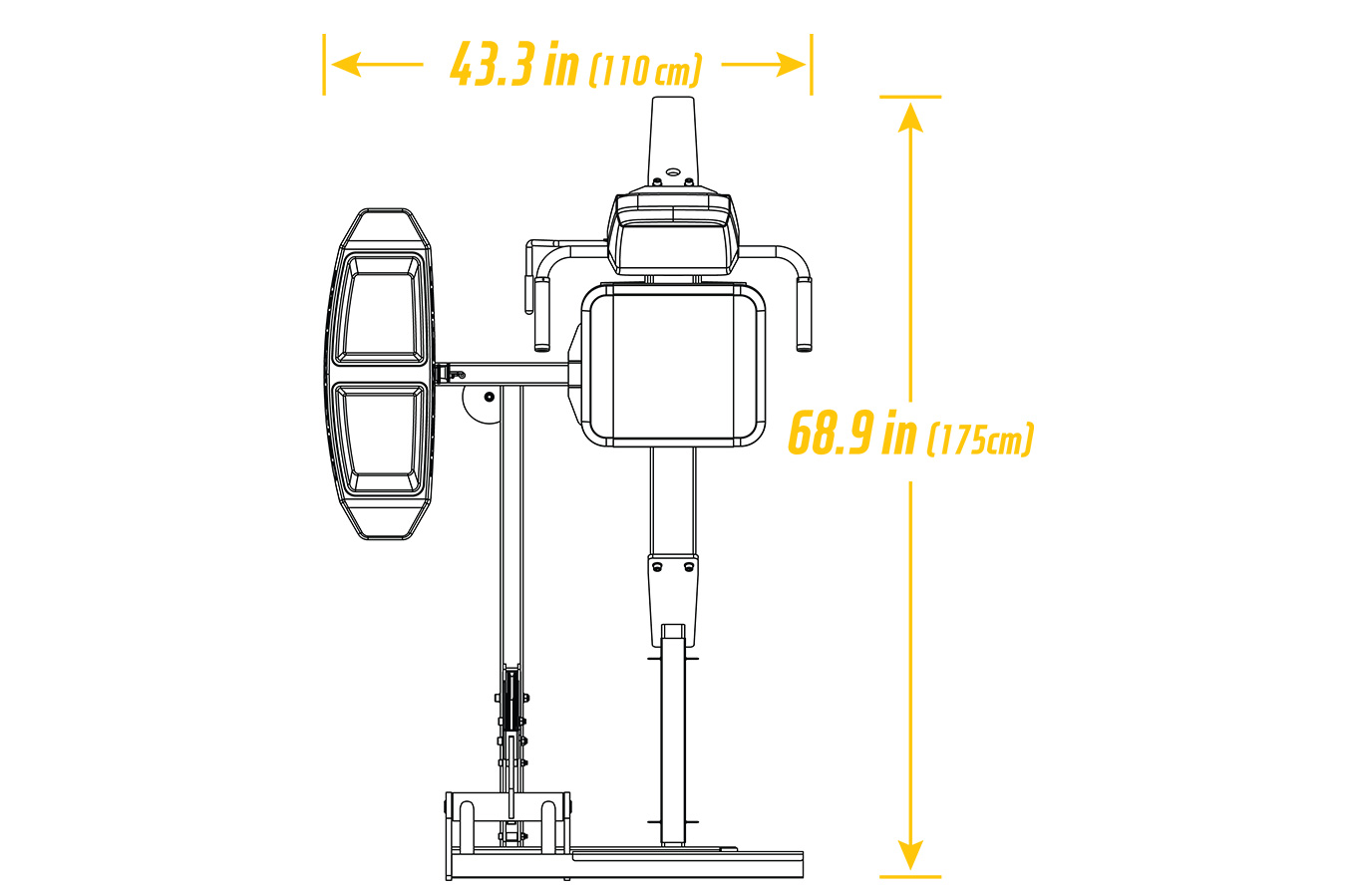

ES813_Footprint-01

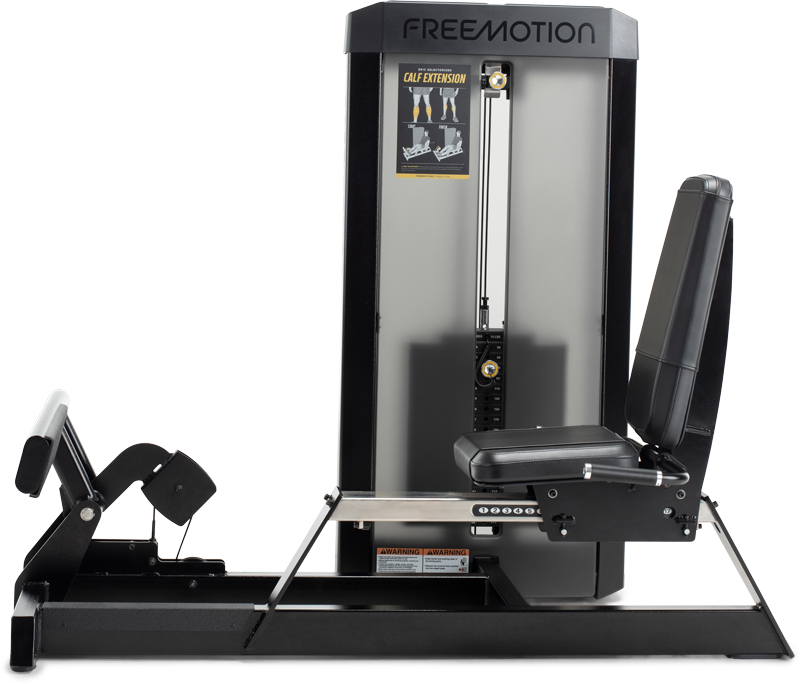

Low Profile Weight Stack

Approachable, compact design also features accessory trays so users can keep their essentials within reach.

Details & Specs

  • Features
    Convenient Accessory Storage

    Users can keep their essentials close at hand with accessory trays at the top of the weight stack.

    Molded Floor Protectors

    Heavy duty rubber feet guard against floor damage.

    Built to Last

    Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

    Easy Serviceability

    The tower design allows for simple, routine cable service.

    Enclosed Weight Stack

    The weight stack is enclosed to limit access to moving parts for safety.

  • Specifications
    Product Features
    • Instructional Placards Yes
    • Adjustments Multiple Seat Adjustments
    • Resistance 375 lb / 170 kg
    • Seat Vinyl, 1.5 in / 3.8 cm thick foam
    • Pulleys N/A
    • Cable Travel N/A
    • Rubber Feet Heavy Duty Floor Protectors
    • Maximum User Weight 350 lb / 159 kg
    • Americans with Disabilities Act (ADA) N/A
    Product Specifications
    • Weight Stack 375 lb / 170 kg
    • Drop Down Weight 5 lb / 2.2 kg
    • Weight Stack Configuration 10 lb / 4.5 kg top plaste
      20-190 x 10 lb / 4.5 kg
      200-370 20 lb / 9 kg
    • Standard Frame Color Black River, Platinum Sparkle
    • Optional Frame Color N/A
    • Plastic Color Ebony
    • Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
    • Optional Upholstery Color Custom colors available upon request
    • Hand Grip Color Black
    Product Dimensions & Weight
    • Dimensions L x W x H 68.9 x 43.3 x 57.8 in / 175 x 190.9 x 146.8 cm
    • Footprint 68.9 x 43.3 in / 175 x 190.9 cm
    • Maximum workout area 68.9 x 43.3 in / 175 x 190.9 cm
    • Weight 705.4 lb / 320 kg
    • Shipping Dimensions Box 1: 74 x 37.4 x 44 in / 187.9 x 94.9 x 111.7 cm
      Box 2: 42.5 x 15.3 x 3.5 in / 107.9 x 38.8 x 8.8 cm
    • Shipping Weight Box 1: 820.1 lb / 371.9 kg
      Box 2: 20 lb / 9 kg
    Certifications
    • CE
    Warranty (US & Canada)
    • Frame 10 Years
    • Parts 3 Years
    • Cables & Labor 1 Year
    • Cosmetic & Wear Items 6 Months
    • Upholstery & Padding 120 Days
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Cables & Labor 1 Year
    • Cosmetic & Wear Items 6 Months
    • Upholstery & Padding 120 Days
