Genesis DS

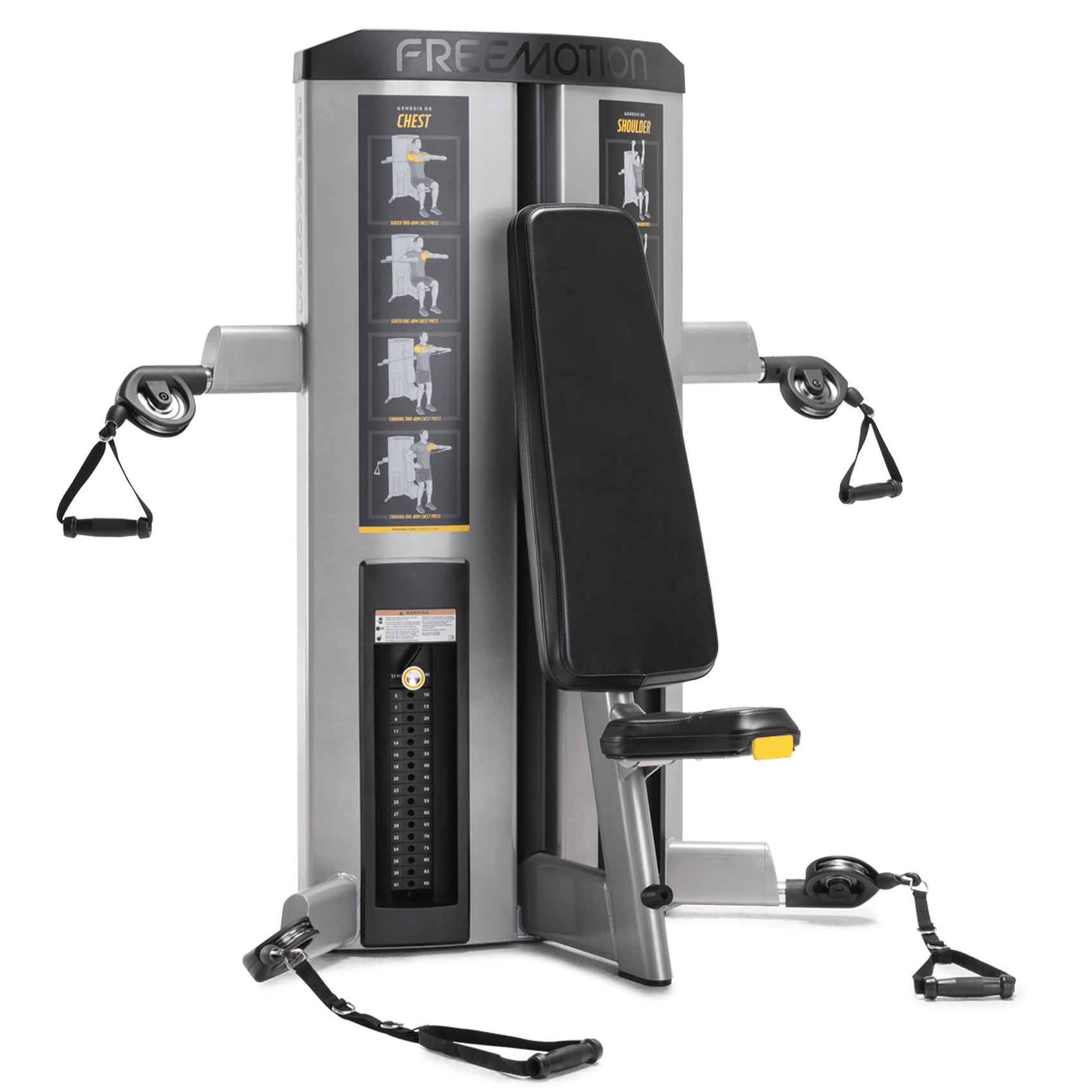

GD500 3Q Black
GD500

CHEST / SHOULDER

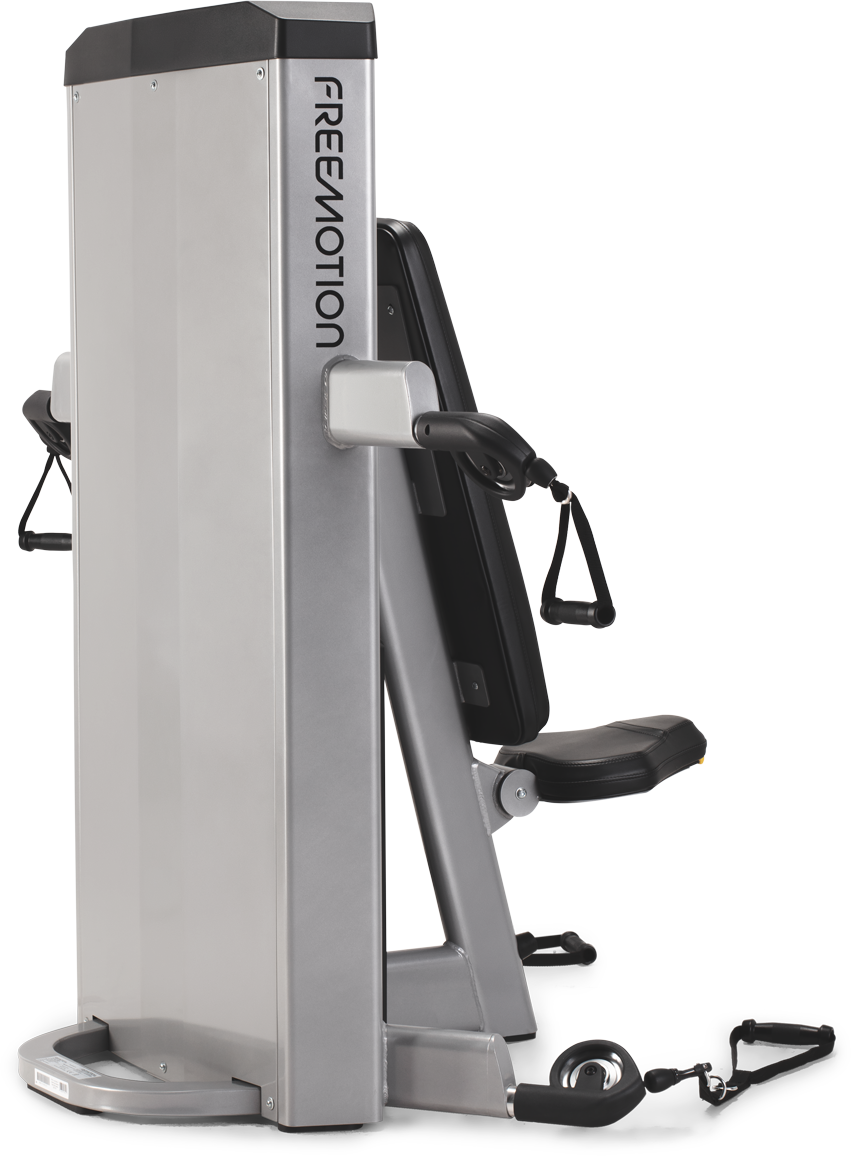

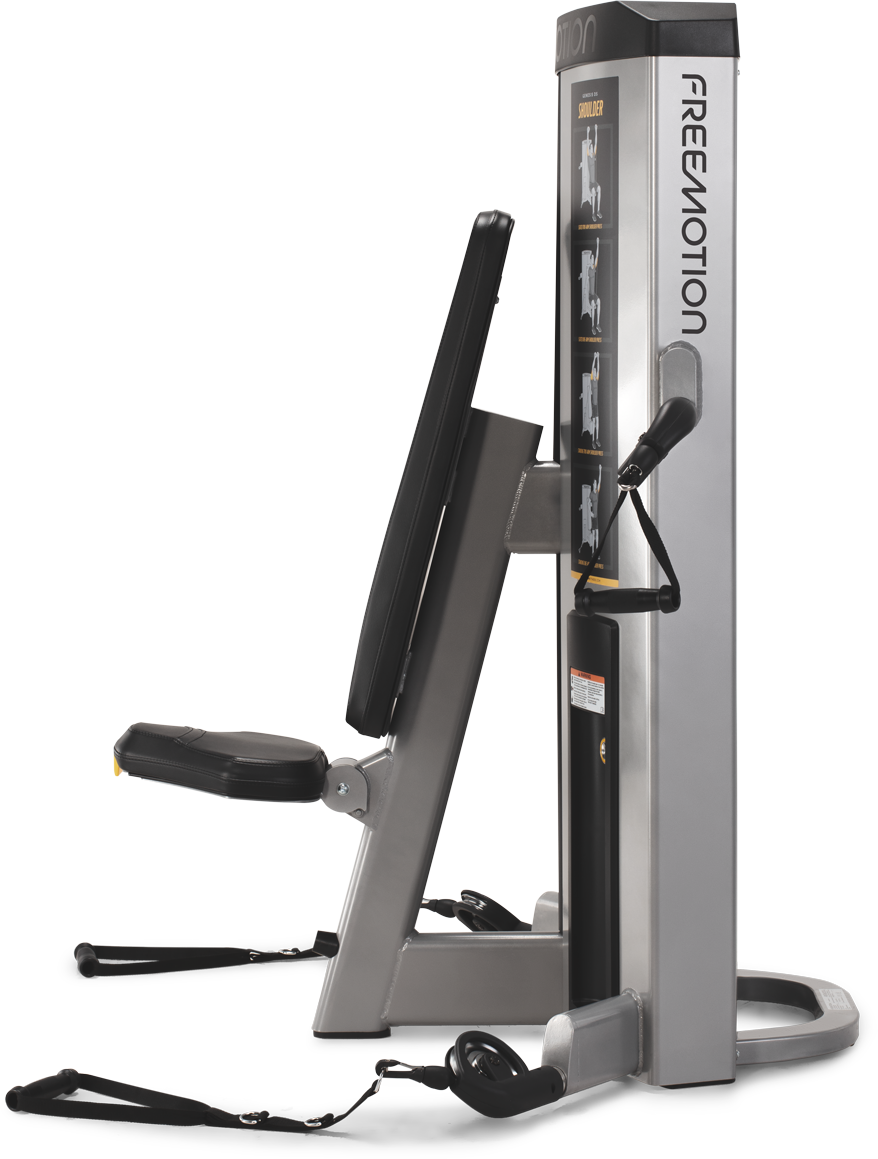

The GENESIS DS™ Chest/Shoulder optimizes a facility's floorspace by offering two exercise options in one machine. The Chest/Shoulder machine is built with an elegant design making transitioning to different exercises a breeze. Dual weight stacks and handles that move independently allow for single and alternating arm exercises while the swiveling pulleys provide fluid cable travel.

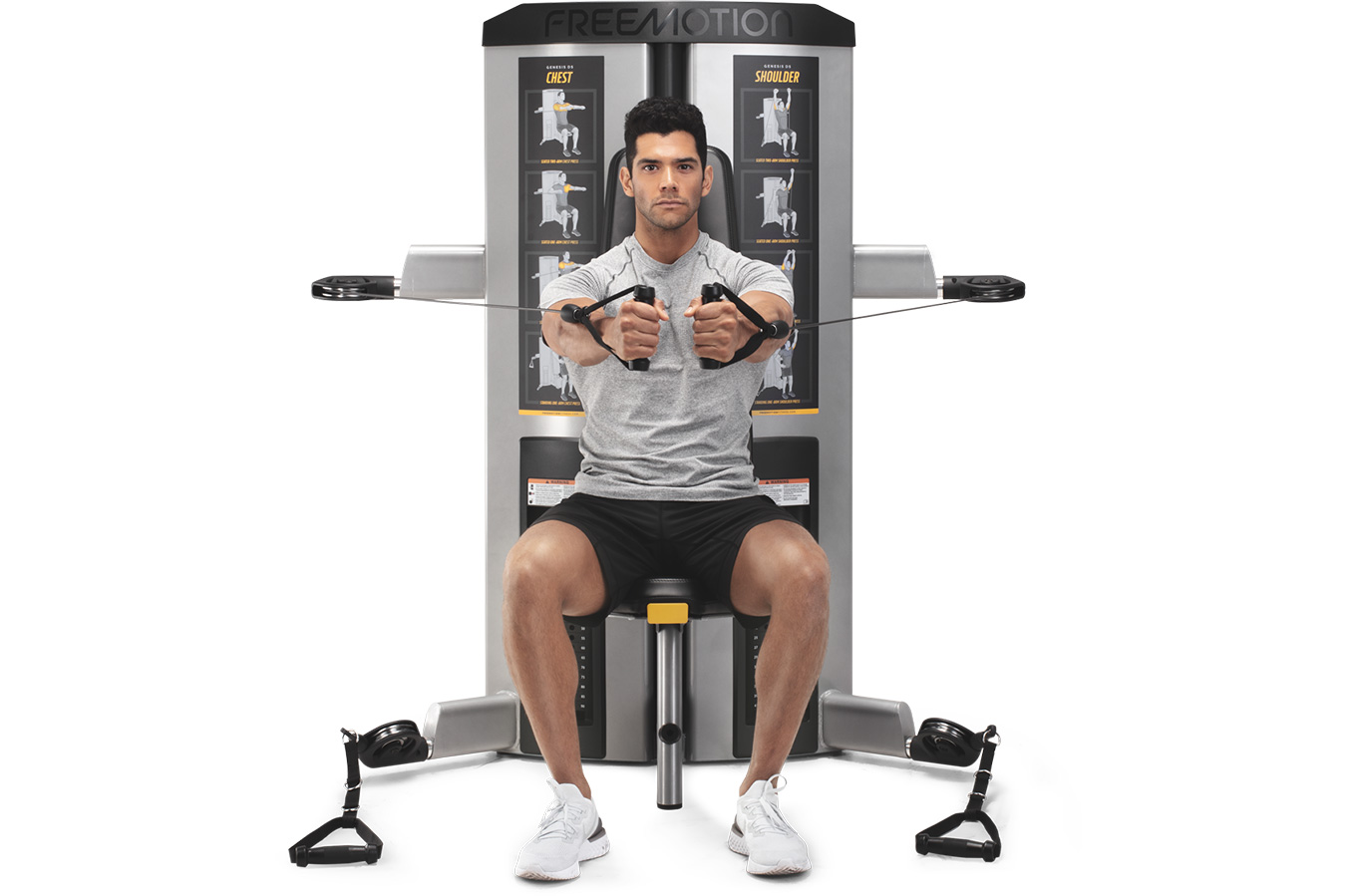

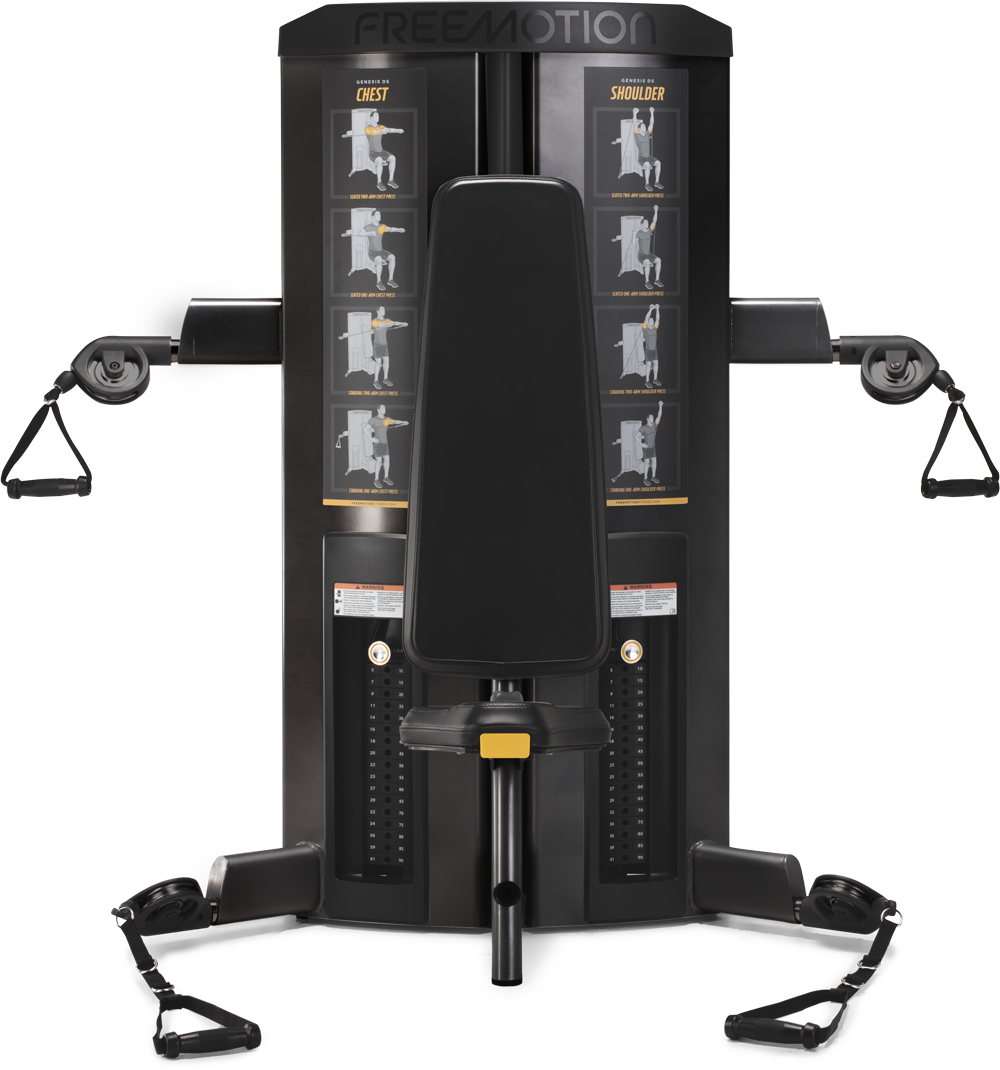

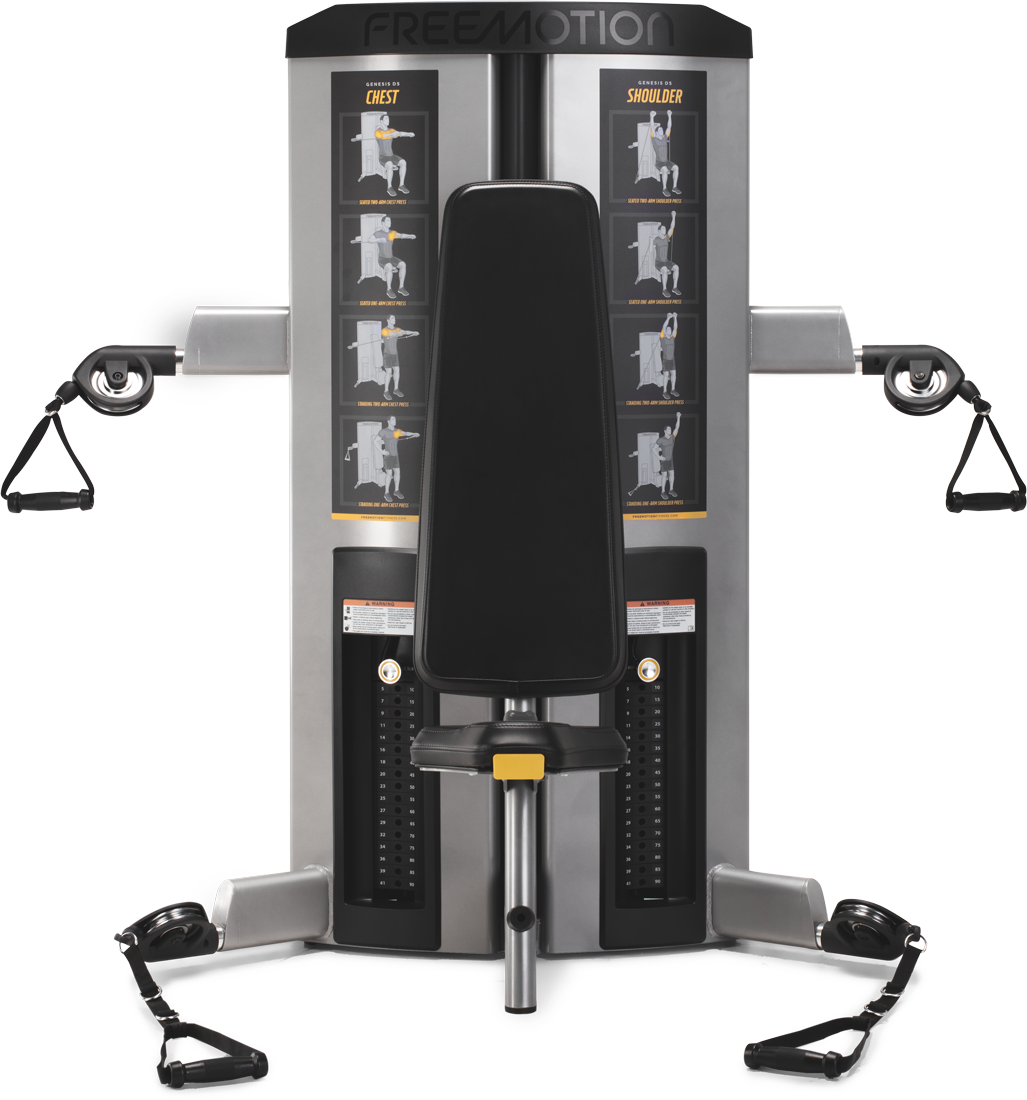

GD500-Front-mt

Dual Stations

Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.

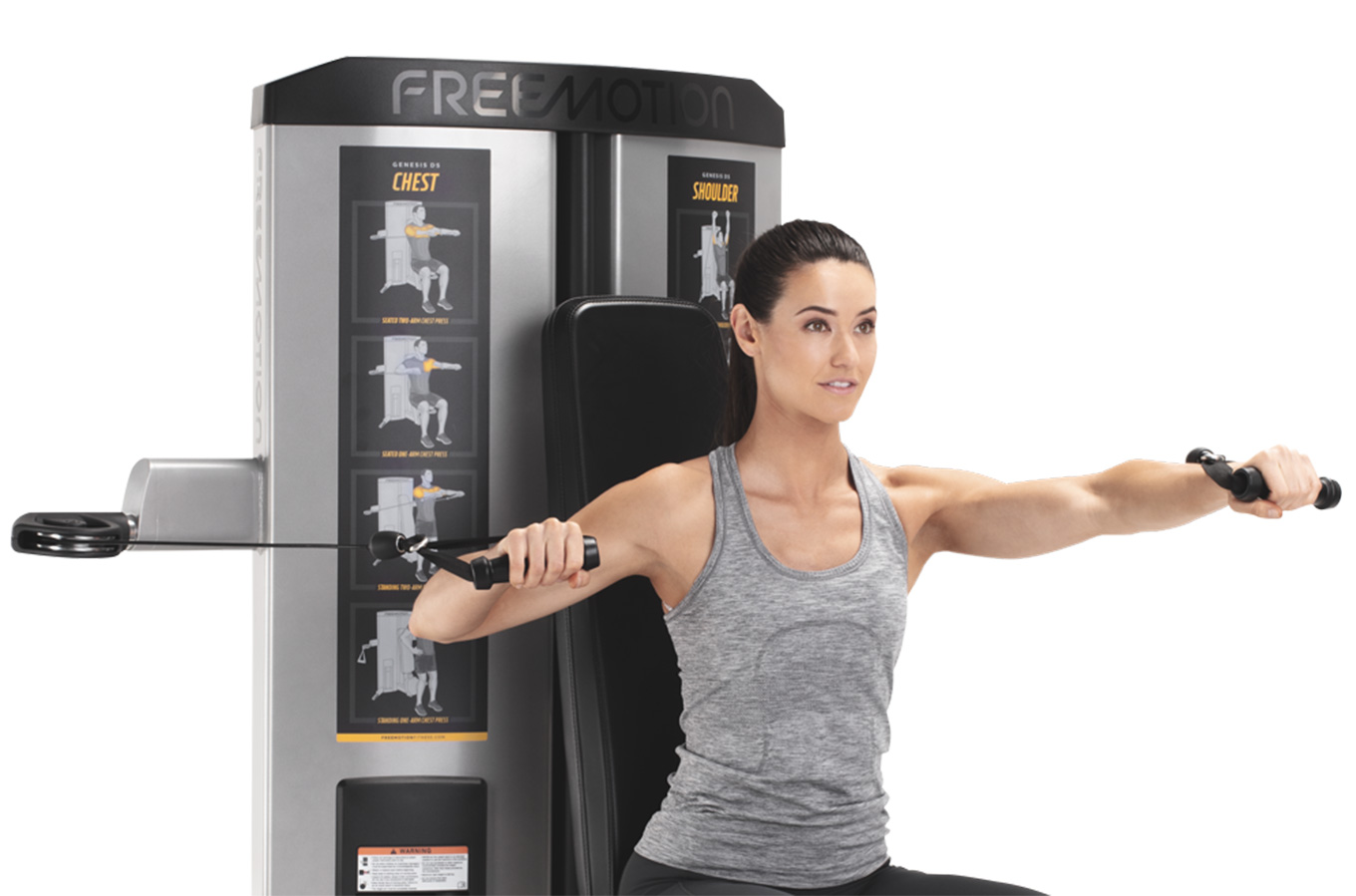

GD500-3Q-ft-crop

Movement Variety

Handles move independently for single and alternating arm exercises.

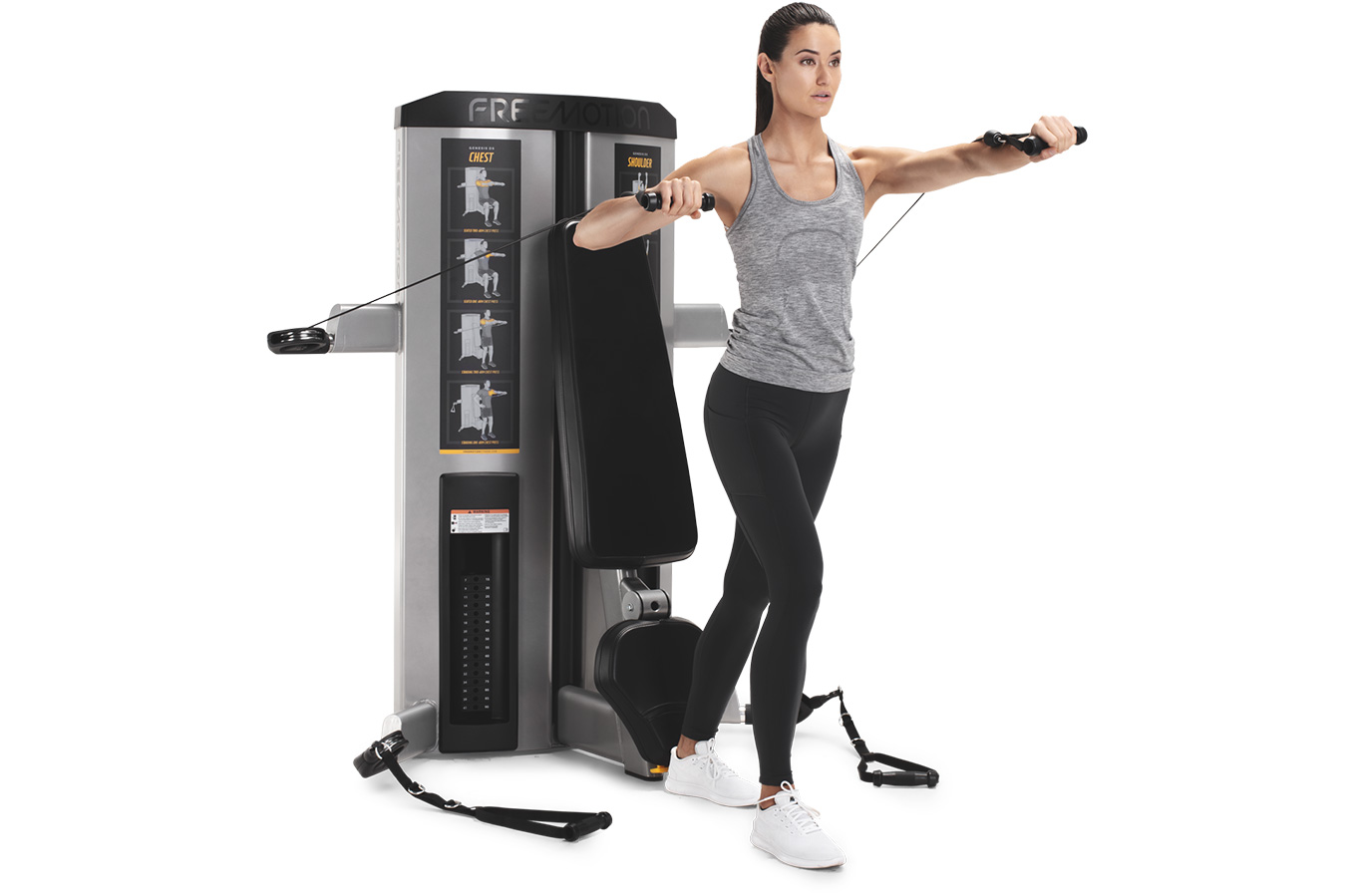

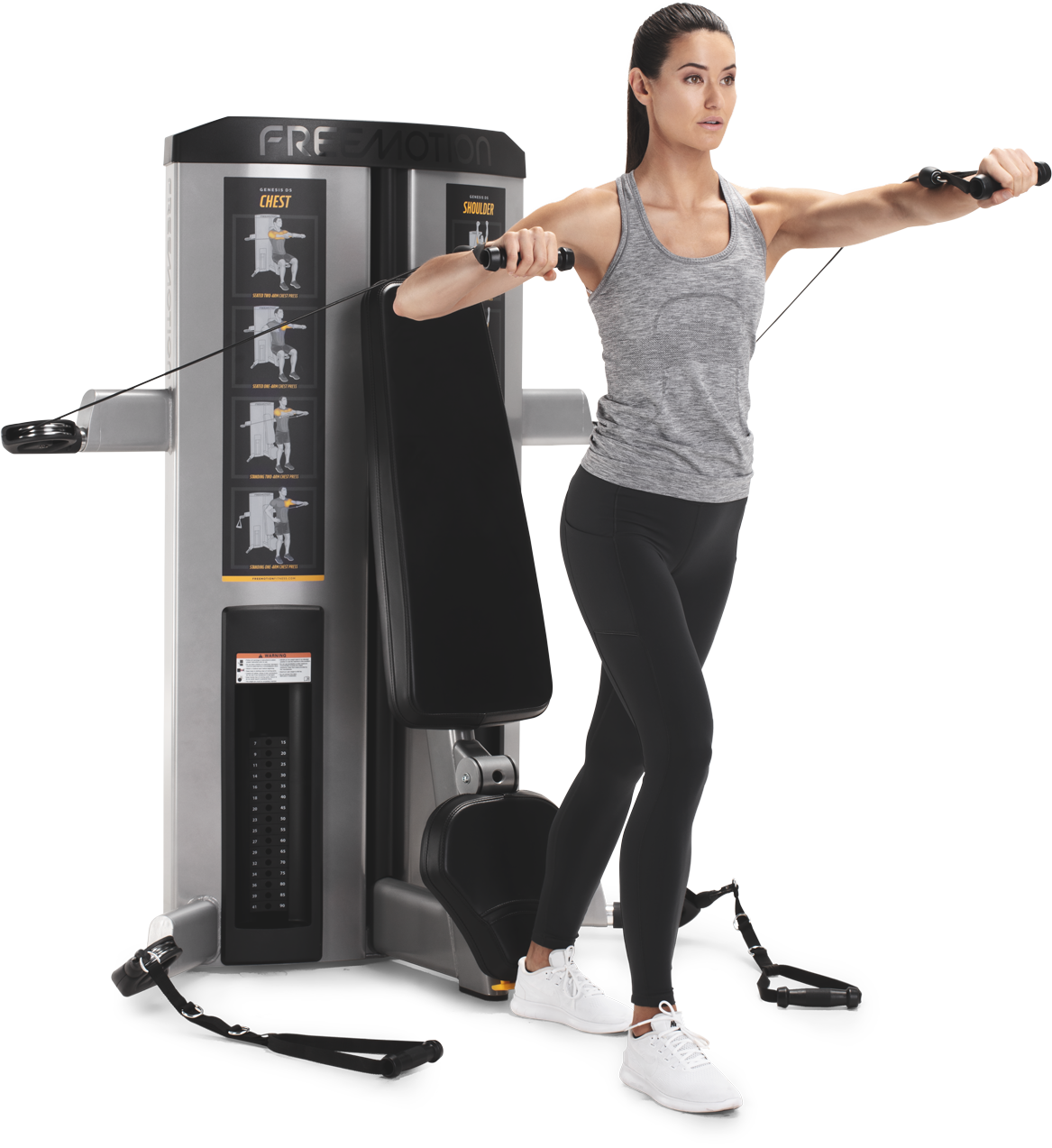

GD500-3Q-ft-Standing

Isolation to Integration

Users have the option to keep the seat engaged to isolate the lower body. Simply fold the seat away to integrate more muscle groups while standing.

Details & Specs

  • Features
    Specify the Intensity

    Whether rehabbing an injury or training opposing actions, each handle is tethered to its own weight stack to dial in the resistance.

    Enclosed Weight Stacks

    The weight stacks are enclosed to limit access to moving parts for safety.

    Extensive Cable Travel

    Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

    Padded, Contoured Seat

    The seat features contoured padding for a comfortable fit.

    Built to Last

    Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

    Kick Plates

    Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

  • Specifications
    Product Features
    • Instructional Placards Yes
    • Adjustments Pivot seat pad for standing chest/shoulder movements
    • Resistance 1 arm: 90 lb / 40.8 kg
      2 arms: 180 lb / 81.6 kg
    • Seat Vinyl with 2 in / 5 cm thick foam
    • Pulleys Aluminum swivel pulleys
    • Cable Travel 72 in / 182.8 cm per arm
    • Rubber Feet Soft PVC
    • Maximum User Weight 400 lb / 181.4 kg
    • Americans with Disabilities Act (ADA) Wheelchair Accessible
    Product Specifications
    • Weight Stack QTY 2 - 180 lb / 81.6 kg weight stacks
    • Drop Down Weight N/A
    • Weight Stack Configuration 2 - 10 lb top plates, 34 - 10 lb plates
      2 - 4.5 kg top plates, 34 - 4.5 kg plates
    • Standard Frame Color Black River, Platinum Sparkle
    • Optional Frame Color N/A
    • Plastic Color Ebony
    • Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
    • Optional Upholstery Color Custom colors available upon request
    Product Dimensions & Weight
    • Dimensions L x W x H 47 x 64 x 64 in / 119.3 x 162.5 x 162.5 cm
    • Weight 609.5 lb / 276.5 kg
    • Shipping Dimensions Box 1: 51.9 x 36.2 x 75.6 in / 132 x 91.9 x 192.2 cm
      Box 2: 48.8 x 14.9 x 3.9 in / 124 x 37.9 x 10 cm
    • Shipping Weight 734.3 lb / 337.2 kg
    Certifications
    • EN957,CE
    Warranty (US & Canada)
    • Frame 10 Years
    • Parts 3 Years
    • Cables & Labor 1 Year
    • Cosmetic & Wear Items 6 Months
    • Upholstery & Padding 120 Days
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Cables & Labor 1 Year
    • Cosmetic & Wear Items 6 Months
    • Upholstery & Padding 120 Days
  • Documents
    PDF Downloads
GD500 3Q Black
