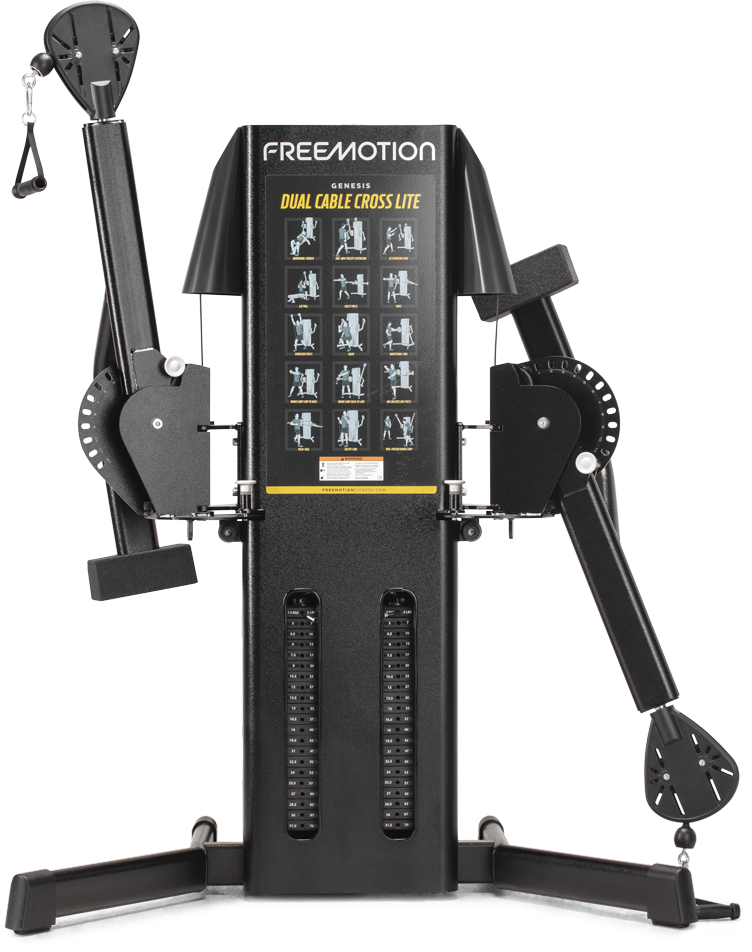

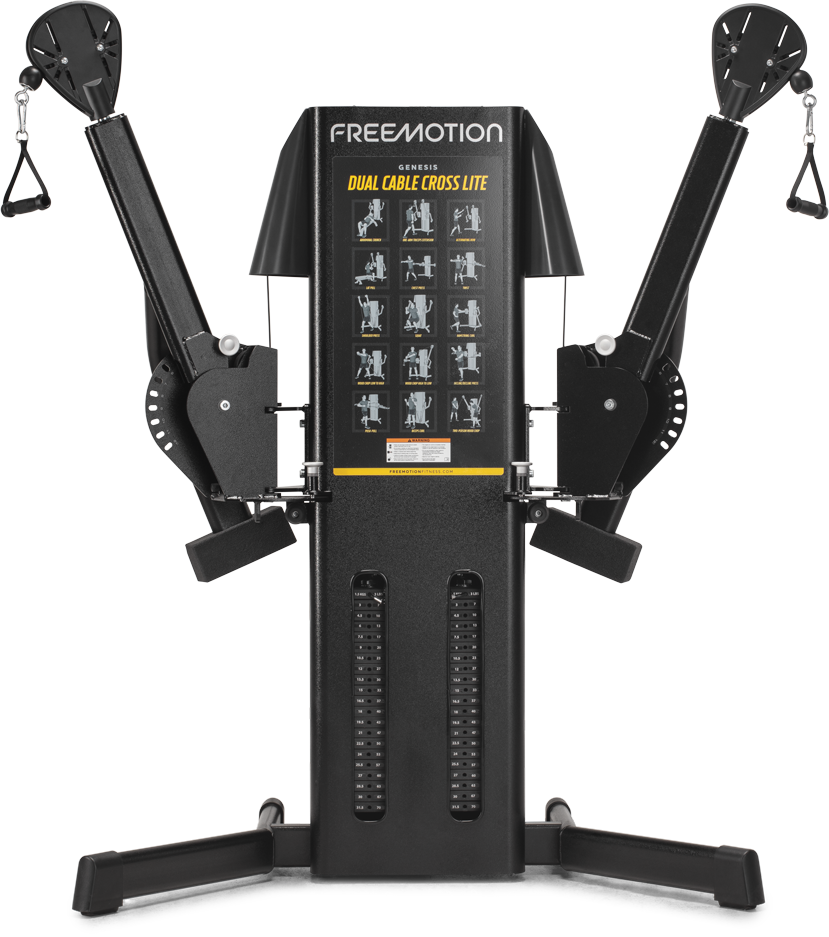

DUAL CABLE CROSS LITE

Slightly smaller than the original Dual Cable Cross, this modified version is ideal for rehab facilities, studios, hospitality and rec centers. The same amazing flexibility and total-body benefits as the traditional machine, the Dual Cable Cross Lite is a hybrid strength training and aerobic machine that boosts the heart rate to burn calories and build muscle mass. One-of-a-kind Freemotion cable creates a workout that's as beneficial going down through the initial movement as it is going up. The counter-balanced arms make it effortless to change positions and target a different part of the body, while the open design makes it welcoming for all body types. The generous cable travel makes the Dual Cable Cross Lite open to a variety of movement and works well for training two people at once.

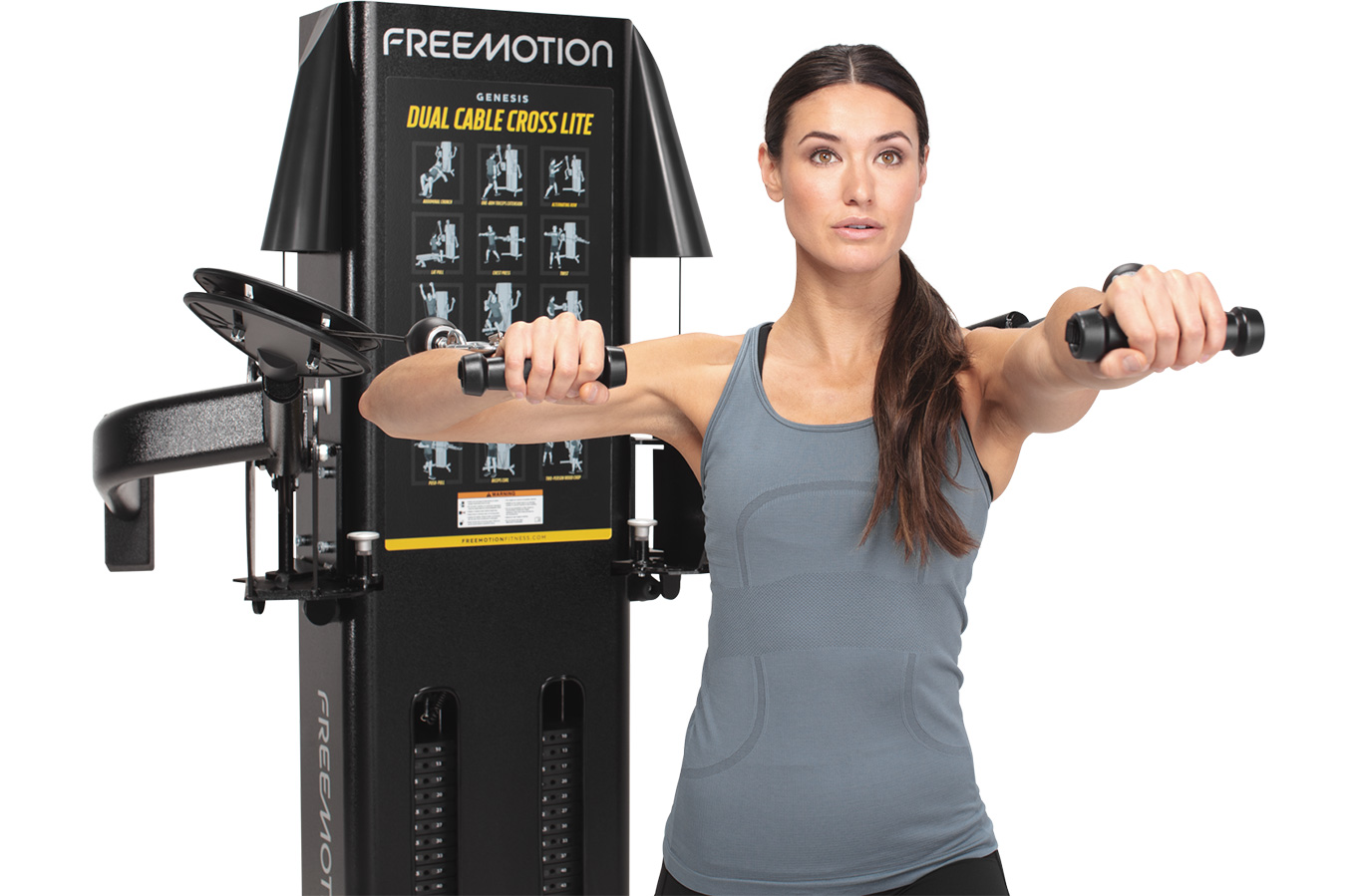

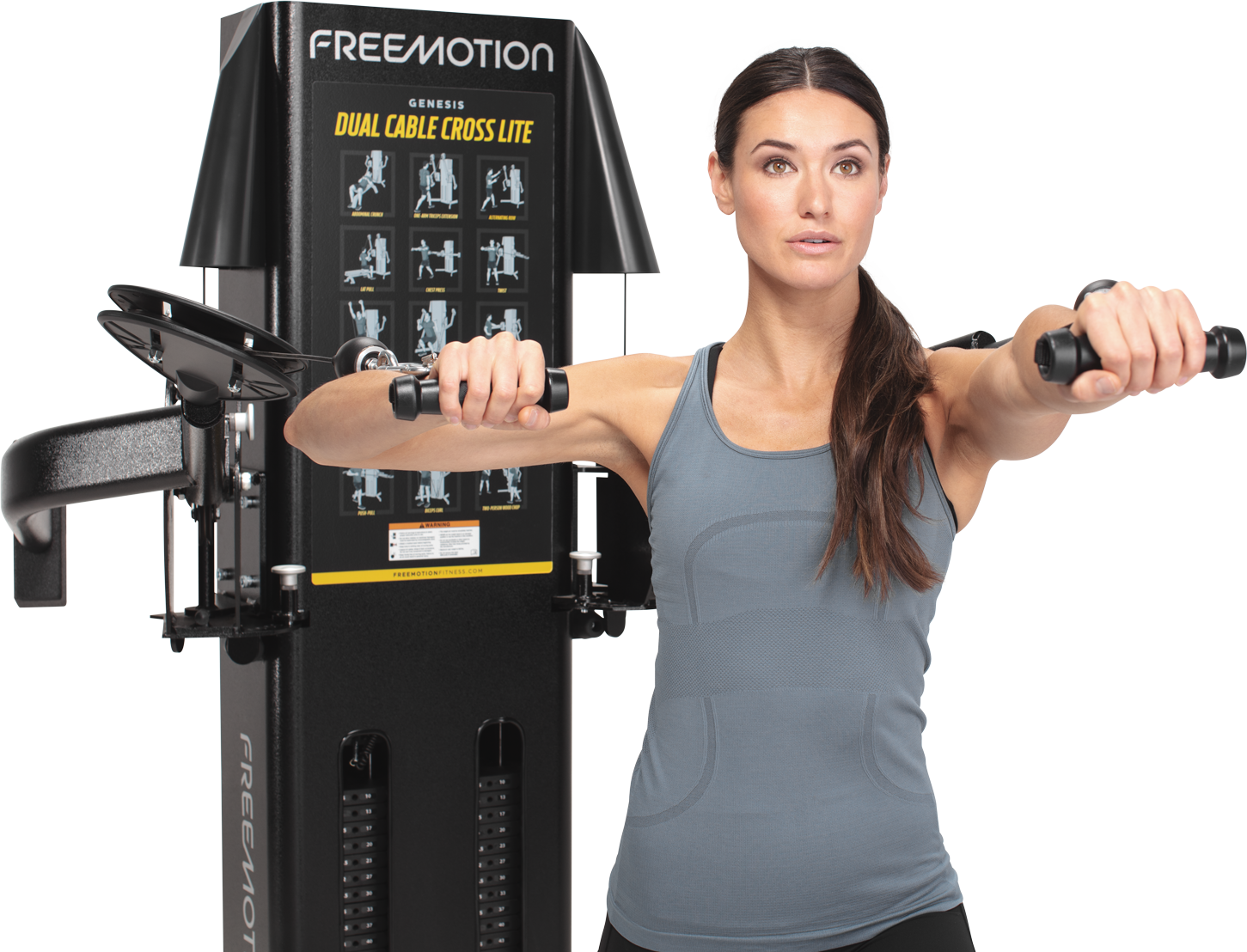

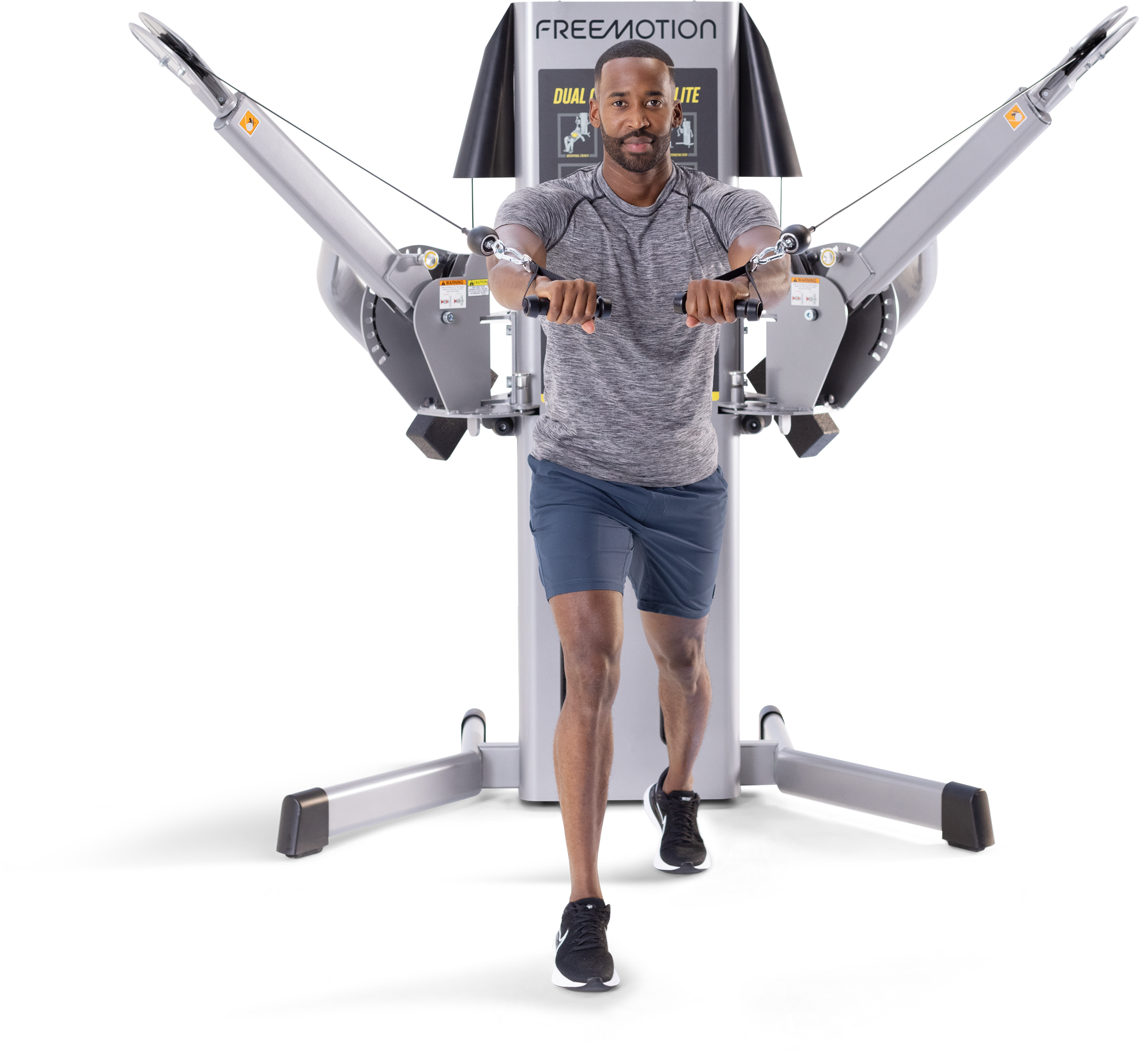

G424-3Q-ft-closeup

Live Unlimited

Handles move independently to create unlimited exercise options.

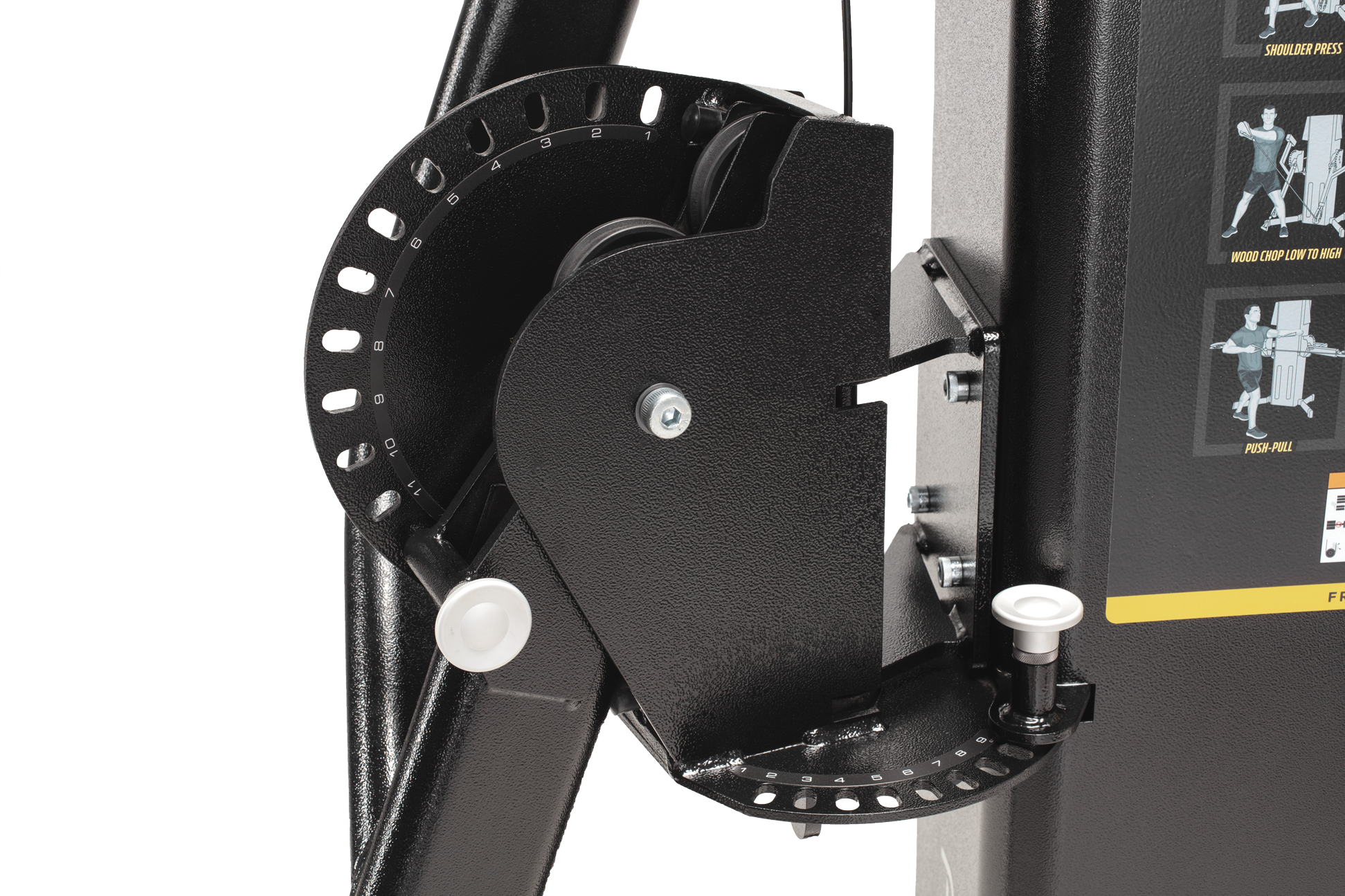

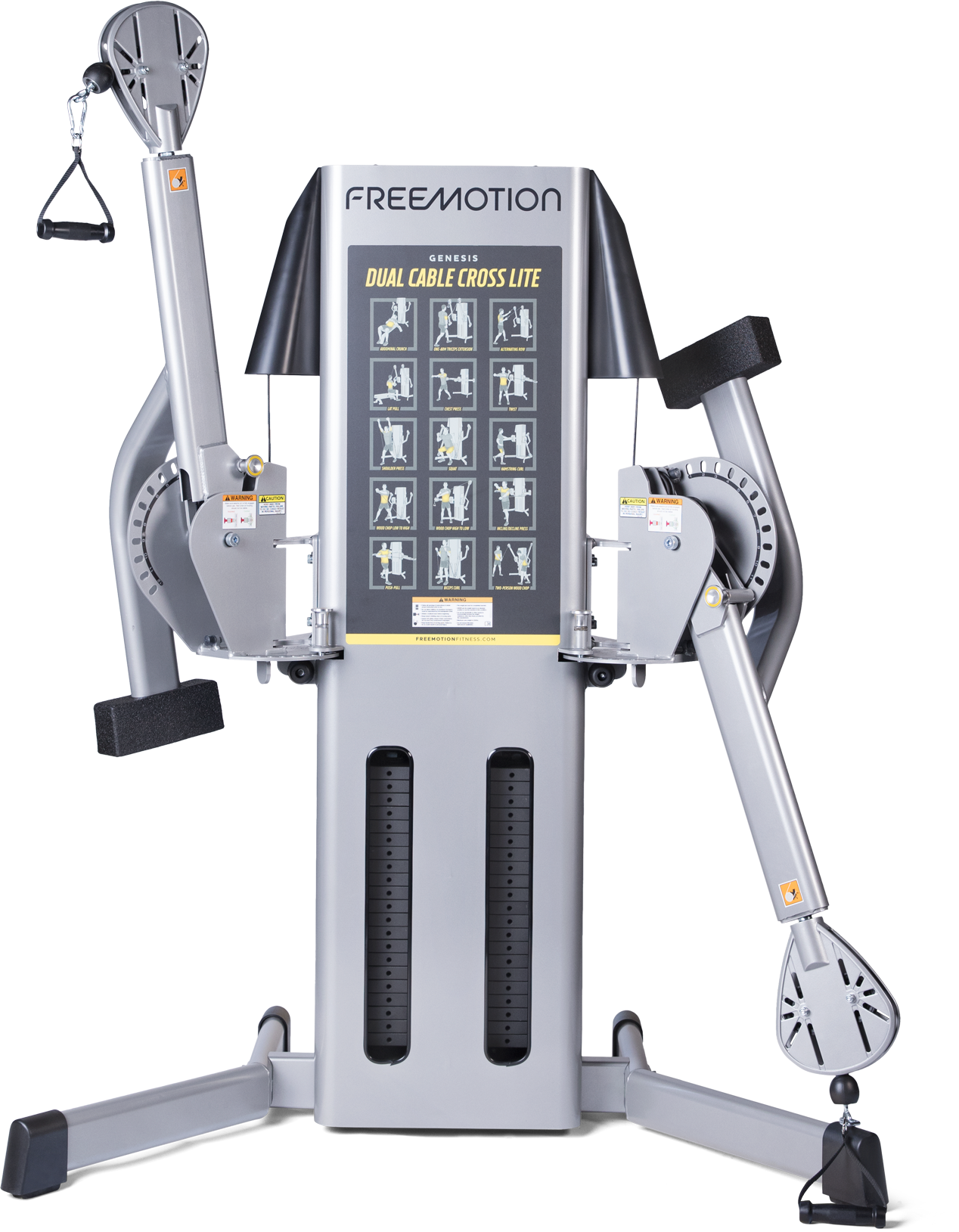

G424-CloseUp

User-Defined Movement

Independent arm rotation with 12 vertical and nine horizontal settings, in virtually any movement pattern.

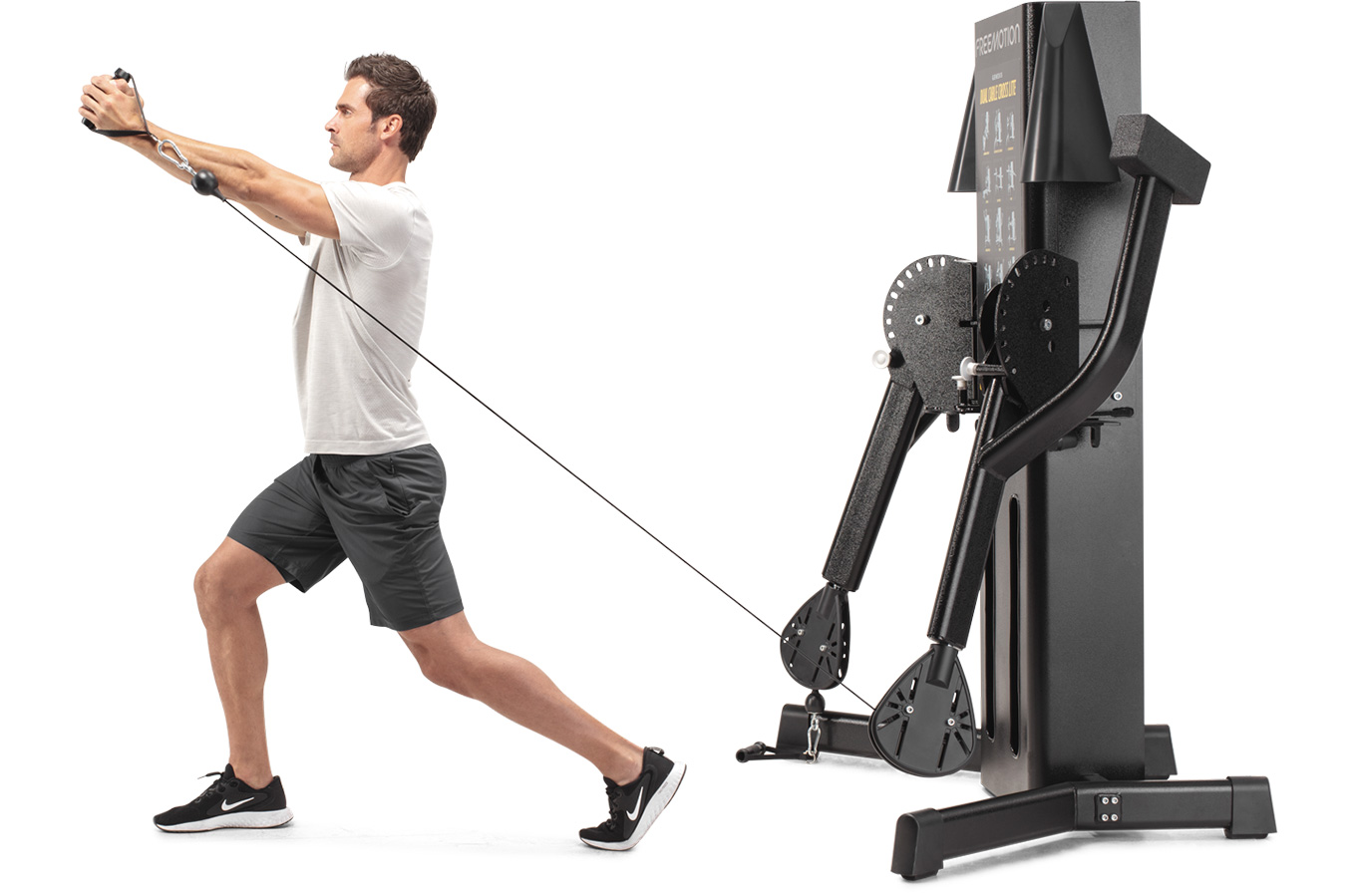

G424-Profile-mt

Free To Be You

The intelligent, swivel pulley design creates fluid cable travel and a nearly unlimited range of motion.

Details & Specs

G424-3Q
  • Features
    Weight Stacks

    Two 210 lbs / 95.2 kg independent weight stacks allow two people to work out at the same time. The innovative 3-to-1 cable ratio provides extensive cable travel and smooth resistance for performing high-speed movements.

    Industrial Construction

    Built with 11 and 7-gauge steel, this machine is also electrostatically powder-coated.

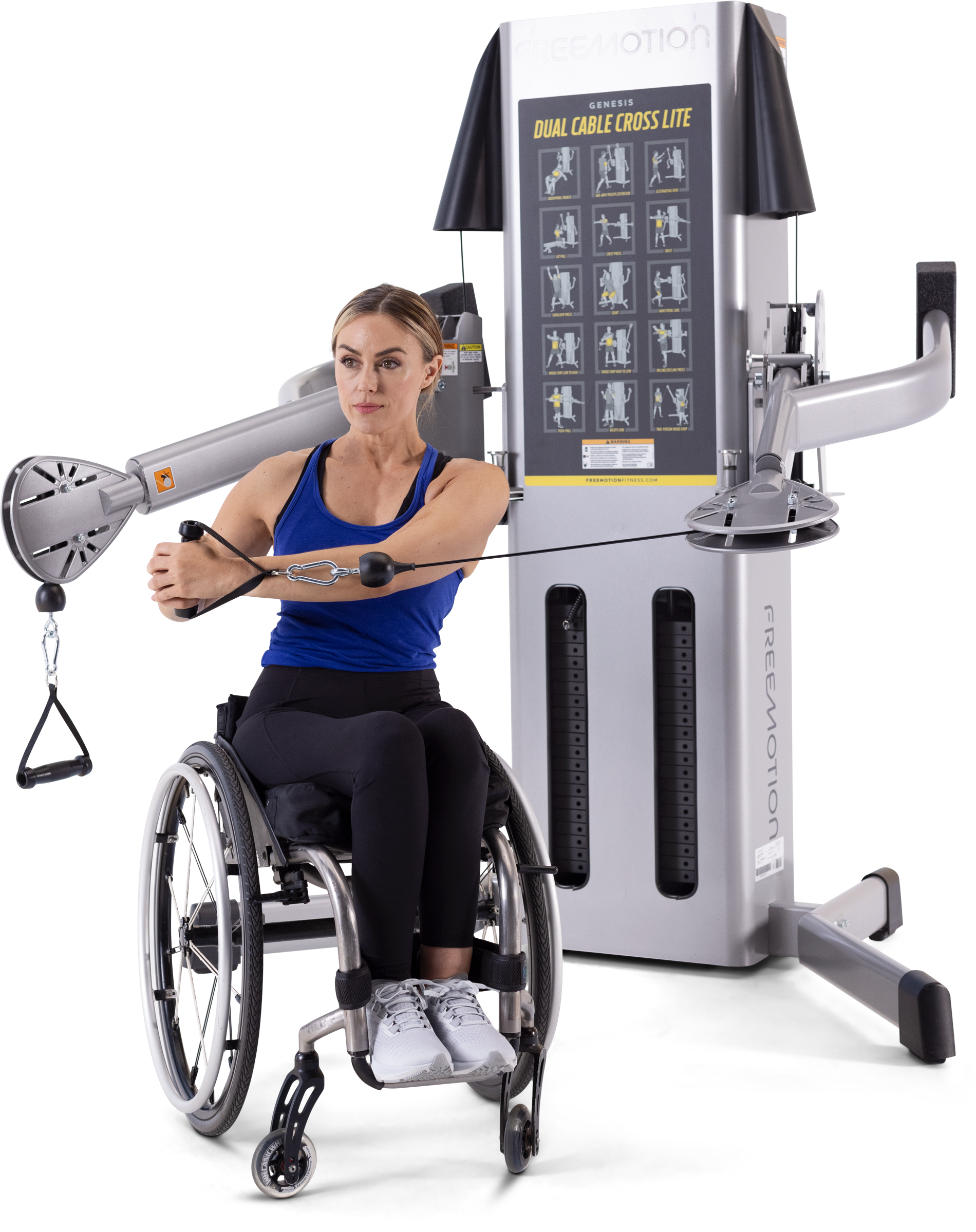

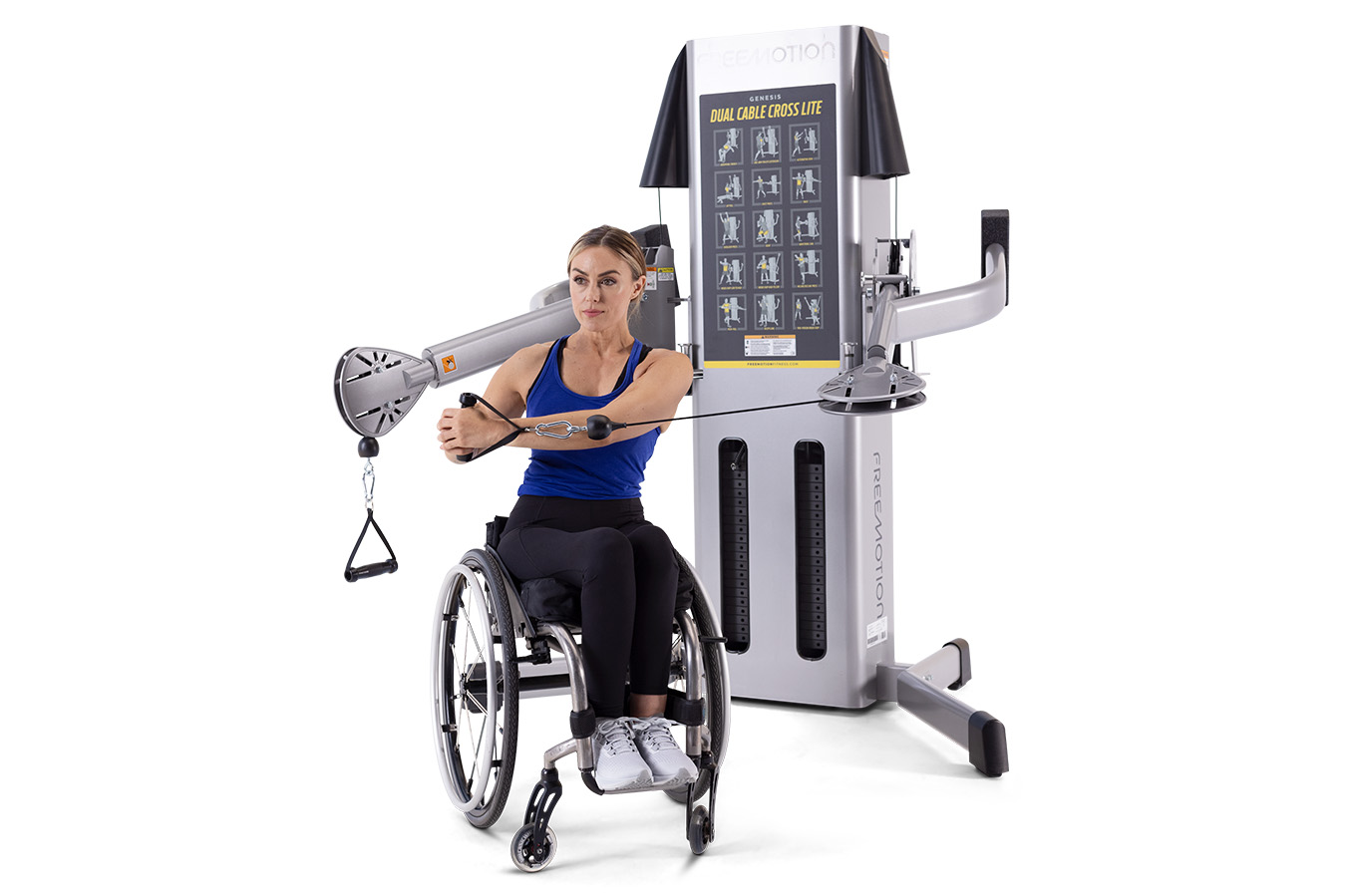

    Wheelchair Accessible

    The open design of this piece makes it wheelchair accessible and welcoming to users of all fitness levels.

    Following Your Lead

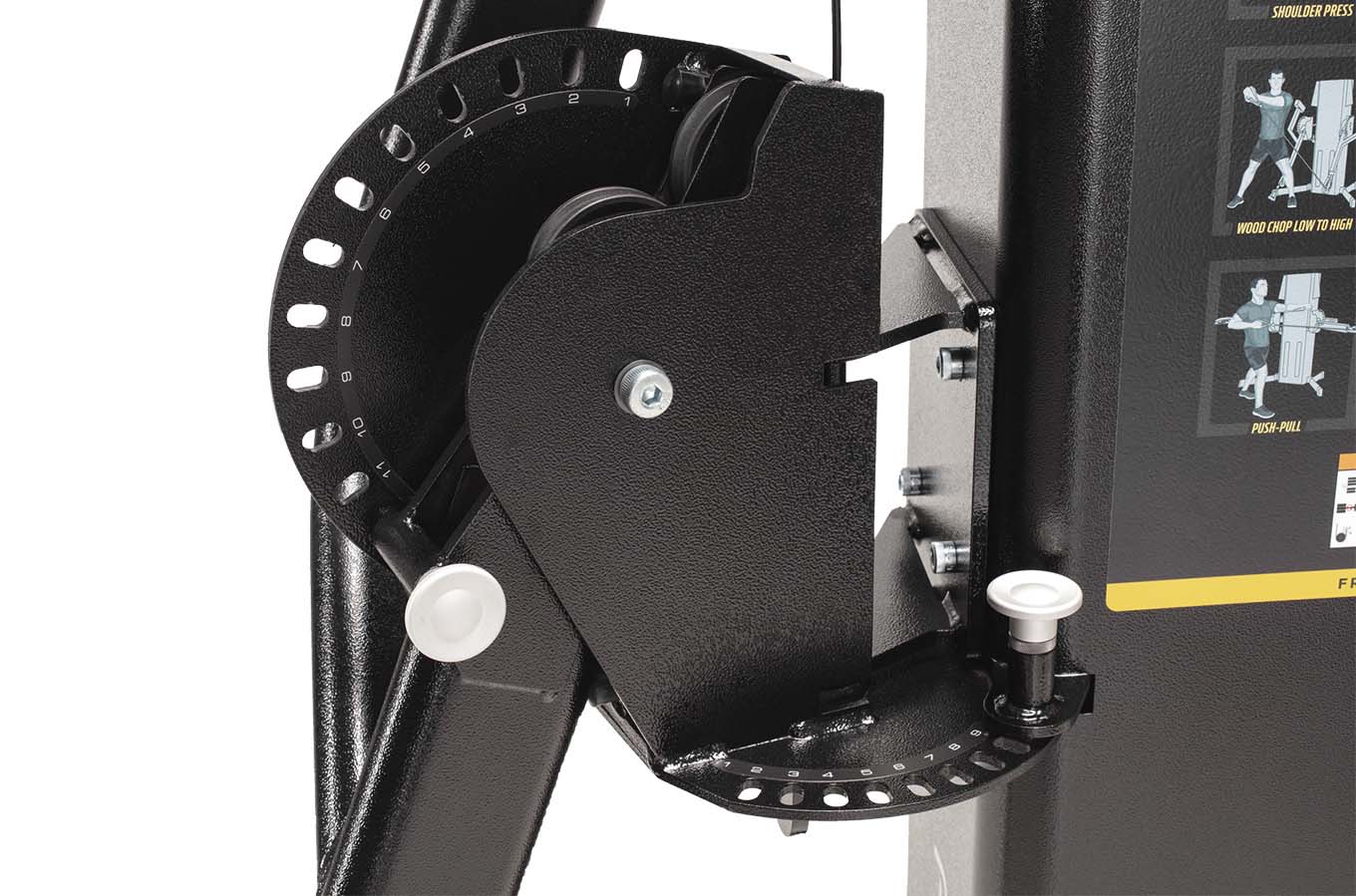

    Counterbalanced, independently rotating arms have 12 vertical and nine horizontal settings, in virtually any movement pattern.

    Free Range Movement

    Freemotion's free swinging swivel pulley allows smooth and extensive cable travel to provide a full range of motion.

    Move How You Want To

    The long cable length allows for full exercise extension and a wide range of travel. Single-arm: 89 inches / 218 cm. Two arms: 89 inches / 218 cm

  • Specifications
    Product Specifications
    • Optional Frame Colors On Request
    • Weight Stack lb / kg Dual Weight Stacks
      Stack 1: 210 lbs / 95.2 kg
      Stack 2: 210 lbs / 95.2 kg
    Equipment Features
    • Adjustments Vertical and horizontal arm rotation adjustments
    • ADA Compliant Wheelchair Accessible
    • Resistance lb / kg 3:1 cable ratio with 3.33 lbs / 1.4 kg of effective resistance per plate.
    Product Dimensions & Weight

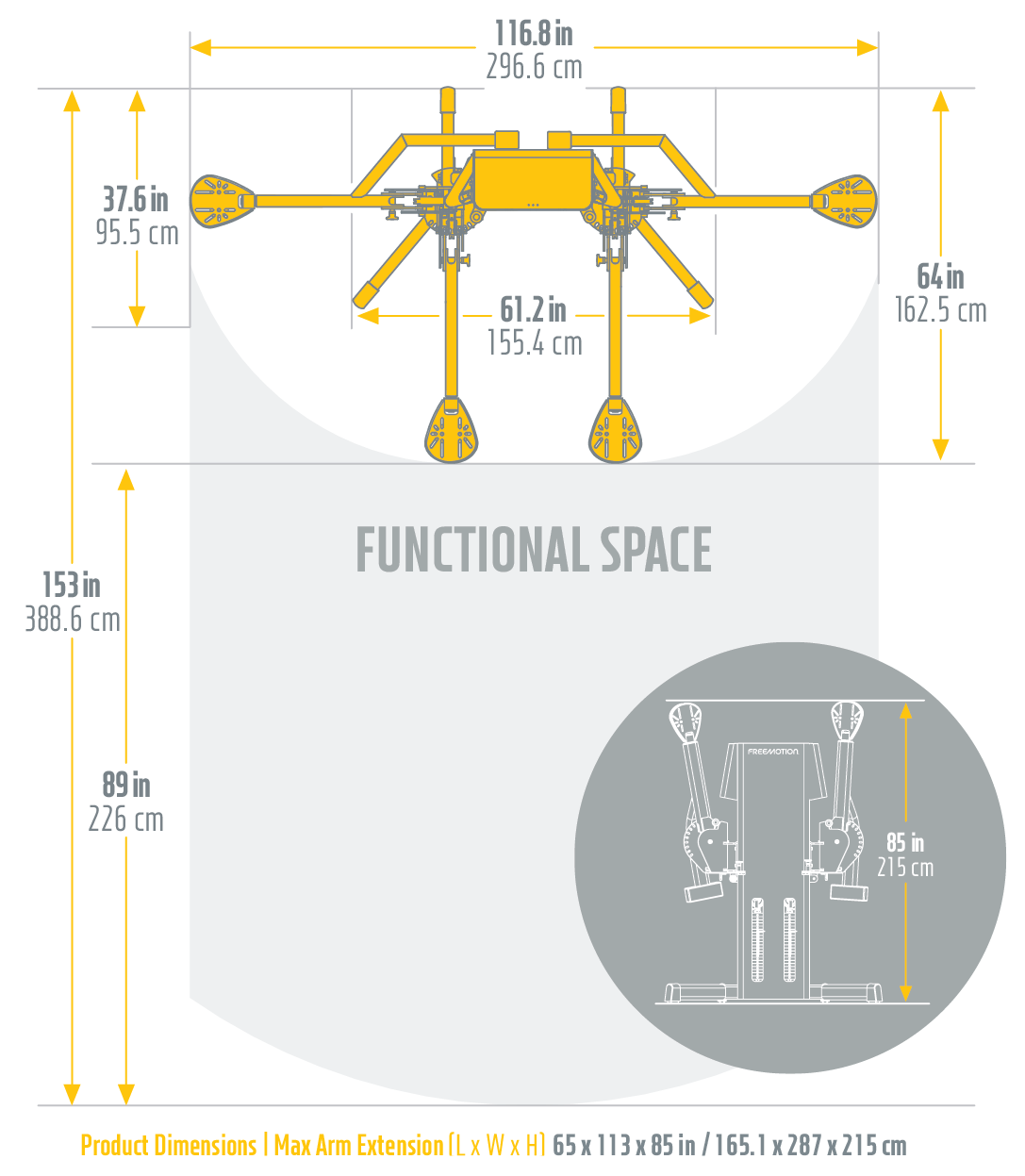

    • Min Footprint L x W x H 37.6 x 61.2 x 72 in /
      95.5 x 155.4 x 182.9 cm
    • Max Extensions L x W x H 64 x 116.8 x 84 in /
      162.5 x 296.6 x 213.3 cm
    • Machine Weight 997 lbs / 452 kg
    Shipping Dimensions & Weight
    • Shipping Weight Box 1: 341 lbs / 154.6 kg
      Box 2: 229 lbs / 103.8 kg
      Box 3: 408 lbs / 185 kg
      • Please note: Box 3 contains 8 smaller boxes, each weighing 51 lbs / 23.1 kg for a grand total of 408 lbs / 185 kg.
    • Shipping L x W x H Box 1: 75 x 33.5 x 13.5 in / 190.5 x 85 x 34.2 cm
      Box 2: 50 x 27 x 12 in / 127 x 76.5 x 30.4 cm
      Box 3: 19 x 17 x 12.5 in / 48.2 x 43.2 x 31.8 cm
      • Please note: Box 3 contains 8 smaller boxes within.
    Warranty (US)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Labor 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
