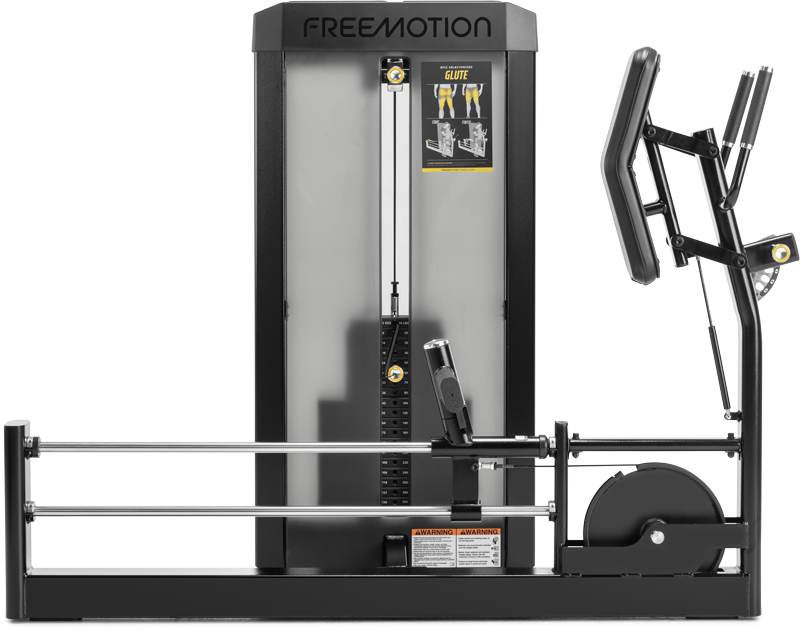

Epic Selectorized
ES820-3Q
ES820

GLUTE

The Glute muscles are some of the most powerful muscles in the body and play a crucial role in performance, such as squats, lunges, deadlifts and other movements to reduce the risk of injury. The easy to adjust chest pad and start position allows users to personalize their workout.
ES820_Grip_1

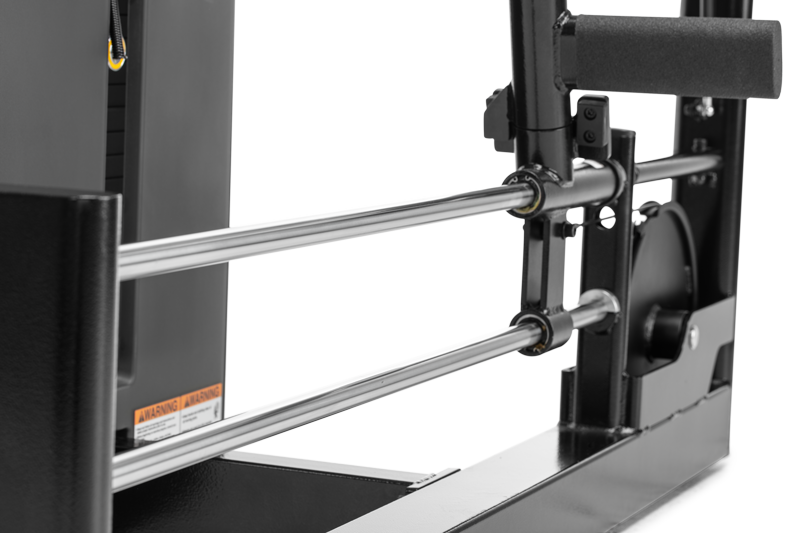

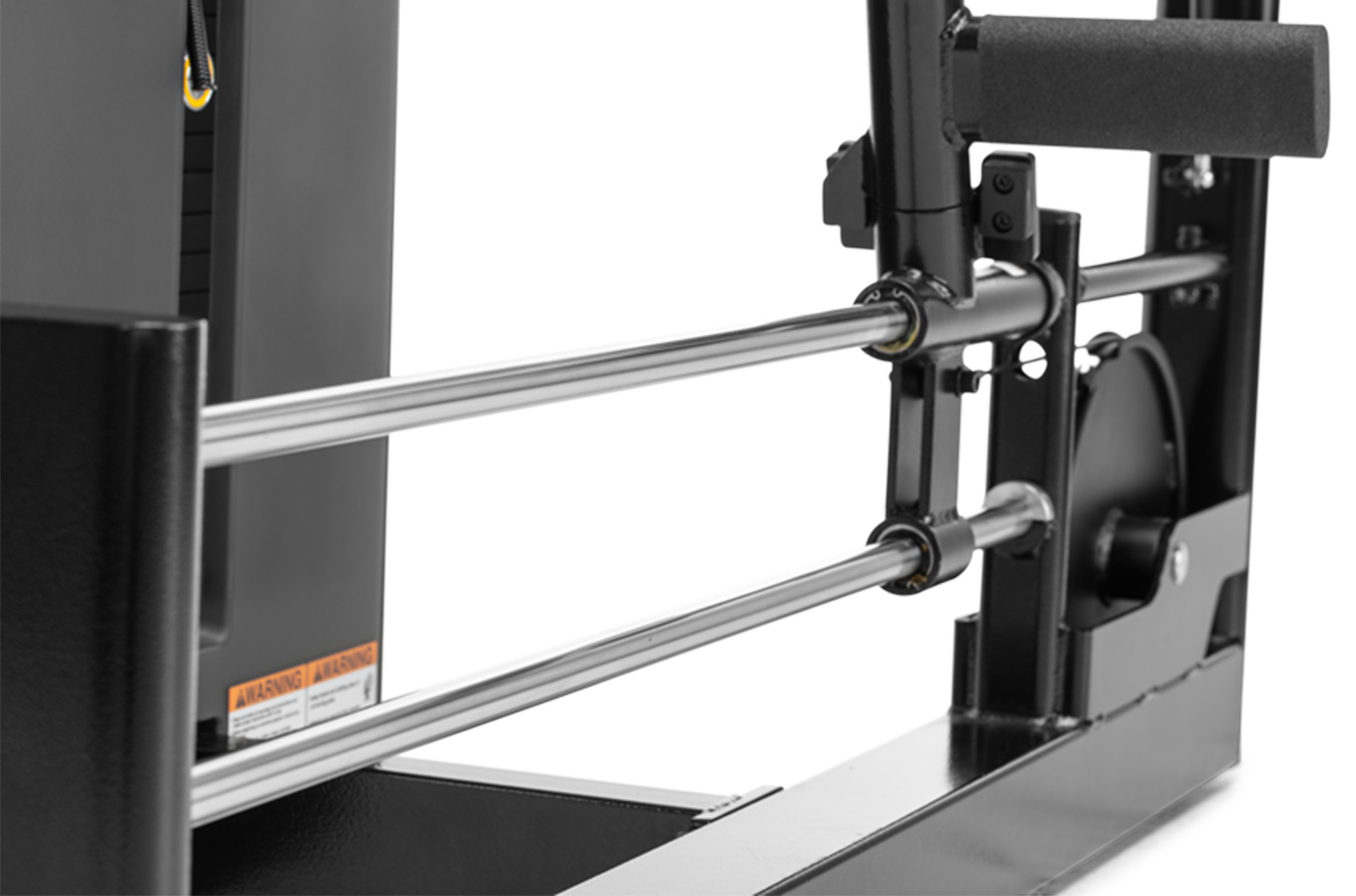

Linear Bearing Design for Smooth Movement

The linear bearings on this machine ensure smooth motion throughout the entire movement.

ES820_Adjustment

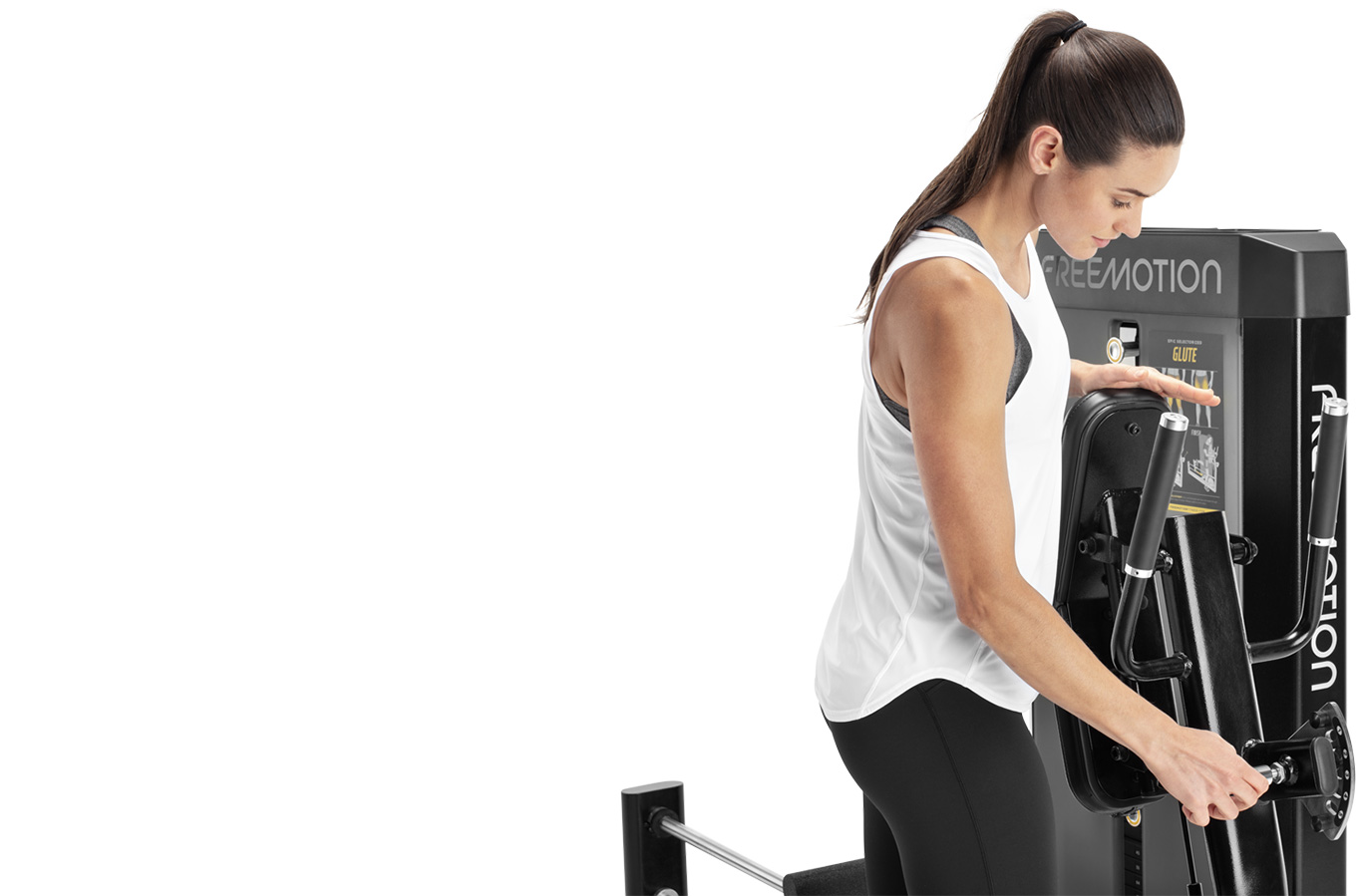

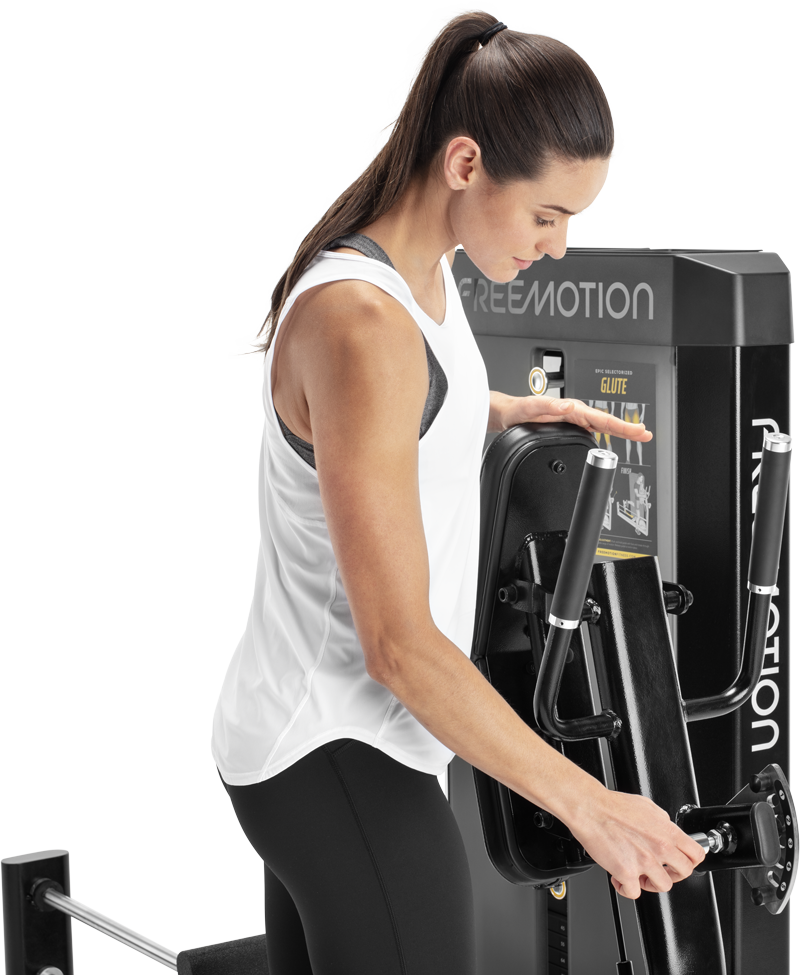

Adjustable Torso Pad

Torso pad adjusts to multiple positions to accommodate users of all sizes.

ES820-holders

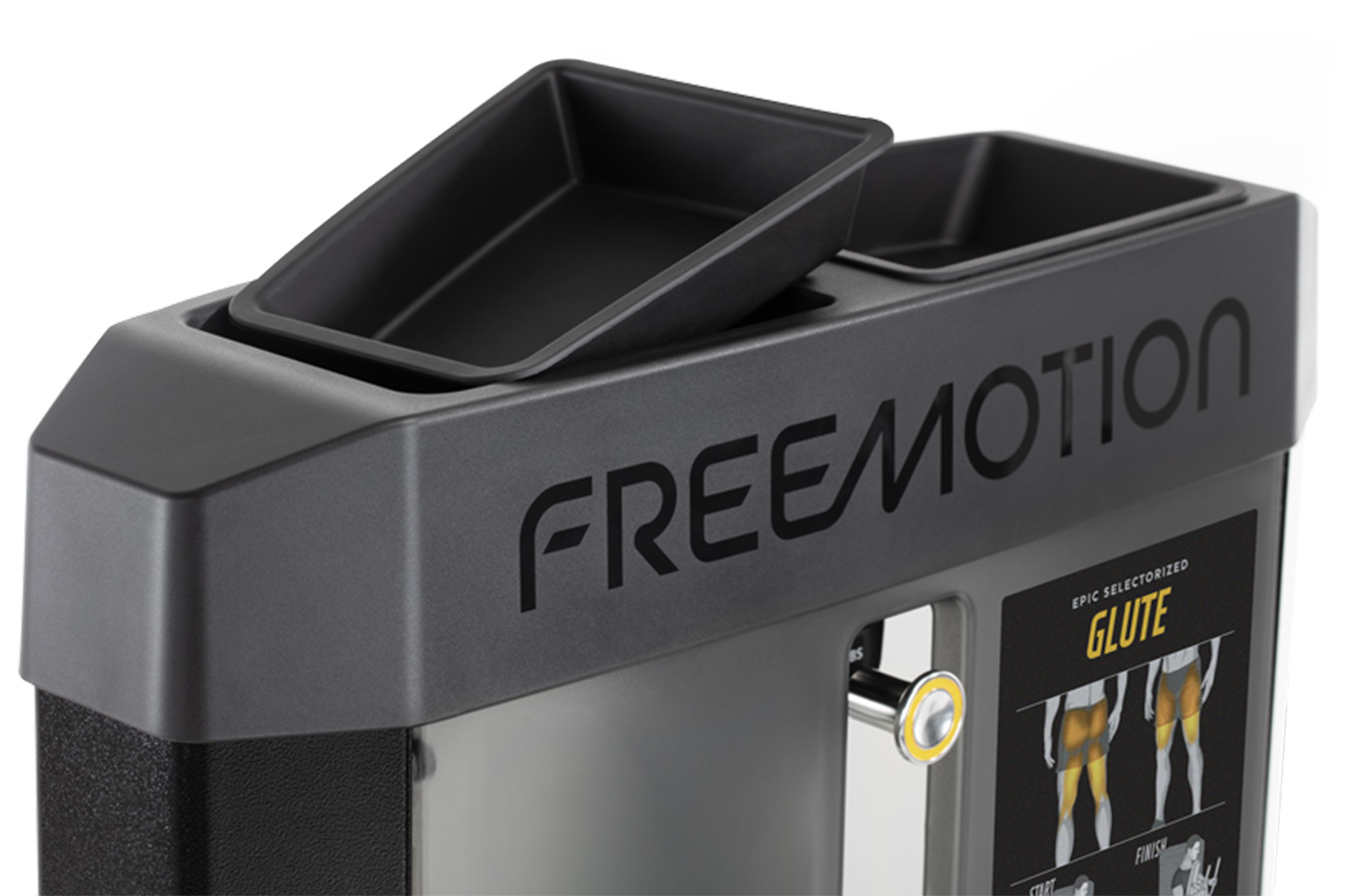

Built-in Storage

The redesigned top cap of this machine features a built-in accessory tray to help users keep track of their phone, keys and more.

Details & Specs

ES820-3Q
  • Features
    Low Profile Tower Design

    The low profile tower works well with an open design floor plan and adds to the 'welcome' environment.

    Adjustable Torso Pad

    Torso pad adjusts to multiple positions to accommodate users of all sizes.

    Linear Bearing Design For Smooth Movement

    The linear bearings on this machine ensure smooth motion throughout the entire movement.

    Built-In Storage

    The redesigned top cap of this machine features a built-in accessory tray to help users keep track of their phone, keys and more.

    Smaller Footprint

    The new EPIC Glute has a smaller, narrower footprint to free up your square footage.

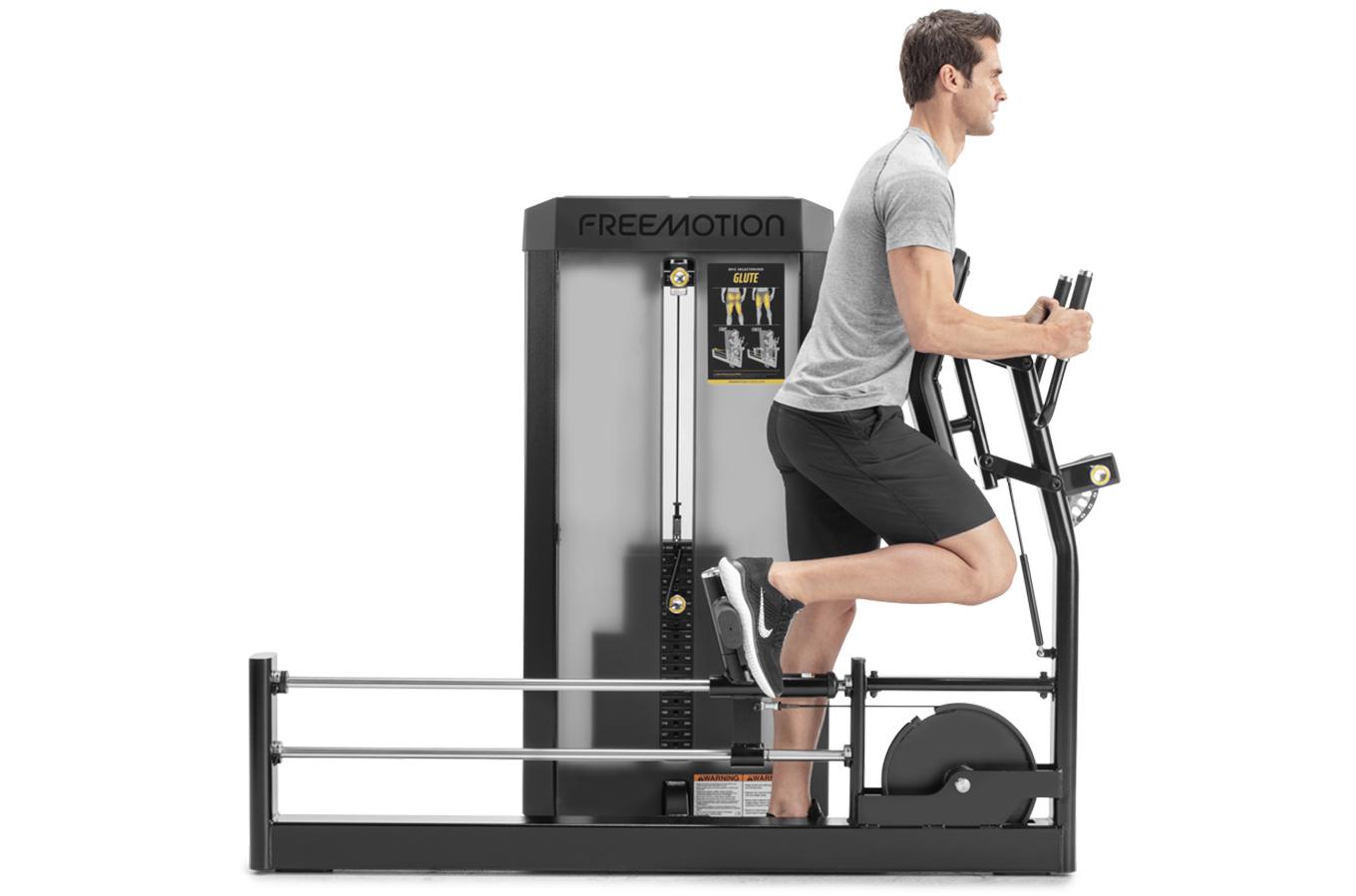

    Your Best Foot Forward

    With multiple foot positions, coated with Line-X Application, you can choose your perfect foot placement and stay locked in place.

    Comfortable Grip

    Special molded handle grips are designed to fit the shape of your hand so you can focus on the workout.

    Heavy Duty Cable

    Heavy duty cable is designed to support the rigorous usage demands of this machine.

    Heavy Duty Floor Protectors

    Made with molded rubber, the Freemotion floor guards help better protect your floor.

    Easy Serviceability

    The tower design allows for simple cable service.

  • Specifications
    Product Specifications
    • Standard Frame Colors Platinum Sparkle, Black River
    • Optional Frame Colors On Request
    • Plastic Colors Black
    • Standard Upholstery Colors Black
    • Optional Upholstery Colors Graphite, Blue Ridge, Burgundy, American Beauty Red
    • Hand Grip Colors Black
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Adjustable Torso Pad
    • Weight Stack lbs (kg) 305 lbs (138.3 kg)
    • Upholstery Vinyl, 1.5 in (3.8 cm) thick foam
    • Rubber Feet Heavy Duty Floor Protectors
    • Resistance lbs (kg) 305 lbs (138.3 kg)
    • Weight Stack Configuration lbs (kg) 10 lbs header (4.5 kg)
      20-190 x 10 lbs (4.5 kg)
    • Maximum User Weight lbs (kg) 350 lbs (159 kg)
    • Drop Down Weight 5 lbs (2.2 kg)
    Product Dimensions & Weight
    • Machine Weight lbs (kg) 604.9 lbs (274.4 kg)
    • L x W x H in (cm) 72.8 x 31.9 x 57.8 in
      (184.9 x 81 x 146.8 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lbs (kg) Box 1: 562 lbs (254.8 kg)
      Box 2: 11 lbs (4.9 kg)
    • L x W x H in (cm) Box 1: 87.4 x 22.2 x 51.9 in
      (221.9 x 56.3 x 131.8 cm)
      Box 2: 21.6 x 7.1 x 6 in
      (54.8 x 18 x 15.2 cm)
    Regulatory Approvals
    • Approvals CE
    Warranty (US)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
