Epic Selectorized
ES802_3Q
ES802

LAT PULLDOWN/HIGH ROW

The Lat Pulldown/High Row strengthens and isolates the back muscles for activities that involve lifting movements. The L-shaped handles create multiple grip positions while the lower tower height promotes a welcoming and open feel. The arms move in a converging axis pattern, and allow for unilateral movements for increased muscle concentration.
ES802_Talent_Profile

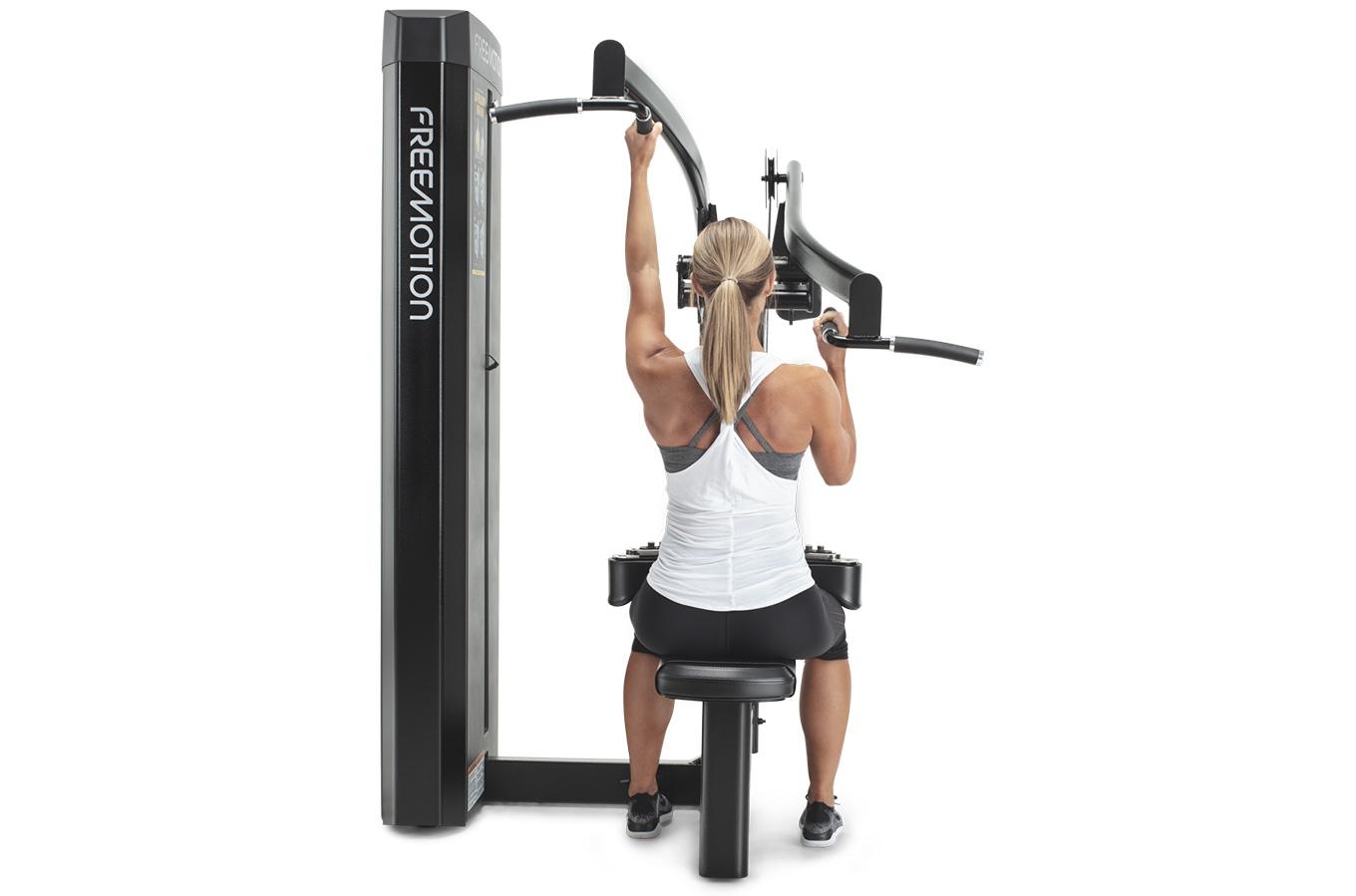

Unilateral Arm Movement

Handles move independently to create single or dual-arm exercises that build strength with balance and symmetry.

ES802_Adjustment

Adjustable Thigh Pads

Thigh pads adjusts to multiple positions to accommodate users of all sizes.

ES802-Footprint2

Smaller Footprint

The new EPIC Lat Pulldown/High Row has a smaller, narrower footprint to free up your square footage.

Details & Specs

ES802_3Q
  • Features
    Low Profile Tower Design

    The low profile tower works well with an open design floor plan and adds to the 'welcome' environment.

    Unilateral Arm Movement

    Handles move independently to create single or dual-arm exercises that build strength with balance and symmetry.

    Multiple Handle Postions

    The L-shaped handles on this machine create multiple grips to perform lat and row exercises.

    Built-In Storage

    The redesigned top cap of this machine features a built-in accessory tray to help users keep track of their phone, keys and more.

    Smaller Footprint

    The new EPIC Lat Pulldown/High Row has a smaller, narrower footprint to free up your square footage.

    Adjustable Thigh Pads

    Thigh pads adjusts to multiple positions to accommodate users of all sizes.

    Heavy Duty Cable

    Heavy duty cable is designed to support the rigorous usage demands of this machine.

    Heavy Duty Floor Protectors

    Made with molded rubber, the Freemotion floor guards help better protect your floor.

    Easy Serviceability

    The tower design allows for simple cable service.

  • Specifications
    Product Specifications
    • Standard Frame Colors Platinum Sparkle, Black River
    • Optional Frame Colors On Request
    • Plastic Colors Black
    • Standard Upholstery Colors Black
    • Optional Upholstery Colors Graphite, Blue Ridge, Burgundy, American Beauty Red
    • Hand Grip Colors Black
    Equipment
    • Instructional Placards Yes
    • Adjustments Multiple Handle Positions
      Adjustable Thigh Pads
    • Weight Stack lbs (kg) 305 lbs (138.3 kg)
    • Upholstery Vinyl, 1.5 in (3.8 cm) thick foam
    • Rubber Feet Heavy Duty Floor Protectors
    • Resistance lbs (kg) 305 lbs (138.3 kg)
    • Weight Stack Configuration lbs (kg) 10-80 x 10 lbs (4.5 kg)
      90-300 x 20 lbs (9 kg)
    • Maximum User Weight lbs (kg) 350 lbs (159 kg)
    • Drop Down Weight 5 lbs (2.2 kg)
    Product Dimensions & Weight
    • Machine Weight lbs (kg) 661.3 lbs (300 kg)
    • L x W x H in (cm) 51.8 x 66.5 x 76.8 in
      (131.5 x 168.9 x 195 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lbs (kg) Box 1: 820 lbs (371.9 kg)
      Box 2: 22 lbs (9.9 kg)
    • L x W x H in (cm) Box 1: 78.7 x 30.3 x 57.4 in
      (199.8 x 76.9 x 145.7 cm)
      Box 2: 31.8 x 11.4 x 4.7 in
      (80.7 x 28.9 x 11.9 cm)
    Regulatory Approvals
    • Approvals CE
    Warranty (US)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
