Genesis DS

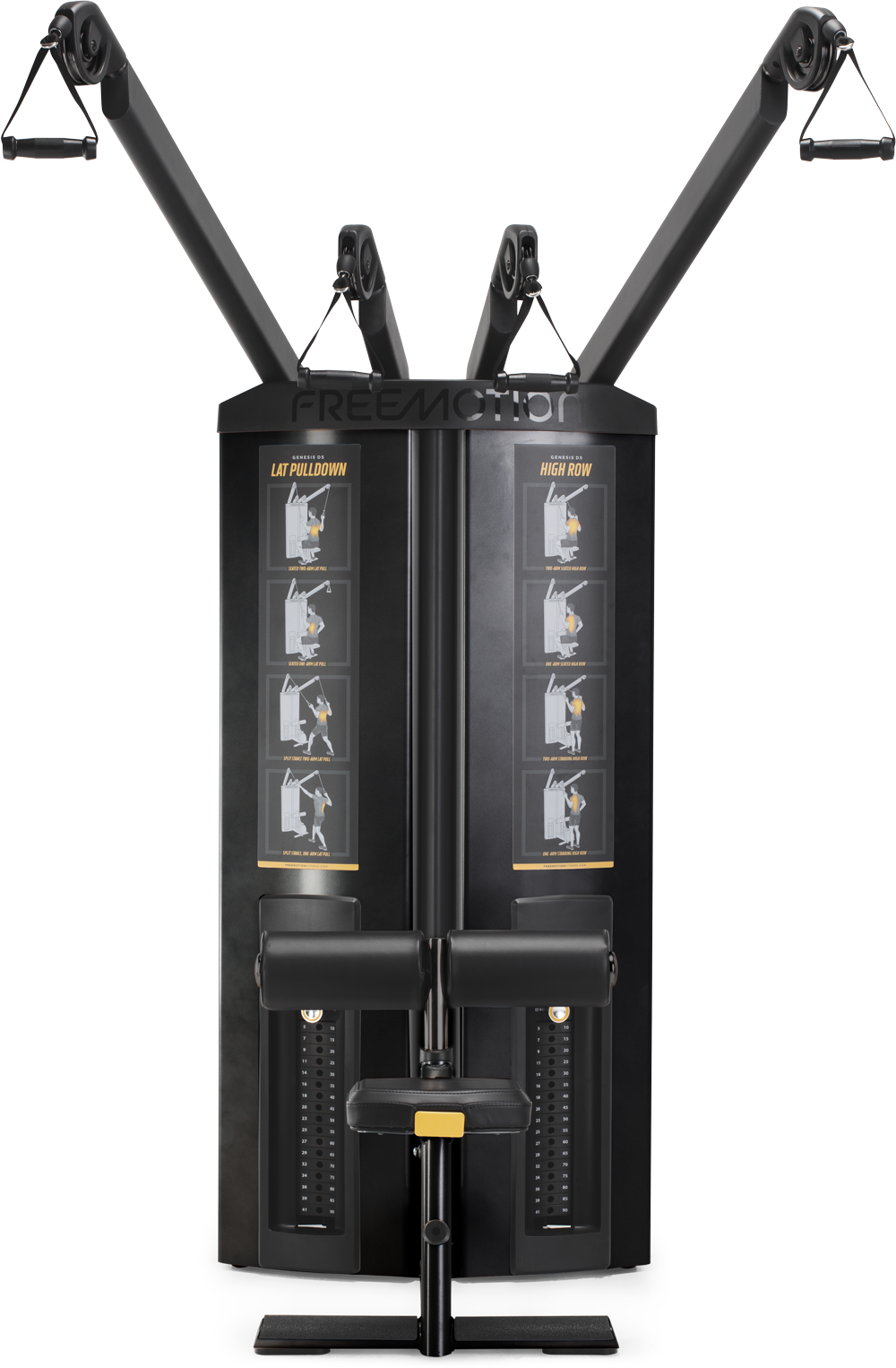

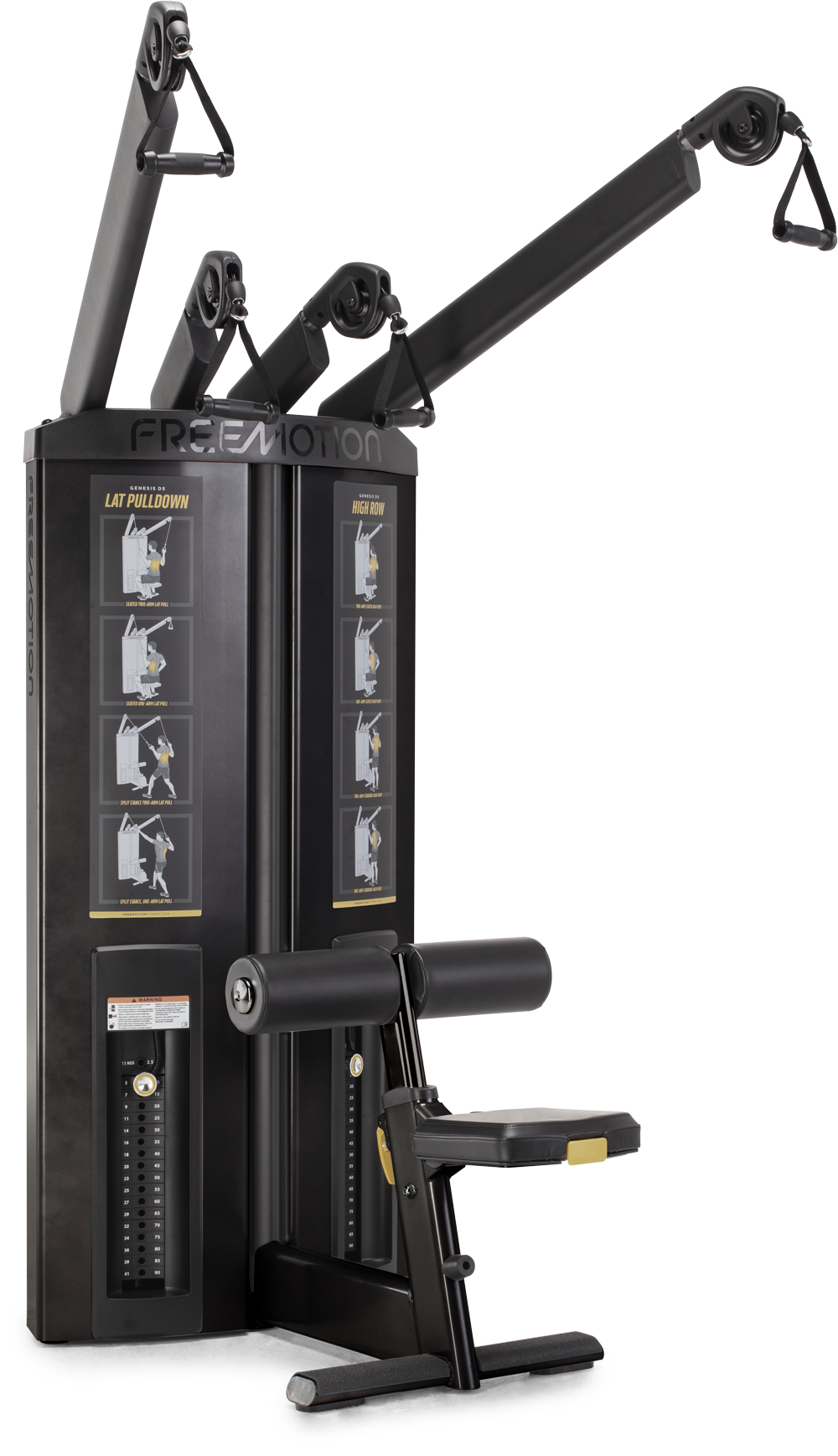

GD502 STUDIO 0503 Black
GD502

LAT PULLDOWN / HIGH ROW

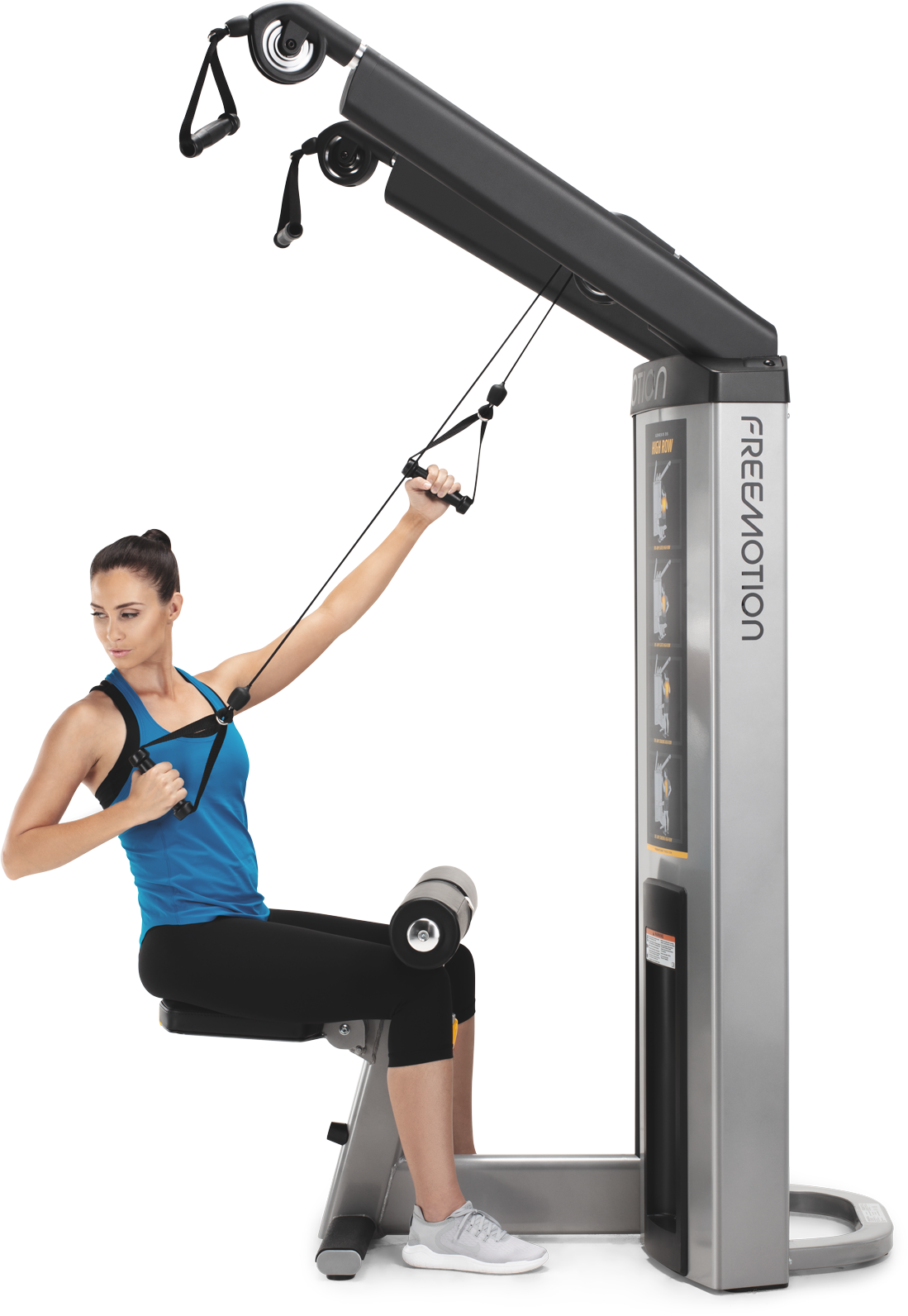

The Genesis DS™ Lat Pulldown/High Row engages the arms, shoulders, back and stabilizer muscles to improve overall core strength and balance. An adjustable thigh pad comfortably secures legs throughout the workout while the pivoting, padded seat pad can be quickly folded away for standing workout positions.

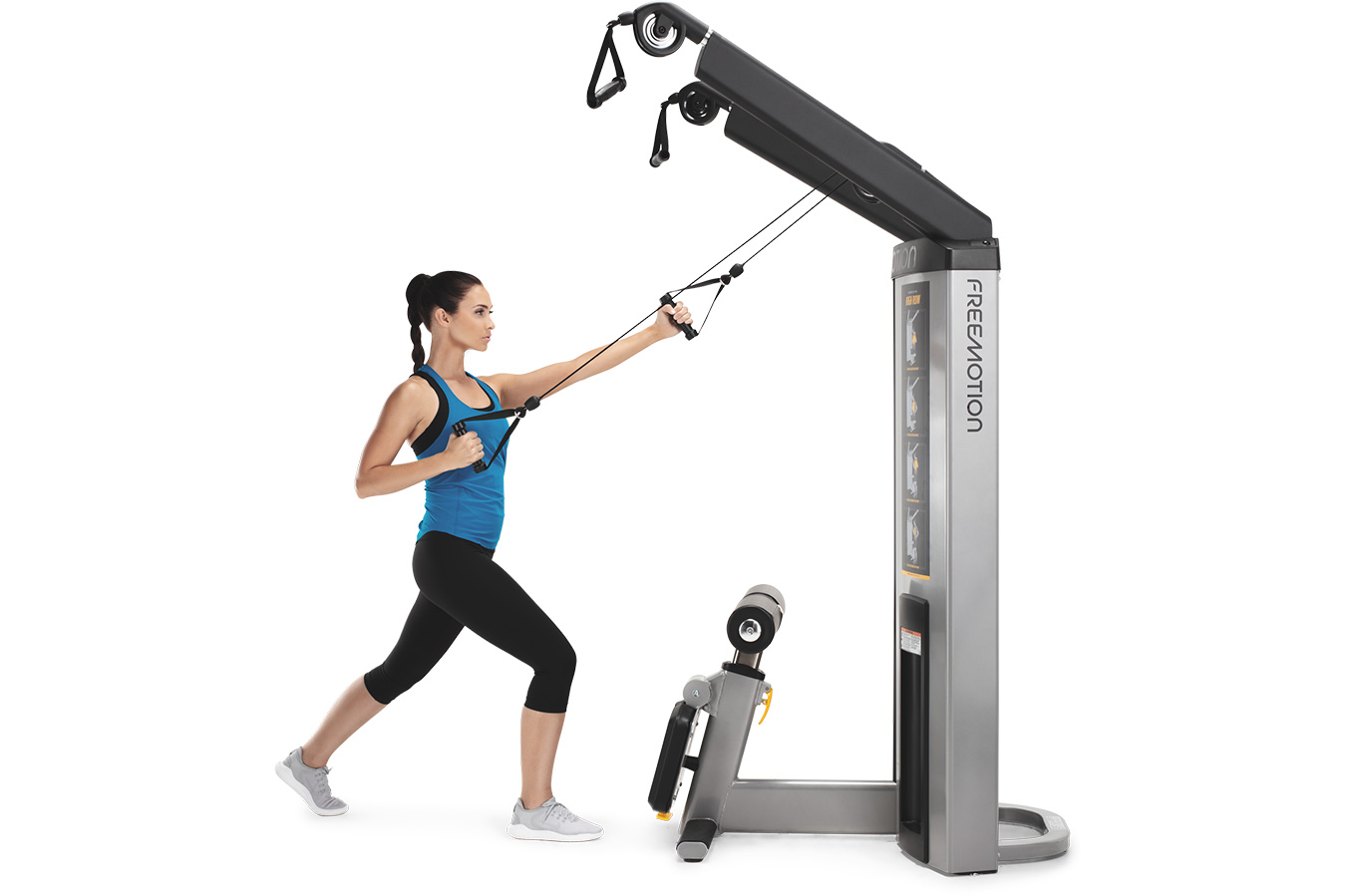

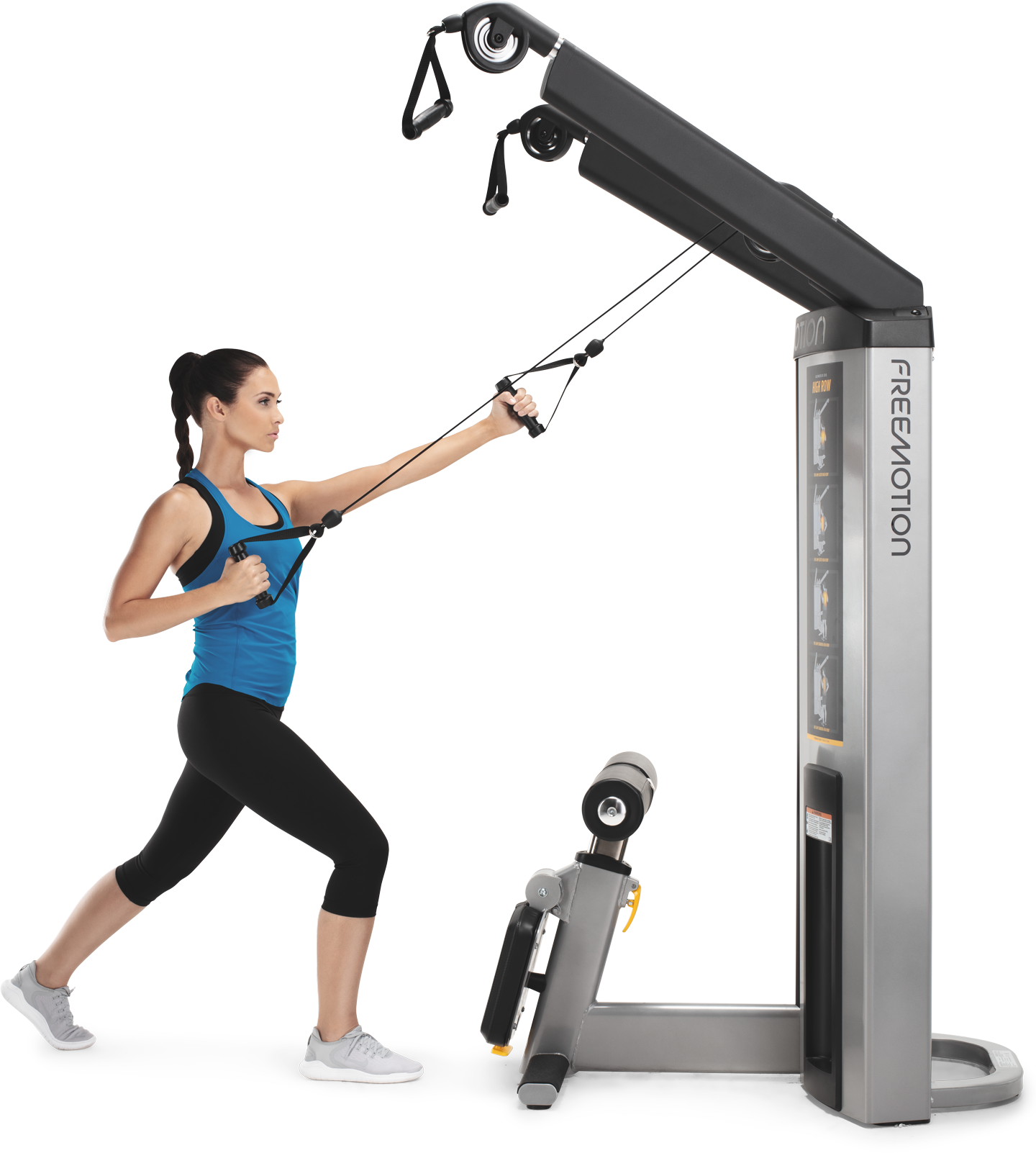

GD502-Profile-fm2

Take A Stand

Quickly fold away the padded, pivoting seat to change from seated row to a standing lat exercise.

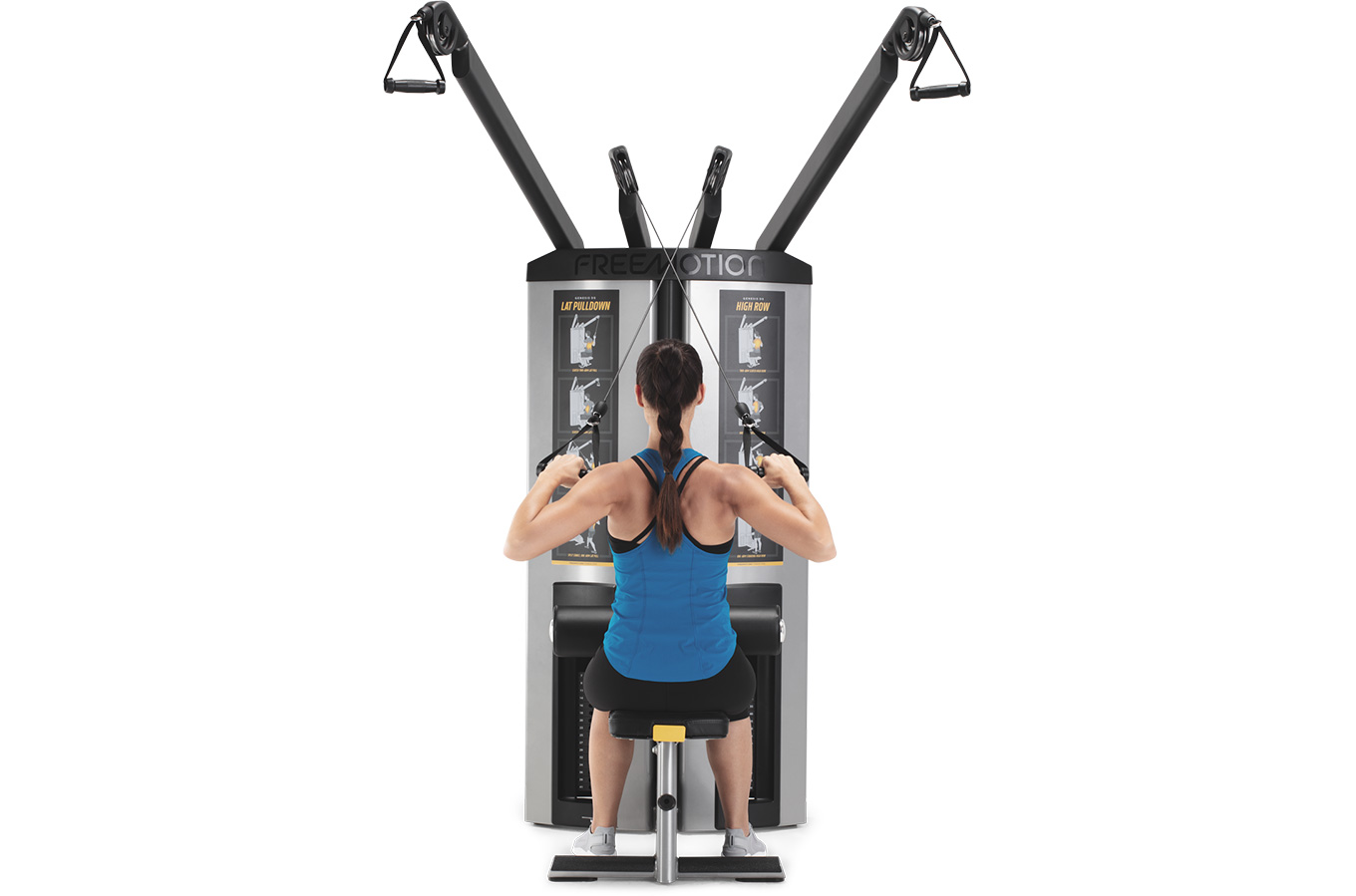

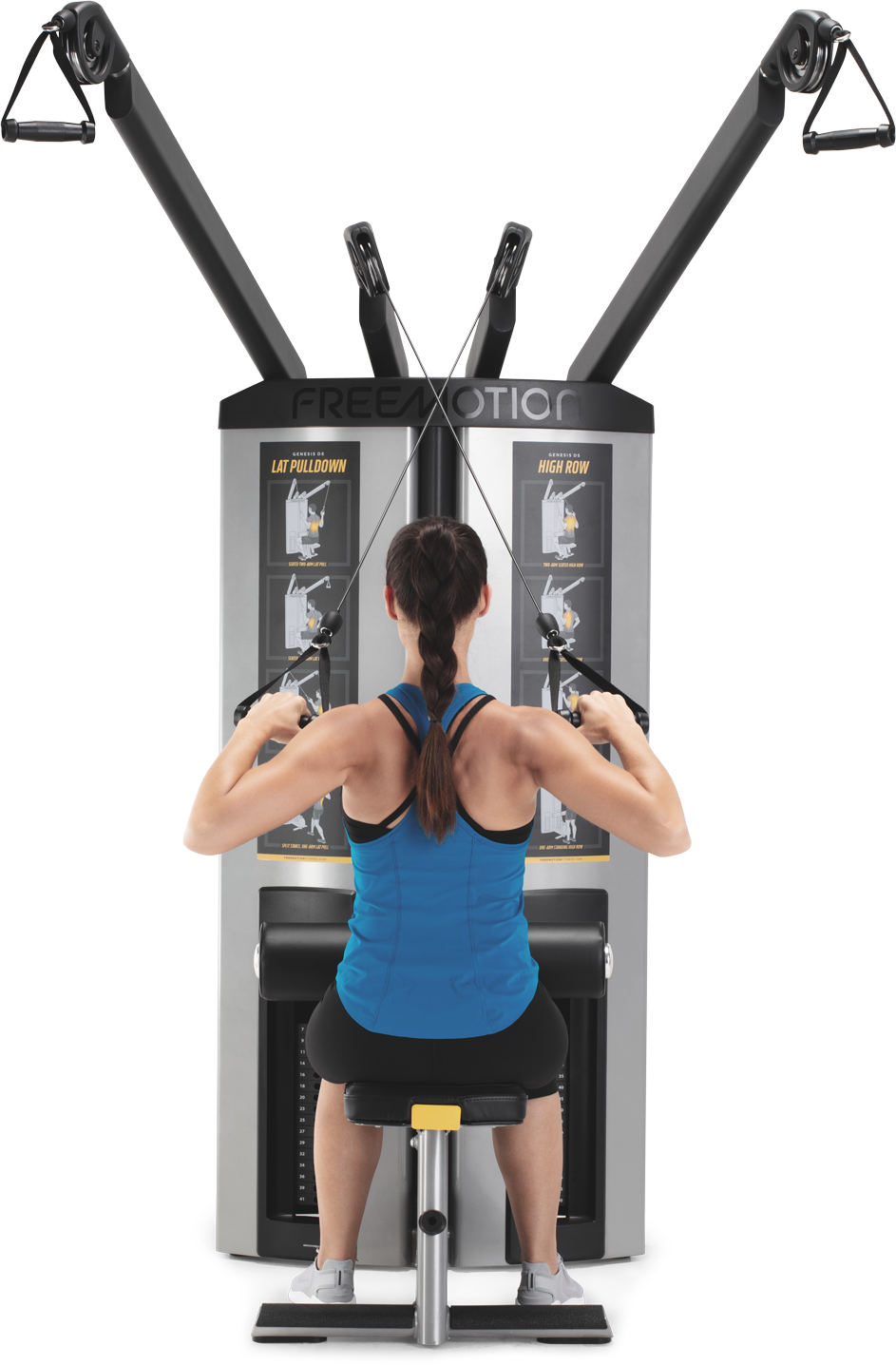

GD502-Front-fm

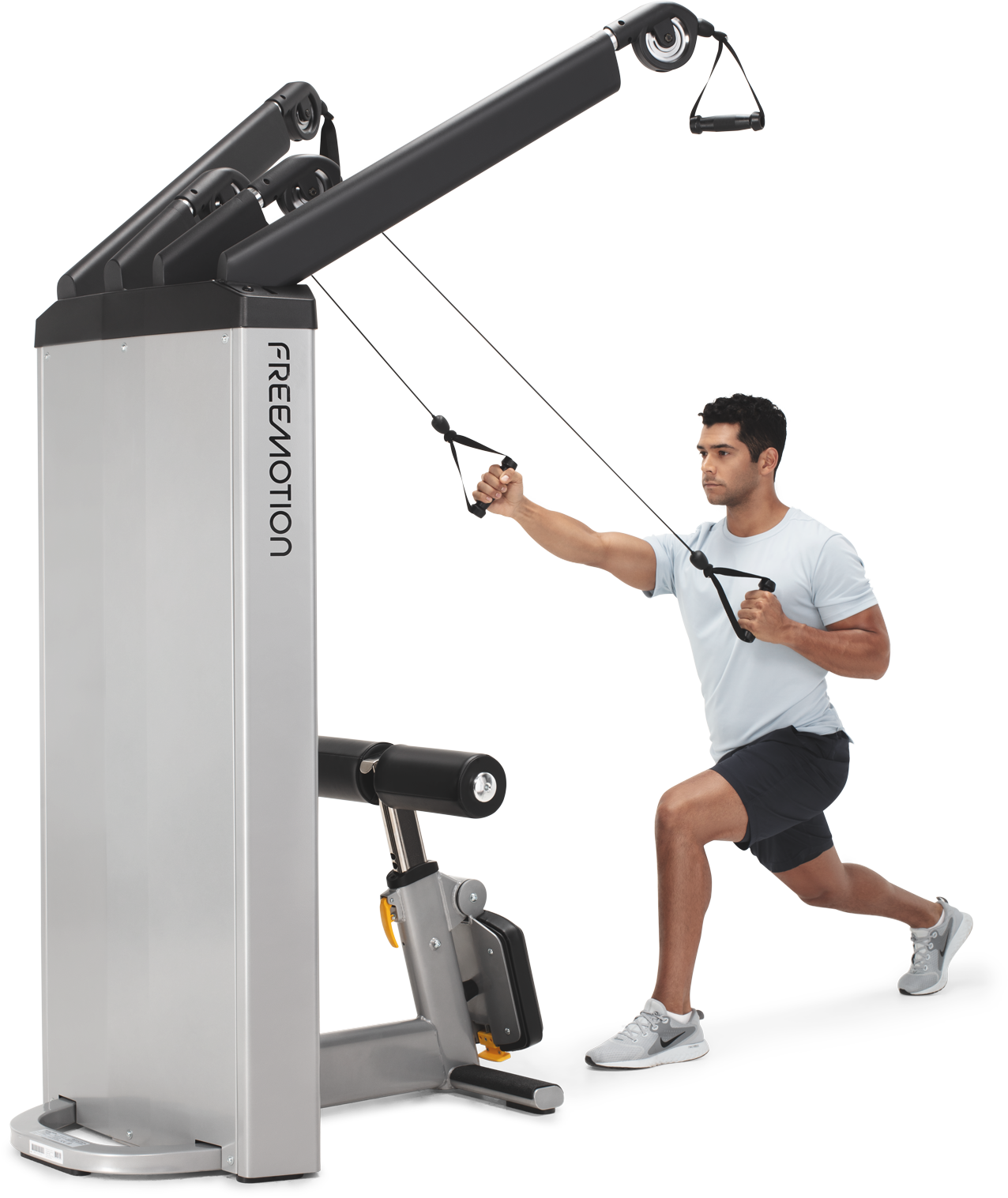

New Day, New Workout

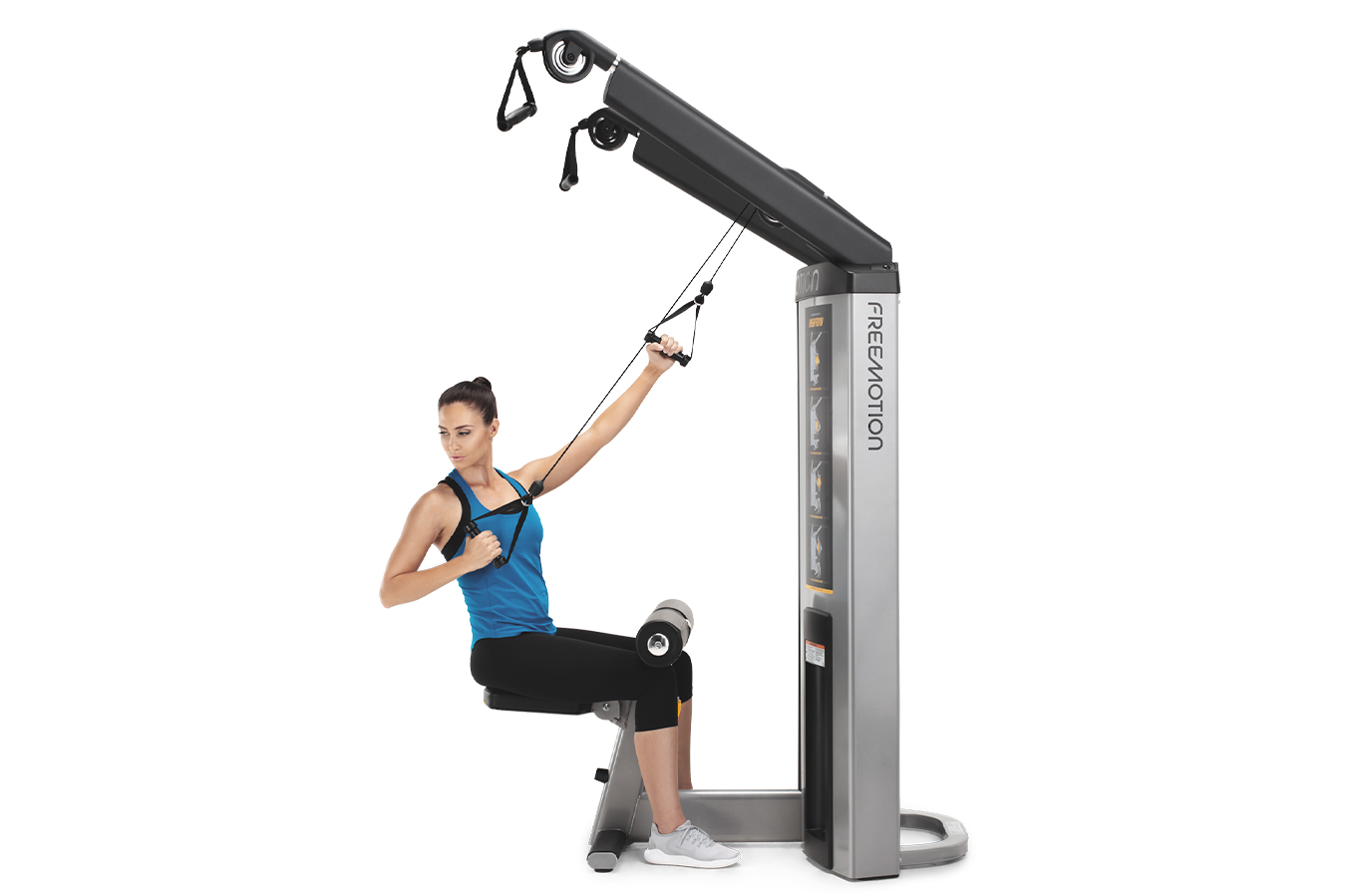

Create custom workouts that incorporate arms, shoulders, back and stabilizer muscles using beneficial “pulling” moves that include the frontal plane, rotational pull and unilateral pull.

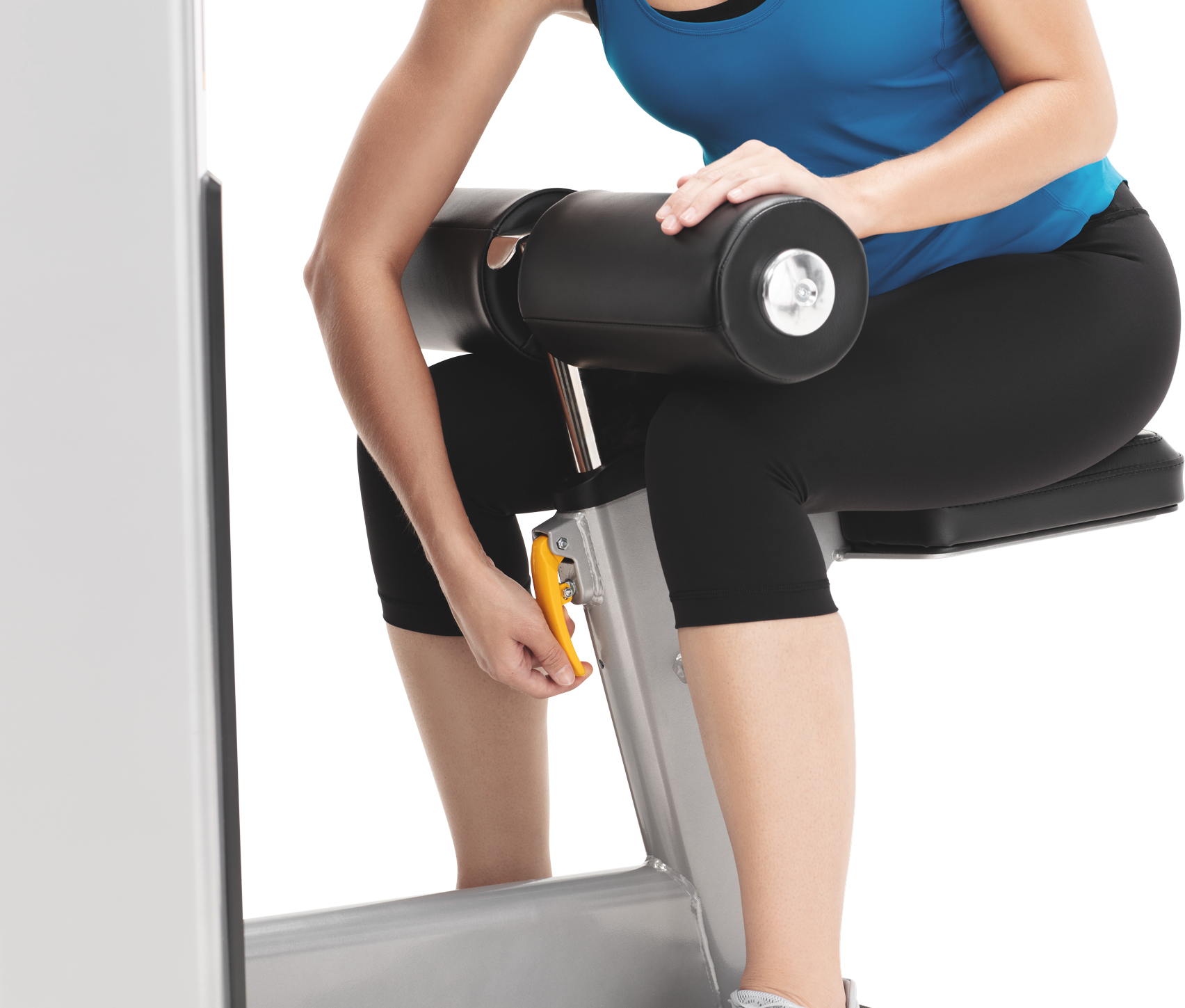

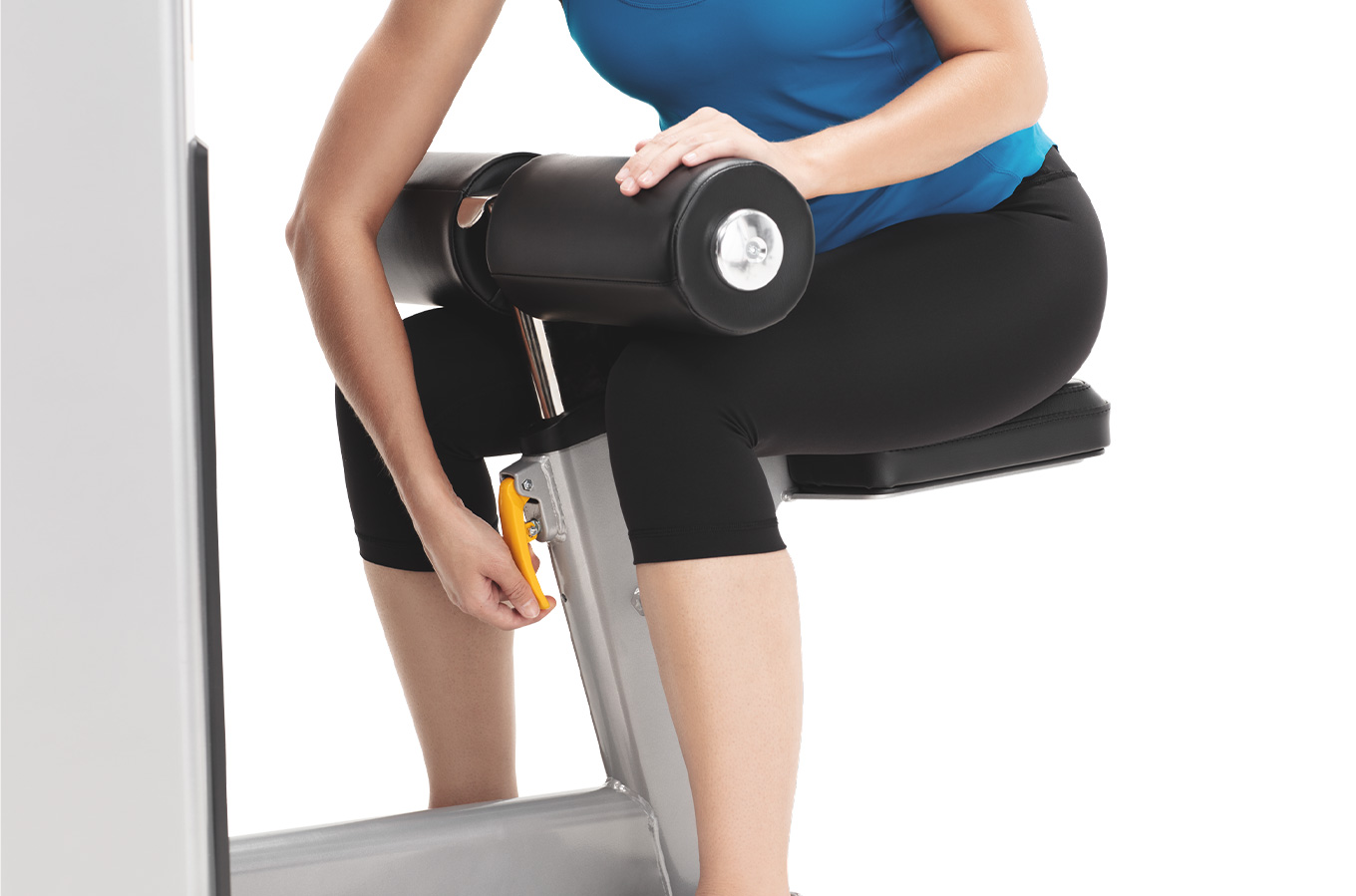

GD502-handle-closeUp

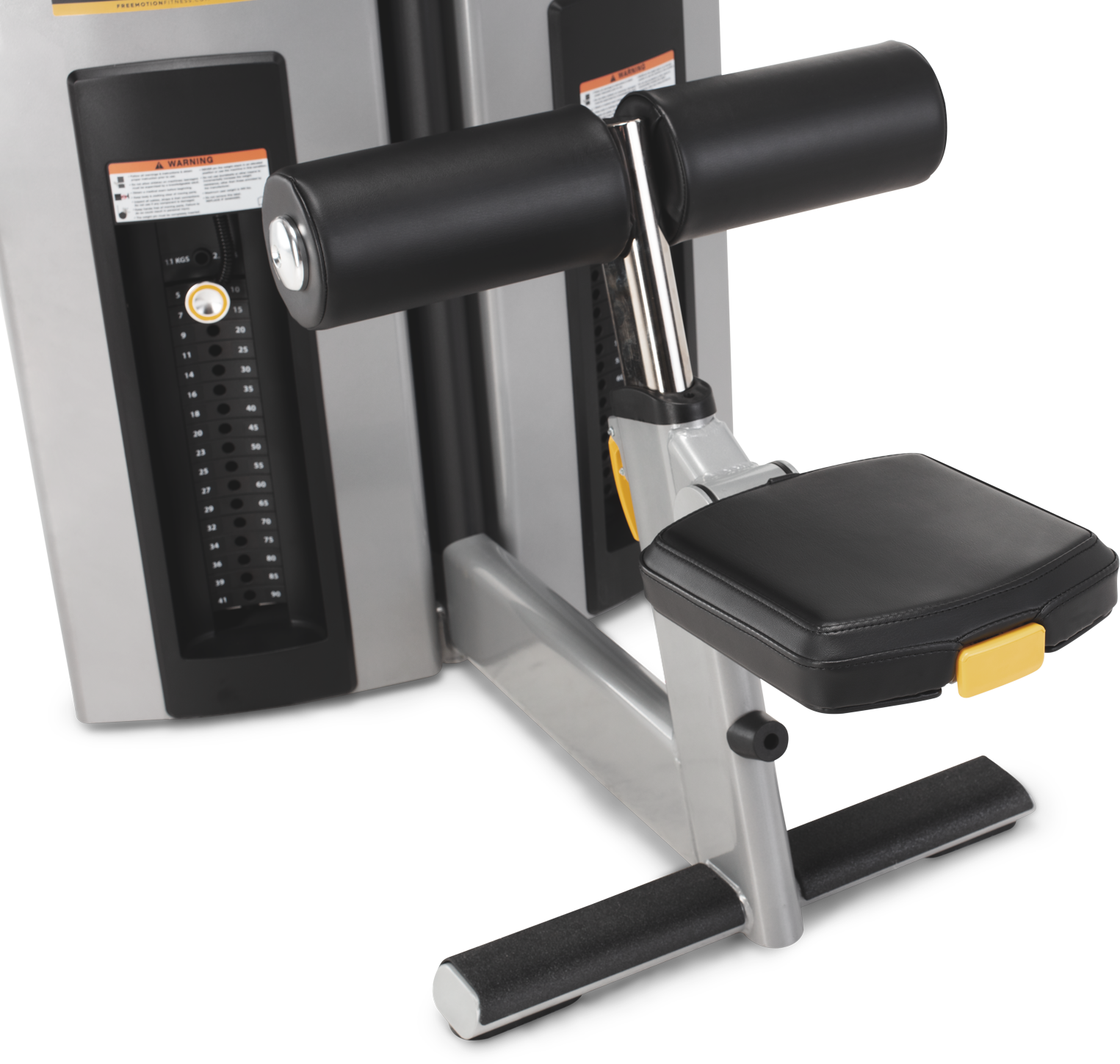

Personalized Fit

Contoured, thigh pads adjust in height, and also swivel and slide, to fit people of all sizes.

Details & Specs

GD502 STUDIO 0503 Black
  • Features
    Strengthen The Plane

    Engage arms, shoulders, back and stabilizer muscles in a variety of pulling options including the frontal plane, rotational pull and unilateral pull.

    Perfect Fit

    Contoured, thigh pads adjust in height and swivel and slide to fit people of all sizes.

    Pivot Seat Pad

    Quickly fold away the padded seat to change from seated to standing movements.

    Independent Arm Movement

    Handles can move together or one at a time to create results-driven lat exercises and single arm strength movements.

    Cable Travel

    Extensive cable travel allows for a full exercise flexion of 72 inches per arm (183 cm).

    Kick Plates

    Solid 16-gauge, stainless steel kick plates protect the machine from wear and tear.

    Two Enclosed 180 Lbs (81 Kg) Weight Stacks

    Protected, limited access to moving parts is safer for your members and trainers.

    Industrial Construction

    This Freemotion machine is built with 11 and 7-gauge steel tubing and is electrostatically powder-coated with paint that has undergone 2,000 hours of salt spray testing.

    Wheelchair Accessible

    The open design of this piece makes it wheelchair accessible and welcoming to users of all fitness levels.

    Weight Capacity

    Built to last, the Genesis DS Lat Pull/High Row press works for people up to 400 lbs (181 kg).

    New Day, New Workout

    Create custom workouts that incorporate arms, shoulders, back and stabilizer muscles using beneficial "pulling" moves that include the frontal plane, rotational pull and unilateral pull.

    Personalized Fit

    Contoured, thigh pads adjust in height, and also swivel and slide, to fit people of all sizes.

    Take A Stand

    Quickly fold away the padded, pivoting seat to change from seated row to a standing lat exercise.

  • Specifications
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Pivot seat pad for standing lat and row movements
    • Weight Stack lbs (kg) QTY 2 - 180 lbs weight stacks (81.6 kg)
    • Upholstery Vinyl with 2 in (5 cm) thick foam
    • Pulleys Aluminum swivel pulleys
    • Cable Travel in (cm) 72 in (182.8 cm) per arm
    • Rubber Feet Soft PVC
    • ADA Compliant Wheelchair Accessible
    • Resistance lbs (kg) 1 arm: 90 lbs (40.8 kg)
      2 arms: 180 lbs (81.6 kg)
    • Weight Stack Configuration lbs (kg) 2 - 10 lbs top plates, 34 - 10 lbs plates
      (2 - 4.5 kg top plates, 34 - 4.5 kg plates)
    • Maximum User Weight lbs (kg) 400 lbs (181.4 kg)
    • Standard Frame Colors Dell Gray
    • Plastic Colors Black, Platinum Metallic Silver, Bordeaux Red, Dell Gray
    • Standard Upholstery Colors Black Vinyl
    Product Dimensions & Weight
    • Machine Weight lb (kg) 709.8 lbs (322 kg)
    • Product L x W x H in (cm) 54 x 48 x 84 in (137.1 x 121.9 x 213.3 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lb (kg) 830 lbs (376.6 kg)
    • Shipping L x W x H in (cm) Box 1: 74.8 x 38.9 x 47.5 in (198.9 x 99 x 120.7 cm)
      Box 2: 38.9 x 11.8 x 5.1 in (99 x 29.9 x 13 cm)
    Regulatory Approvals
    • Approvals EN957,CE
    Warranty (US)
    • Frame 10 Years
    • Cables 1 Year
    • Parts 3 Years
    • Other 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Cables 1 Year
    • Labor 1 Year
    • Parts 3 Years
    • Other 120 Days
  • Documents
    PDF Downloads
