Epic Selectorized
ES803-_3Q
ES803

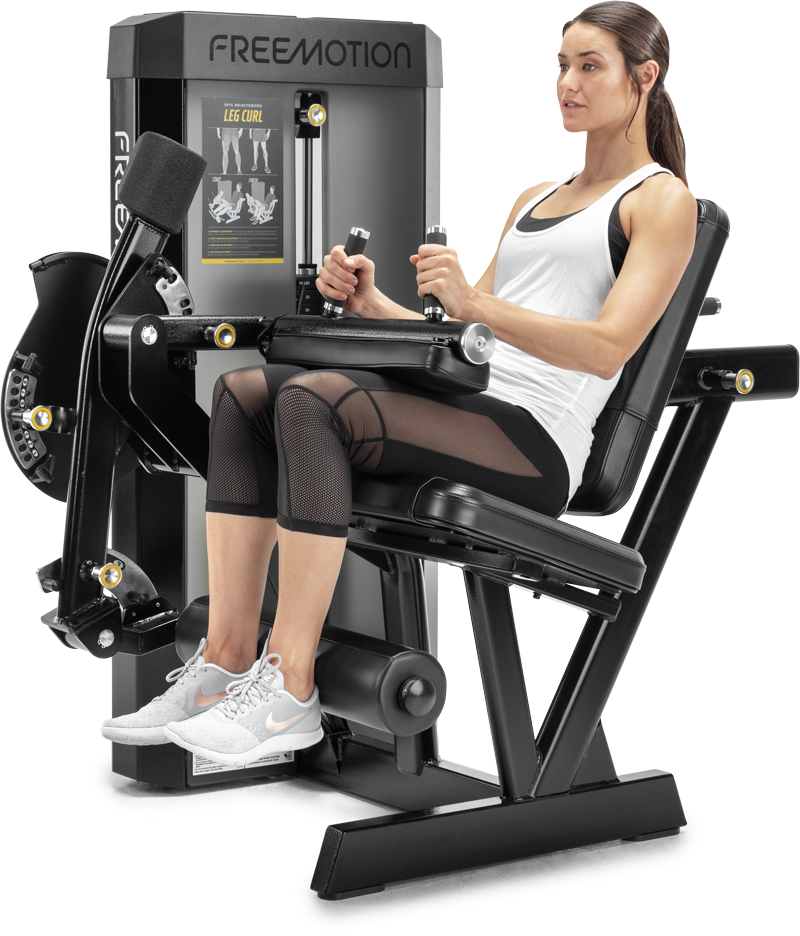

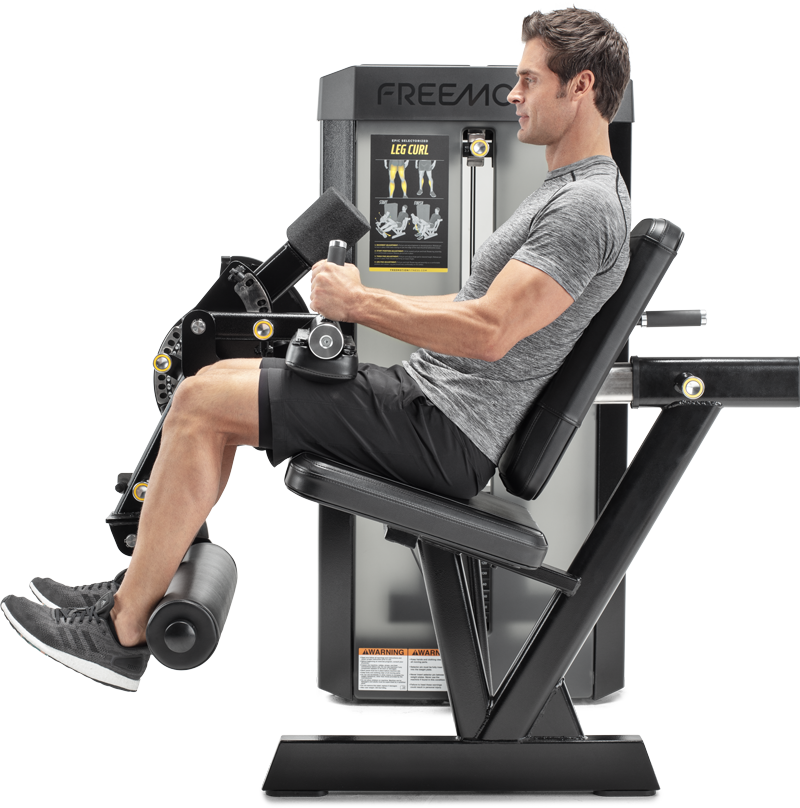

LEG CURL

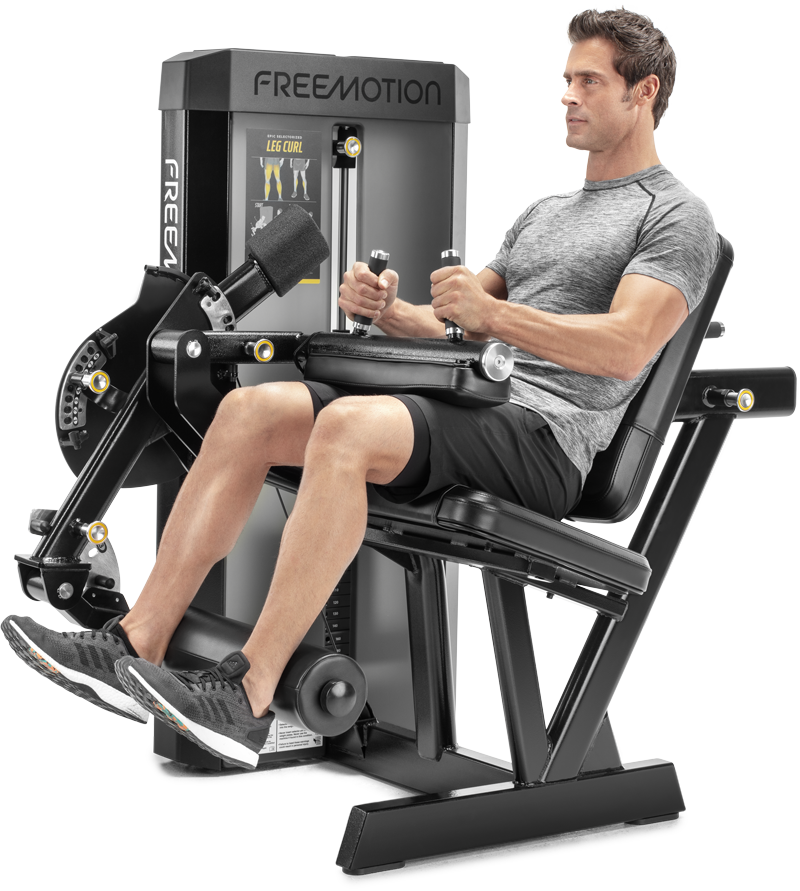

Spring-loaded and counterbalanced, the Freemotion EPIC Leg Curl strengthens the upper leg. By creating a wide range of motion, users can focus their efforts on strengthening leg muscles, while a lower tower height promotes an open feel.
ES803_Tower-Hight-01

Low Profile Tower Design

The low profile tower works well with an open design floor plan and adds to the ‘welcome’ environment.

ES803_Adjustment

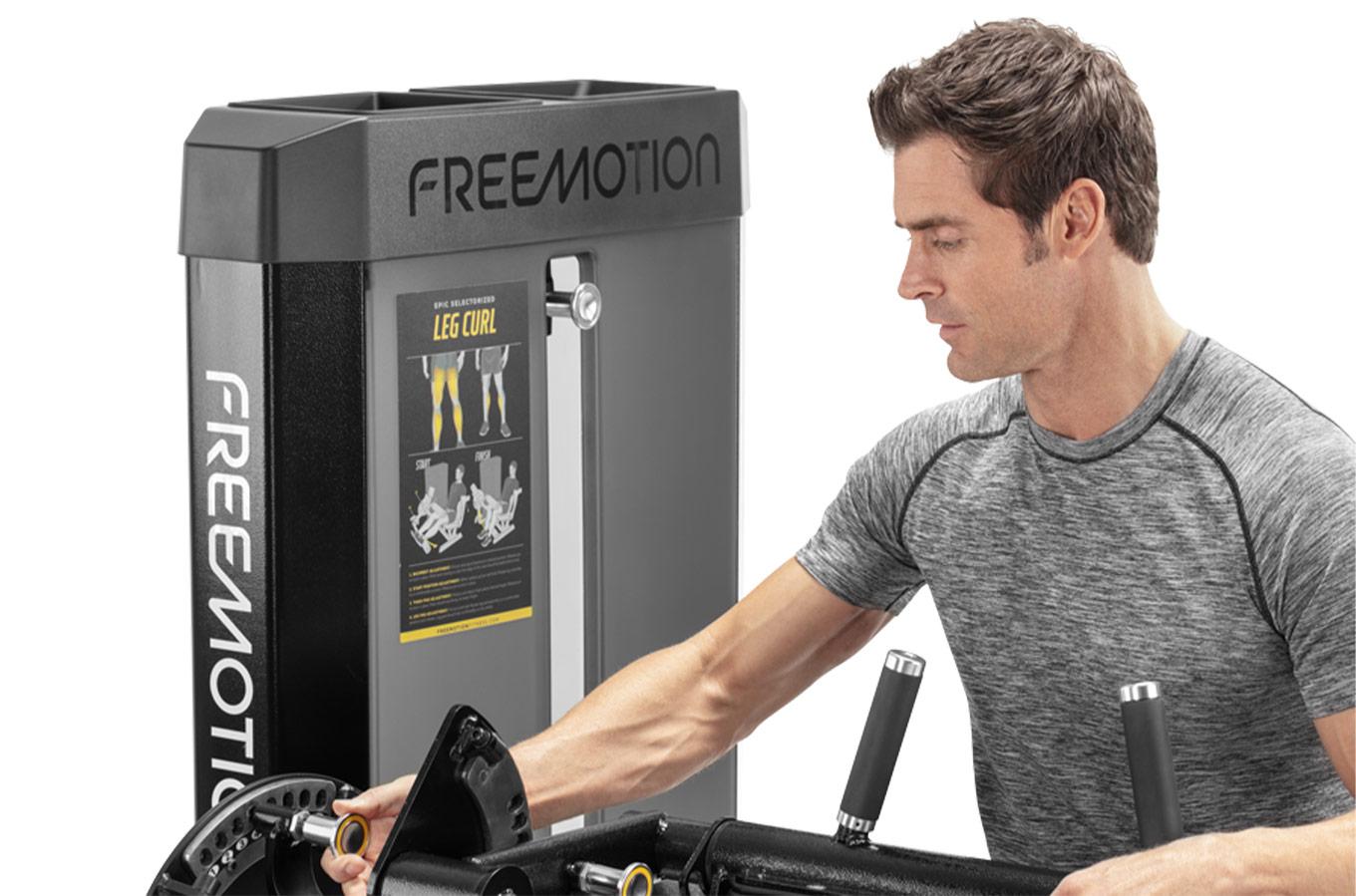

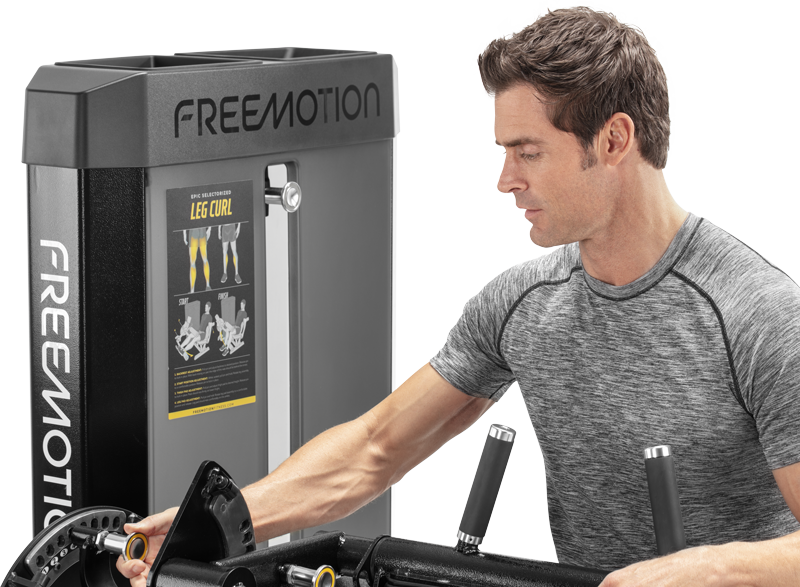

Multiple Start Positions

Leg assembly can be set in multiple starting positions to accommodate people of varying heights.

ES803_Adjustments-3

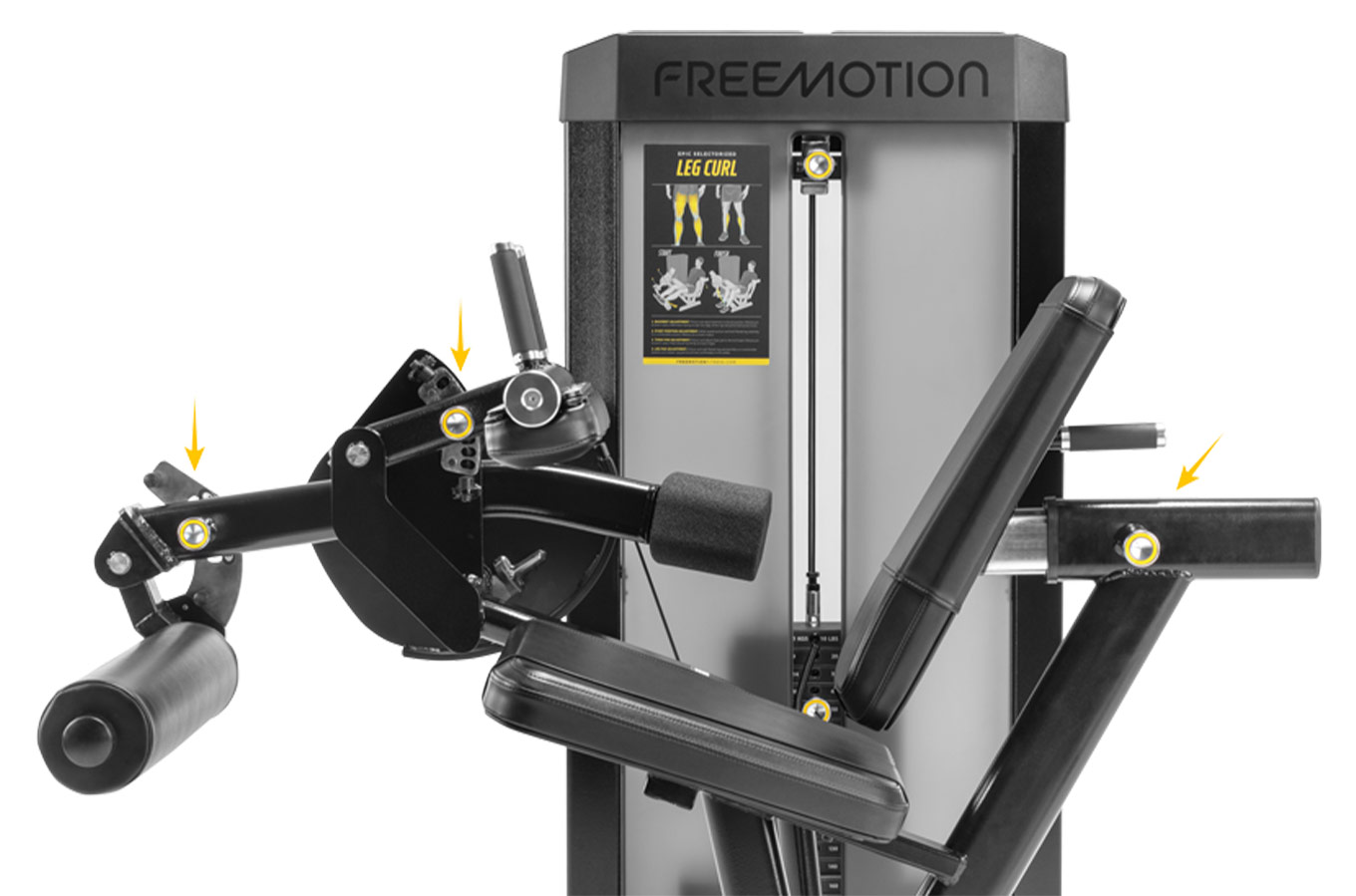

Multiple Adjustments

Back Pad, Thigh Pad and Leg Assembly adjusts to multiple positions to accommodate users of all sizes.

Details & Specs

ES803-_3Q
  • Features
    Low Profile Tower Design

    The low profile tower works well with an open design floor plan and adds to the 'welcome' environment.

    Multiple Start Positions

    Leg assembly can be set in multiple starting positions to accommodate people of varying heights.

    Multiple Adjustments

    Back Pad, Thigh Pad and Leg Assembly adjusts to multiple positions to accommodate users of all sizes.

    Built-In Storage

    The redesigned top cap of this machine features a built-in accessory tray to help users keep track of their phone, keys and more.

    Smaller Footprint

    The new EPIC Leg Curl has a smaller, narrower footprint to free up your square footage.

    Heavy Duty Cable

    Heavy duty cable is designed to support the rigorous usage demands of this machine.

    Heavy Duty Floor Protectors

    Made with molded rubber, the Freemotion floor guards help better protect your floor.

    Easy Serviceability

    The tower design allows for simple cable service.

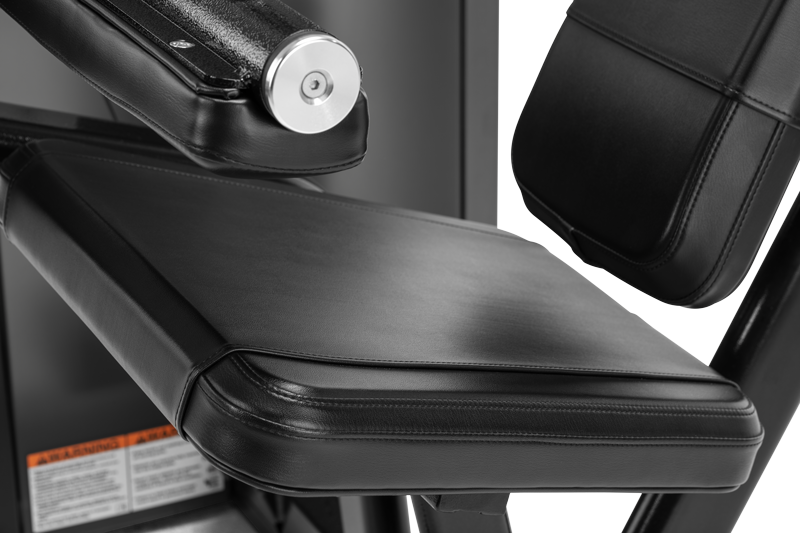

    Commercial Grade Upholstery

    The commercial grade, stretched and sewn vinyl upholstery is designed to handle constant usage.

  • Specifications
    Product Specifications
    • Standard Frame Colors Platinum Sparkle, Black River
    • Optional Frame Colors On Request
    • Plastic Colors Black
    • Standard Upholstery Colors Black
    • Optional Upholstery Colors Graphite, Blue Ridge, Burgundy, American Beauty Red
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Adjustable Back Pad
      Thigh Pad and Leg Assembly
    • Weight Stack lbs (kg) 205 lbs (92.9 kg)
    • Upholstery Vinyl, 1.5 in (3.8 cm) thick foam
    • Rubber Feet Heavy Duty Floor Protectors
    • Resistance lbs (kg) 205 lbs (92.9 kg)
    • Weight Stack Configuration lbs (kg) 10 lbs header (4.5 kg)
      20-150 x 10 lbs (4.5 kg)
      160-200 x 20 lbs (9 kg)
    • Maximum User Weight lbs (kg) 350 lbs (159 kg)
    • Drop Down Weight 5 lbs (2.2 kg)
    Product Dimensions & Weight
    • Machine Weight lbs (kg) 560 lbs (254.3 kg)
    • L x W x H in (cm) 48.9 x 59 x 57.8 in
      (124.2 x 149.8 x 146.8 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lbs (kg) Box 1: 635 lbs (288 kg)
      Box 2: 26.5 lbs (12 kg)
    • L x W x H in (cm) Box 1: 74.4 x 30.3 x 42.1 in
      (188.9 x 76.9 x 106.9 cm)
      Box 2: 29.9 x 27.9 x 5.9 in
      (75.9 x 70.8 x 14.9 cm)
    Regulatory Aprovals
    • Approvals CE
    Warranty (US)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/ Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
