Epic Selectorized

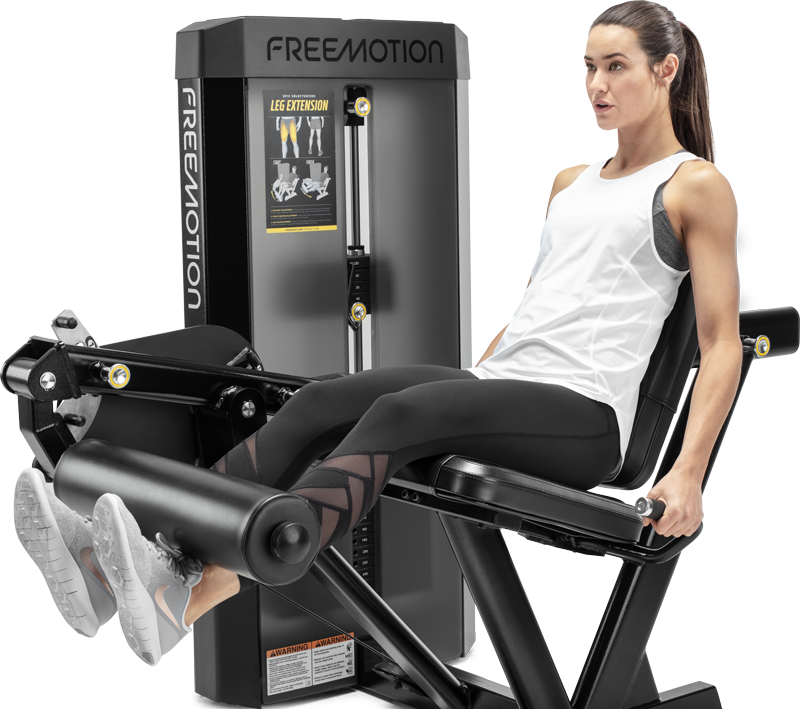

ES801_3Q
ES801

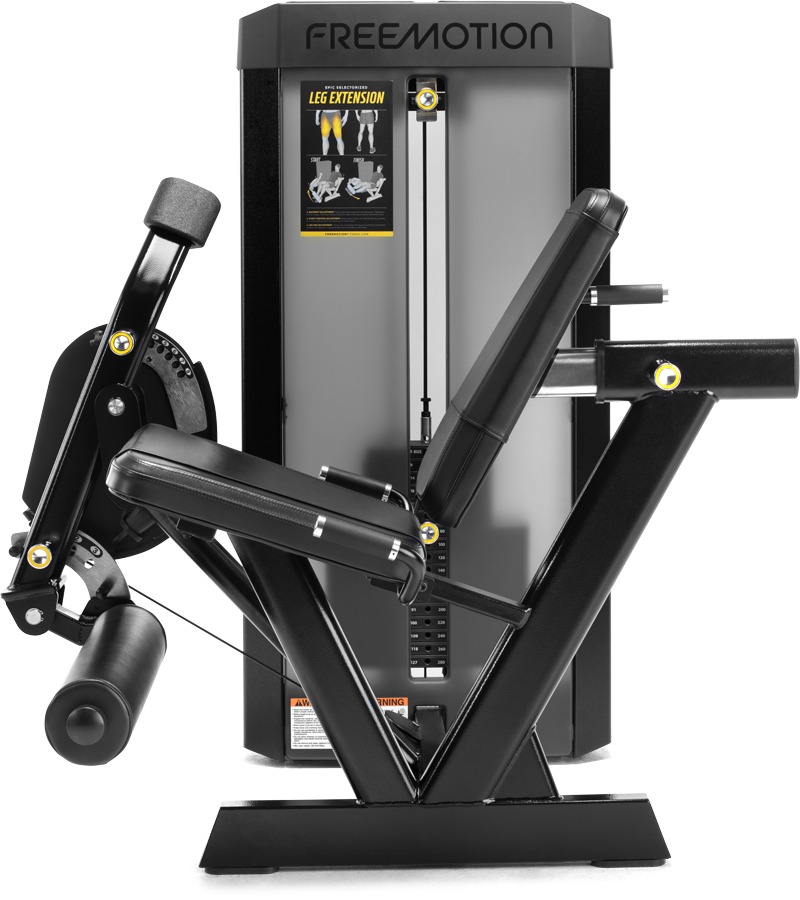

LEG EXTENSION

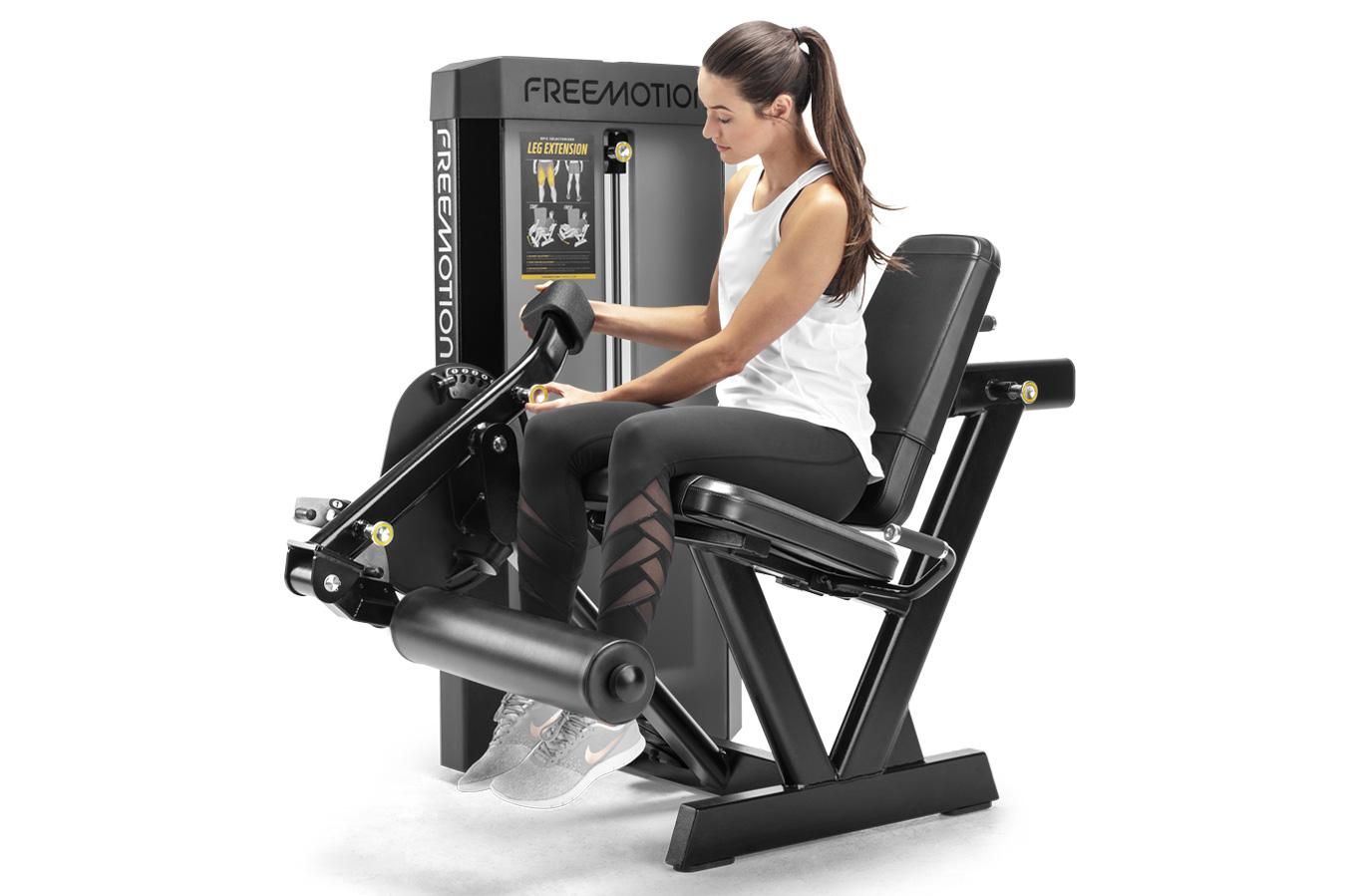

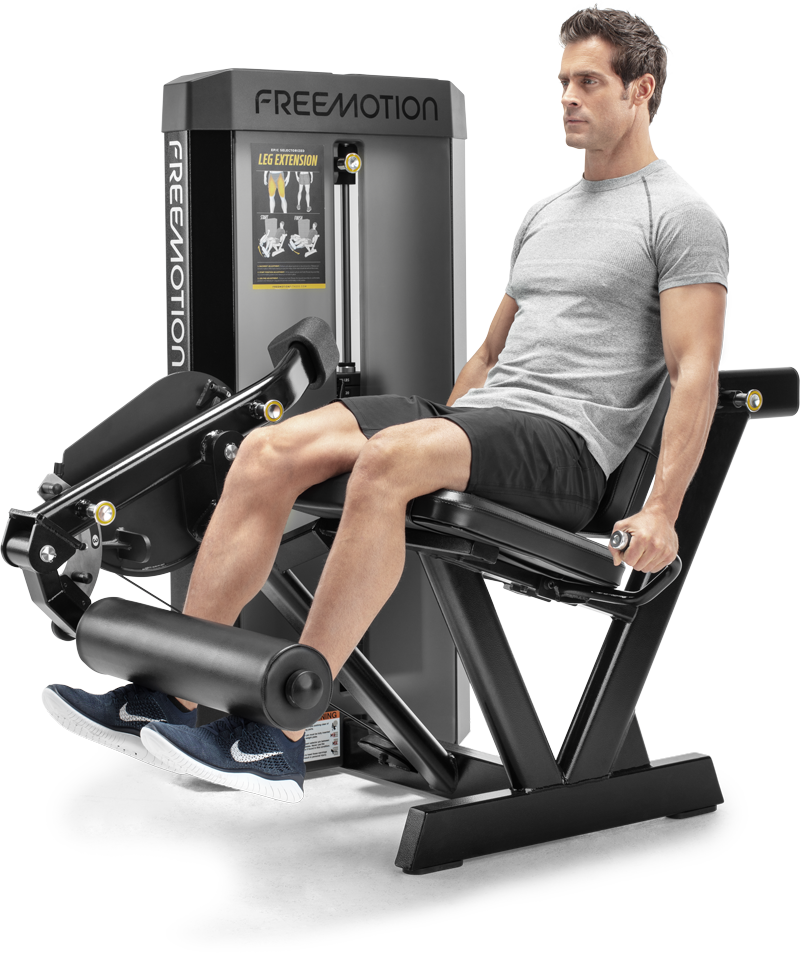

Whether your members are looking to isolate the quads to build muscle mass or rehabbing an injury, the EPIC Selectorized Leg Extension's range of motion can be customized. The padded backpad adjusts horizontally to fit a variety of users. Leg assembly has a rolling shin pad for comfort through the entire range of motion. It's counterweight make for easy adjustments.

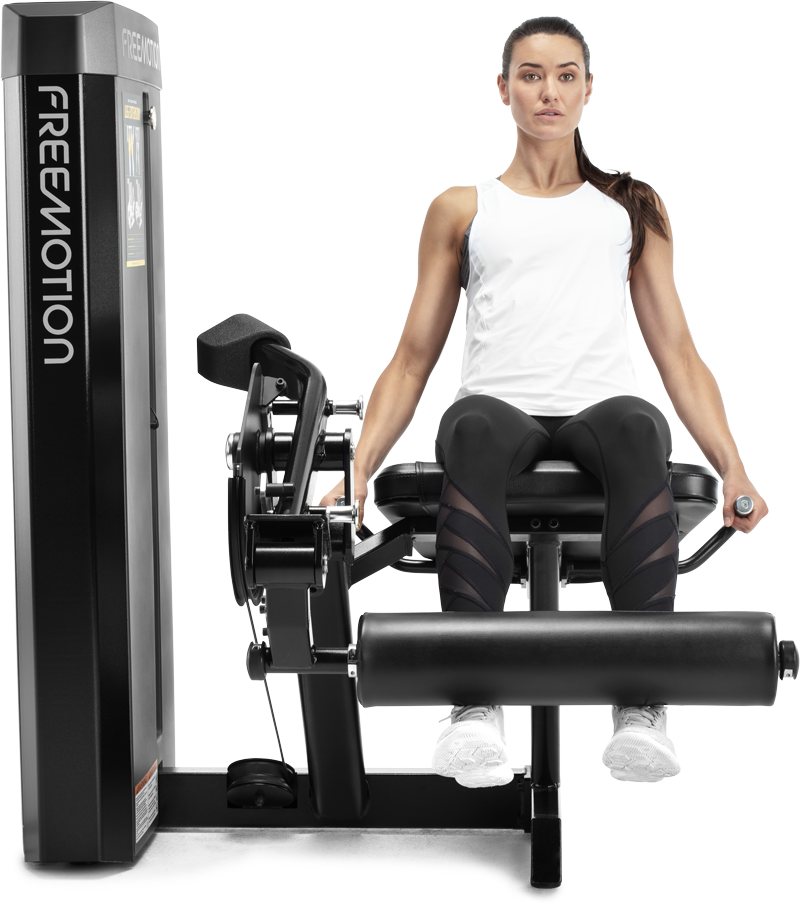

ES801_Talent__Adjustment

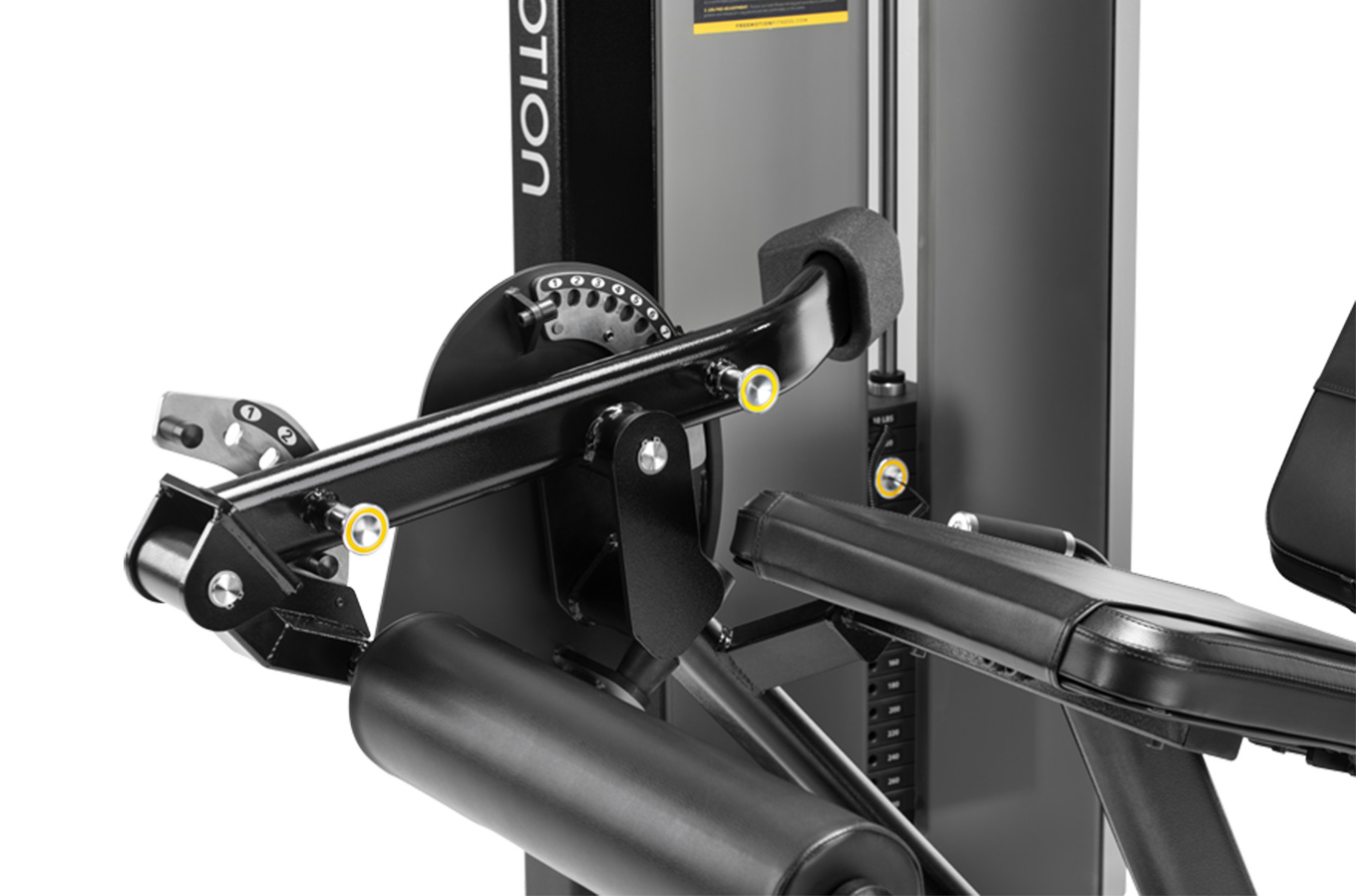

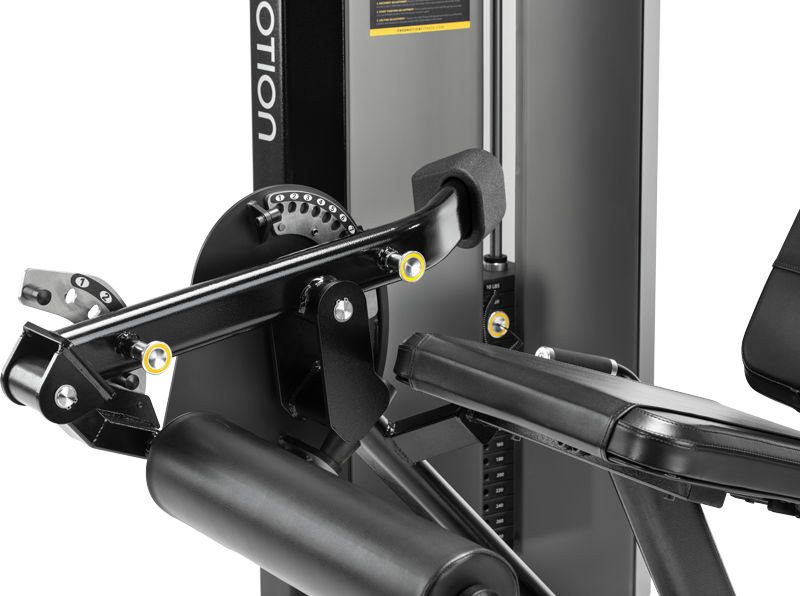

Set the Range

Leg assembly features two adjustments to tailor the range of motion for the user and is counterweighted for easy positioning.

ES801_Adjustment

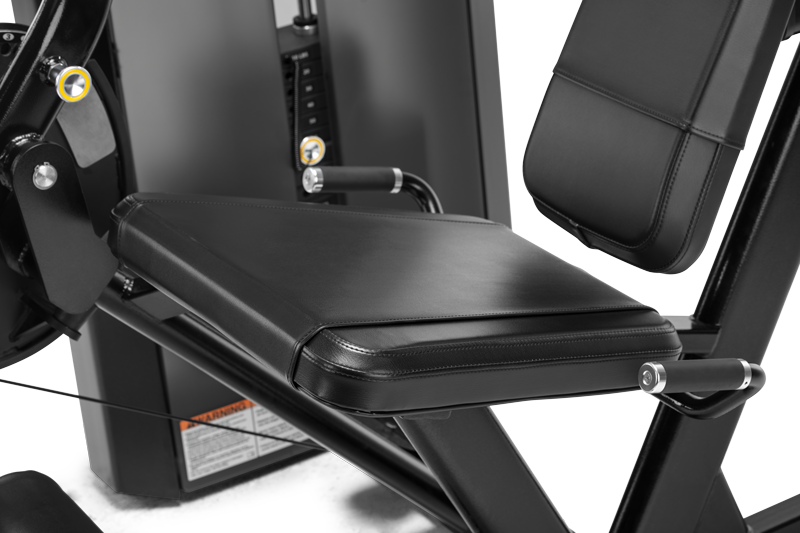

Comfortable by Design

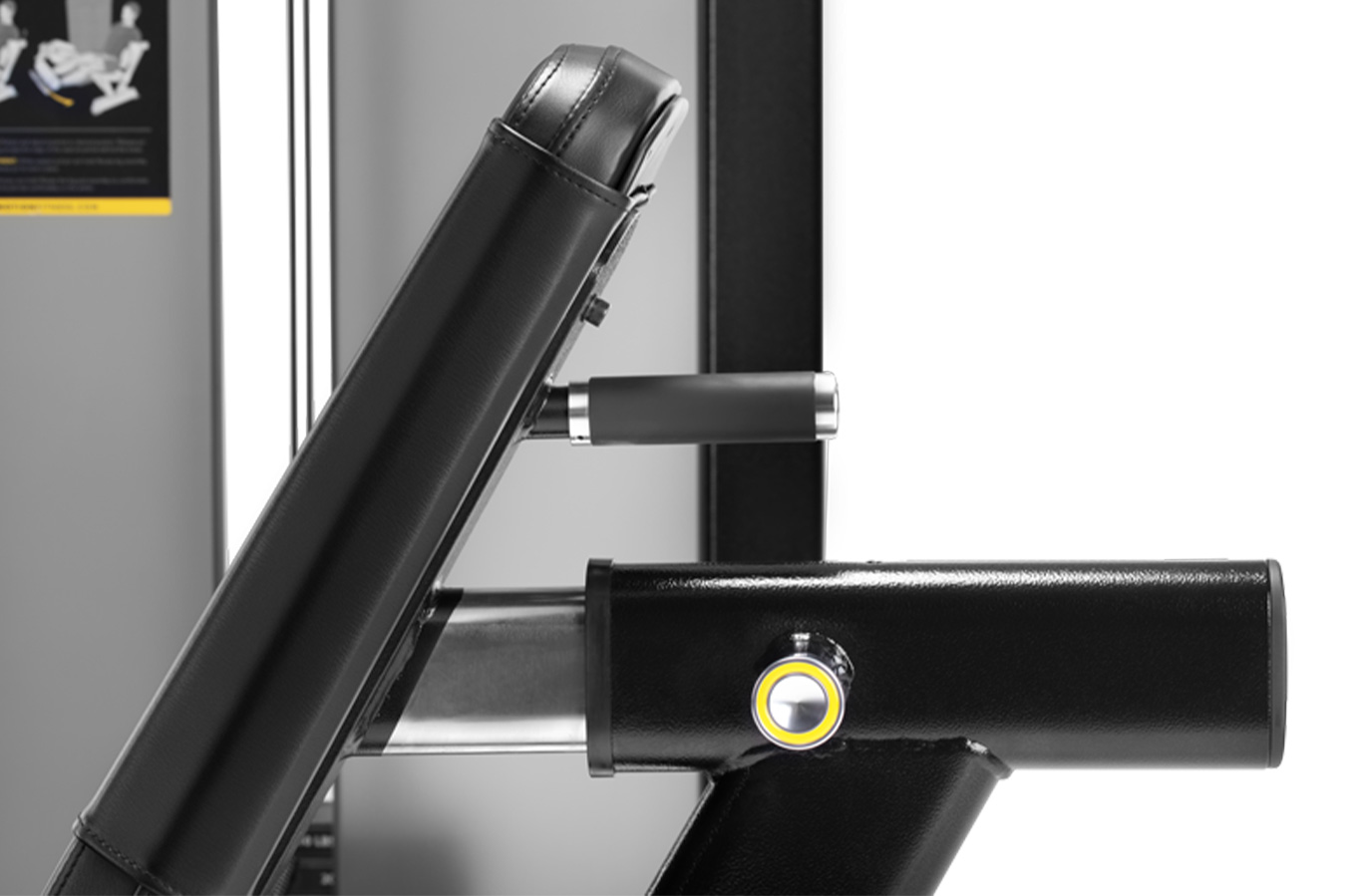

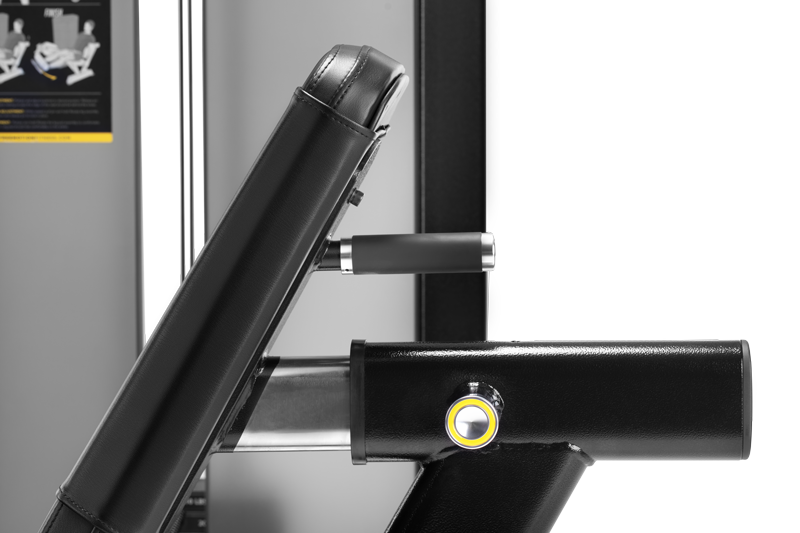

The shin pads roll for comfort throughout the range of motion. Back pad is contoured and adjustable for precise body positioning.

ES801_Seat_Adjust

Low Profile Weight Stack

Approachable, compact design also features accessory trays so users can keep their essentials within reach.

Details & Specs

  • Features
    Convenient Accessory Storage

    Users can keep their essentials close at hand with accessory trays at the top of the weight stack.

    Molded Floor Protectors

    Heavy-duty rubber feet guard against floor damage.

    Built to Last

    Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

    Easy Serviceability

    The tower design allows for simple, routine cable service.

    Enclosed Weight Stack

    The weight stack is enclosed to limit access to moving parts for safety.

  • Specifications
    Product Features
    • Instructional Placards Yes
    • Adjustments Multiple Start Positions, Adjustable Back Pad and Leg Assembly
    • Resistance 285 lb / 129.2 kg
    • Seat Vinyl, 1.5 in / 3.8 cm thick foam
    • Pulleys N/A
    • Cable Travel N/A
    • Rubber Feet Heavy Duty Floor Protectors
    • Maximum User Weight 350 lb / 159 kg
    • Americans with Disabilities Act (ADA) N/A
    Product Specifications
    • Weight Stack 285 lb / 129.2 kg
    • Drop Down Weight 5 lb / 2.2 kg
    • Weight Stack Configuration 10 lb / 4.5 kg top plate
      20-70 x 10 lb / 4.5 kg
      80-280 x 20 lb / 9 kg
    • Standard Frame Color Black River, Platinum Sparkle
    • Optional Frame Color N/A
    • Plastic Color Ebony
    • Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
    • Optional Upholstery Color Custom colors available upon request
    • Hand Grip Color Black
    Product Dimensions & Weight
    • Dimensions L x W x H 51.3 x 54 x 57.8 in / 130.3 x 137.1 x 146.8 cm
    • Footprint 51.3 x 54 in / 130.3 x 137.1 cm
    • Maximum workout area 51.3 x 54 in / 130.3 x 137.1 cm
    • Weight 573.2 lb / 260 kg
    • Shipping Dimensions Box 1: 74.4 x 30.3 x 42.1 in / 188.9 x 76.9 x 106.9 cm
      Box 2: 28.3 x 25.2 x 5.9 in / 71.8 x 64 x 14.9 cm
    • Shipping Weight Box 1: 712.1 lb / 322.9 kg
      Box 2: 25.3 lb / 11.4 kg
    Certifications
    • CE
    Warranty (US & Canada)
    • Frame 10 Years
    • Parts 3 Years
    • Cables & Labor 1 Year
    • Cosmetic & Wear Items 6 Months
    • Upholstery & Padding 120 Days
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Cables & Labor 1 Year
    • Cosmetic & Wear Items 6 Months
    • Upholstery & Padding 120 Days
