Epic Selectorized
ES804_3Q_Back_Left

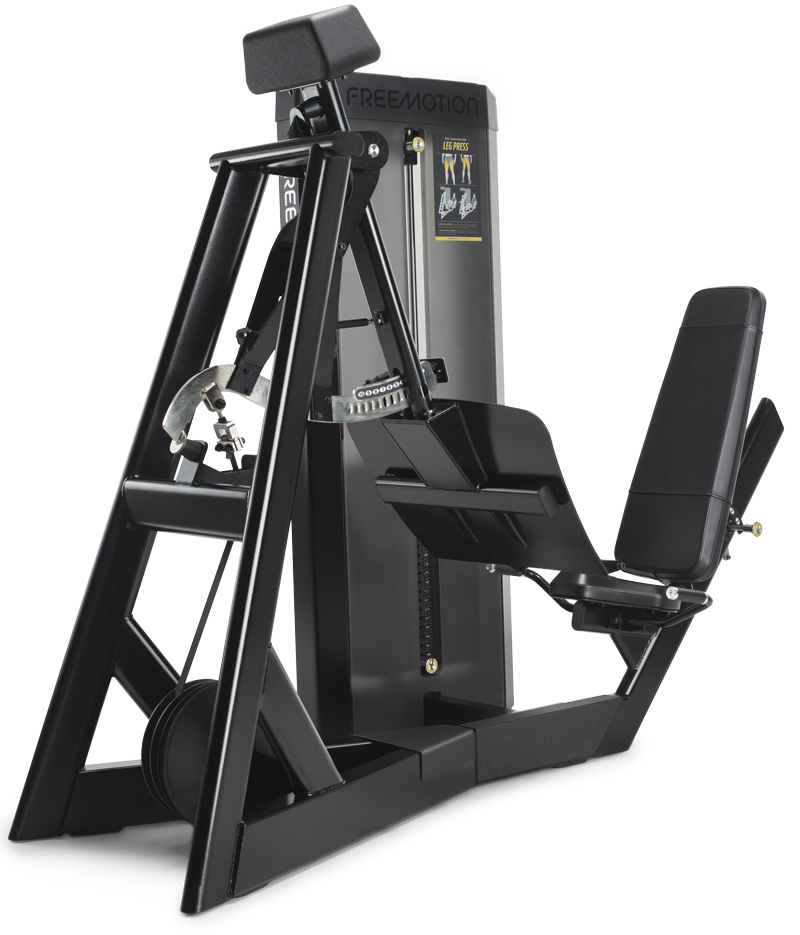

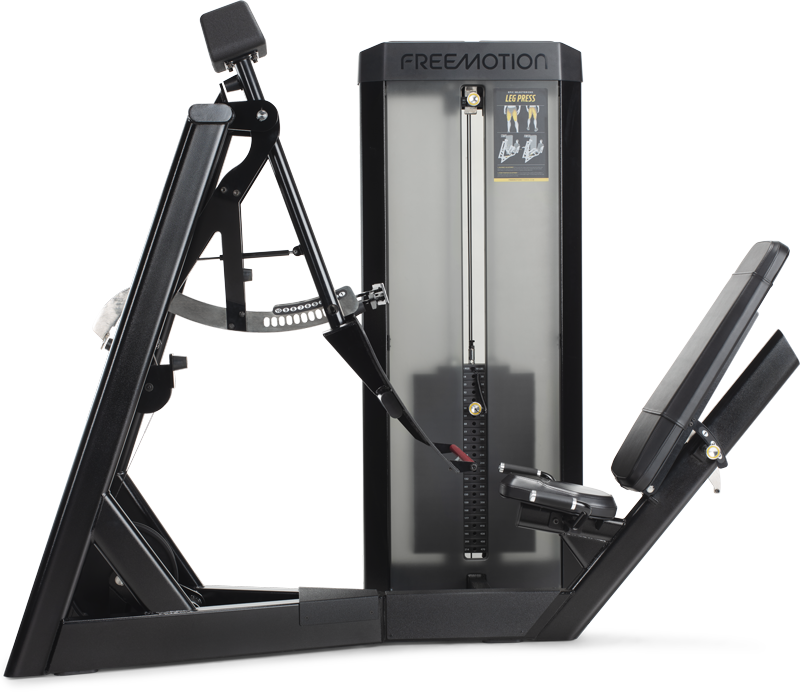

ES804

LEG PRESS

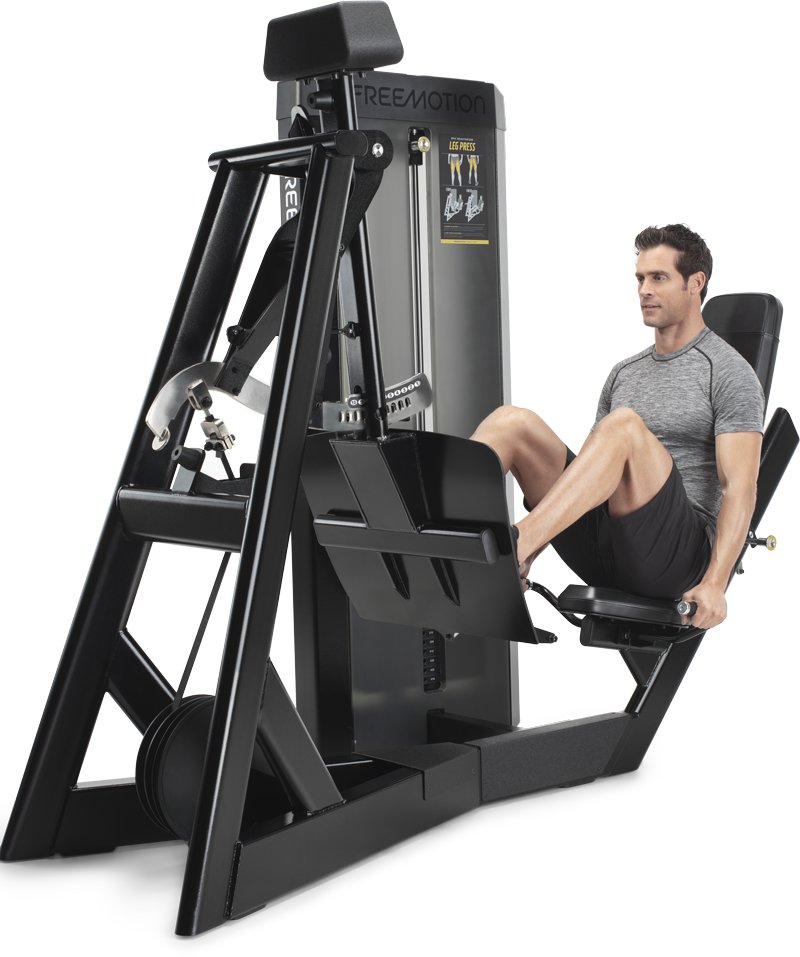

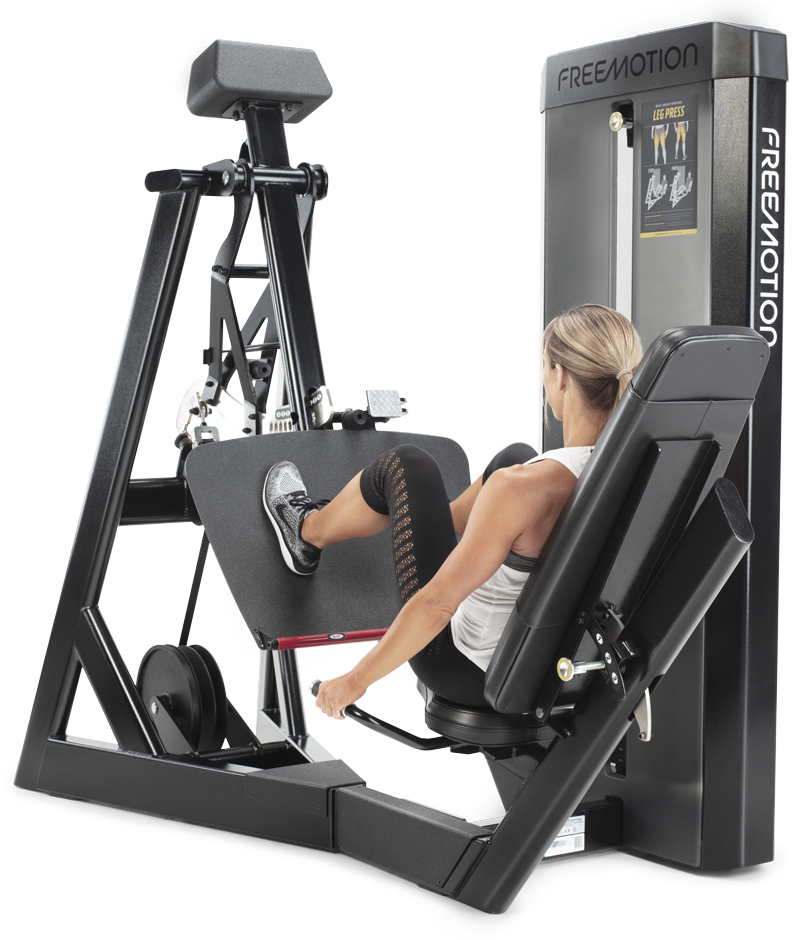

The redesigned Freemotion EPIC Leg Press is welcoming to users of all sizes, thanks to a lower weight tower and open design. A thoughtful counterweight makes finding the perfect fit easy, quick and personalized. The grip-coated platform ensures secure footing while the machine's natural movement targets muscles in the upper legs and fully extends the body.

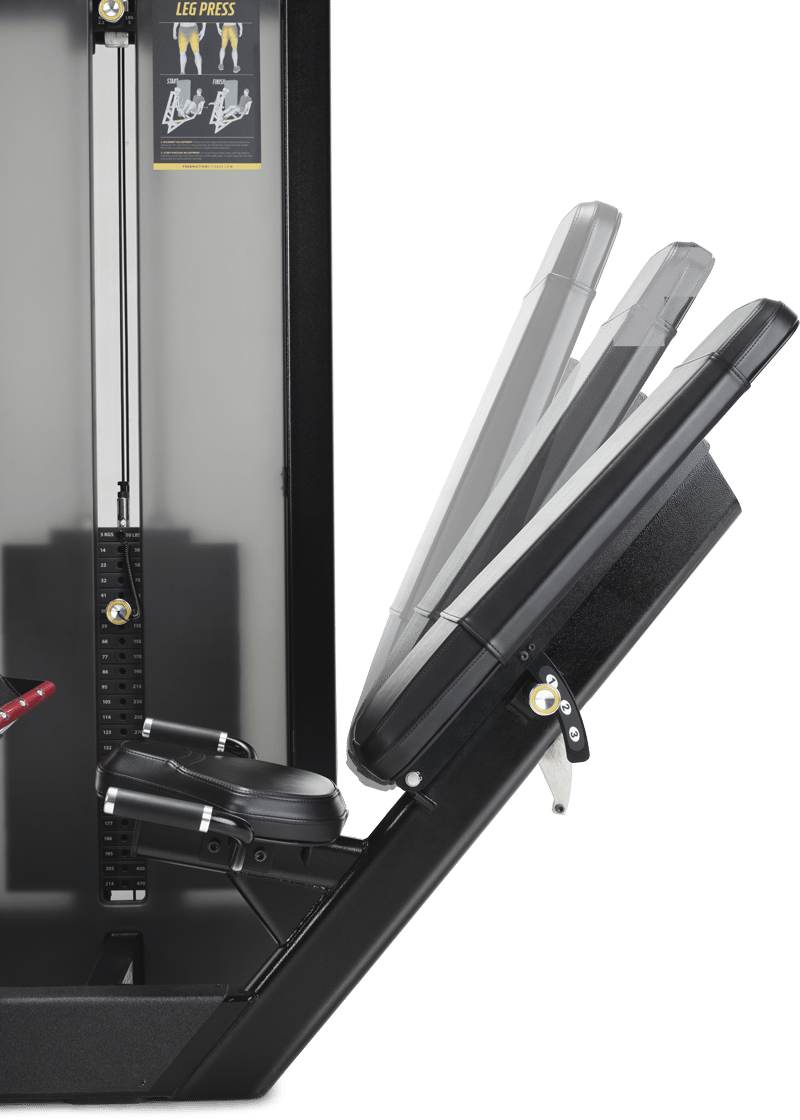

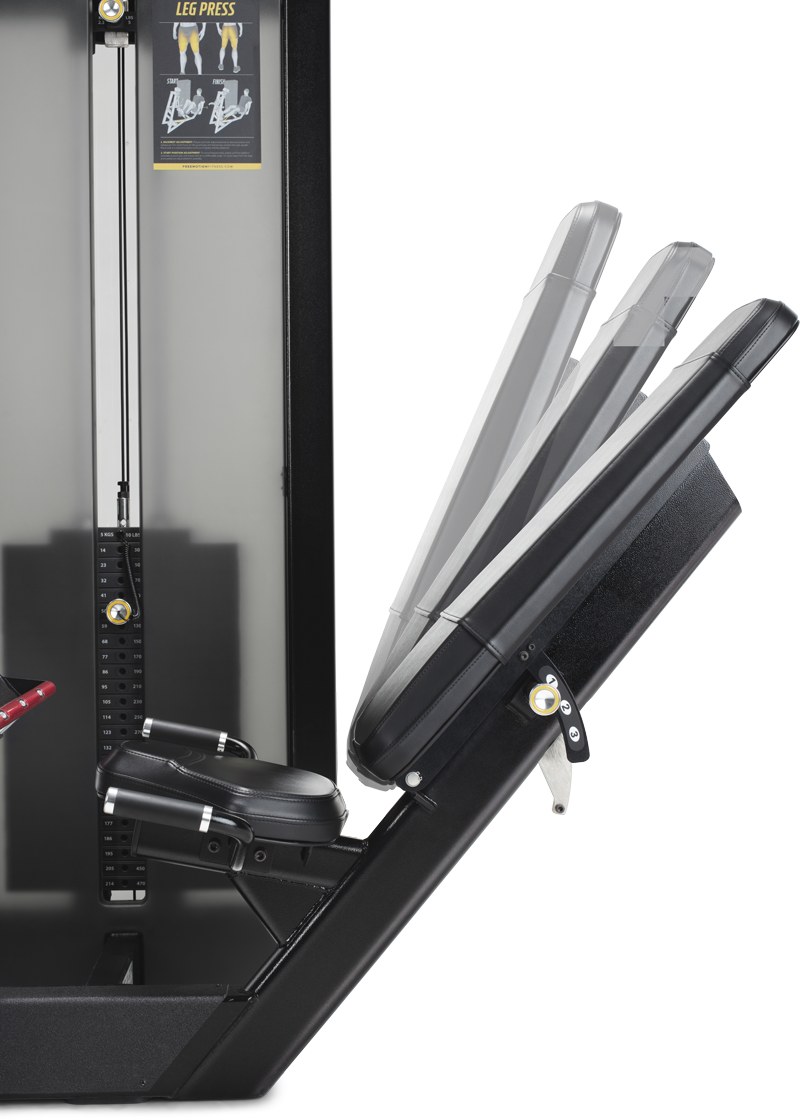

ES804_Adjustmen_Back

Multiple Adjustments

Platform and Backrest adjusts to multiple positions to accommodate users of all sizes.

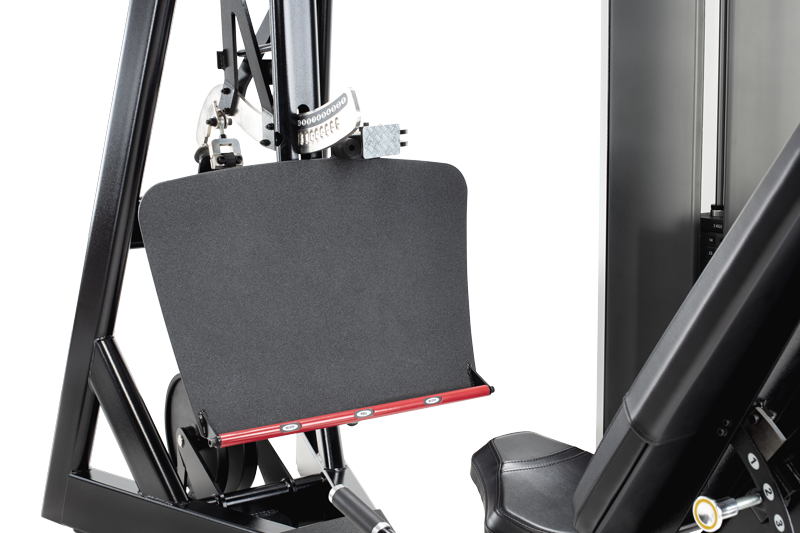

ES804_Grip

Contoured Platform with Line-X Coating

Textured with Line-X®, the wear guards on this machine help prevent slipping while the contoured platform helps maintain correct foot alignment.

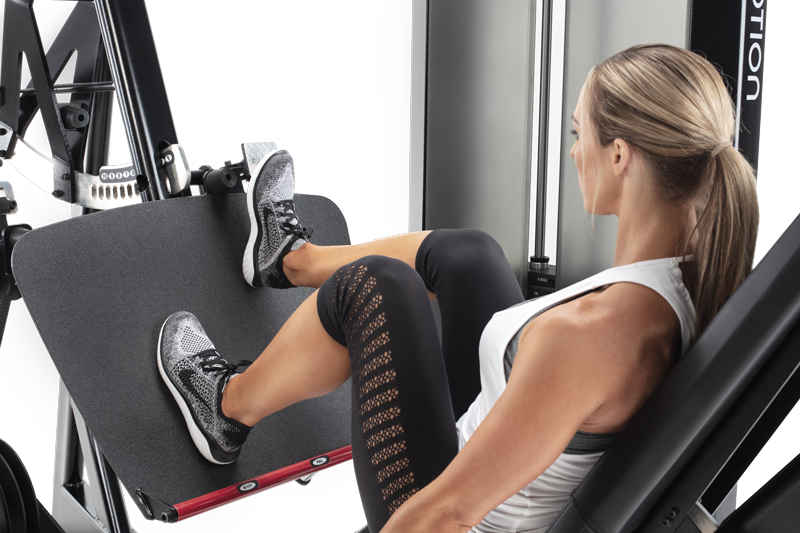

ES804_Adjustment

Multiple Start Positions

Leg assembly can be set in multiple starting positions to accommodate people of varying heights.

Details & Specs

  • Features

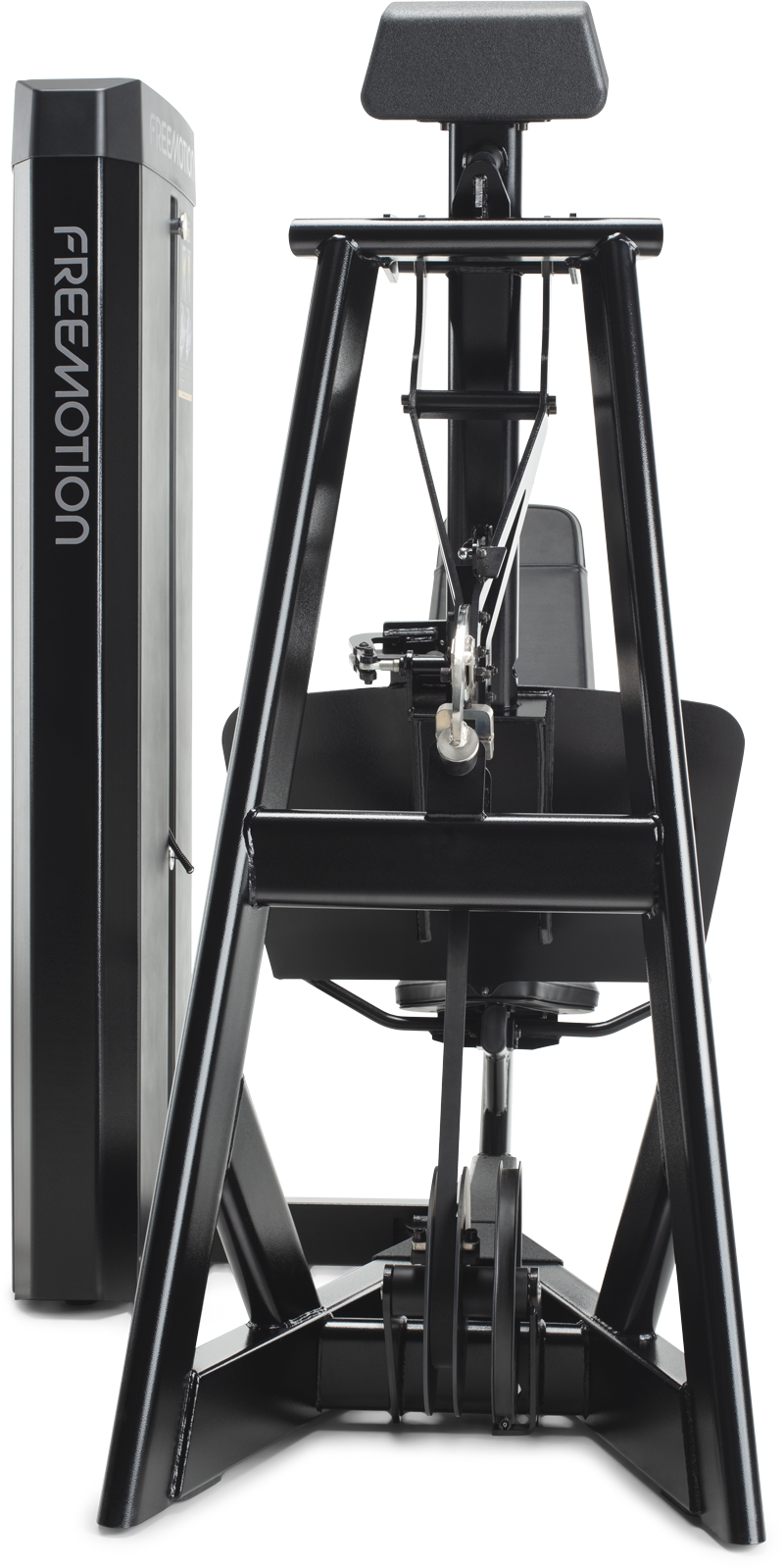

    Low Profile Tower Design

    The low profile tower works well with an open design floor plan and adds to the 'welcome' environment.

    Multiple Start Positions

    Leg assembly can be set in multiple starting positions to accommodate people of varying heights.

    Multiple Adjustments

    Platform and Backrest adjusts to multiple positions to accommodate users of all sizes.

    Built-In Storage

    The redesigned top cap of this machine features a built-in accessory tray to help users keep track of their phone, keys and more.

    Smaller Footprint

    The new EPIC Leg Press has a smaller, narrower footprint to free up your square footage.

    Arc Movement Pattern

    Experience a full-body extension with the arc-shaped movement pattern.

    Contoured Platform with Line-X Coating

    Textured with Line-X®, the wear guards on this machine help prevent slipping while the contoured platform helps maintain correct foot alignment.

    Heavy Duty Cable

    Heavy duty cable is designed to support the rigorous usage demands of this machine.

    Heavy Duty Floor Protectors

    Made with molded rubber, the Freemotion floor guards help better protect your floor.

    Easy Serviceability

    The tower design allows for simple cable service.

  • Specification
    Product Specifications
    • Frame Colors Platinum Sparkle, Black River
    • Upholstery Colors Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Platform and Backrest Adjustments
    • Weight Stack lbs (kg) 475 lbs (215.4 kg)
    • Upholstery Vinyl, 1.5 in (3.8 cm) thick foam
    • Rubber Feet Heavy Duty Floor Protectors
    • Resistance lbs (kg) 475 lbs (215.4 kg)
    • Weight Stack Configuration lbs (kg) 10 lbs header (4.5 kg)
      20-470 x 20 lbs (9 kg)
    • Maximum User Weight lbs (kg) 350 lbs (159 kg)
    • Drop Down Weight 5 lbs (2.2 kg)
    Product Dimensions & Weight
    • Machine Weight lbs (kg) 1,146.4 lbs (520 kg)
    • L x W x H in (cm) 90.6 x 44.1 x 72.8 in
      (230.1 x 112 x 184.9 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lbs (kg) Box 1: 1252.2 lbs (567.8 kg)
      Box 2: 17.6 lbs (7.9 kg)
    • L x W x H in (cm) Box 1: 88.1 x 35 x 82.6 in
      (233.7 x 88.9 x 209 cm)
      Box 2: 41.7 x 13 x 3.9 in
      (105.9 x 33 x 9.9 cm)
    Regulatory Approvals
    • Approvals CE
    Warranty (US)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
