Genesis DS

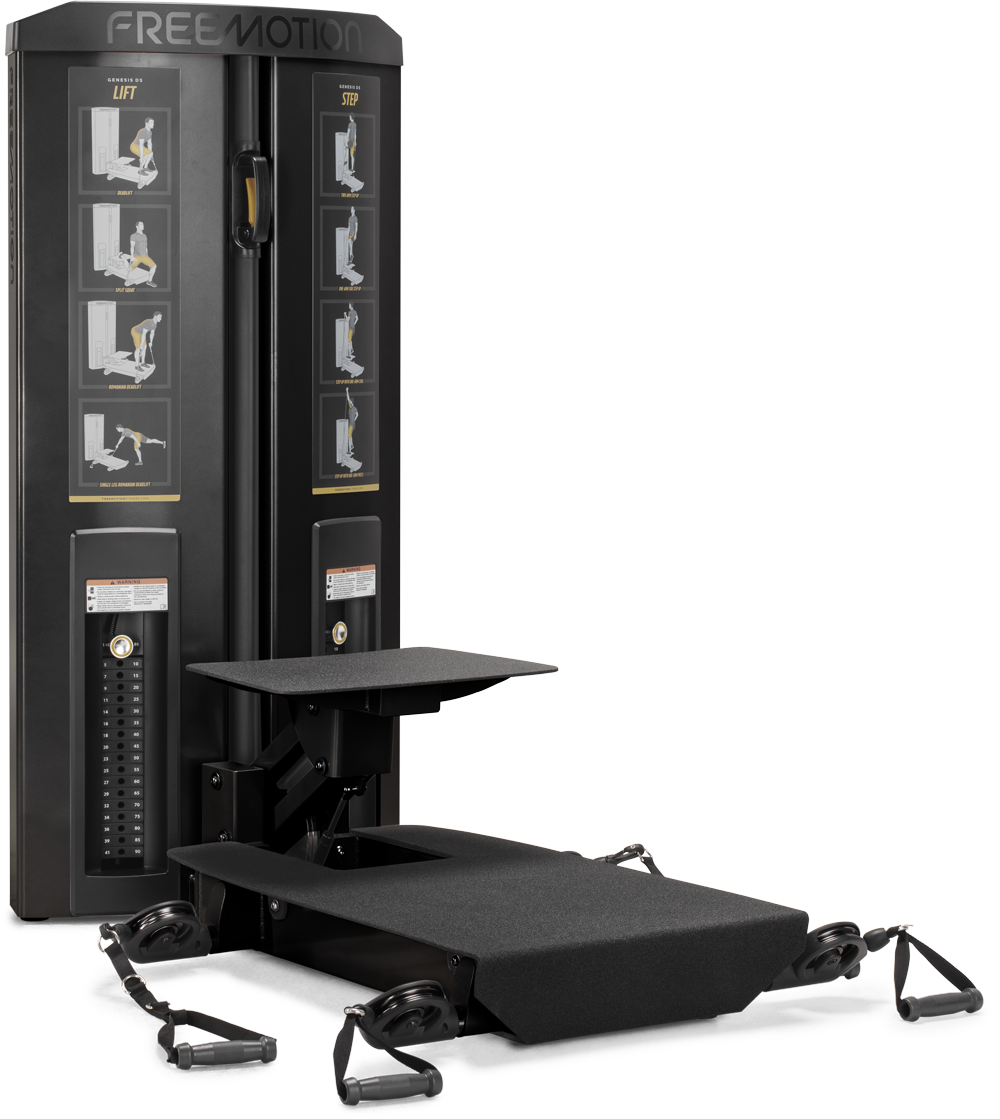

GD504 STUDIO 0035 Black
GD504

LIFT / STEP

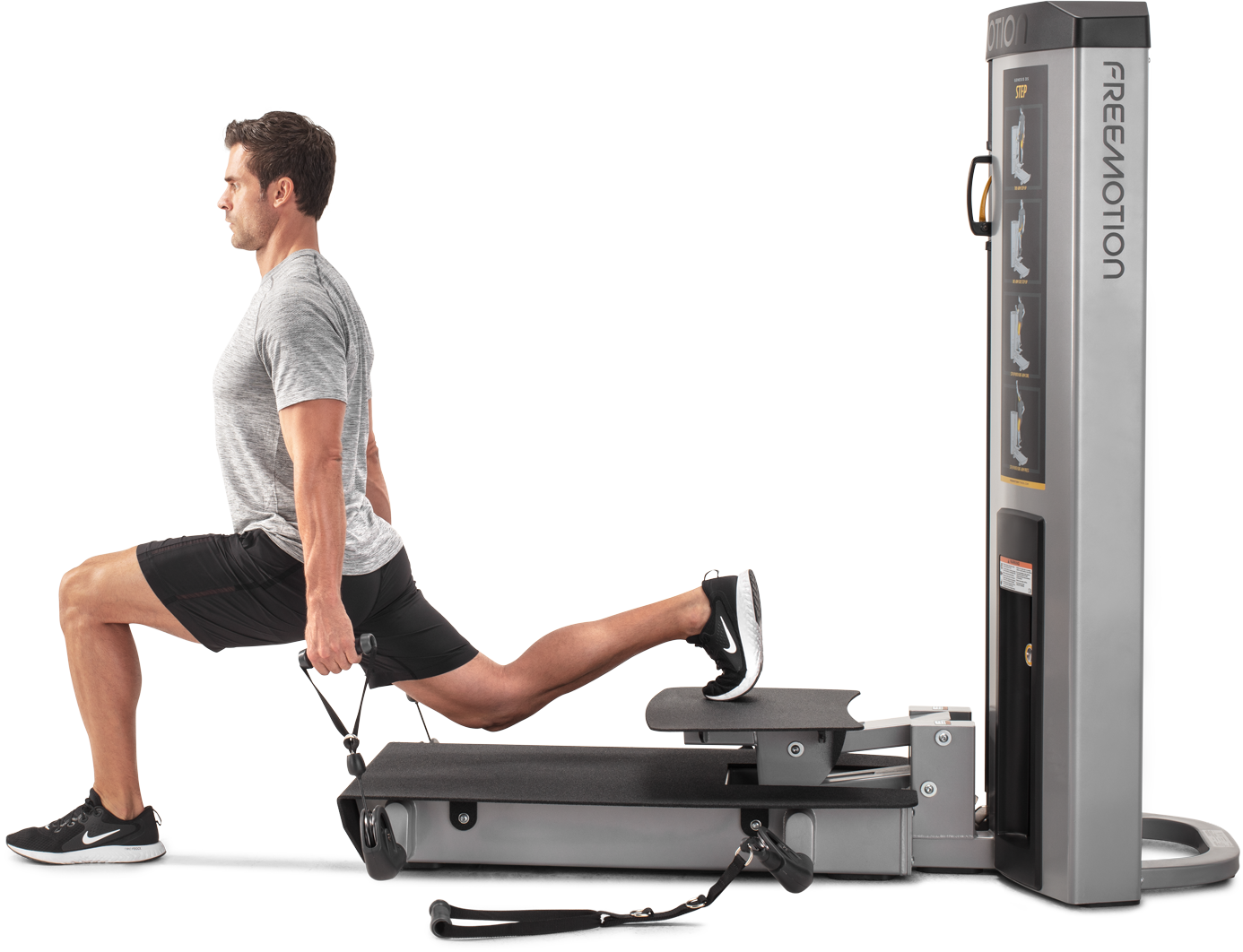

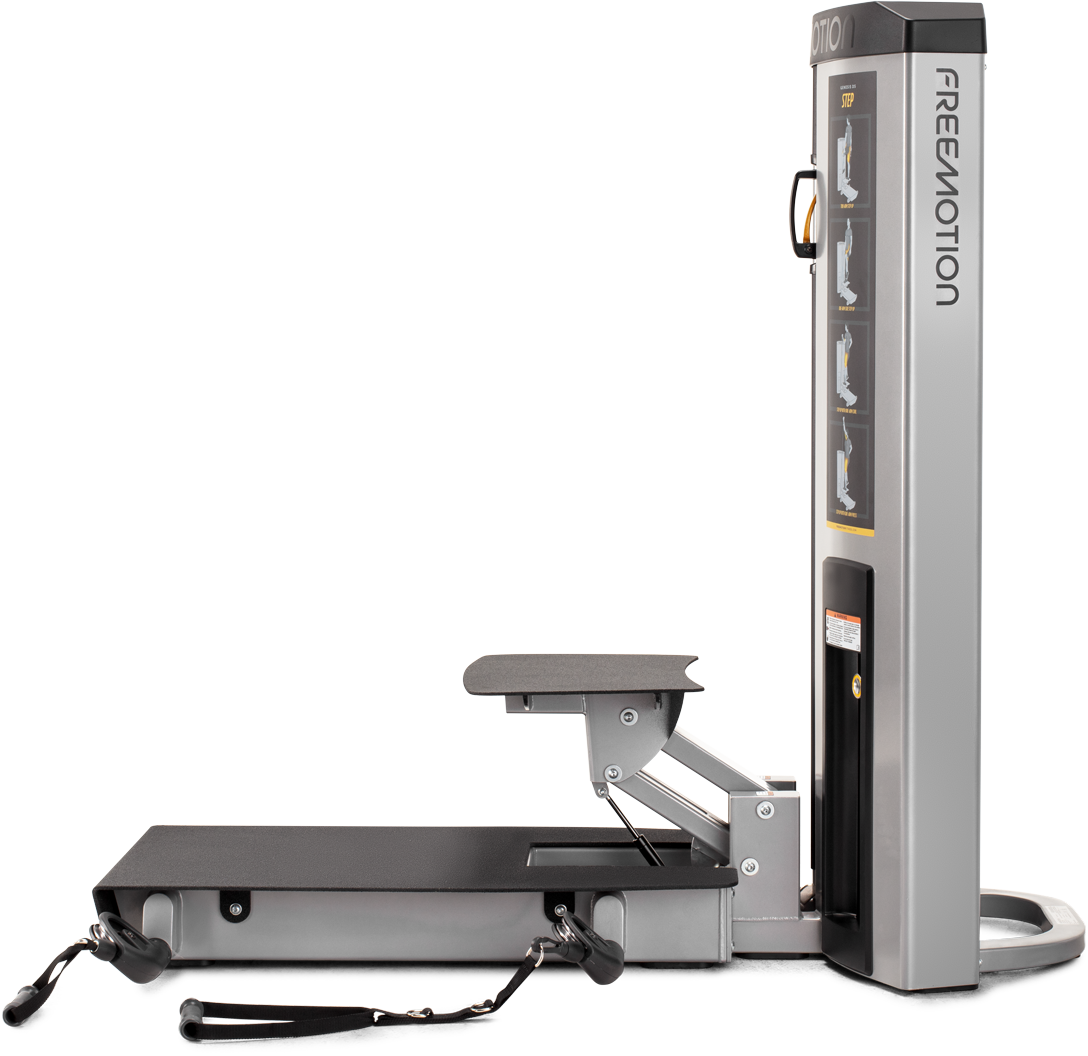

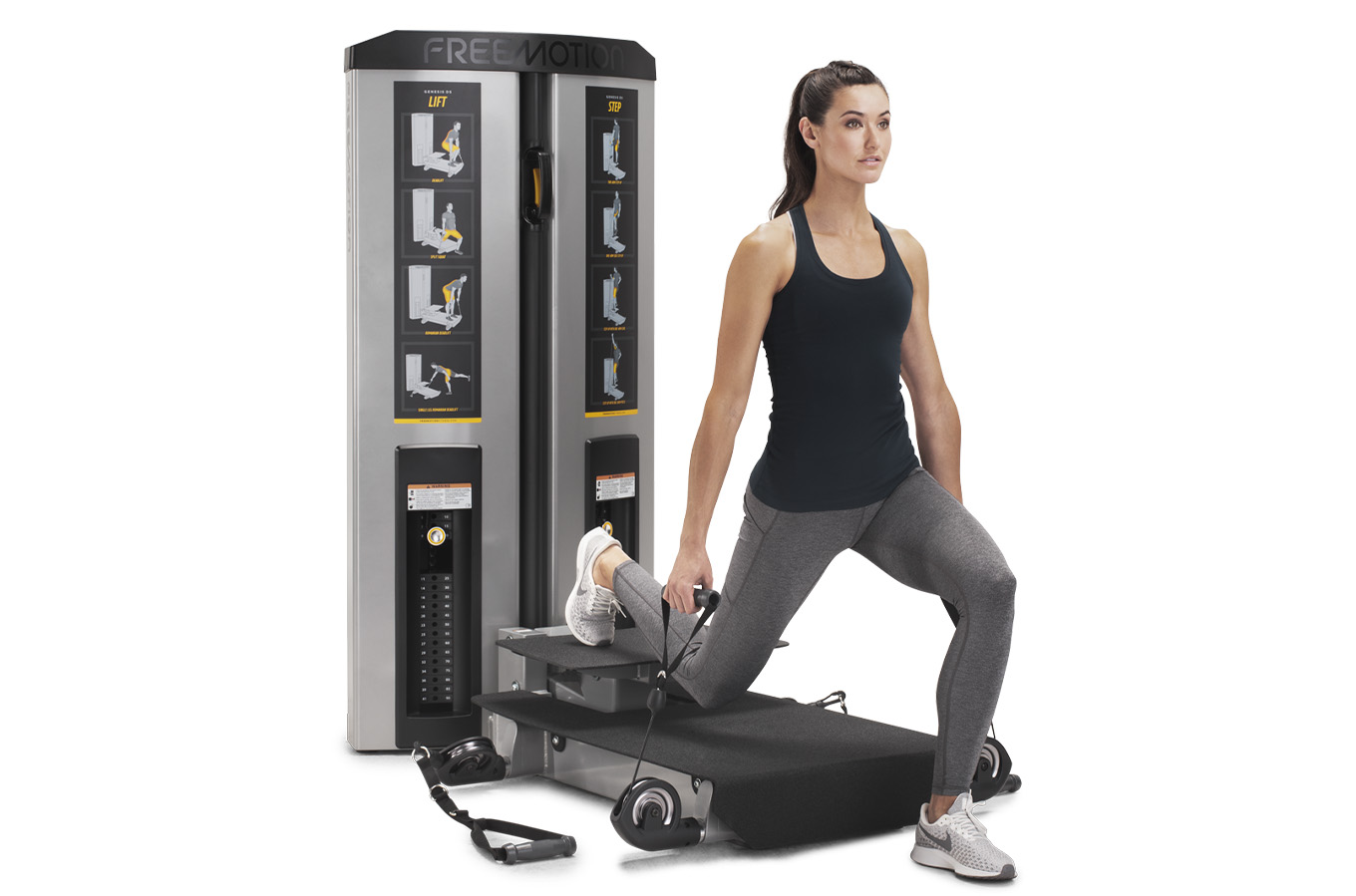

Train the muscles in your legs and back to work together and improve strength for everyday lifting and stepping with the Genesis DS™ Lift/Step. The Lift/Step combines low pulling and rotational movements with stepping and lunging movements to engage a total-body workout. The Line-X® platform features a shock and quick release handle that adjusts the height of the platform for a personalized workout. Cable-based training with aluminum swivel-pulley technology targets specific muscles with free range of movement.

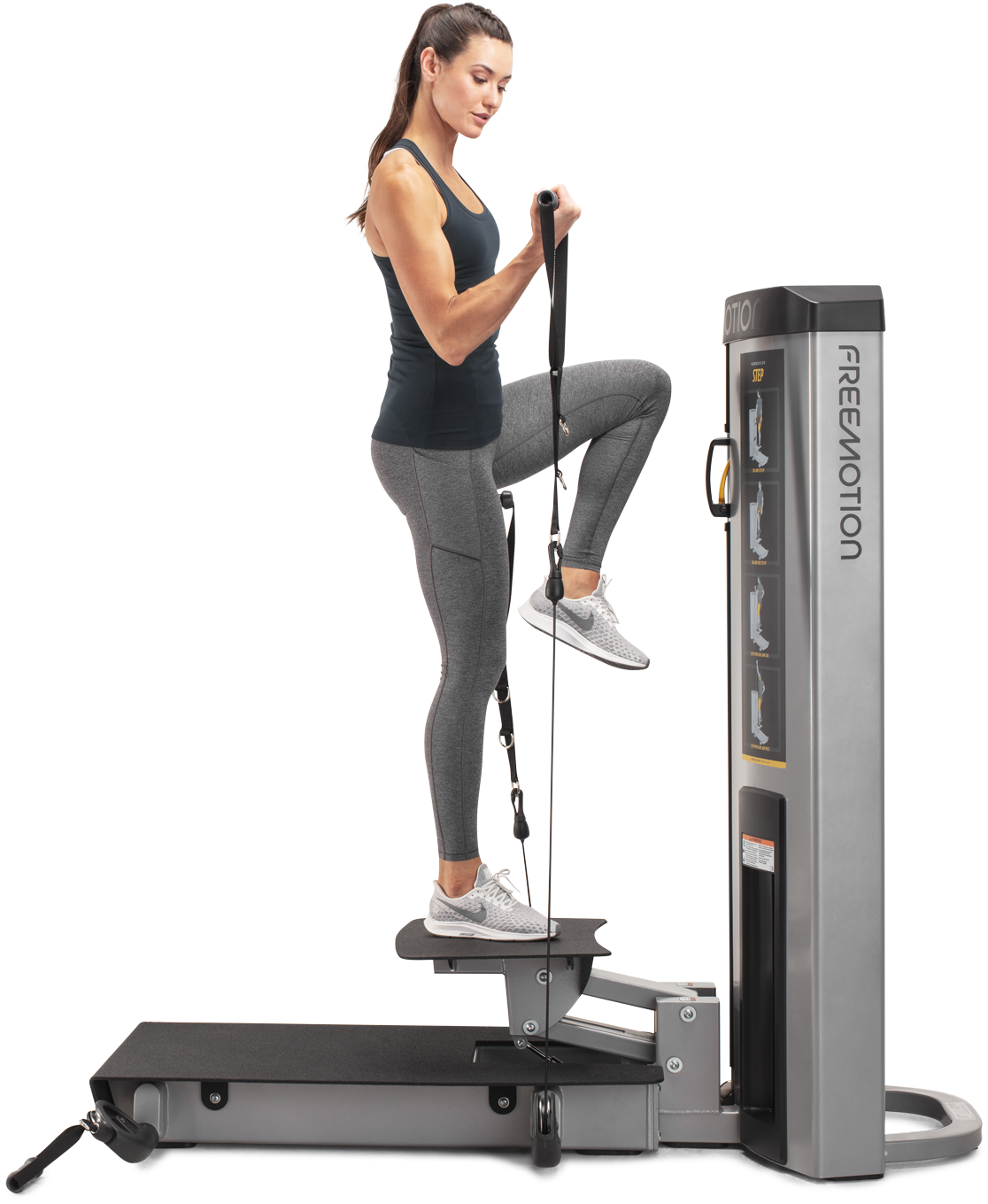

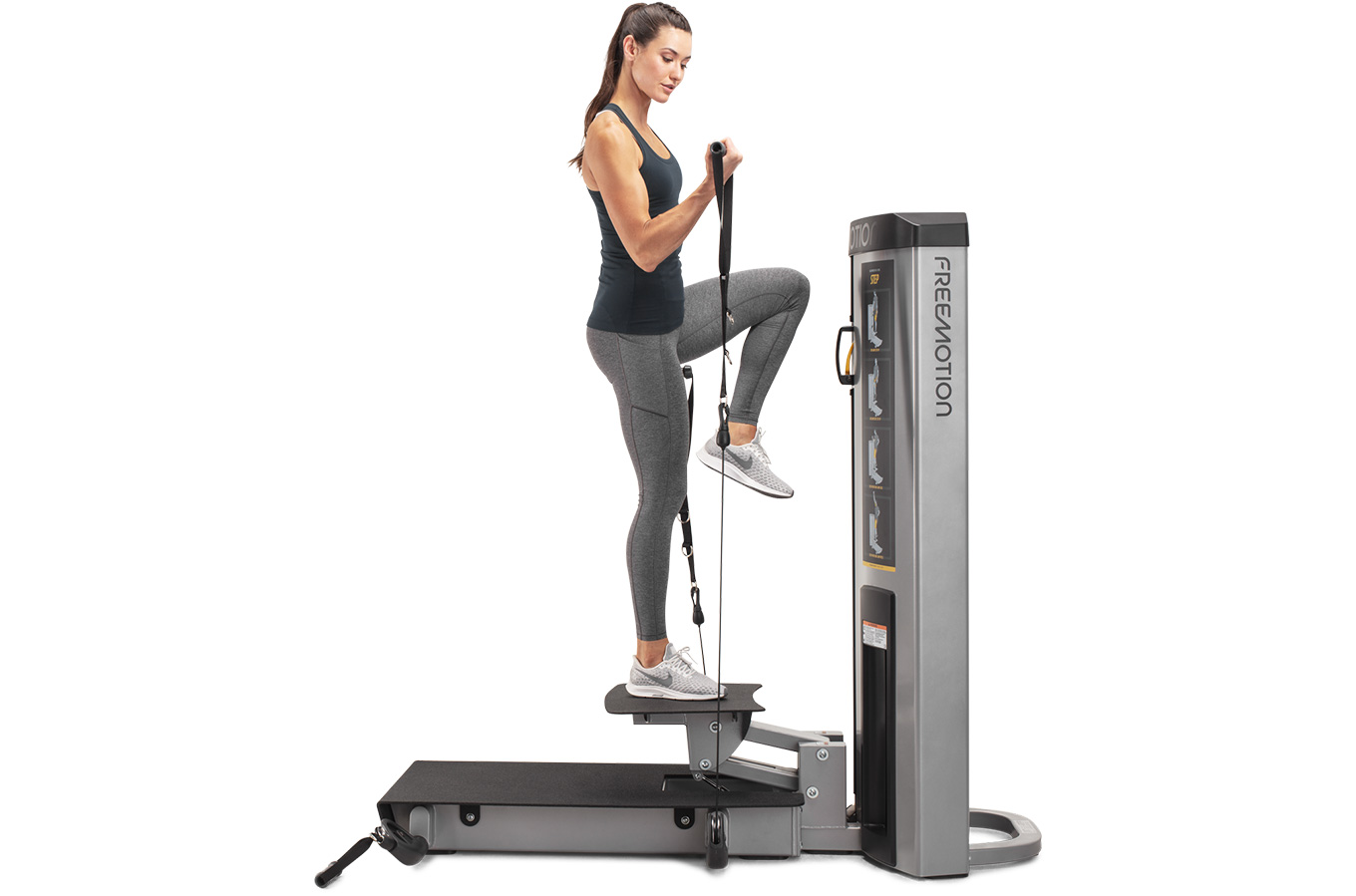

GD504-Profile-f

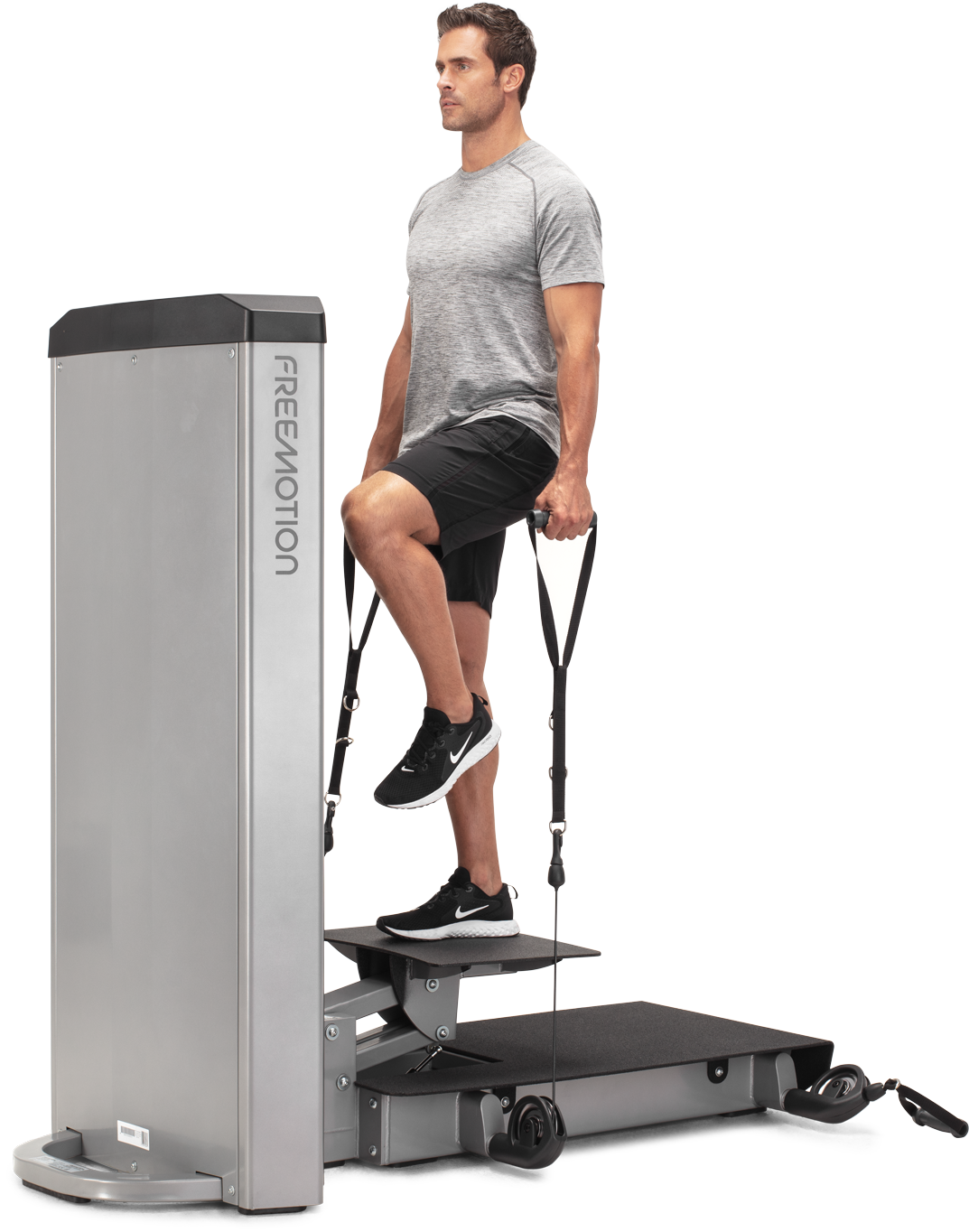

Step, Pull, Repeat

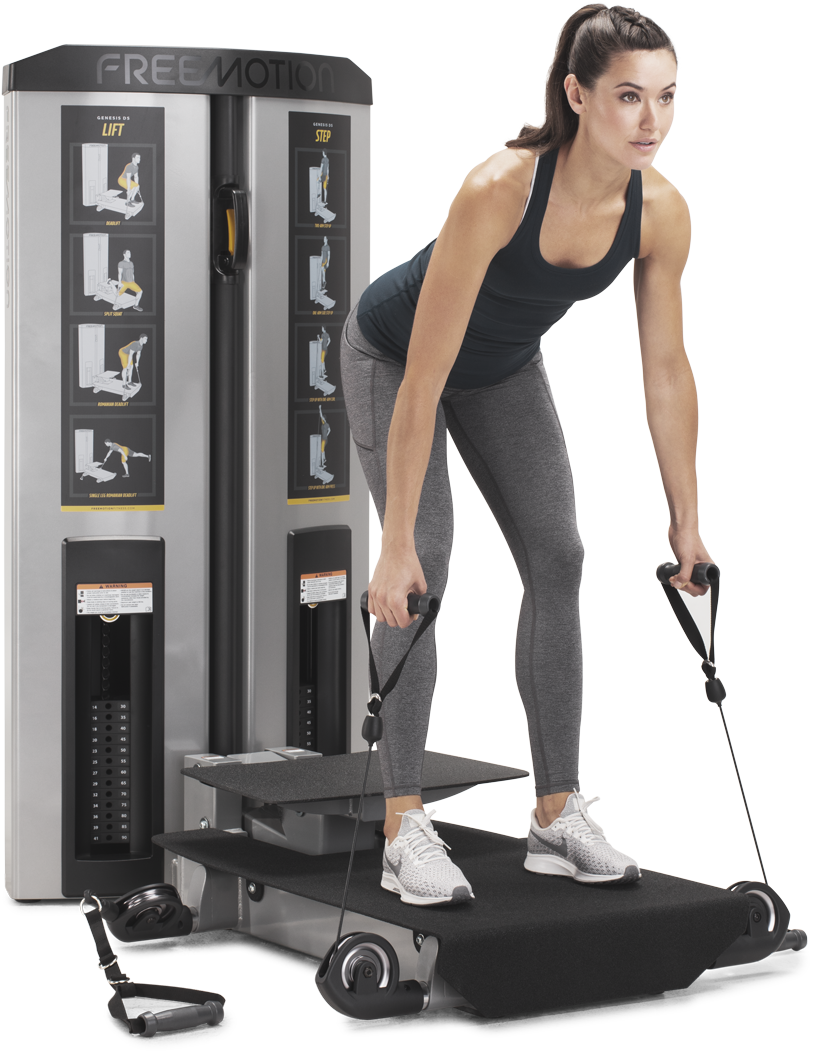

The Freemotion Lift/Step machine combines pulling with stepping to create a total-body, strength-training workout.

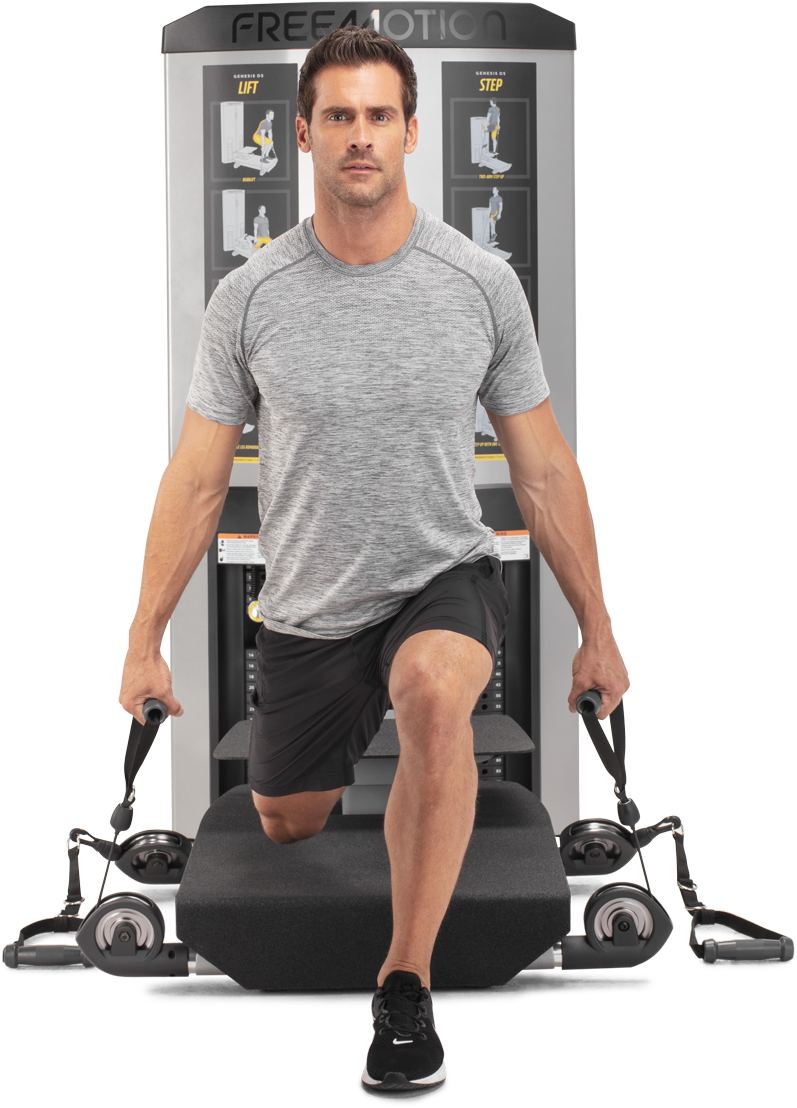

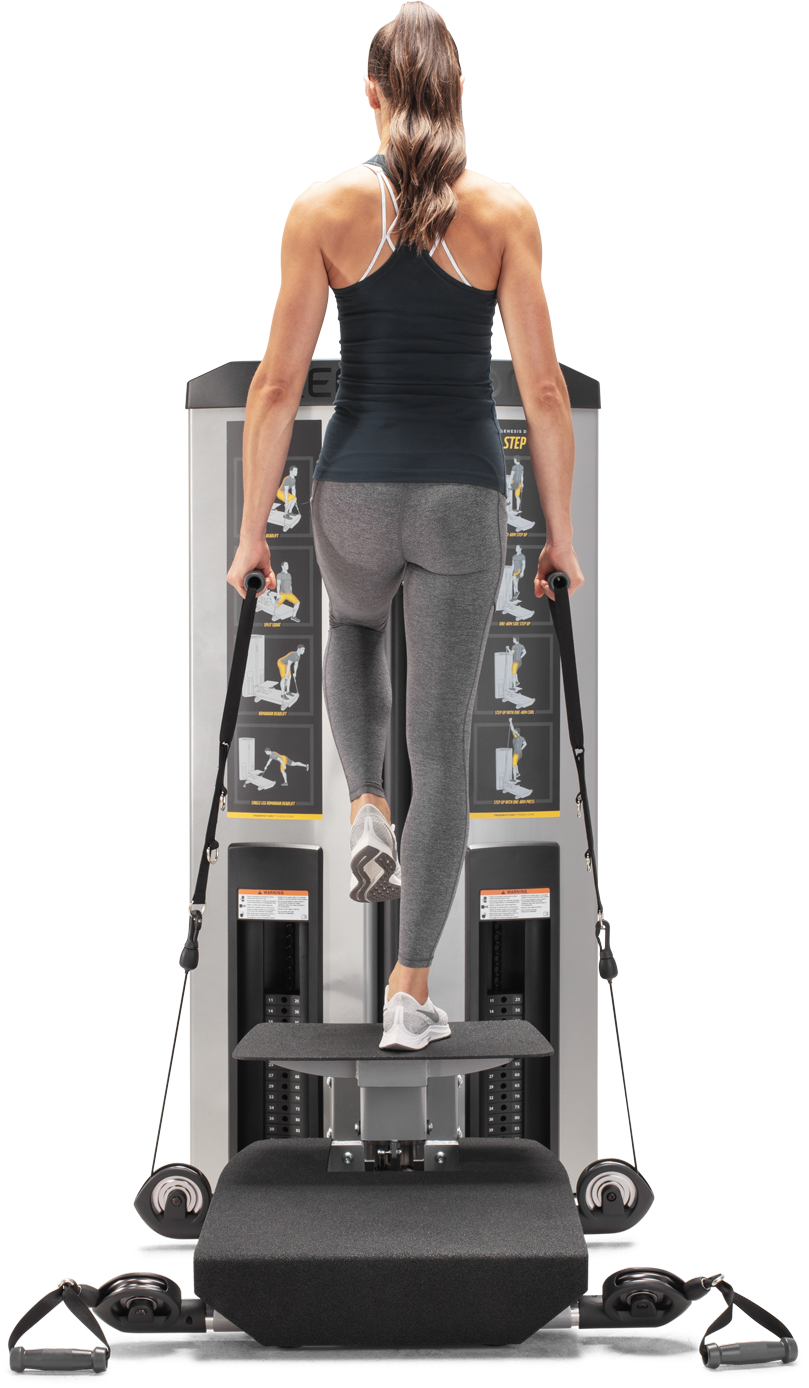

GD504-Front-m

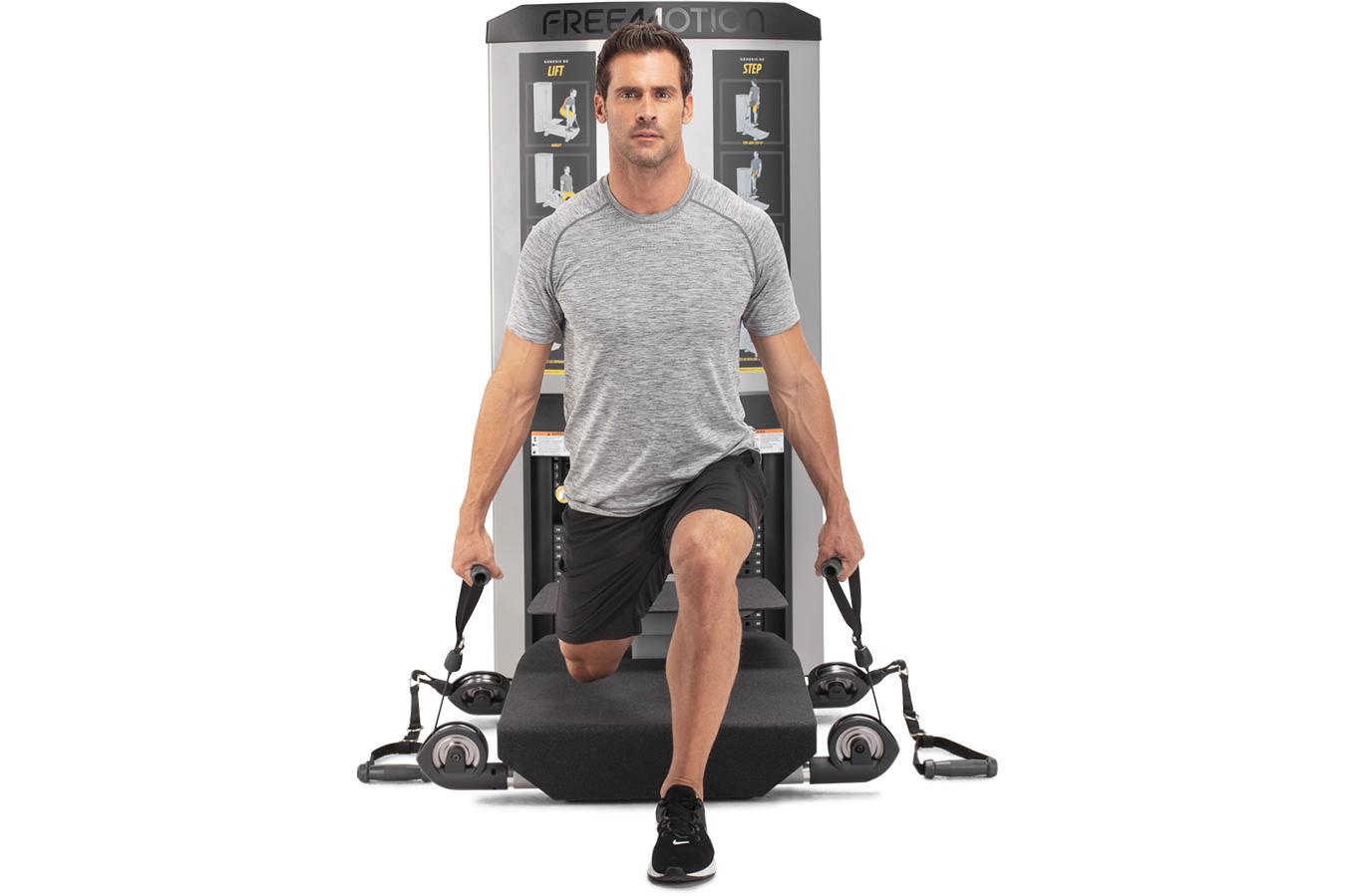

Swivel And Slide

Target specific muscles with the swiveling pulleys on this machine. Muscles will also be firing to stabilize and balance the body.

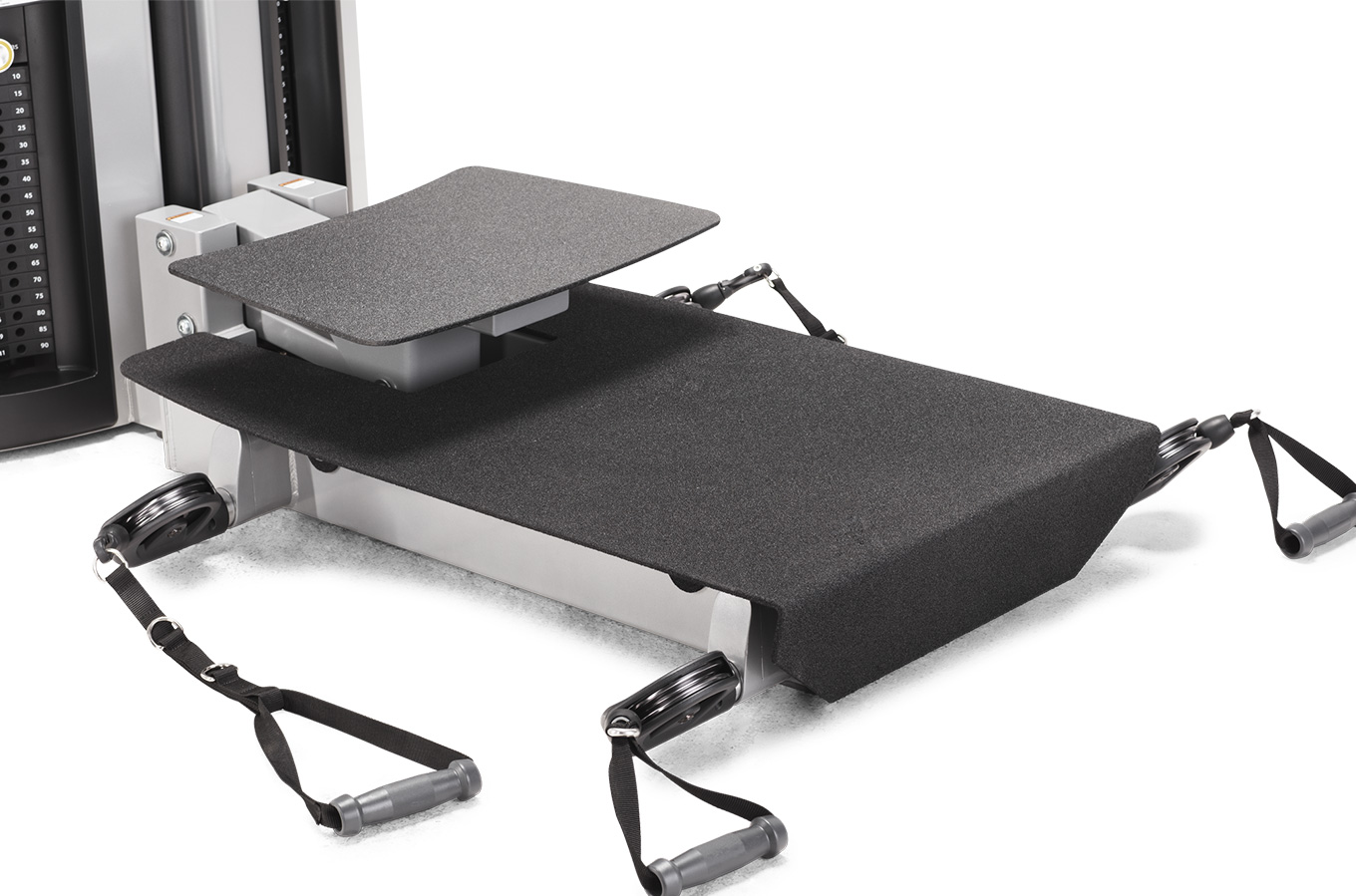

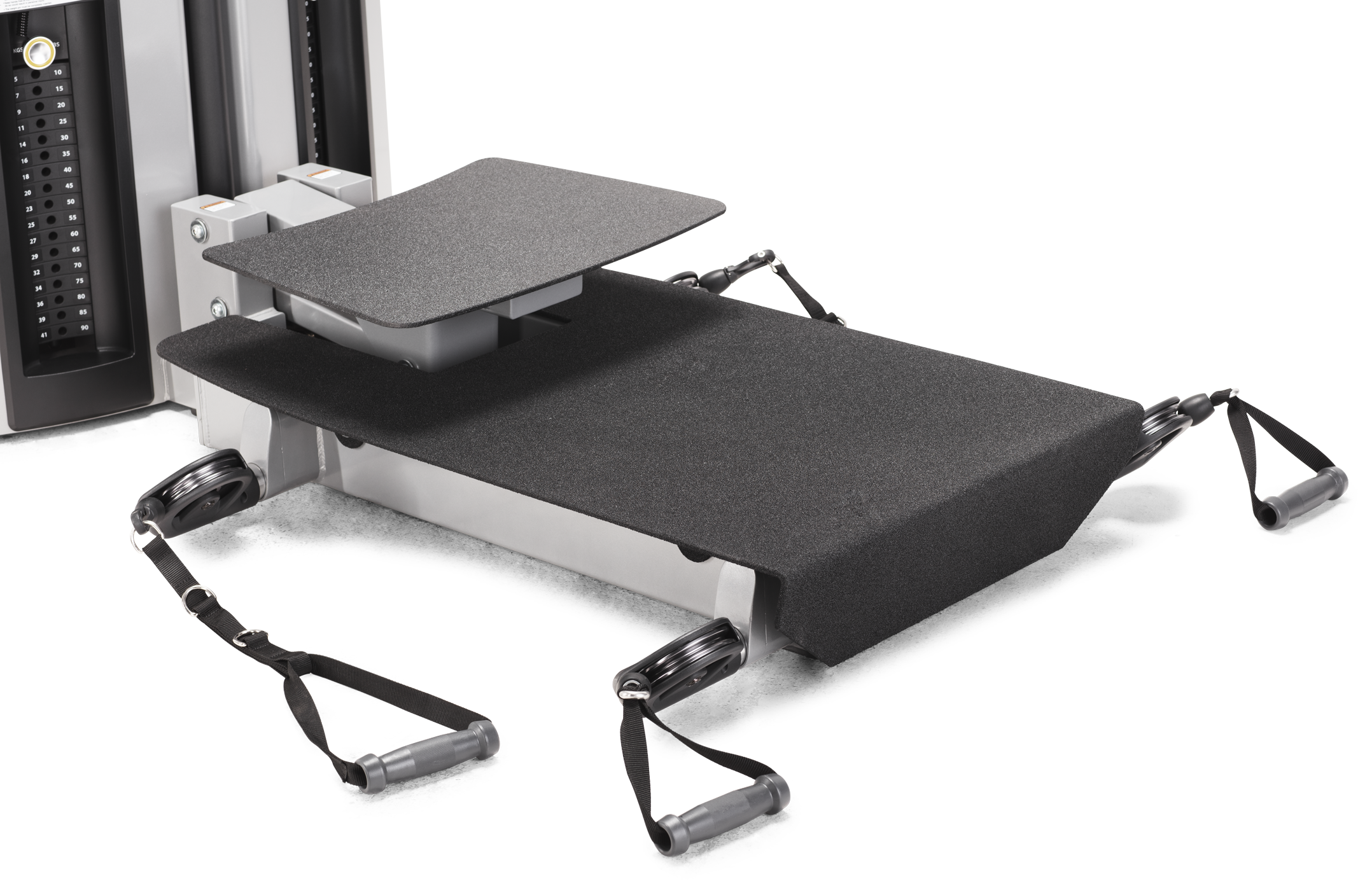

GD504-CloseUp

Best Foot Forward

The heavy-duty platform is coated with textured Line-X® for stable foot positioning and ultimate durability.

Details & Specs

GD504 STUDIO 0035 Black
  • Features
    Individualized Workouts

    Handles move one at a time to perform single-arm movements that will engage the entire body.

    Swivel And Slide

    Target specific muscles with the swivelling pulleys on this machine. Muscles will also be firing to stabilize and balance the body.

    Snap Clip Design

    Snap Clip design allow handle lengths to be adjusted without having to remove them from the machine, meaning there's less chance of handles going missing.

    Cable Travel

    Extensive cable travel allows for a full exercise flexion of 72 inches per arm (183 cm).

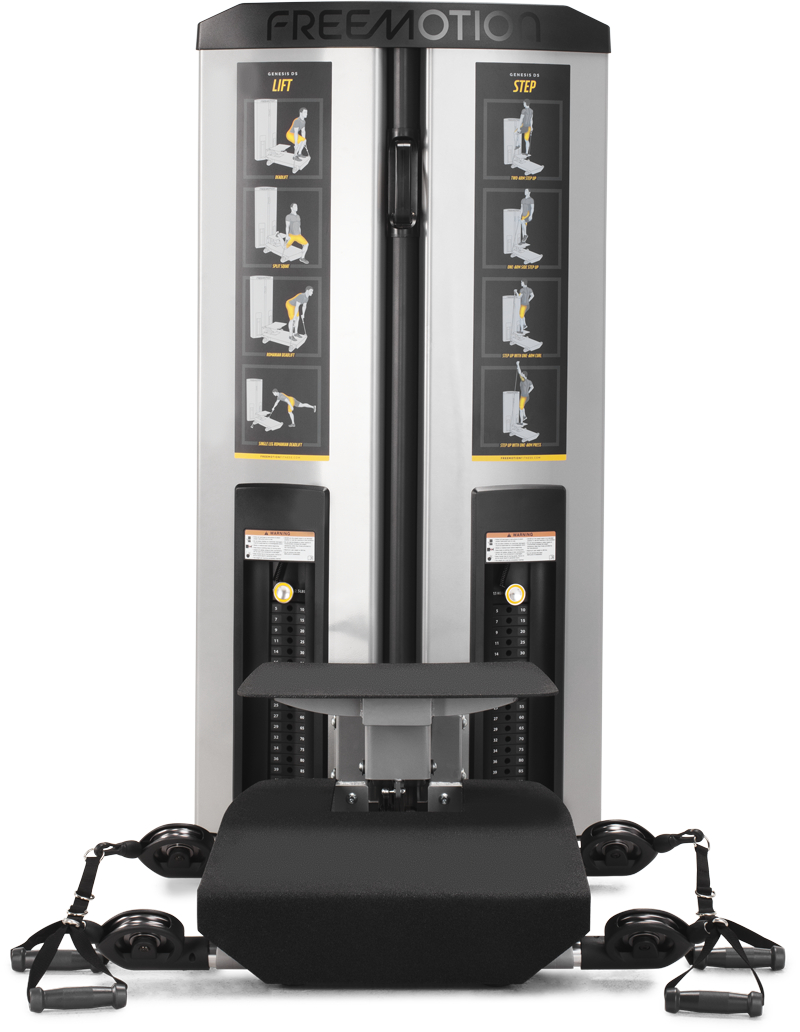

    Two Enclosed Weight Stacks

    Protected, limited access to moving parts is safer for your members and trainers.

    Industrial Construction

    This Freemotion machine is built with 11 and 7-gauge steel tubing and is electrostatically powder-coated with paint that has undergone 2,000 hours of salt spray testing.

    Weight Capacity

    Built to last, this Genesis DS Lift/Step works for people up to 400 lbs (181 kg).

    Multiple Low Pulling/Stepping Options

    The Freemotion machine combines pulling and stepping movements to engage the body in a complete strength-training workout.

    Gas Shock Assist With Quick Release Handle

    Adjust the height of the Line-X platform by using the quick release handle; it engages a shock that makes adjustments in seconds.

    Step, Pull, Repeat

    The Freemotion Lift/Step machine combines pulling with stepping to create a total-body, strength-training workout.

    Best Foot Forward

    The heavy-duty platform is coated with textured Line-X® for stable foot positioning and ultimate durability.

    One And Done

    Customize the height of the Line-X platform by using the quick release handle. The gas shock assist handle engages a shock that makes easy, custom adjustments in seconds.

  • Specifications
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Adjustable step with easy grip handle adjustment
    • Weight Stack lbs (kg) QTY 2 - 180 lbs weight stacks (81.6 kg)
    • Pulleys Aluminum swivel pulleys
    • Cable Travel in (cm) 72 in (182.8 cm) per arm
    • Rubber Feet Soft PVC
    • Resistance lbs (kg) 1 arm: 90 lbs (40.8 kg)
      2 arms: 180 lbs (81.6 kg)
    • Weight Stack Configuration lbs (kg) 2 - 10 lbs top plates, 34 - 10 lbs plates
      (2 - 4.5 kg top plates, 34 - 4.5 kg plates)
    • Maximum User Weight lbs (kg) 400 lbs (181.4 kg)
    • Standard Frame Colors Dell Gray
    • Plastic Colors Black, Platinum Metallic Silver, Bordeaux Red, Dell Gray
    • Standard Upholstery Colors Black Vinyl
    Product Dimensions & Weight
    • Machine Weight lb (kg) 724.6 lbs (328.7 Kg)
    • Product L x W x H in (cm) 65 x 37 x 64 in (165.1 x 93.9 x 162.5 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lb (kg) 863.1 lbs (391.5 Kg)
    • Shipping L x W x H in (cm) 74.8 x 38.9 x 45.3 in (189.9 x 99 x 115.1 cm)
    Regulatory Approvals
    • Approvals EN957,CE
    Warranty (US)
    • Frame 10 Years
    • Cables 1 Year
    • Parts 3 Years
    • Other 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Cables 1 Year
    • Labor 1 Year
    • Parts 3 Years
    • Other 120 Days
  • Documents
    PDF Downloads
