Genesis
G612-3Q
G612

MULTI-PLANE LIFT

Regardless of user height or which lifting or lunging exercise, the GENESIS Multi-Plane Lift has vertically adjustable handle arms for a precise fit for the movement. The low-profile platform is textured for secure foot placement when moving or stepping off the machine. Swivel pulleys and ample cable travel allow for compound and dynamic movements like a single leg RDL to a row off the platform.
G612-CloseUp

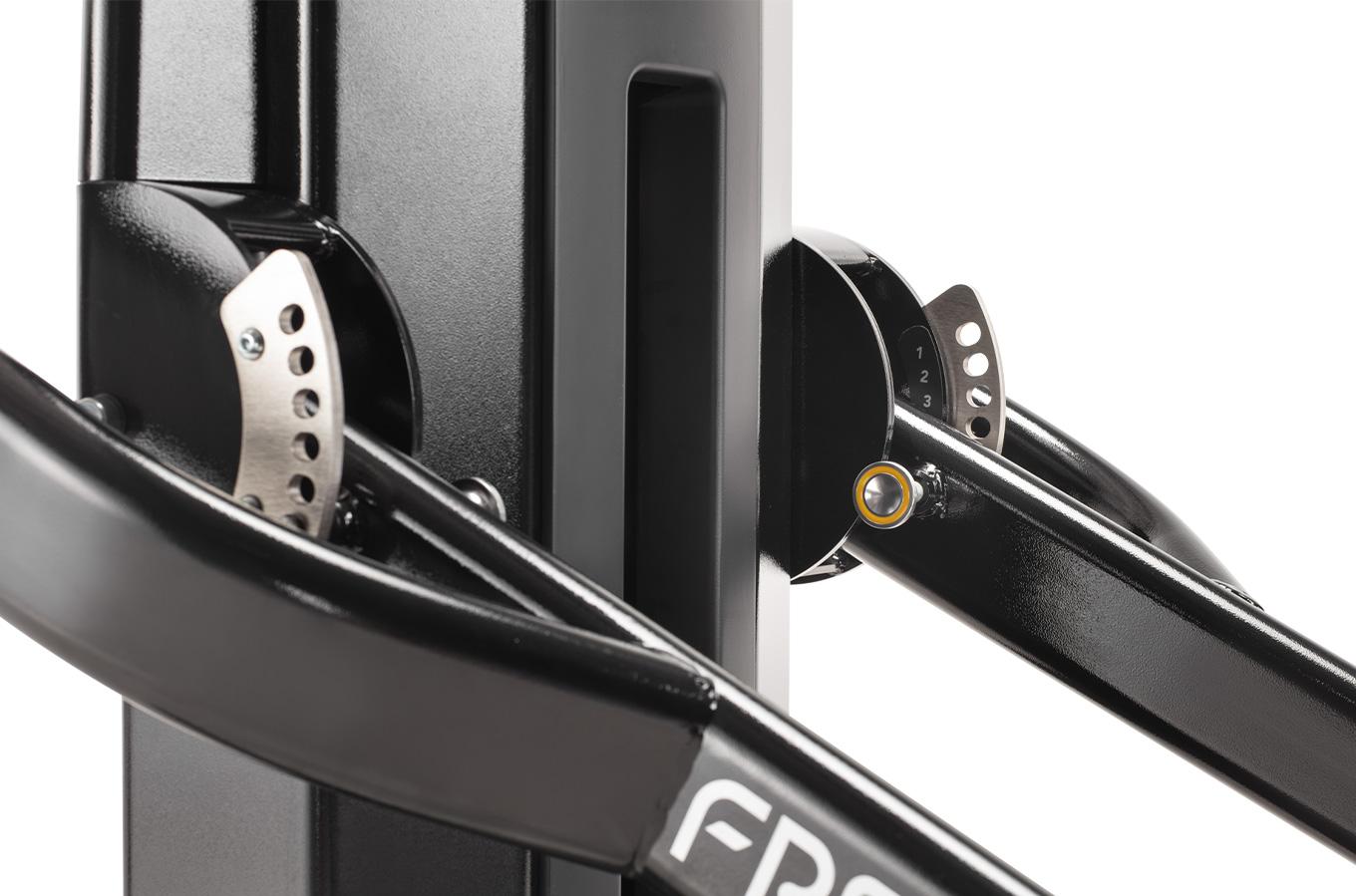

Fine-tune Range of Motion

Lift arms adjust vertically to customize starting range for users of varying heights.

Freedom to Move

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

Movement Variety

Movement Variety

Handles move independently for single and alternating arm exercises.

G612-3Q-M2-Croped

Sure Footing

Textured platform helps ensure secure foot placement even during dynamic exercise.

Details & Specs

  • Features
    Extensive Cable Travel

    Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

    Movement Variety

    Handles move independently for single and alternating side exercises.

    Enclosed Weight Stack

    The weight stack is enclosed to limit access to moving parts for safety.

    Built to Last

    Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

    Kick Plates

    Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

  • Specifications
    G612 Multi Plane Lift Footprint
    Product Features
    • Instructional Placards Yes
    • Adjustments Independently adjustable arms with 6 settings
    • Resistance 1 arm: 100 lb / 45.3 kg
      2 arms: 200 lb / 90.7 kg
    • Seat N/A
    • Pulleys Single swivel pulley
    • Cable Travel 120 in / 304.8 cm
    • Rubber Feet Molded floor protectors
    • Maximum User Weight 350 lb / 159 kg
    • Americans with Disabilities Act (ADA) Wheelchair Accessible
    Product Specifications
    • Weight Stack 400 lb / 181 kg
    • Drop Down Weight N/A
    • Weight Stack Configuration 5 - 50 x 5 lb / 2.2 - 22.6 x 2.2 kg
      60 - 200 x 10 lb / 27.2 - 90.7 x 4.5 kg
    • Standard Frame Color Black River, Flat Black, Platinum Sparkle, White River
    • Optional Frame Color Custom colors available upon request
    • Plastic Color Ebony
    • Standard Upholstery Color N/A
    • Optional Upholstery Color N/A
    Product Dimensions & Weight
    • Dimensions L x W x H 71 x 42 x 77 in / 180.3 x 106.6 x 195.5 cm
    • Footprint 71 x 42 in / 180.3 x 106.6 cm
    • Weight 977 lb / 443.1 kg
    • Shipping Dimensions 76 x 42 x 73 in / 193. x 106.6 x 185.4 cm
    • Shipping Weight 973 lb / 441.3 kg
    Certifications
    • EN957, CE
    Warranty (US & Canada)
    • Frame 10 Years
    • Parts 3 Years
    • Cables & Labor 1 Year
    • Cosmetic & Wear Items 6 Months
    • Upholstery & Padding 120 Days
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Cables & Labor 1 Year
    • Cosmetic & Wear Items 6 Months
    • Upholstery & Padding 120 Days
  • Documents
    PDF Downloads
G612-3Q
