Genesis DS
GD505 STUDIO 0611 Black
GD505

MULTI-PULL PRESS

Strengthen forearms, shoulders, chest and neck with the versatile Genesis DS™ Multi-Pull Press machine. Utilizing cable-based training with convenient, interchangeable snap-clip aluminum swivel pulleys—the Freemotion Multi-Pull Press machine targets specific arm muscles from a seated or standing position. An adjustable thigh pad comfortably secures legs throughout the workout while the padded, pivoting seat pad quickly folds up and away to switch between seated and standing positions.

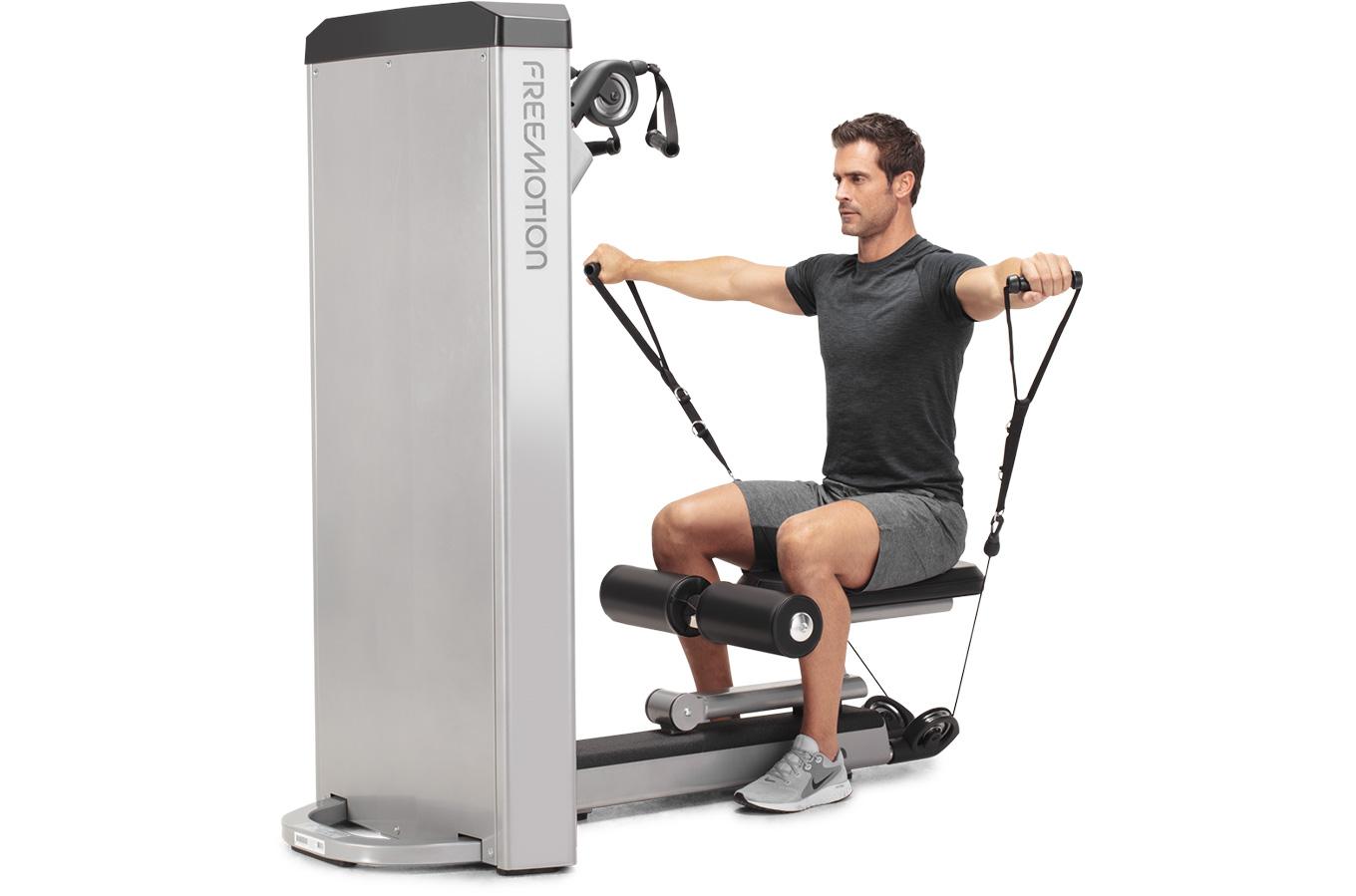

GD505-Back-mt2

Build A Better Body

Work the sagittal planes along with forearms, shoulders, chest and neck with the row, straight arm shoulder, lateral and frontal raises.

GD505-CloseUp

All Sizes Welcome

Contoured, thigh pads adjust in height and also swivel and slide to fit people of all shapes and sizes.

GD505-Profile-mt2

Sit Or Stand

Quickly fold away the padded, pivoting seat to change from a seated position to a standing one to engage core muscles and increase balance.

Details & Specs

GD505 STUDIO 0611 Black
  • Features
    The One Machine That Does It All

    Work forearms, shoulders, chest and neck with a variety of cable-based pulling options. Perform the row, straight arm shoulder, lateral/frontal raises and sagittal plane movements on this machine.

    Feel Secure

    Contoured, thigh pads adjust in height and swivel and slide to fit people of all sizes.

    Pivoting Seat Pad

    Quickly fold up the padded seat to change from a seated to standing workout position.

    Independent Arm Movement

    Handles move independently for single or two-arm exercises.

    Aluminum Swivel Pulleys

    The pulleys on this machine swivel to target specific muscles and improve stabilization and balance.

    Snap Clip Design

    Snap Clip design allow handle lengths to be adjusted without having to remove them from the machine, meaning there's less chance of handles going missing.

    Kick Plates

    Solid 16-gauge, stainless steel kick plates protect the machine from wear and tear.

    Cable Travel

    Extensive cable travel allows for a full exercise flexion of 72 inches per arm (183 cm).

    Two Enclosed Weight Stacks

    Protected, limited access to moving parts is safer for your members and trainers.

    Wheelchair Accessible

    The open design of this piece makes it wheelchair accessible and welcoming to users of all fitness levels.

    Industrial Construction

    This machine is built with 11 and 7-gauge steel tubing and is electrostatically powder-coated with paint that has undergone 2,000 hours of salt spray testing.

    The One Machine That Does It All

    Work forearms, shoulders, chest and neck with a variety of cable-based pulling options. Perform the row, straight arm shoulder, lateral/frontal raises and sagittal plane movements on this machine.

    Build A Better Body

    Work the sagittal planes along with forearms, shoulders, chest and neck with the row, straight arm shoulder, lateral and frontal raises.

    All Sizes Welcome

    Contoured, thigh pads adjust in height and also swivel and slide to fit people of all shapes and sizes.

    Sit Or Stand

    Quickly fold away the padded, pivoting seat to change from a seated position to a standing one to engage core muscles and increase balance.

  • Specifications
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Pivot seat/thigh pad for standing delt movements
    • Weight Stack lbs (kg) QTY 2 - 180 lbs weight stacks (81.6 kg)
    • Upholstery Vinyl with 2 in (5 cm) thick foam
    • Pulleys Aluminum swivel pulleys
    • Cable Travel in (cm) 72 in (182.8 cm) per arm
    • Rubber Feet Soft PVC
    • ADA Compliant Wheelchair Accessible
    • Resistance lbs (kg) 1 arm: 90 lbs (40.8 kg)
      2 arms: 180 lbs (81.6 kg)
    • Weight Stack Configuration lbs (kg) 2 - 10 lbs top plates, 34 - 10 lbs plates
      (2 - 4.5 kg top plates, 34 - 4.5 kg plates)
    • Maximum User Weight lbs (kg) 400 lbs (181.4 kg)
    • Standard Frame Colors Dell Gray
    • Plastic Colors Black, Platinum Metallic Silver, Bordeaux Red, Dell Gray
    • Standard Upholstery Colors Black Vinyl
    Product Dimensions & Weight
    • Machine Weight lb (kg) 637.1 lbs (289 Kg)
    • Product L x W x H in (cm) 66 x 31 x 64 in (167.6 x 78.7 x 162.5 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lb (kg) 764.7 lbs (346.9 Kg)
    • Shipping L x W x H in (cm) 74.8 x 38.9 x 33.5 in (189.9 x 99 x 85.1 cm)
    Regulatory Approvals
    • Approvals EN957,CE
    Warranty (US)
    • Frame 10 Years
    • Cables 1 Year
    • Parts 3 Years
    • Other 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Cables 1 Year
    • Labor 1 Year
    • Parts 3 Years
    • Other 120 Days
