Genesis
G627-3Q
G627

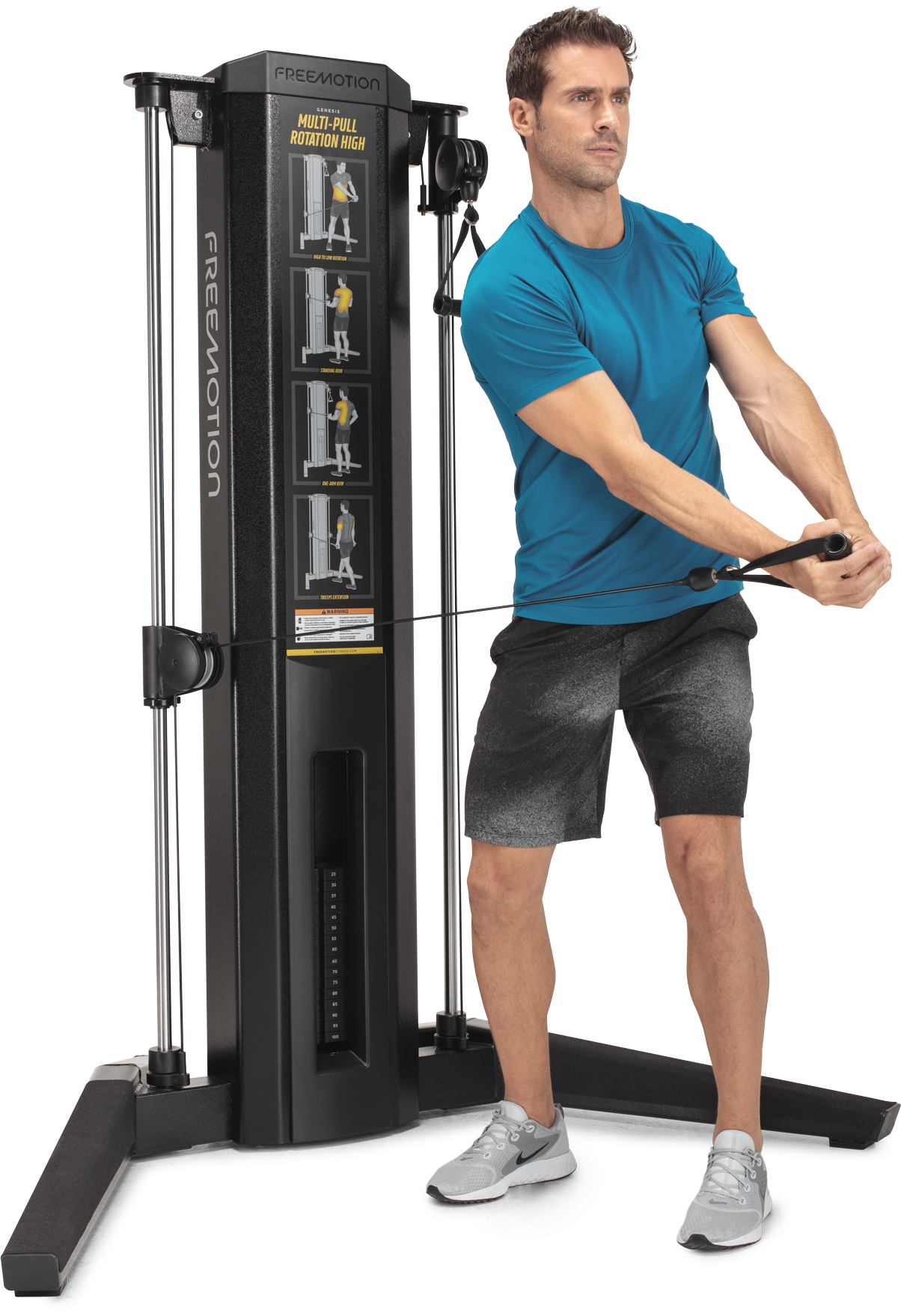

MULTI-PULL / ROTATION HIGH

The Genesis™ High Pull does the work of many different machines in one single footprint. Made to work the upper body, the High Pull incorporates side chiseling chop movements, bicep and tricep muscles and just about everything in between. Because the Genesis High Pull doesn't have a seat, the workout intensifies by pulling in core and stability development all while experiencing an ever-moving pulley that goes where you want it to go. This machine is a training bridge between strength and cardio; lessen the weight and amp up the movement to create a sweat-inducing workout that will burn calories. Load up the plates to create a user-determined workout that's truly customizable.

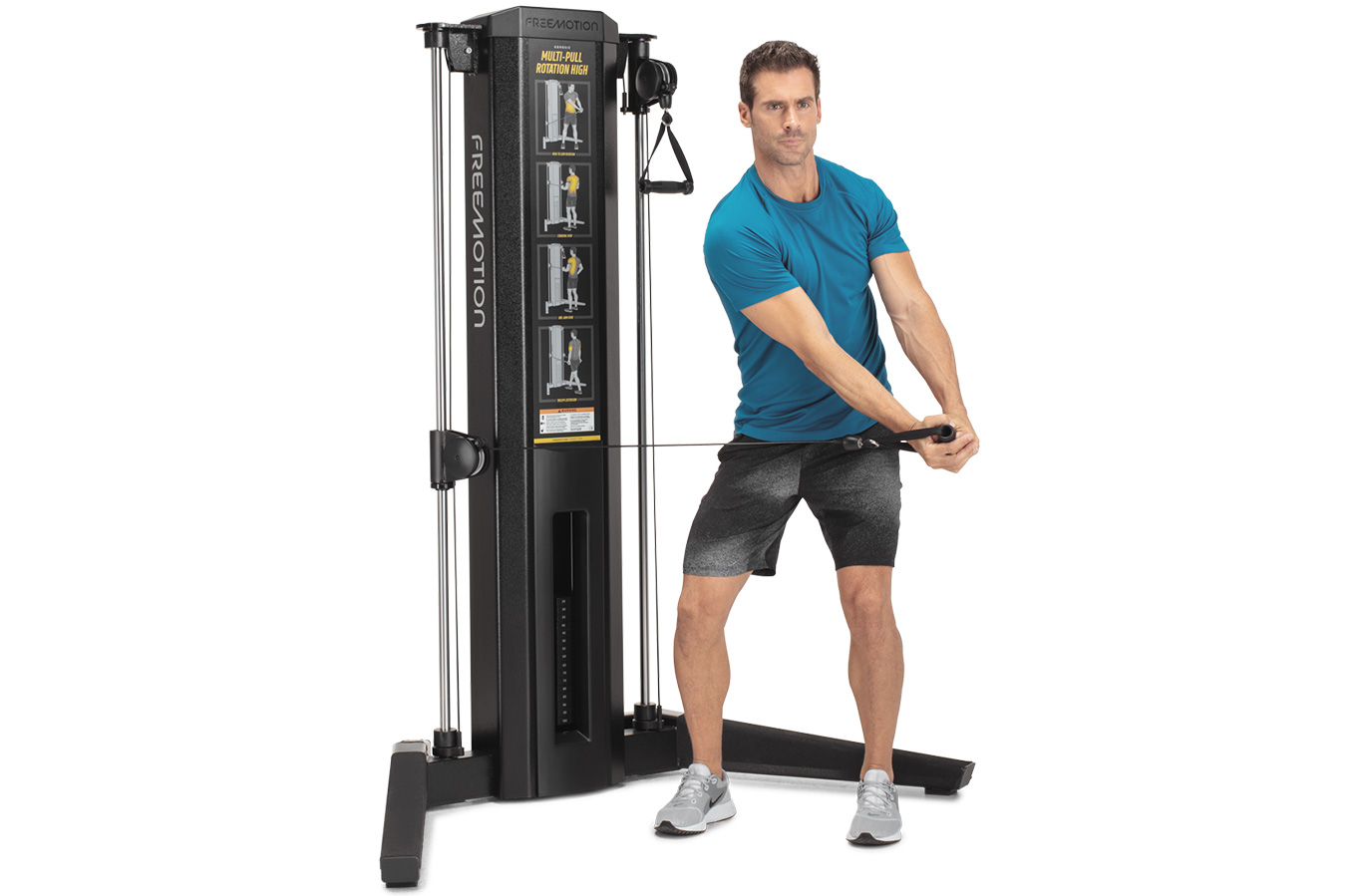

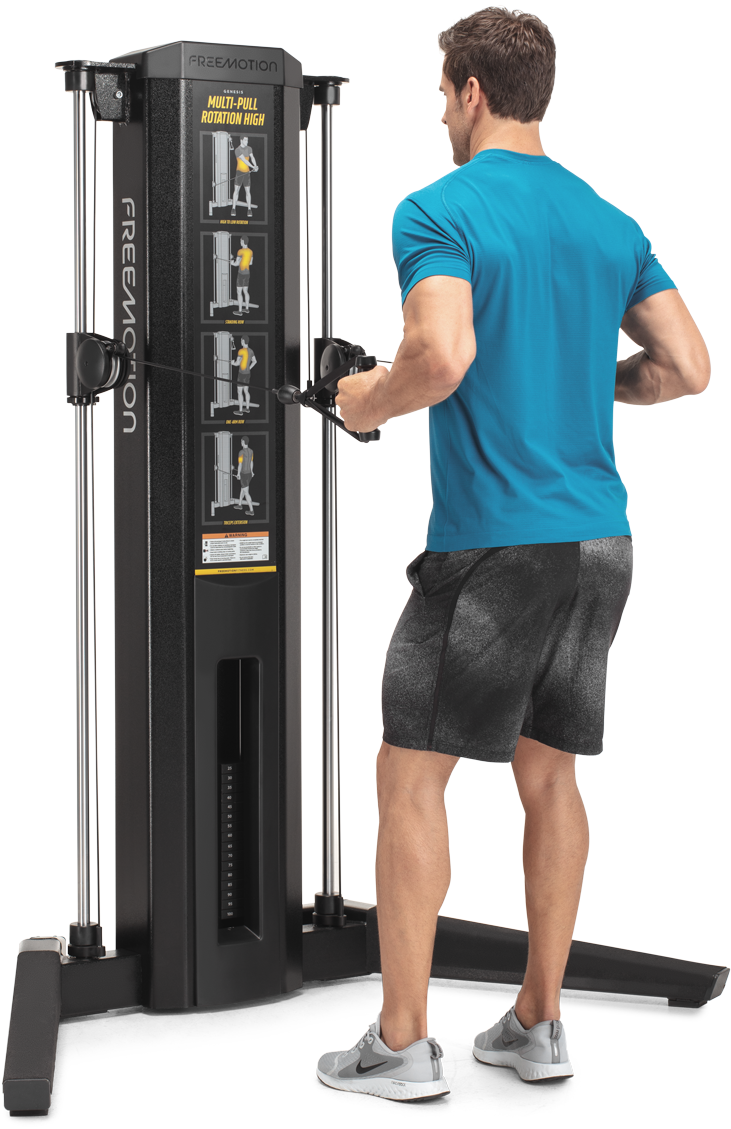

G627-3Q-mt

Constant Resistance

Live-sliding pulley technology allow muscles to stay at optimum activation with never-ending resistance throughout the entire movement.

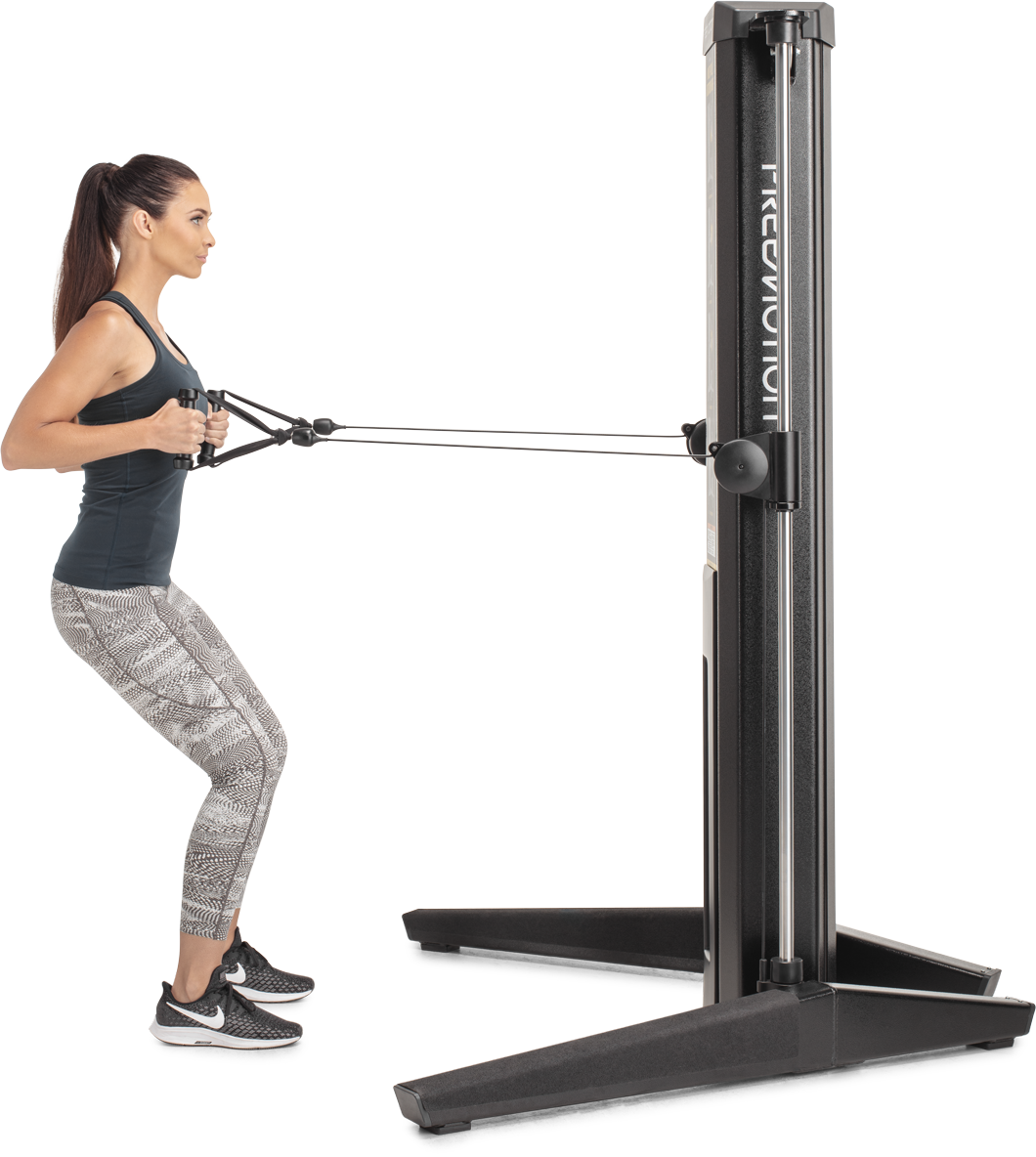

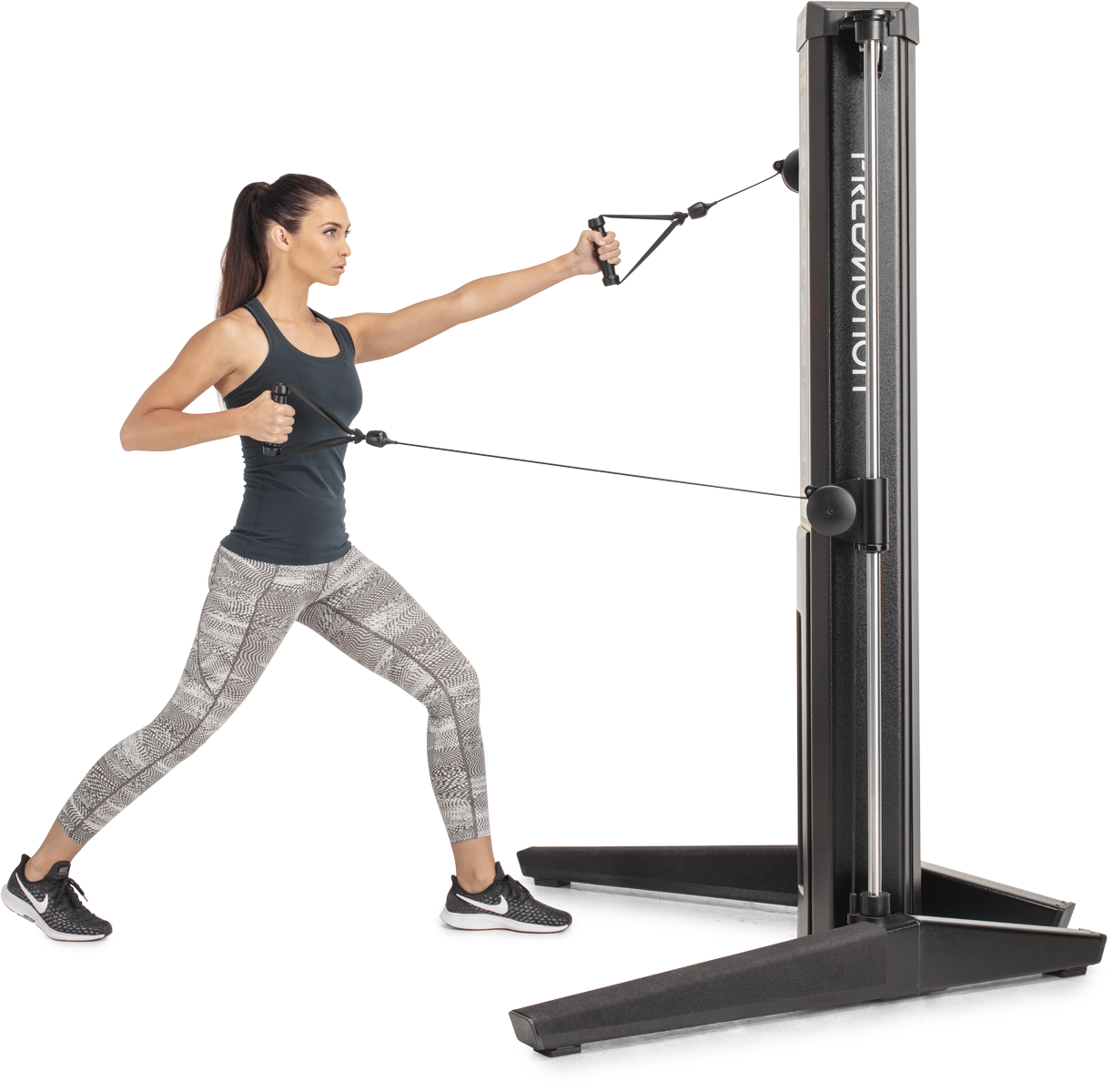

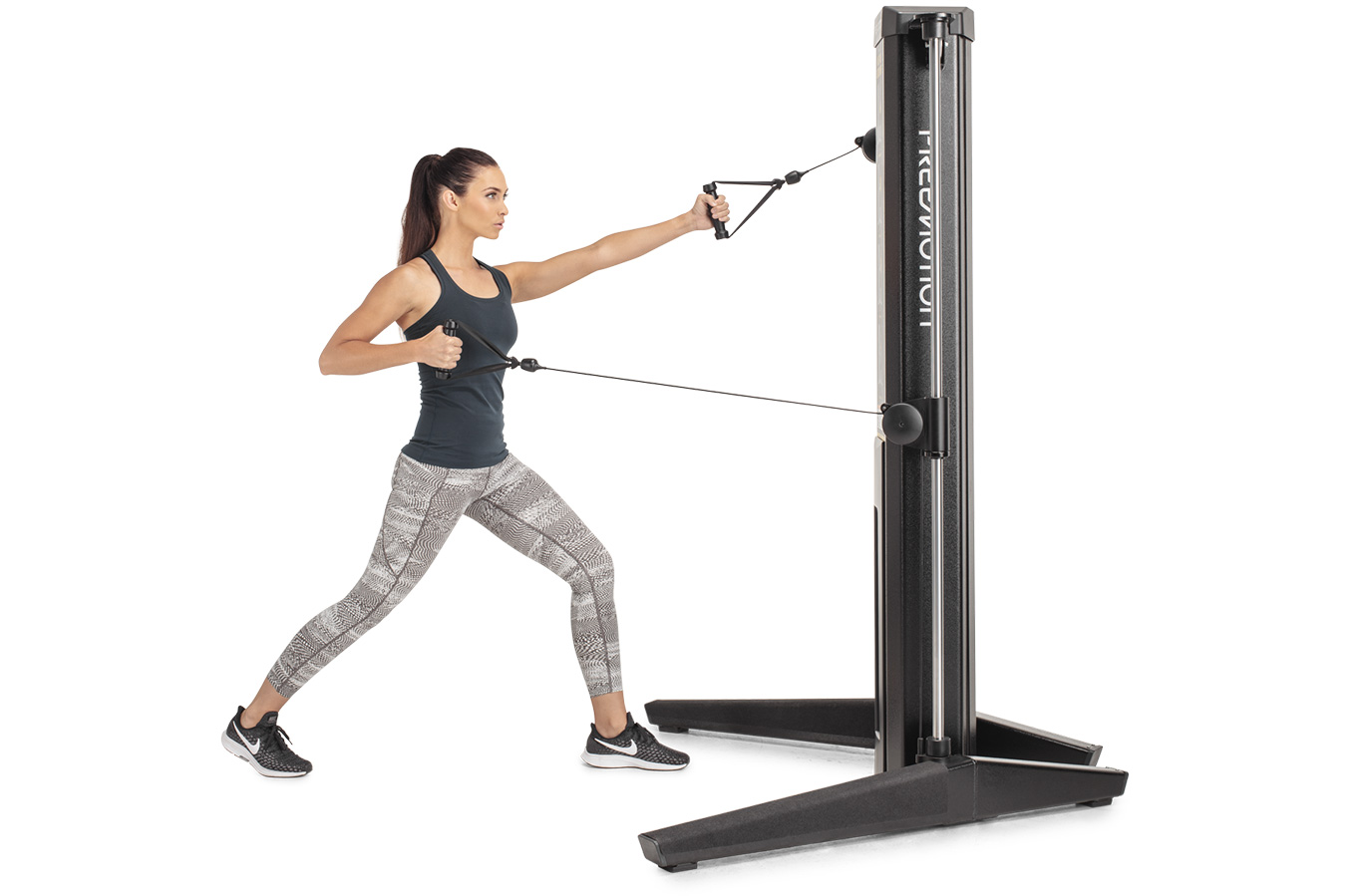

G627-Profile-ft2

Dual Tracks, Double The Workout

Each pulley glides up and down on its own independent track—creating never-ending resistance and a more effective workout.

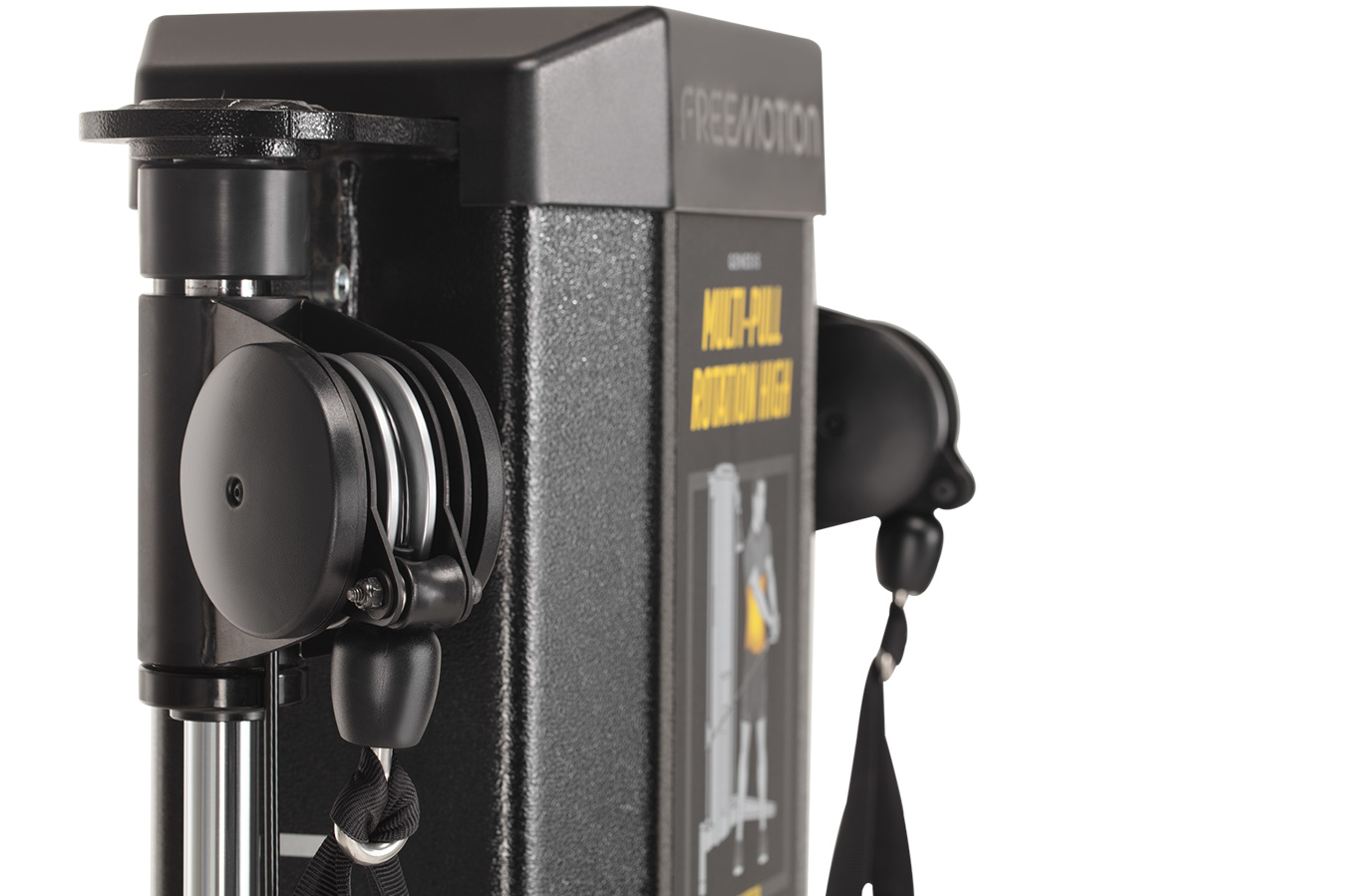

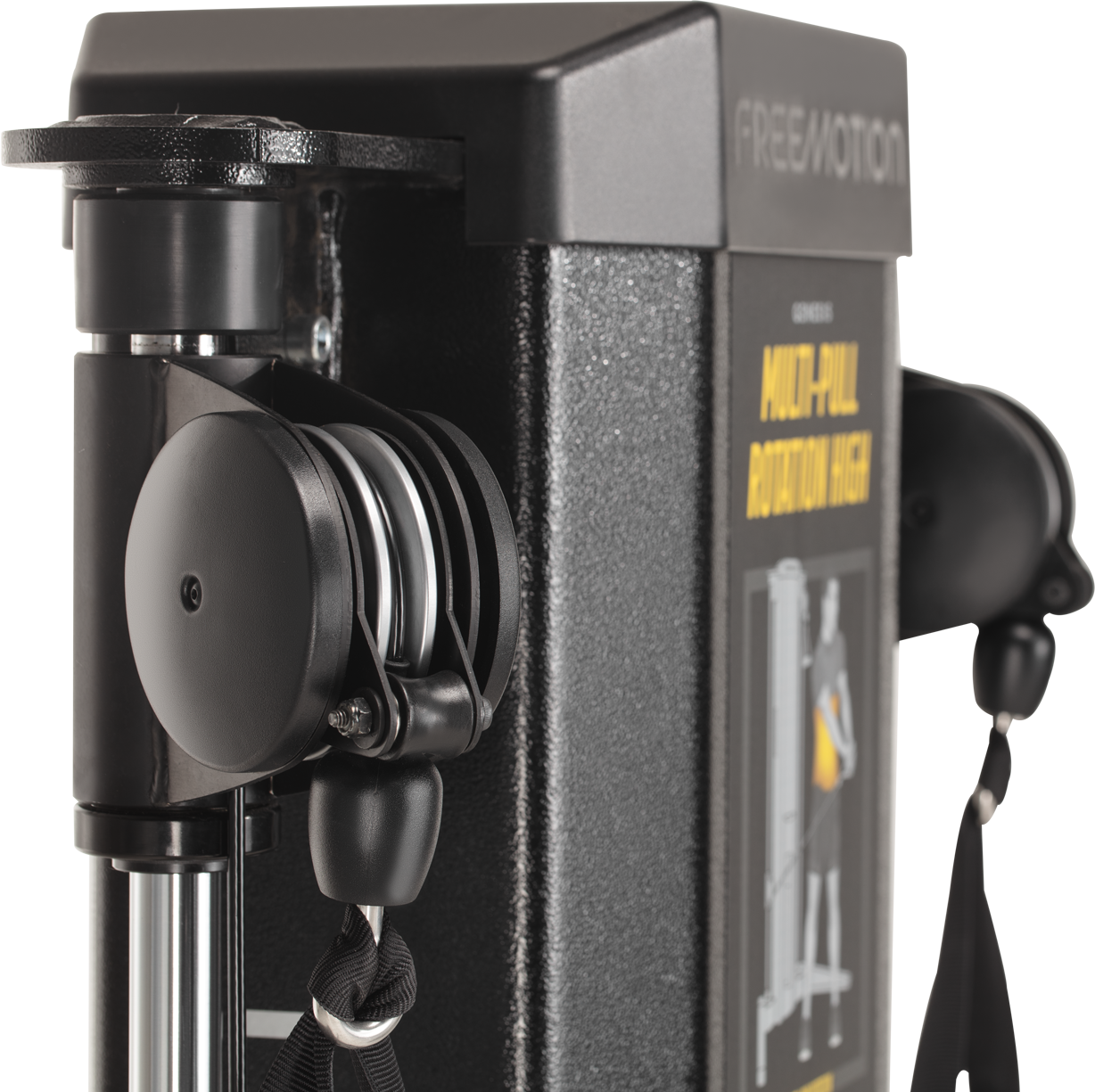

G627-CloseUp

No Limits

The swivel design of these pulleys ensure fluid cable travel and a nearly unlimited range of motion.

Details & Specs

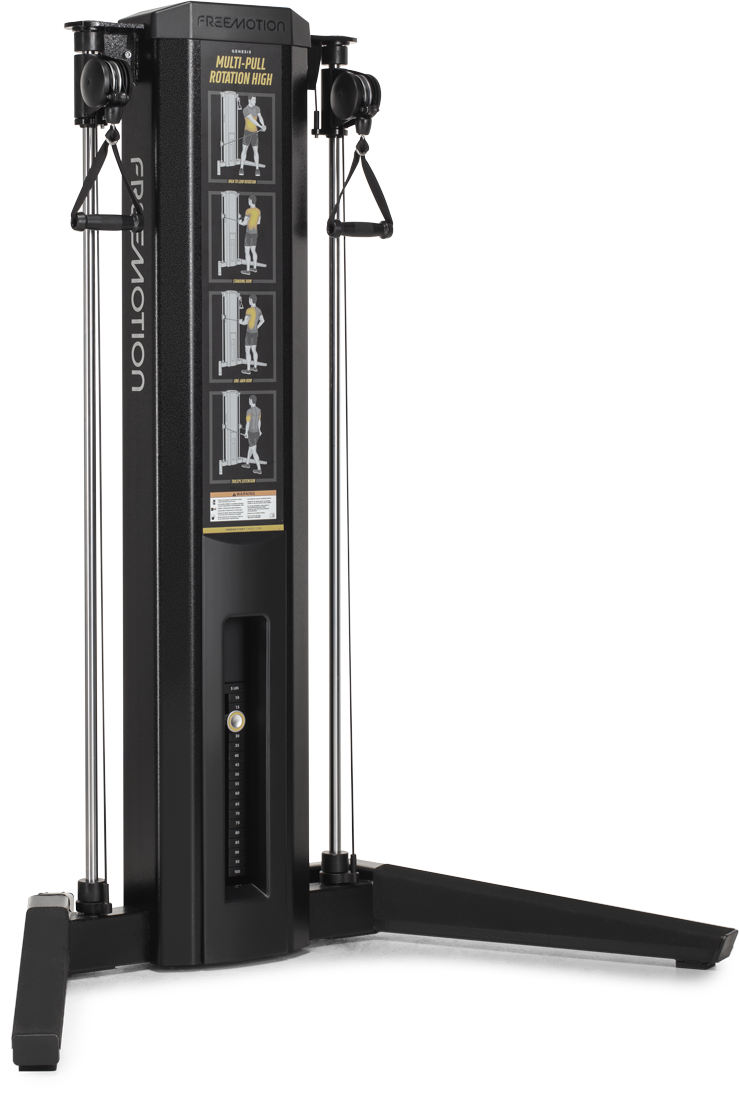

G627-3Q
  • Features
    Muscles Stay Activativated

    Live-sliding pulley technology allows muscles to stay at optimum activation with never-ending resistance throughout the entire movement.

    Dual Independent Tracks

    Each pulley glides up and down on an independent track—ensuring never-ending resistance and a more effective workout.

    Swivel Pulleys

    Because the pulleys swivel on this Freemotion machine, it's easy to target specific muscles. As a bonus, core muscles are engaged to promote all over body stabilization and balance.

    Cable Travel

    Extensive cable travel creates a full exercise flexion, single arm: 58 inches (147 cm), two arms: 42 inches (107 cm).

    Enclosed Weight Stack

    The protected, enclosed weight stack limits access to moving parts to better prevent accidents or injury.

    Kick Plates

    Strong 18-gauge, stainless steel kick plates protect this Freemotion machine from wear and tear.

    Industrial Construction

    Built strong with 11 and 7-gauge steel tubing, this machine has been electrostatically powder-coated with paint tested by 2,000 hours of salt spray testing.

    ADA Accessible

    The open design of this piece makes it wheelchair accessible and welcoming to users of all fitness levels.

    Constant Resistance

    Live-sliding pulley technology allow muscles to stay at optimum activation with never-ending resistance throughout the entire movement.

    Dual Tracks, Double The Workout

    Each pulley glides up and down on its own independent track—creating never-ending resistance and a more effective workout.

    No Limits

    The swivel design of these pulleys ensure fluid cable travel and a nearly unlimited range of motion.

  • Specifications
    Product Specifications
    • Standard Frame Colors Platinum Sparkle
    • Plastic Colors Black, Dell Gray
    Equipment Features
    • Instructional Placards Yes
    • Weight Stack lbs (kg) 200 lbs (90 kg) Weight Stack
    • Frame and Finish Powder-coated steel frame
    • Pulleys Swivel Pulleys
    • Cable Travel in (cm) 1 arm- 58 in (147.3 cm)
      2 arms- 42 in (106.6 cm)
    • Rubber Feet Molded Floor Protectors
    • ADA Compliant Compliant with the Americans with Disabilities Act for wheelchair accessibility.
    • Resistance lbs (kg) 1 arm: 50 lbs (22.6 kg)
      2 arms: 100 lbs (45.3 kg)
    • Weight Stack Configuration lbs (kg) 20 - 400 x 20 lbs (9 - 181 x 9 kg)
    Product Dimensions & Weight
    • Machine Weight lb (kg) 488 lbs (221.3 kg)
    • Length L x W x H in (cm) 44 x 63 x 74 in (111.6 x 160 x 187.9 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lbs (kg) 416 lbs (188.6 kg)
    • Length L x W x H in (cm) 57.2 x 39.1 x 72.8 in (145.2 x 99.3 x 184.9 cm)
    Regulatory Approvals
    • Approvals EN957, CE
    Warranty (US)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Labor 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
