Epic Selectorized
ES814_3Q
ES814

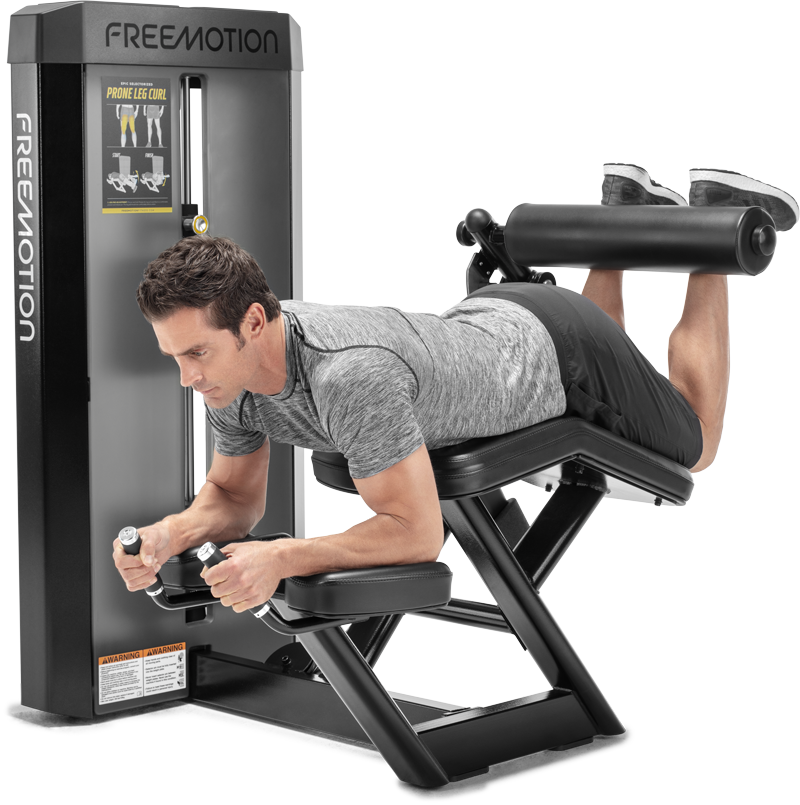

PRONE LEG CURL

The Freemotion EPIC Prone Leg Curl enhances strength and muscle with a specialized, contoured arm that supports and isolates hamstrings. A new, lower tower height promotes an open feel.

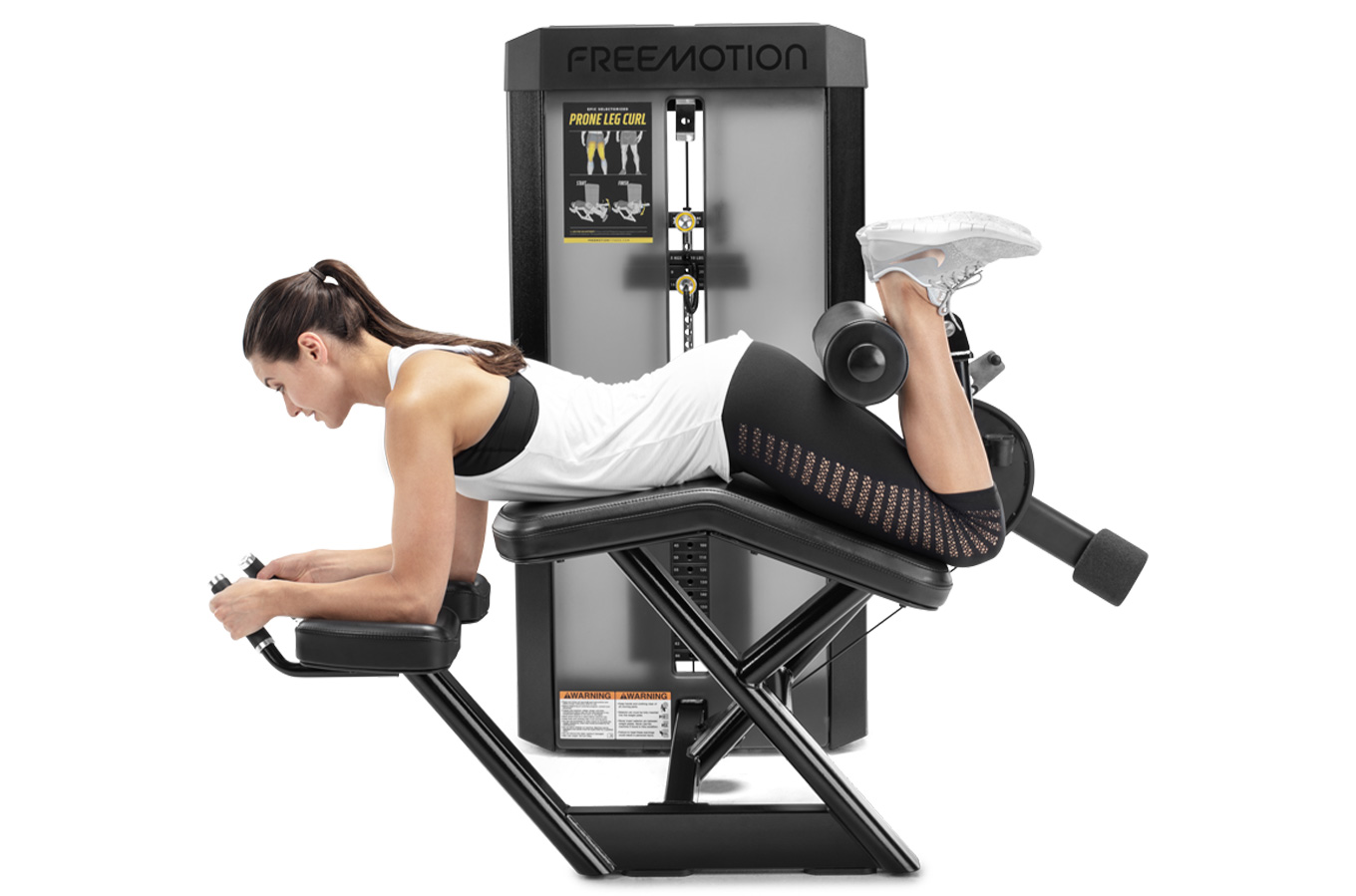

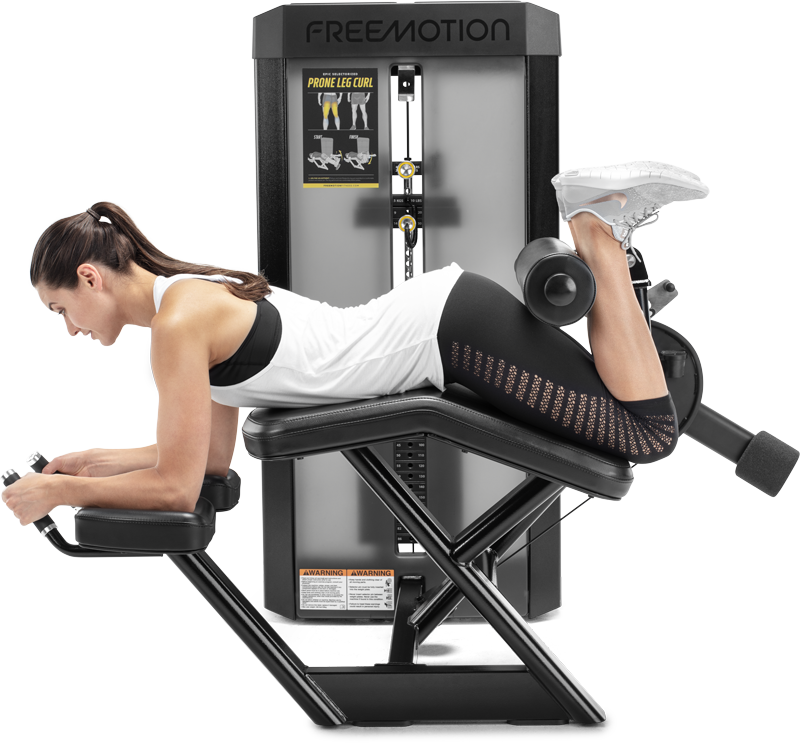

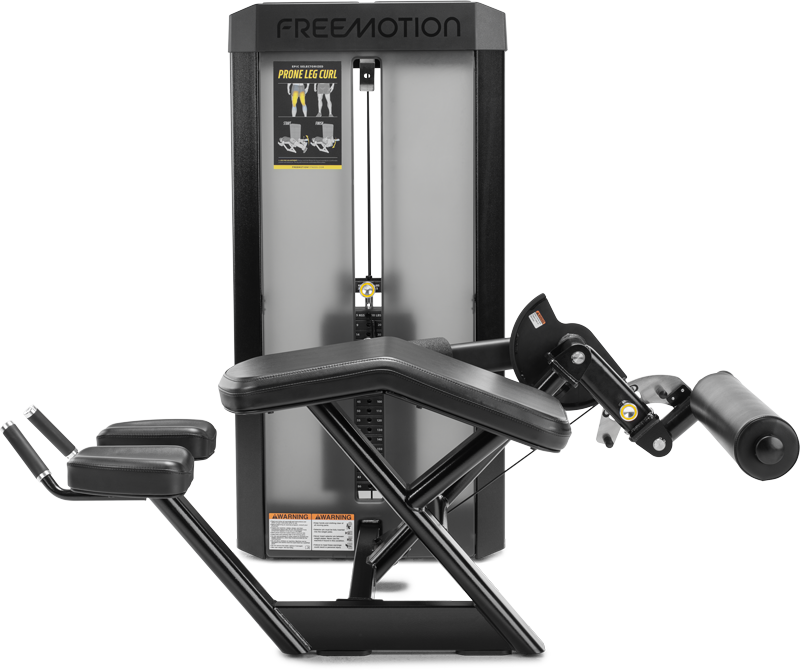

ES814_Straight_Talent

Adjustable Leg Assembly

The leg assembly can be adjusted to several convenient positions.

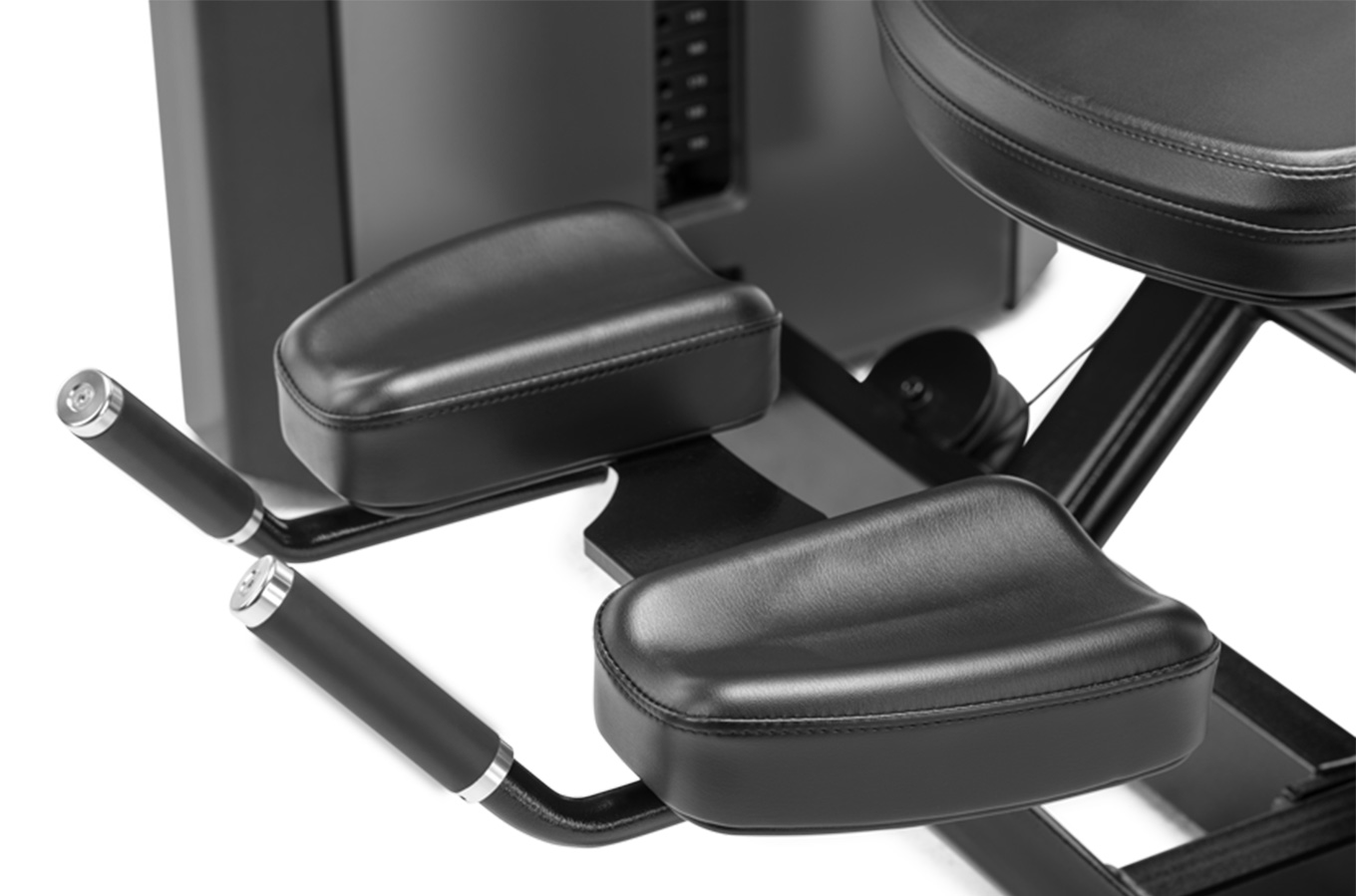

ES814_Arm_Rest

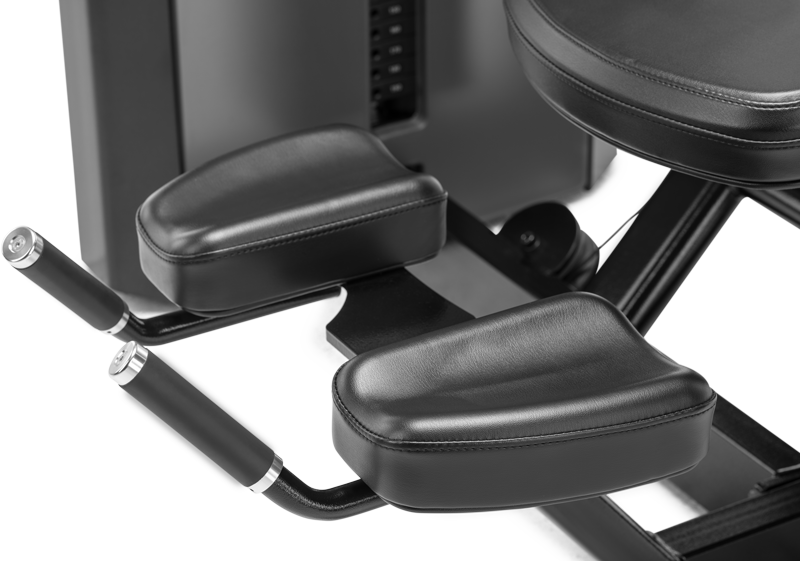

Contoured Arm Supports

Designed for comfort and made to last, these arm supports help isolate the lower body.

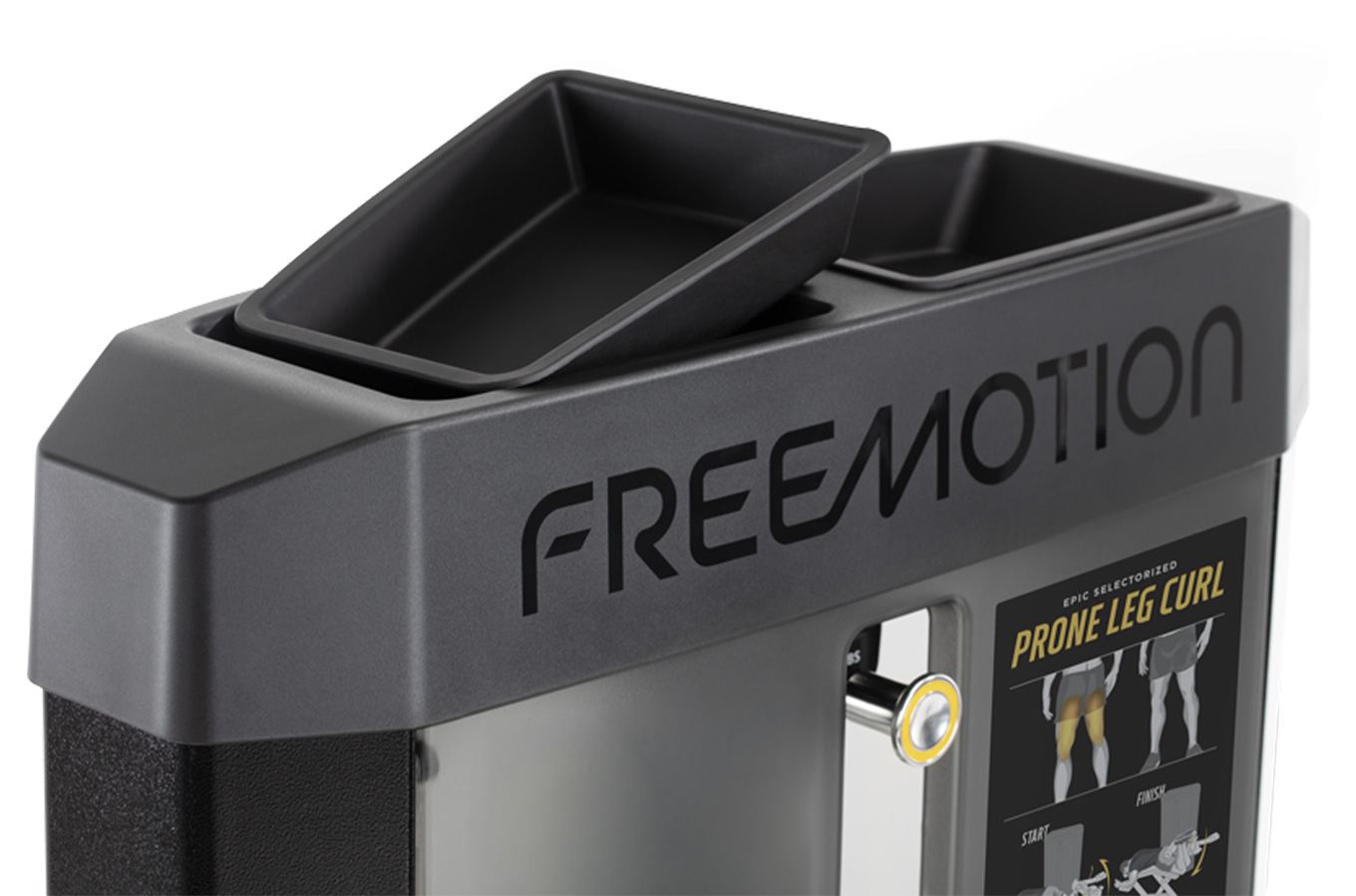

ES814-holders

Built-in Storage

The redesigned top cap of this machine features a built-in accessory tray to help users keep track of their phone, keys and more.

Details & Specs

ES814_3Q
  • Features

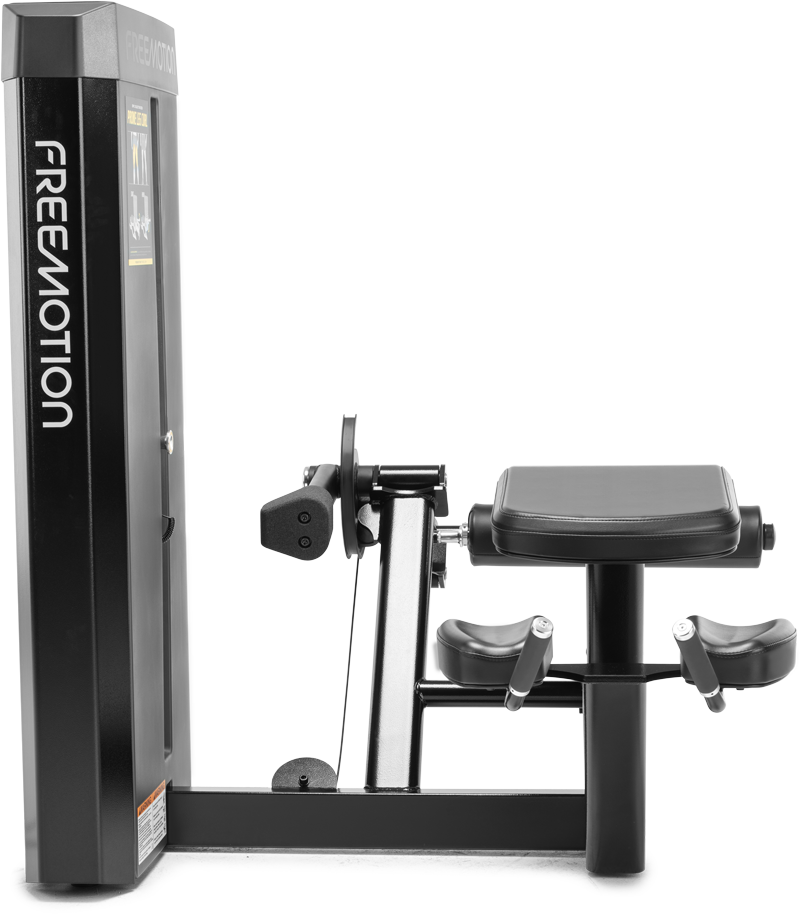

    Low Profile Tower Design

    The low profile tower works well with an open design floor plan and adds to the 'welcome' environment.

    Adjustable Leg Assembly

    The leg assembly can be adjusted to several convenient positions.

    Contoured Arm Supports

    Designed for comfort and made to last, these arm supports help isolate the lower body.

    Built-in Storage

    The redesigned top cap of this machine features a built-in accessory tray to help users keep track of their phone, keys and more.

    Smaller Footprint

    The new EPIC Prone Leg Curl has a smaller, narrower footprint to free up your square footage.

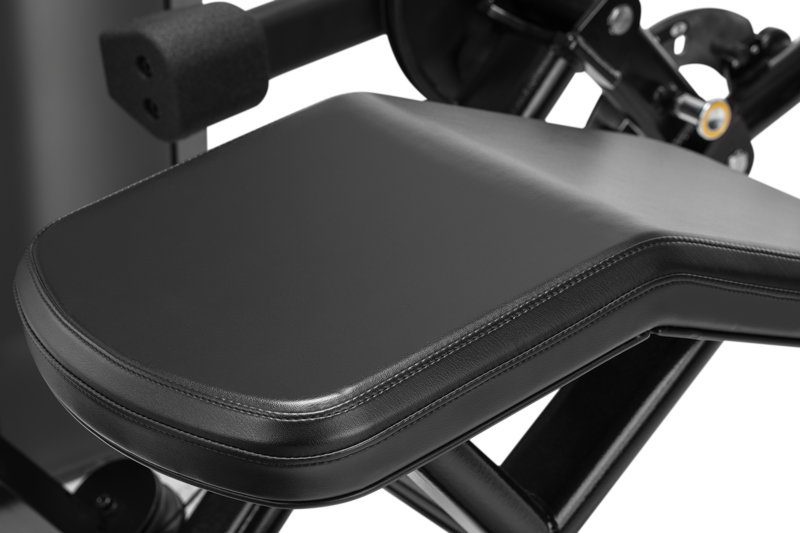

    Large Leg Pad for Extra Comfort

    Designed for comfort and made to last, the large leg pad offers extra comfort while accommodating users of varying sizes.

    Heavy Duty Cable

    Heavy duty cable is designed to support the rigorous usage demands of this machine.

    Heavy Duty Floor Protectors

    Made with molded rubber, the Freemotion floor guards help better protect your floor.

    Easy Serviceability

    The tower design allows for simple cable service.

  • Specifications
    Product Specifications
    • Standard Frame Colors Platinum Sparkle, Black River
    • Optional Frame Colors On Request
    • Plastic Colors Black
    • Standard Upholstery Colors Black
    • Optional Upholstery Colors Graphite, Blue Ridge, Burgundy, American Beauty Red
    • Hand Grip Colors Black
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Adjustable Leg Assembly
    • Weight Stack lbs (kg) 195 lbs (88.4 kg)
    • Upholstery Vinyl, 1.5 in (3.8 cm) thick foam
    • Rubber Feet Heavy Duty Floor Protectors
    • Resistance lbs (kg) 195 lbs (88.4 kg)
    • Weight Stack Configuration lbs (kg) 10 lbs header (4.5 kg)
      20-190 x 10 lbs (4.5 kg)
    • Maximum User Weight lbs (kg) 350 lbs (159 kg)
    • Drop Down Weight 5 lbs (2.2 kg)
    Product Dimensions & Weight
    • Machine Weight lbs (kg) 487.4 lbs (221.1 kg)
    • L x W x H in (cm) 53.4 x 66.4 x 57.8 in
      135.6 x 168.6. x 146.8 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lbs (kg) Box 1: 617.2 lbs (279.9 kg)
      Box 2: 22 lbs (9.9 kg)
    • L x W x H in (cm) Box 1: 75.9 x 27.1 x 40.9 in
      (192.7 x 68.8 x 103.8 cm)
      Box 2: 31.1 x 22.4 x 7.4 in
      (78.9 x 56.8 x 18.7 cm)
    Regulatory Approvals
    • Approvals CE
    Warranty (US)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Parts 3 Years
    • Other 120 Days
    • Cables/Labor 1 Year
  • Documents
    PDF Downloads
