Genesis DS
GD503 STUDIO 1292 Black
GD503

QUAD / HAMSTRING

Engage multiple muscles and unlock explosive leg power with the Genesis DS™ quad/hamstring machine. This machine functionally trains the leg muscles to work together to increase power, stability and joint protection for everyday life activities. Each leg movement utilizes cable-based training with innovative swivel pulley design to provide full exercise flexion and targeted muscle training. Vertical handles and the large textured Line-X® platform provide excellent grip and stability.

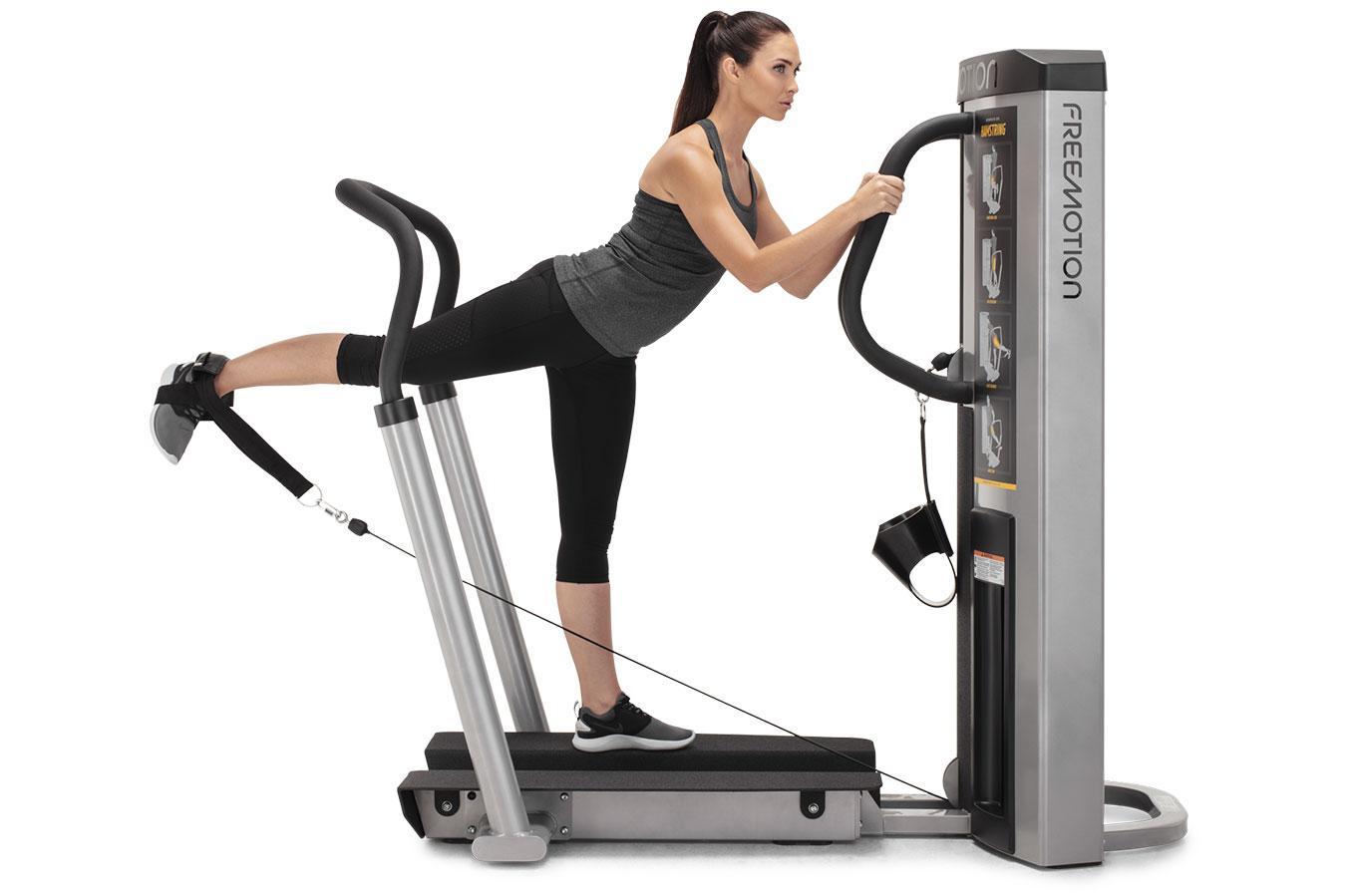

GD503-Profile-ft

Work Your Body

Fire off the quads, hamstrings and more with this machine’s profound versatility, including hip stabilization/flexion and knee extension/flexion.

GD503-closeup2

Stay Grounded

The large platform is coated with textured Line-X to stabilize foot positioning and lessen wear and tear on the machine.

GD503-back-ft

Grab Ahold

Front and rear vertical handles provide excellent grip and stability so you can stabilize the core.

Details & Specs

GD503 STUDIO 1292 Black
  • Features
    Choose Your Grip

    Vertical front and rear handles provide excellent grip and stability.

    Large Line-X® Platform

    The large platform is coated with textured Line-X coating for stable foot positioning and advanced durability.

    Kick Plates

    Solid 16-gauge, stainless steel kick plates protect the machine from wear and tear.

    Foot Harness

    Specially designed harness fits a wide variety of users and keeps feet firmly in place.

    Cable Travel

    Extensive cable travel allows for a full exercise flexion of 72 inches per arm (183 cm).

    Two Enclosed Weight Stacks

    Protected, limited access to moving parts is safer for your members and trainers.

    Industrial Construction

    This Freemotion machine is built with 11 and 7-gauge steel tubing and is electrostatically powder-coated with paint that has undergone 2,000 hours of salt spray testing.

    Weight Capacity

    Built to last, the Genesis DS Quad/Hamstring is ideal for people up to 400 lbs (181 kg)

    Work Your Body

    Fire off the quads, hamstrings and more with this machine's profound versatility, including hip stabilization/flexion and knee extension/flexion

    Grab Ahold

    Front and rear vertical handles provide excellent grip and stability so you can stabilize the core.

    Stay Grounded

    The large platform is coated with textured Line-X to stabilize foot positioning and lessen wear and tear on the machine.

  • Specifications
    Equipment Features
    • Instructional Placards Yes
    • Weight Stack lbs (kg) QTY 2 - 180 lbs weight stacks (81.6 kg)
    • Pulleys Aluminum swivel pulleys
    • Cable Travel in (cm) 72 in (182.8 cm) per arm
    • Rubber Feet Soft PVC
    • Resistance lbs (kg) 1 arm: 90 lbs (40.8 kg)
      2 arms: 180 lbs (81.6 kg)
    • Weight Stack Configuration lbs (kg) 2 - 10 lbs top plates, 34 - 10 lbs plates
      (2 - 4.5 kg top plates, 34 - 4.5 kg plates)
    • Maximum User Weight lbs (kg) 400 lbs (181.4 kg)
    • Standard Frame Colors Dell Gray
    • Plastic Colors Black, Platinum Metallic Silver, Bordeaux Red, Dell Gray
    • Standard Upholstery Colors Black Vinyl
    Product Dimensions & Weight
    • Machine Weight lb (kg) 615 lbs (279 kg)
    • Product L x W x H in (cm) 70 x 32 x 64 in (177.8 x 81.2 x 162.5 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lb (kg) 866.4 lbs (393 kg)
    • Shipping L x W x H in (cm) 74.8 x 39.9 x 34.7 in (198.9 x 99 x 88.1 cm)
    Regulatory Approvals
    • Approvals EN957,CE
    Warranty (US)
    • Frame 10 Years
    • Cables 1 Year
    • Parts 3 Years
    • Other 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Cables 1 Year
    • Labor 1 Year
    • Parts 3 Years
    • Other 120 Days
  • Documents
    PDF Downloads
GD503 STUDIO 1292 Black
