Genesis
G614-3Q
G614

STEP

Balance and strength are things we use everyday in life. The Genesis Step by Freemotion builds balance and strength through user-defined movement and a hydraulic 'quick adjust' step. Create a circuit with other Genesis strength machines and the Step brings in the cardio - with Freemotion cable to add resistance and create a more challenging workout. An increased heart rate kick starts a metabolic effect that lasts for hours after stepping off the machine. Work up to two people at a time on the Freemotion Genesis Step, the multi-functioning tool that does more than what meets the eye.
G614-Back-F

Anyway You Want It

Freemotion’s expert swivel pulley was designed to create fluid cable travel with an unrestricted range of motion.

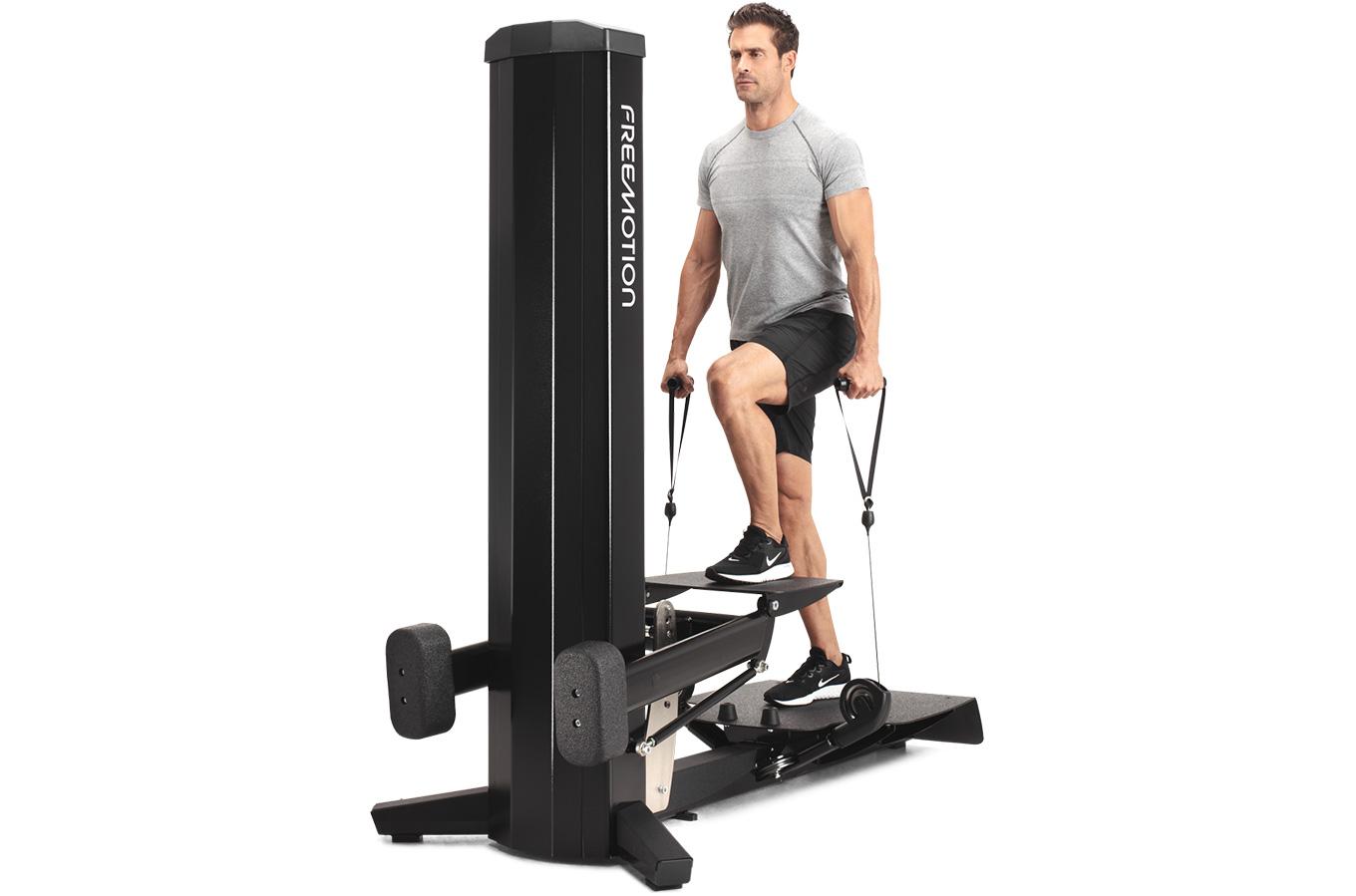

G614-Back-M

Step Up

The non-slip step adjusts seven different ways and is counterbalanced for easy positioning.

G614-CloseUp

Locked And Loaded

Both the step and platform are textured to keep feet firmly in place.

Details & Specs

G614-3Q
  • Features
    Cable Travel

    The long cable length and flexibility allows for full exercise extension. Single arm: 79.5 in (201 cm).

    Industrial Construction

    Built with 11 and 7-gauge steel, this machine is also electrostatically powder-coated.

    Kick Plates

    Strong 16-gauge, stainless steel kick plates protect the machine from wear and tear.

    Weight Stack

    Enclosed weight stack limits access to moving parts for safety.

    Swivel Pulleys

    Freemotion's exclusive pulley design ensures fluid cable travel and an unrestricted range of motion.

    Anyway You Want It

    Freemotion's expert swivel pulley was designed to create fluid cable travel with an unrestricted range of motion.

    Step Up

    The non-slip step adjusts seven different ways and is counterbalanced for easy positioning.

    Locked And Loaded

    Both the step and platform are textured to keep feet firmly in place.

  • Specifications
    Product Specifications
    • Standard Frame Colors Platinum Sparkle, Red Baron, Black, White
    • Optional Frame Colors On Request
    • Plastic Colors Ebony
    • Weight Stack lb (kg) 150 lbs (68 kg)
    • Weight Stack Configuration lb (kg) 0 - 45 x 5 lbs (0 - 20.4 x 2.2 kg)
      50-150 x 10 lbs (22.6 - 68 x 4.5 kg)
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Adjustable step (7 settings)
    • Pulleys Dual lower swivel pulleys
    • Cable Travel in (cm) 79.5 in (201.9 cm)
    • Rubber Feet Molded floor protectors
    • Resistance lb (kg) 1 arm: 75 lbs (34 kg)
      2 arms: 150 lbs (68 kg)
    • Maximum User Weight lbs (kg 350 lbs (159 kg)
    Product Dimensions & Weight
    • Machine Weight lb (kg) 223 lbs (101.1 kg)
    • Product L x W x H in (cm) 73 x 36 x 77 in
      (185.4 x 91.4 x 195.5 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lb (kg) 602 lbs (273 kg)
    • Shipping L x W x H in (cm) 57.5 x 30.5 x 8.5 in
      (146 x 77.4 x 21.5 cm)
    Regulatory Approvals
    • Approvals EN957, CE
    Warranty (US)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Labor 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
  • Documents
    PDF Downloads
G614-3Q
