Details & Specs

• Features
  Low Profile Tower Design

  The low profile tower works well with an open design floor plan and adds to the 'welcome' environment.

  Targeted Results

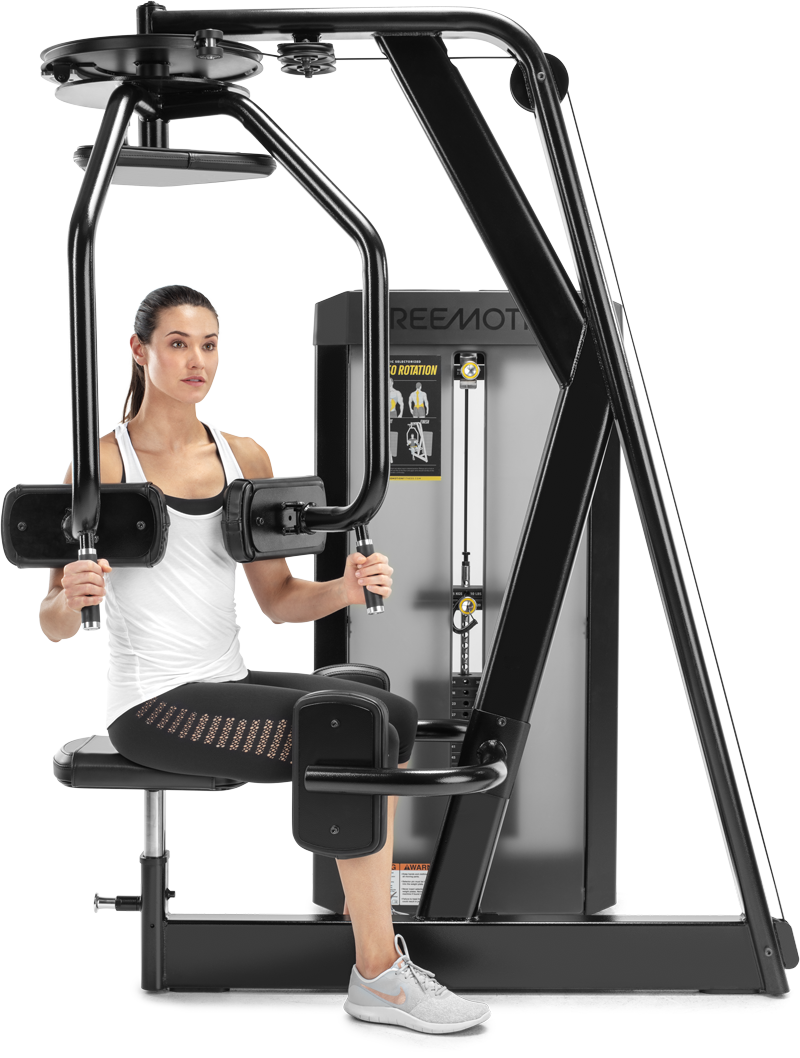

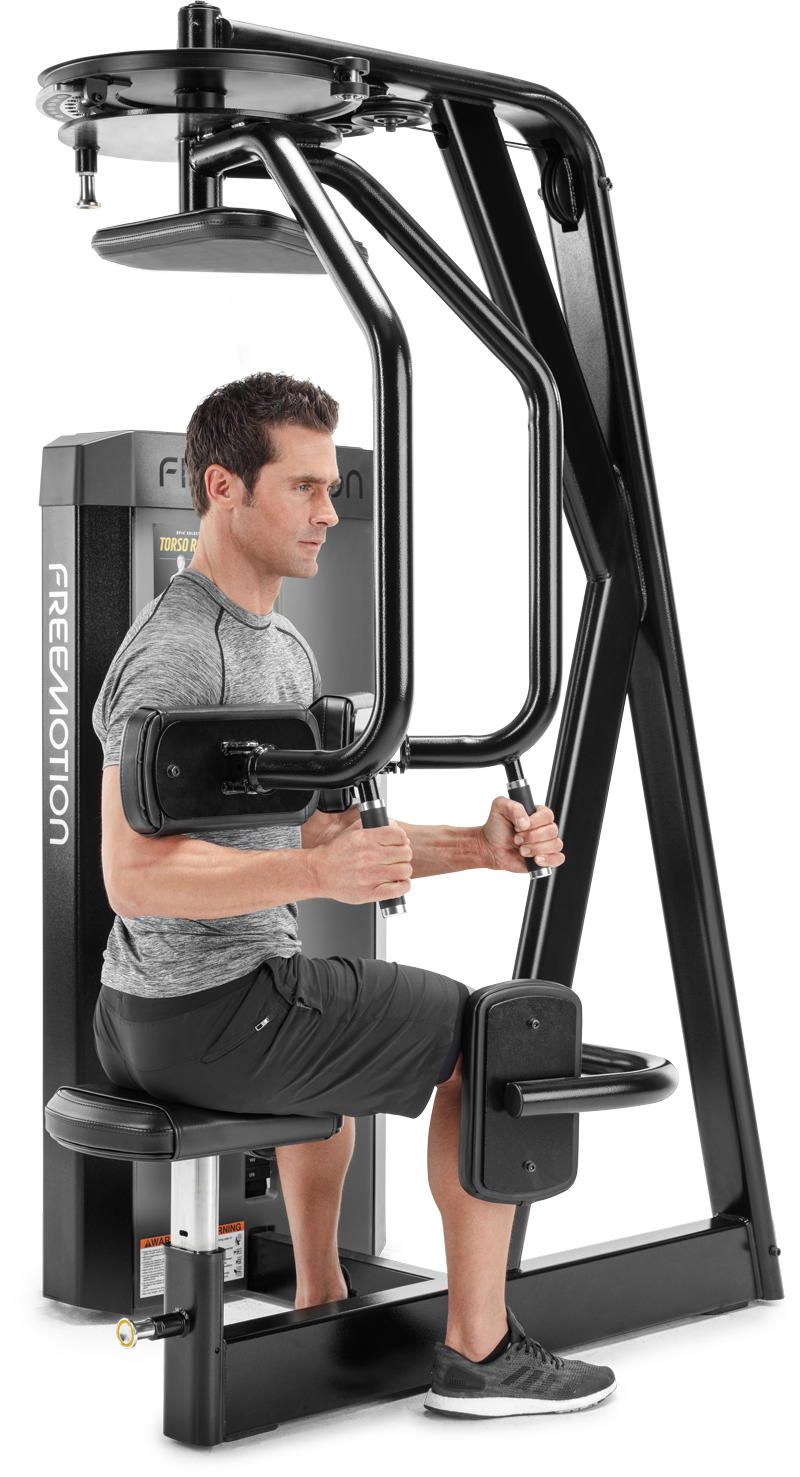

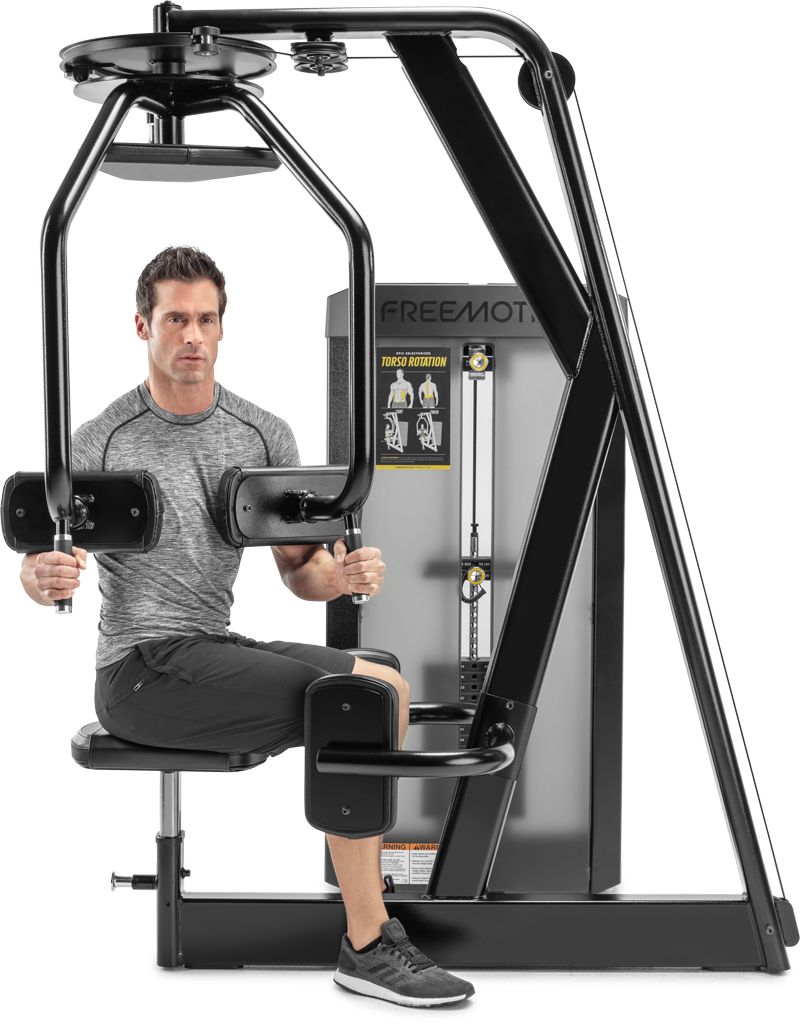

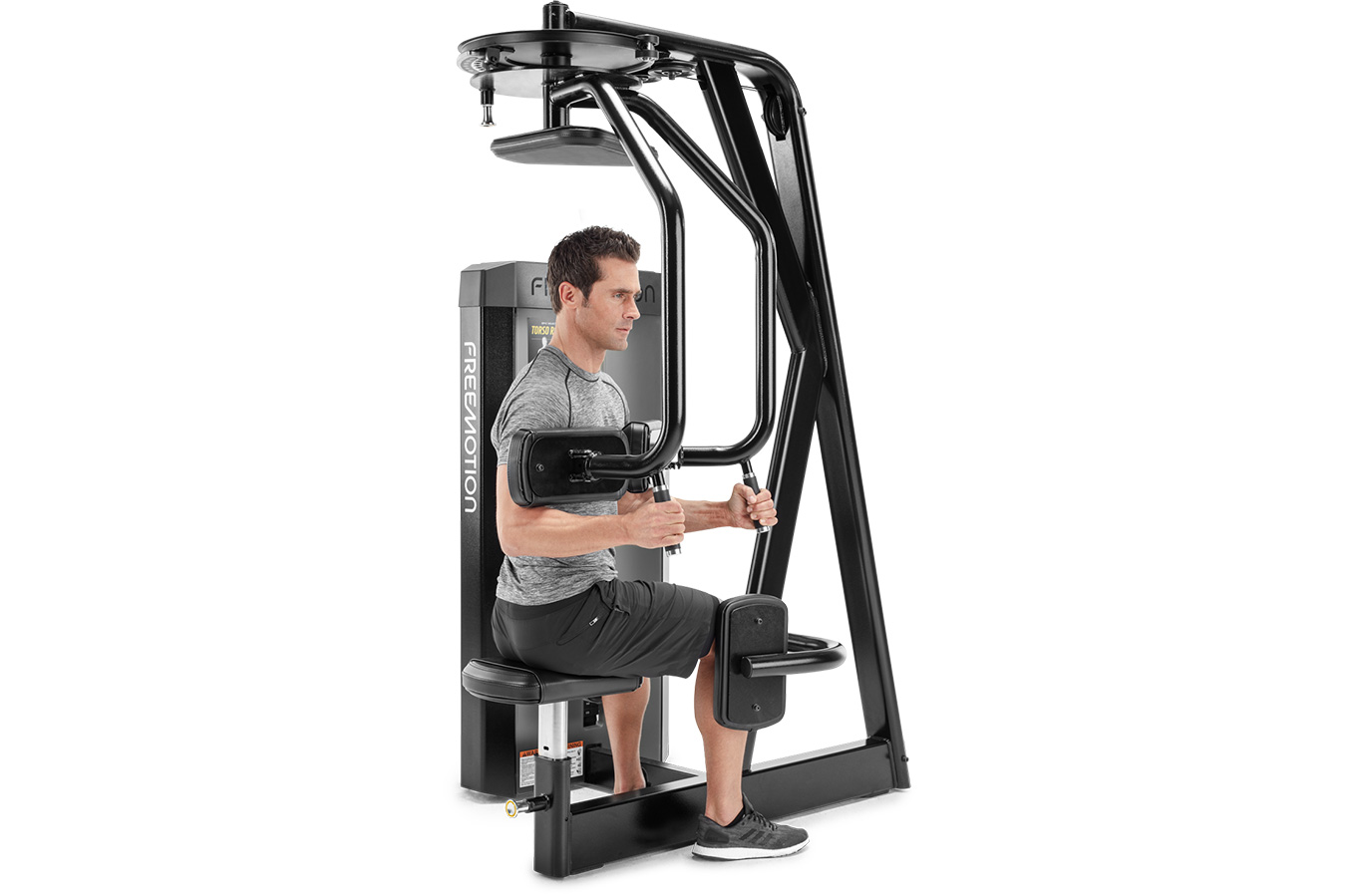

  The fixed overhead cam is ideal for keeping the top half of the body in place while isolating torso movement.

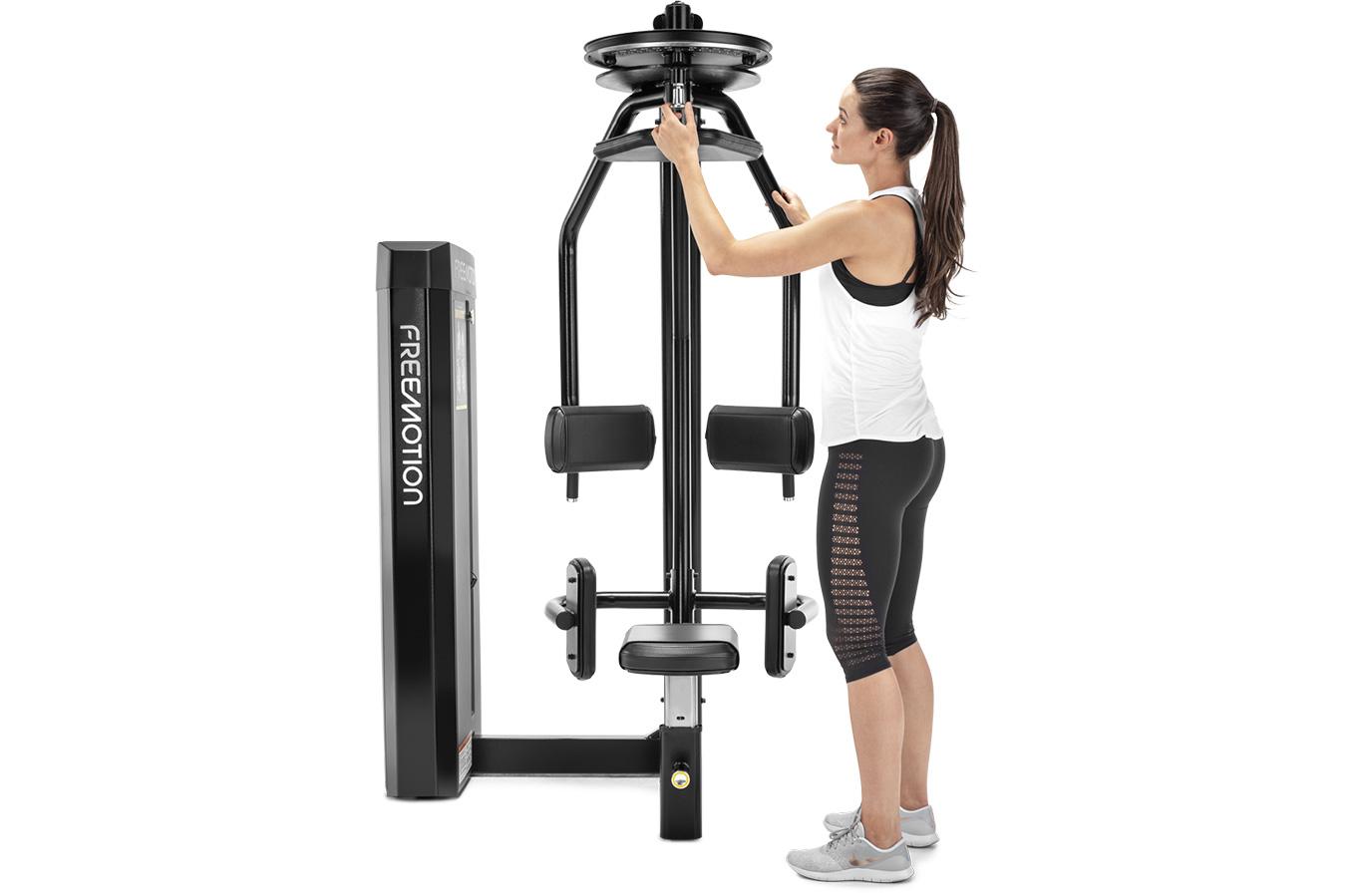

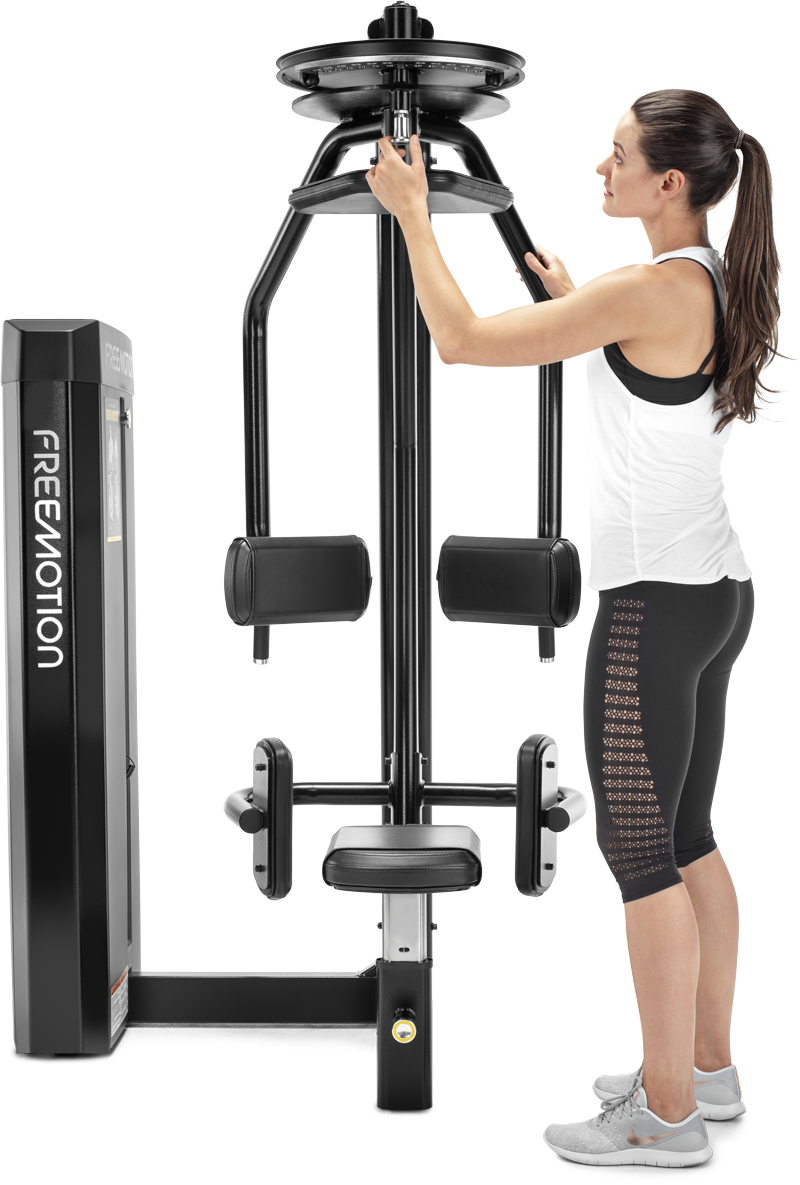

  Multiple Start Positions

  Designed with multiple start positions to accommodate users of varying sizes.

  Built-in Storage

  The redesigned top cap of this machine features a built-in accessory tray to help users keep track of their phone, keys and more.

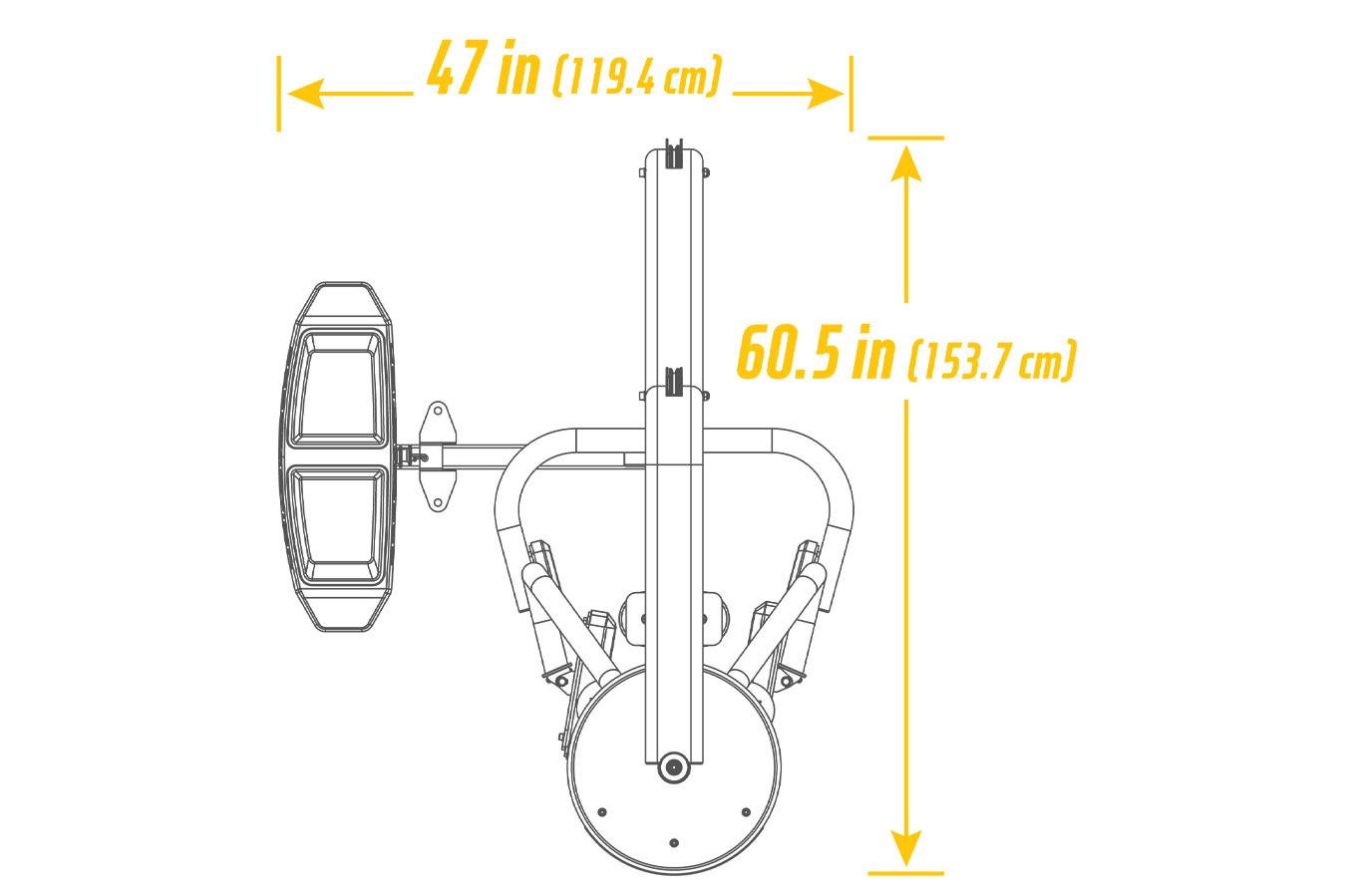

  Smaller Footprint

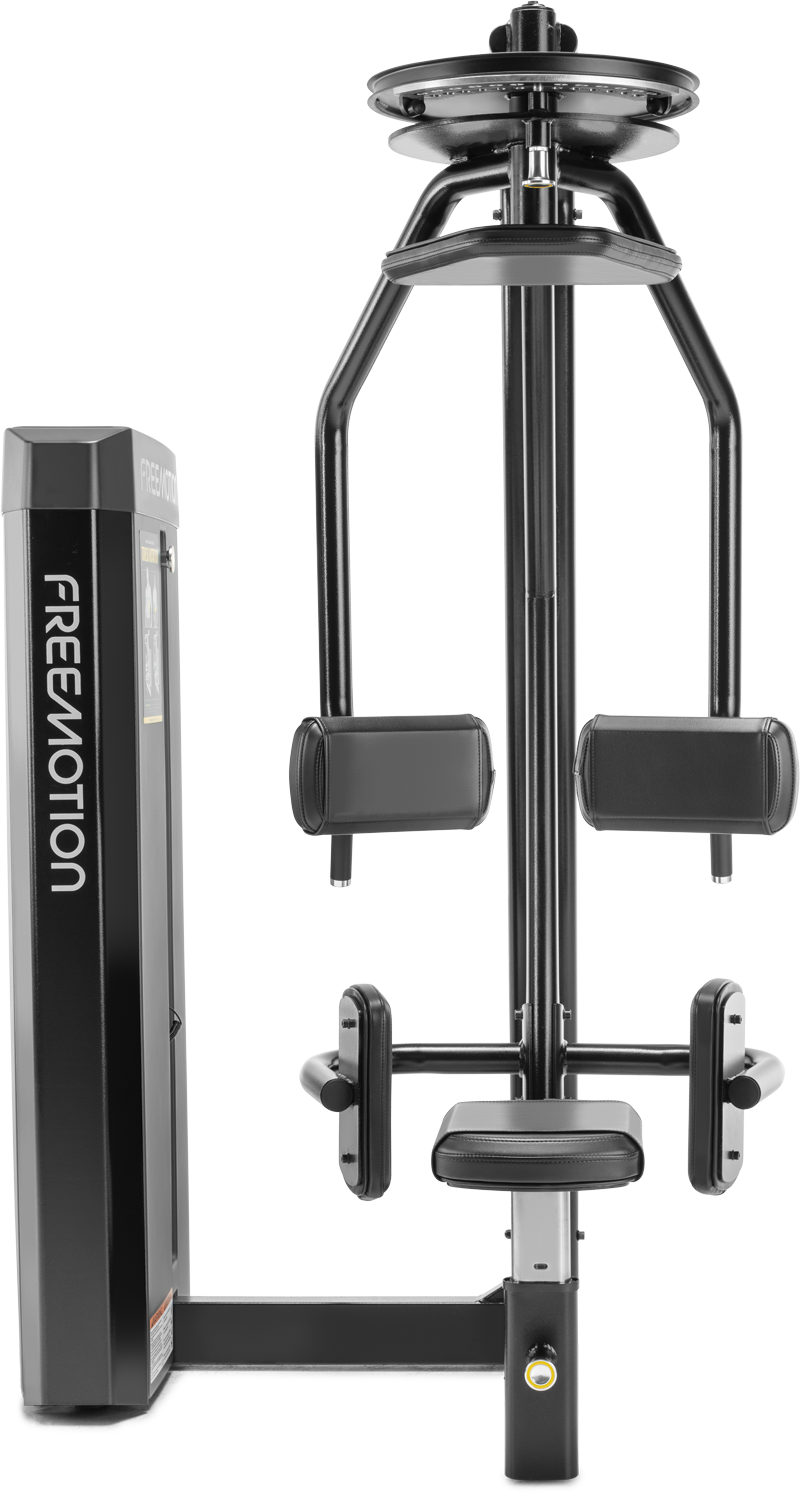

  The new EPIC Lateral Torso has a smaller, narrower footprint to free up your square footage.

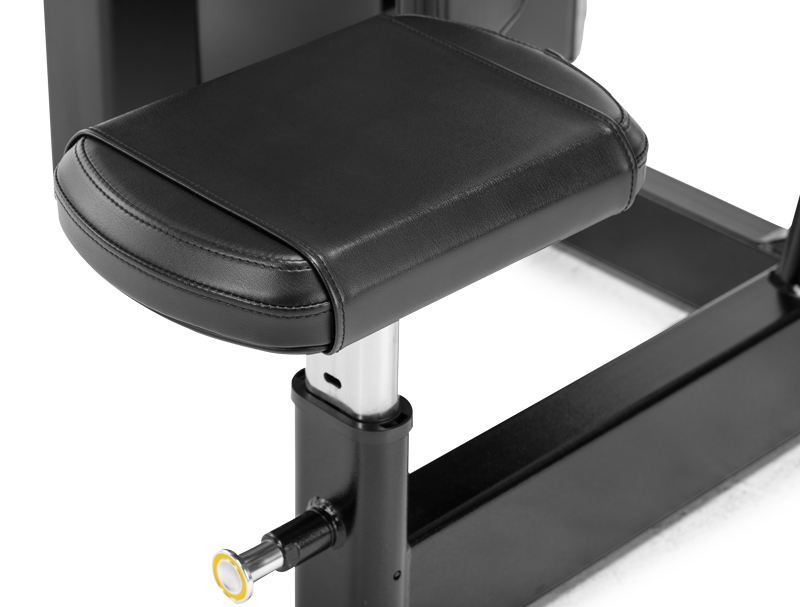

  Multiple Seat Adjustments

  Seat adjusts to multiple positions to accommodate users of all sizes.

  Feel the force

  This machine's leg pads were designed to withstand outward force, creating ideal workout conditions.

  Heavy Duty Cable

  Heavy duty cable is designed to support the rigorous usage demands of this machine.

  Heavy Duty Floor Protectors

  Made with molded rubber, the Freemotion floor guards help better protect your floor.

  Easy Serviceability

  The tower design allows for simple cable service.

• Specifications
  Product Specifications

  • Standard Frame Colors Platinum Sparkle, Black River
  • Optional Frame Colors On Request
  • Plastic Colors Black
  • Standard Upholstery Colors Black
  • Optional Upholstery Colors Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Hand Grip Colors Black

  Equipment Features

  • Instructional Placards Yes
  • Adjustments Multiple Seat Adjustments, Multiple Start Positions
  • Weight Stack lbs (kg) 175 lbs (79.3 kg)
  • Upholstery Vinyl, 1.5 in (3.8 cm) thick foam
  • Rubber Feet Heavy Duty Floor Protectors
  • Resistance lbs (kg) 175 lbs (79.3 kg)
  • Weight Stack Configuration lbs (kg) 10 lbs header (4.5 kg)
    20-170 x 10 lbs (4.5 kg
  • Maximum User Weight lbs (kg) 350 lbs (159 kg)
  • Drop Down Weight 5 lbs (2.2 kg)

  Product Dimensions & Weight

  • Machine Weight lbs (kg) 573.2 lbs (260 kg)
  • L x W x H in (cm) 60.5 x 47 x 79.2 in
    (153.6 x 119.3 x 201.1 cm)

  Shipping Dimensions & Weight

  • Shipping Weight lbs (kg) Box 1: 684.5 lbs (310.4 kg)
    Box 2: 15.4 lbs (6.9 kg)
  • L x W x H in (cm) Box 1: 93 x 30.3 x 58 in
    (236.2 x 76.9 x 147.3 cm)
    Box 2: 31.1 x 20 x 3.5 in
    (78.9 x 50.8 x 8.8 cm)

  Regulatory Approvals

  • Approvals CE

  Warranty (US)

  • Frame 10 Years
  • Parts 3 Years
  • Other 120 Days
  • Cables/Labor 1 Year

  Warranty (International)

  • Frame 10 Years
  • Parts 3 Years
  • Other 120 days
  • Cables/Labor 1 Year
