Genesis
G628-3Q
G628

TOTAL QUAD / HIP

The Genesis™ Quad functionally trains the anterior leg muscles to work together to create stability and mobility at the hip and knee. Live-sliding pulleys follow the path of movement—offering progressive resistance and optimum muscle activation during the complete motions. Plus, the Quad machine engages muscles to improve core strength and balance.

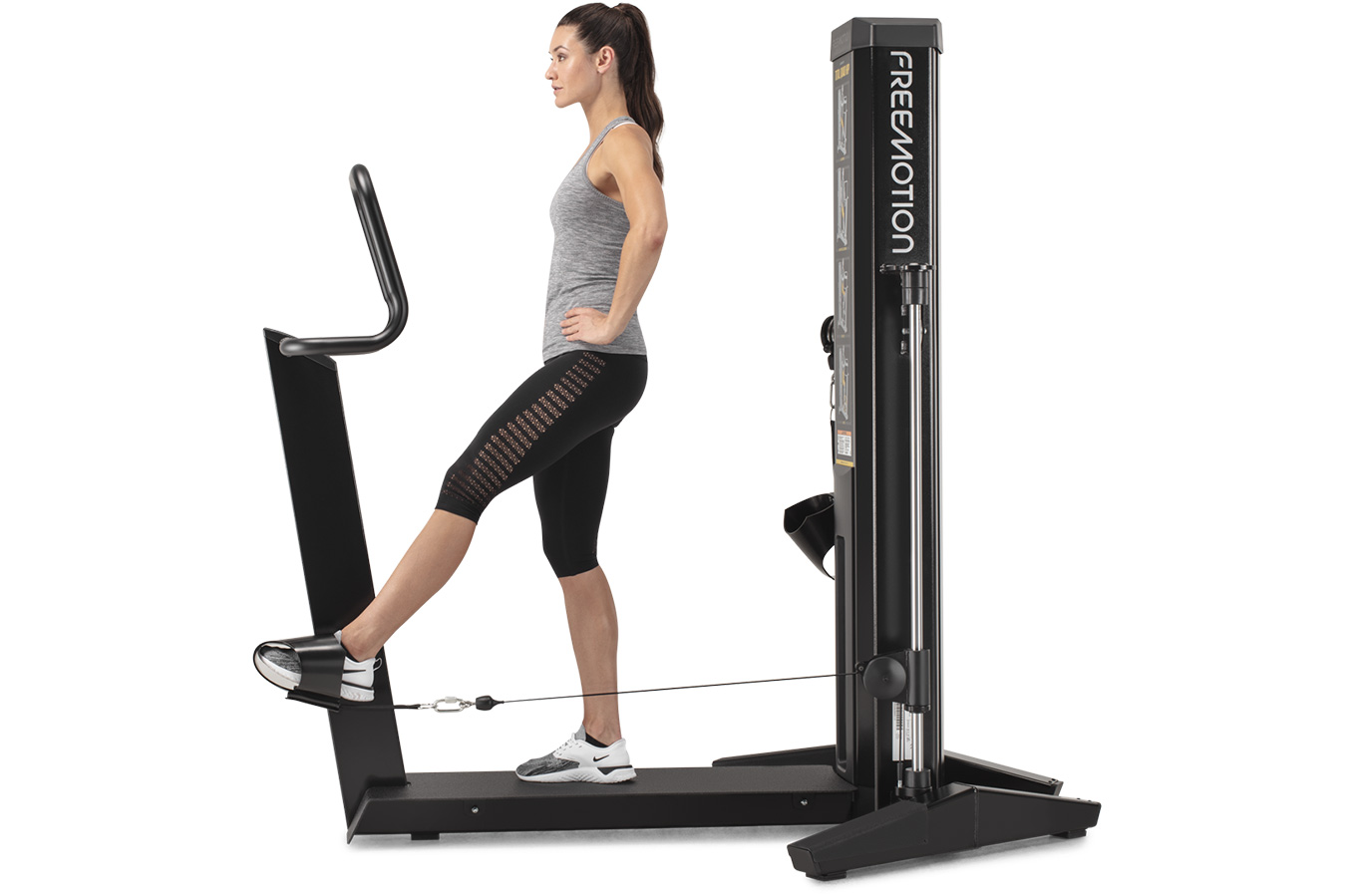

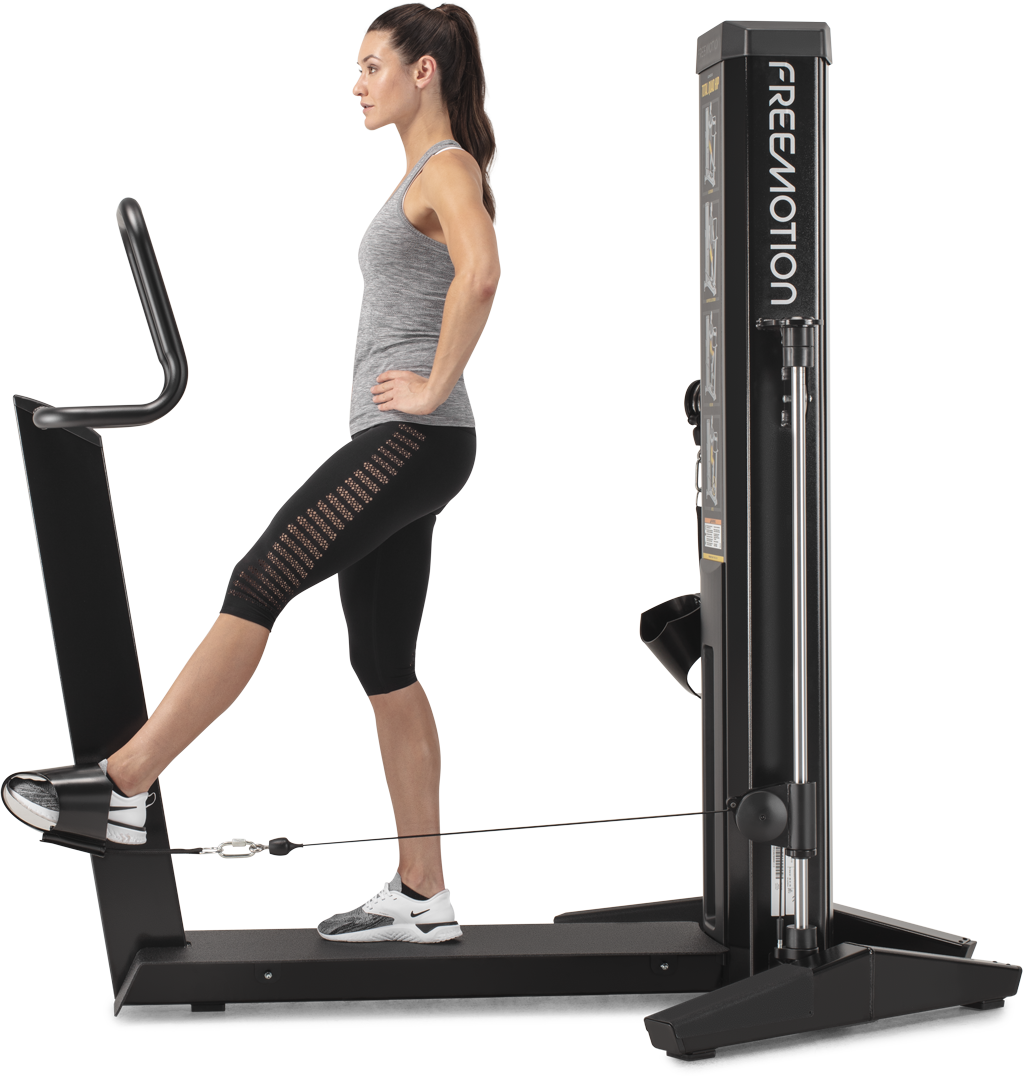

G628-Profile-fm

Go Live

Thanks to the live action pulley, members keep muscles active with constant resistance that follows their natural movement.

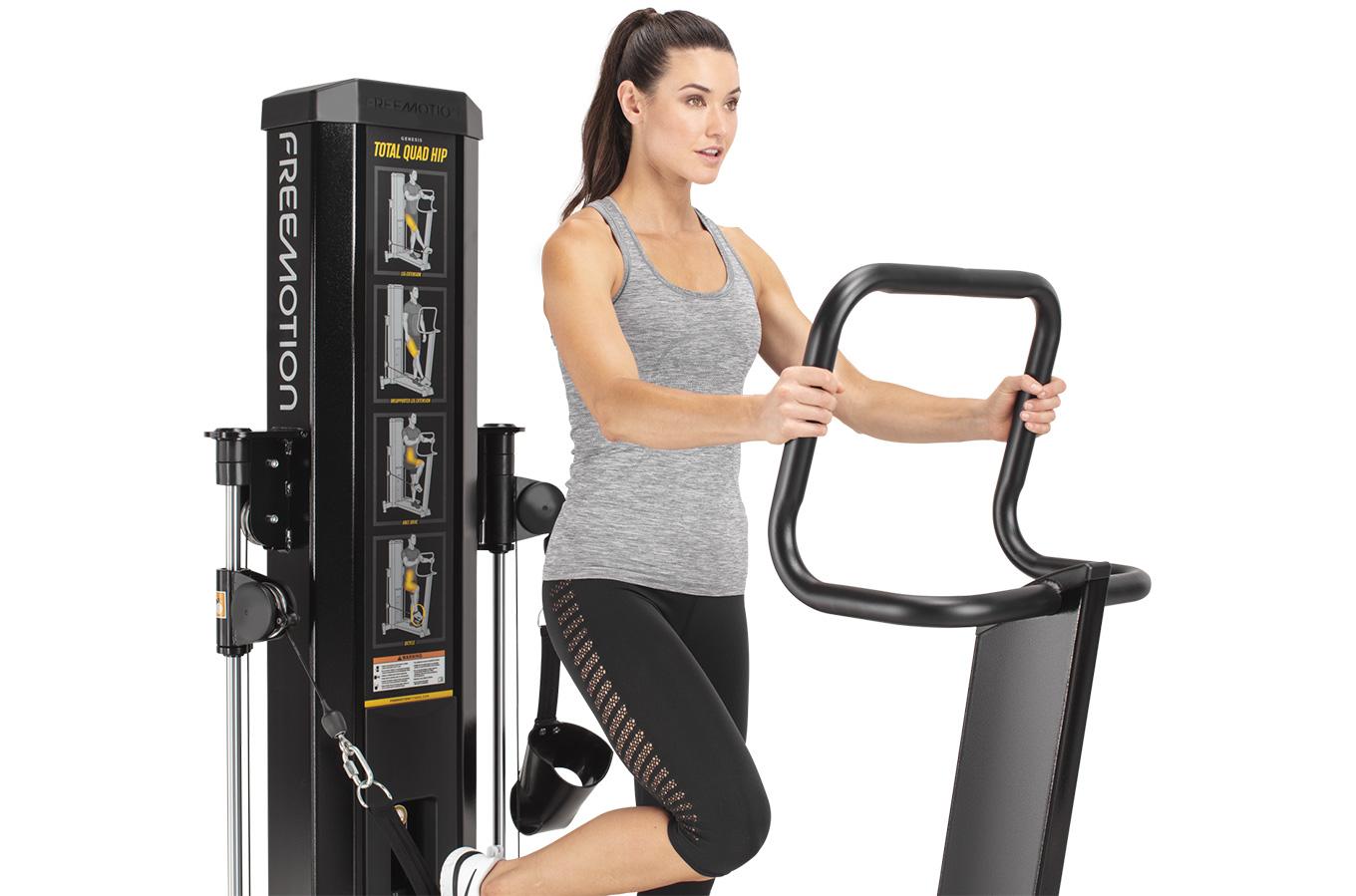

G628-3Q-fm-CloseUp

Engage More Muscle

Because the pulleys swivel, it’s easier to target specific muscles and recruit core muscles to strengthen stability and balance.

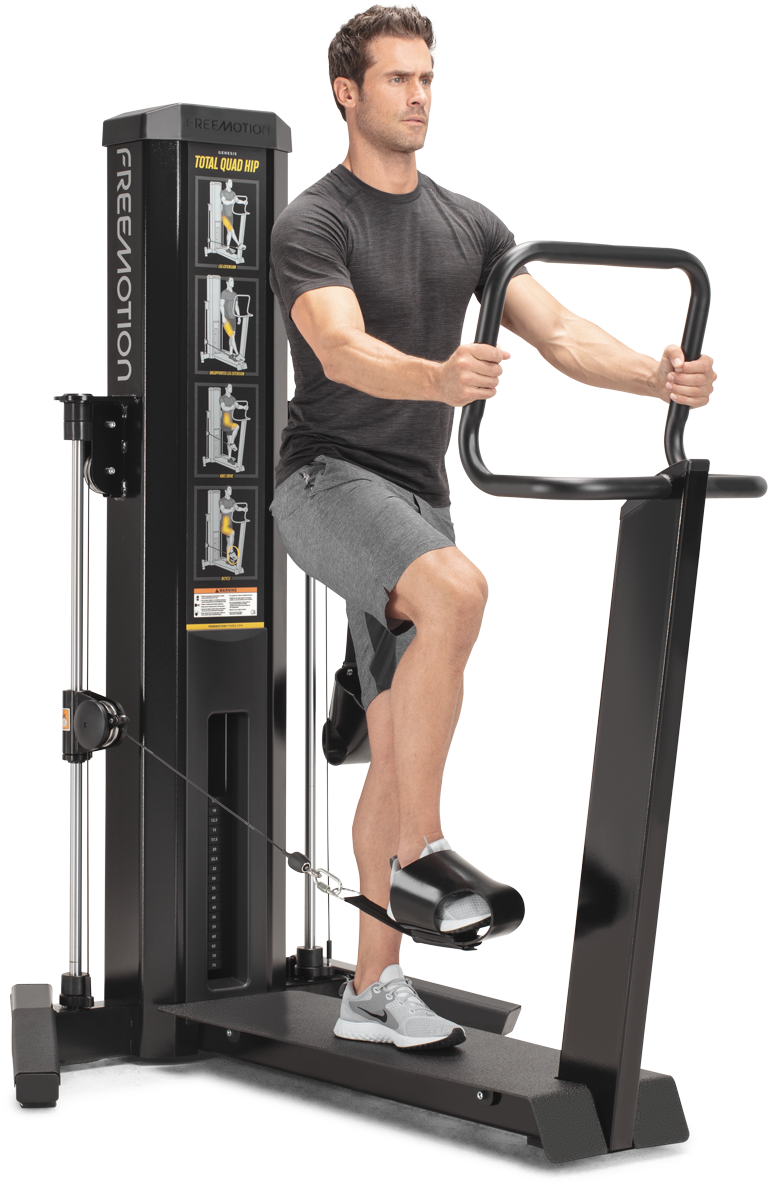

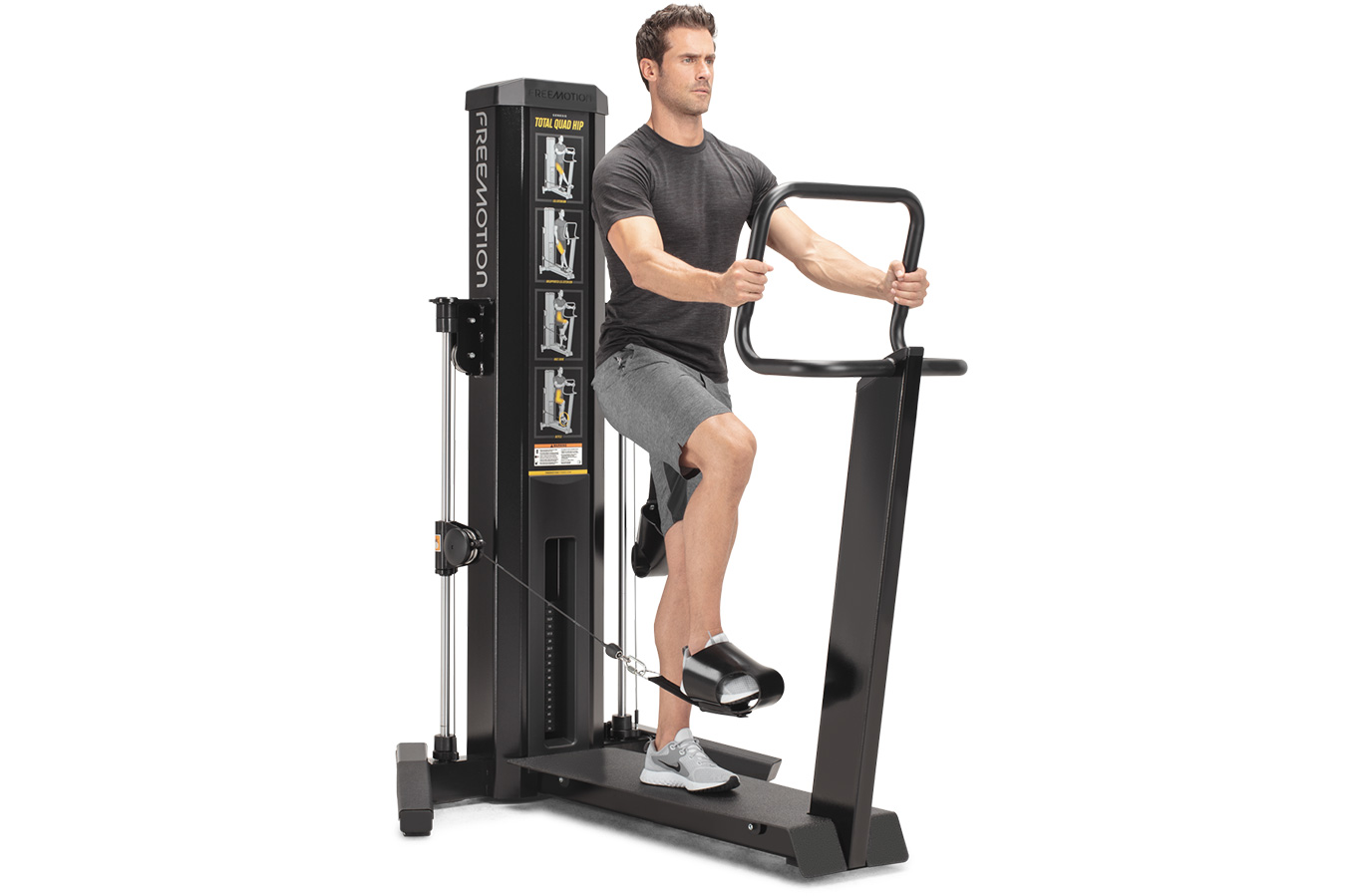

G628-3Q-mt

Get On The Right Track

Each pulley glides up and down on its own independent track—creating never-ending resistance and a more effective workout.

Details & Specs

G628-3Q
  • Features
    Progressive Resistance

    Live-sliding pulley technology allows muscles to stay at optimum activation with never-ending resistance throughout the entire movement.

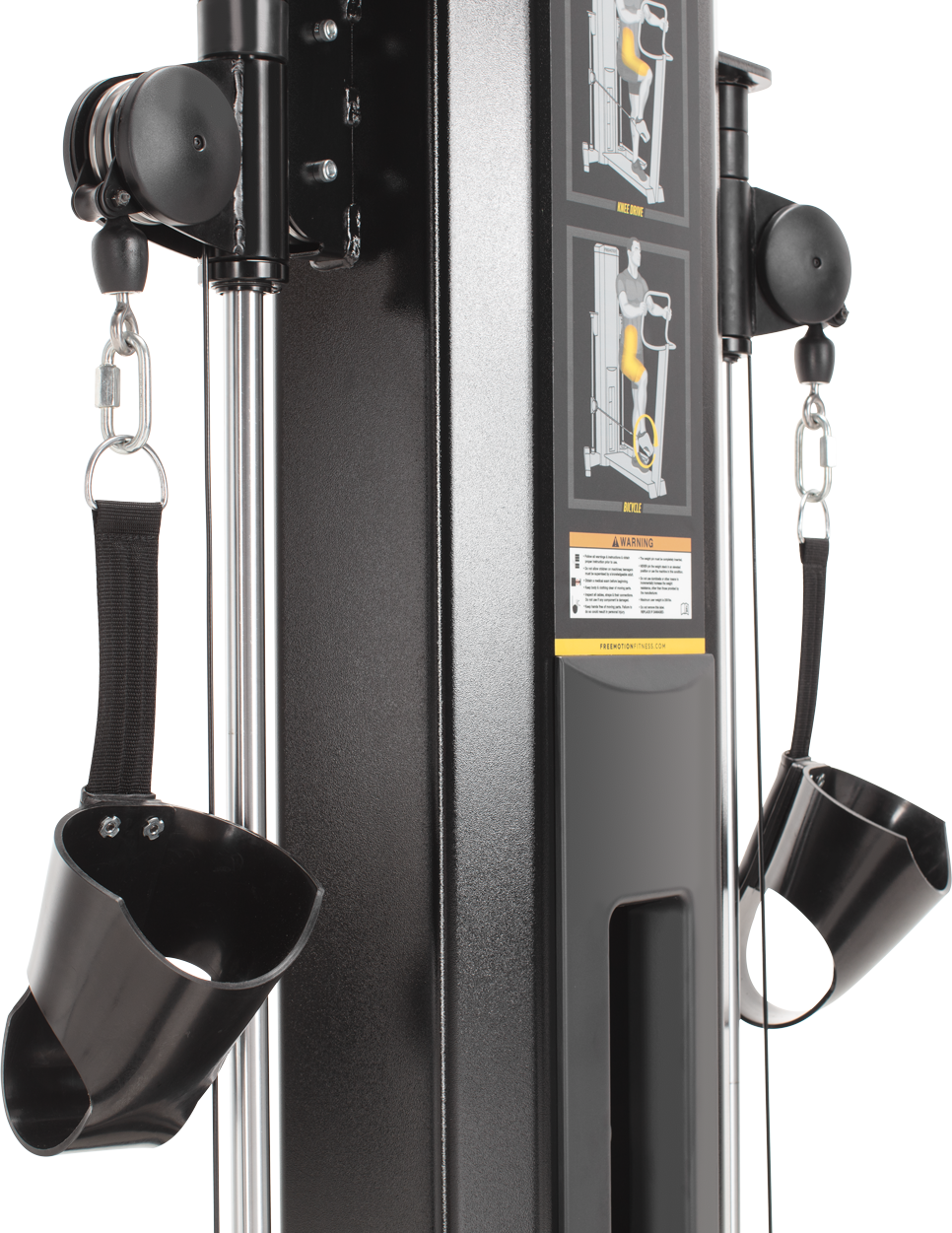

    Swivel Pulleys

    Because the pulleys on this Freemotion machine swivel, specific muscles can be targeted to increase the body's stabilization and balance.

    Dual Independent Tracks

    Each pulley glides up and down on its own independent track—creating never-ending resistance and a more effective workout.

    Cable Travel

    Extensive cable travel creates a full exercise flexion of 35 inches per leg (90 cm).

    Foot Harness

    Feet stay secure with Freemotion's specially designed harness, that fits almost any foot size.

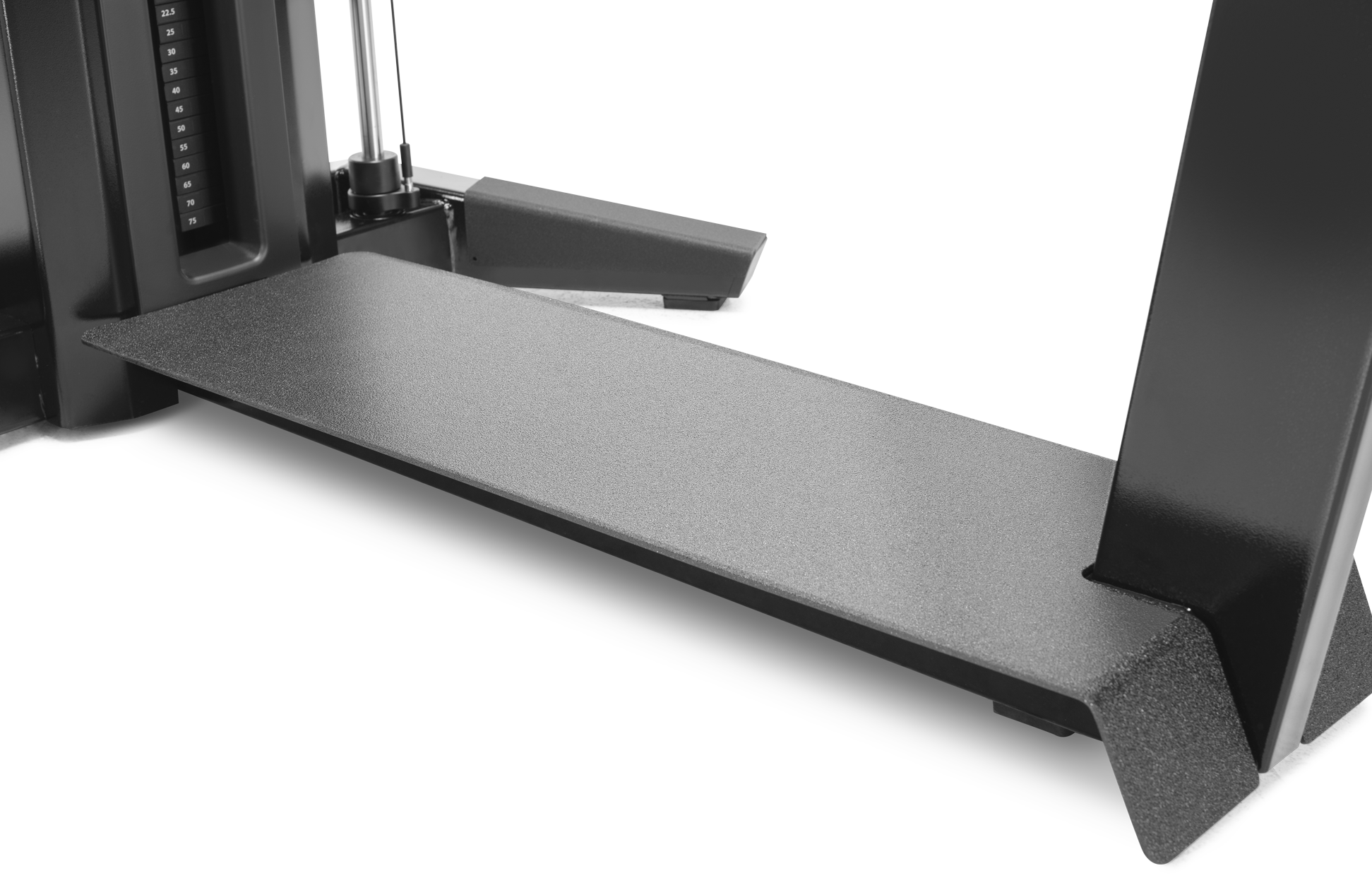

    Textured Platform

    This unique platform with grip texture helps ensure stable foot positioning.

    Upgraded Handle

    The Freemotion Quad has an upgraded handle with improved ergonomics and multiple grip positions.

    Kick Plates

    Strong 18-gauge, stainless steel kick plates protect this Freemotion machine from wear and tear.

    Industrial Construction

    Built strong with 11 and 7-gauge steel tubing, this machine has been electrostatically powder-coated with paint tested by 2,000 hours of salt spray testing.

    Go Live

    Thanks to the live action pulley, members keep muscles active with constant resistance that follows their natural movement.

    Engage More Muscle

    Because the pulleys swivel, it's easier to target specific muscles and recruit core muscles to strengthen stability and balance.

    Get On The Right Track

    Each pulley glides up and down on its own independent track—creating never-ending resistance and a more effective workout.

  • Specifications
    Product Specifications
    • Standard Frame Colors Platinum Sparkle
    • Plastic Colors Black, Dell Gray
    Equipment Features
    • Instructional Placards Yes
    • Weight Stack lbs (kg) 150 lbs (68 kg) weight stack
    • Frame and Finish Powder-coated steel frame
    • Pulleys Swivel Pulleys
    • Cable Travel in (cm) 37 in (93.9 cm)
    • Rubber Feet Molded Floor Protectors
    • Resistance lbs (kg) 37.5 lbs (17 kg)
    • Weight Stack Configuration lbs (kg) 5 - 50 x 5 lbs (2.2 - 22.6 x 2.2 kg)
      60 - 150 x 10 lbs (27.2 - 68 x 4.5 kg)
    Product Dimensions & Weight
    • Machine Weight lb (kg) 513 lbs (232.6 kg)
    • Length L x W x H in (cm) 75 x 46 x 73 in (190.5 x 116.8 x 185.4 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lbs (kg) 528 lbs (239.4 Kg)
    • Length L x W x H in (cm) 74.8 x 63.2 x 76.6 in (189.9 x 160 x 194.5 cm)
    Regulatory Approvals
    • Approvals EN957, CE
    Warranty (US)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Labor 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
