Genesis
G603-3Q
G603

TRICEPS

Smart trainers know that posture is everything. The Genesis Tricep machine guides users towards ideal posture with an upright seat that primes an open chest movement. Easily select the weight and Freemotion cable delivers smooth, consistent weight that builds secondary and primary tricep muscles. Stand up to hit the tricep from all angles and pull in a core workout to maximize gym time.
G603-Profile-ft

Go With The Flow

Freemotion’s exclusive swivel pulley design ensures fluid cable travel and unrestricted range of motion.

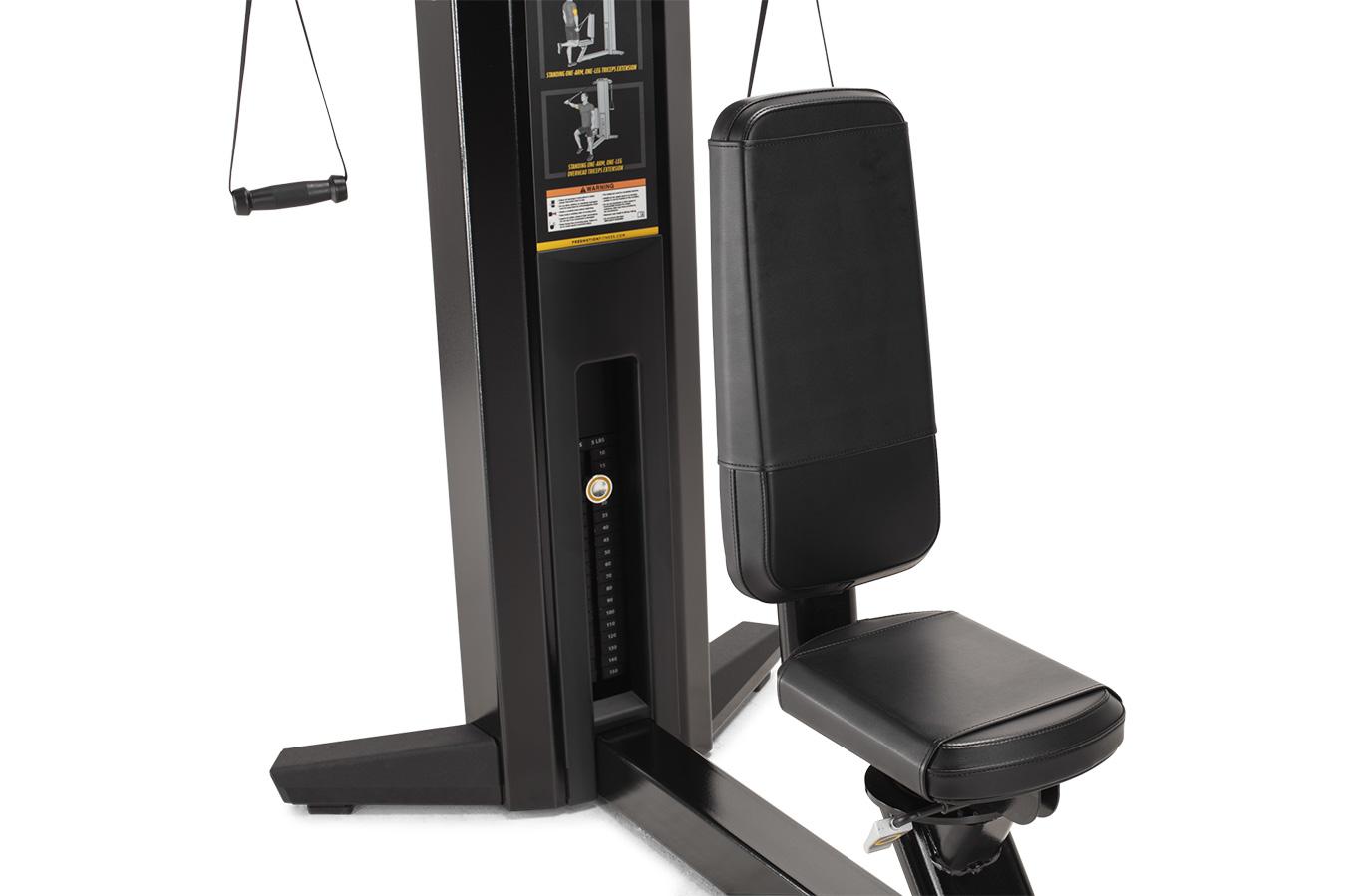

G603-CloseUp

Weight Stack

The protected, enclosed weight stack limits access to moving parts to prevent member accidents or injury.

G603-CloseUp-fm

All Together Now

Handles and arms move together, or one at a time, to add to the machine’s versatility.

Details & Specs

G603-3Q
  • Features
    Swivel Pulleys

    Pulley design ensures fluid cable travel and provides nearly unlimited range of motion.

    Non-Wearing Counterweight

    The Freemotion Tricep has been upgraded to a non-wearing counterweight to dampen paddle movement.

    2-Position Seat

    The Freemotion Tricep is equipped with a dual position, rotating seat. A supported position is ideal for first-time exercisers; leaning forward or standing will further challenge the body.

    Cable Travel

    Generous cable length creates full exercise extension. Two arms: 42 in (106.6 cm).

    Weight Stack

    The protected, enclosed weight stack limits access to moving parts to prevent member accidents or injury.

    Industrial Construction

    Built with 11 and 7-gauge steel and electrostatically powder-coated, this machine is built to last.

    Kick Plates

    Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

    Go With The Flow

    Freemotion's exclusive swivel pulley design ensures fluid cable travel and unrestricted range of motion.

    Bonus Points

    We've upgraded the Freemotion Tricep Generation II with a non-wearing counterweight to dampen paddle movement and increase durability.

    All Together Now

    Handles and arms move together, or one at a time, to add to the machine's versatility.

  • Specifications
    Product Specifications
    • Standard Frame Colors Platinum Sparkle, Red Baron, Black, White
    • Optional Frame Colors On Request
    • Plastic Colors Ebony
    • Standard Upholstery Colors Black, Graphite, Blue Ridge, Burgundy, Red
    • Optional Upholstery Colors On Request
    • Weight Stack lb (kg) 150 lbs (68 kg)
    • Weight Stack Configuration lb (kg) 5 - 50 x 5 lbs (2.2 - 22.6 x 2.2 kg)
      60 - 150 x 10 lbs (27.2 - 68 x 4.5 kg)
    Equipment Features
    • Instructional Placards Yes
    • Adjustments Two-position rotating seat
    • Upholstery 1.5 in thick foam / Vinyl
    • Pulleys Swivel pulleys
    • Cable Travel in (cm) 2 arms: 42 in (106.6 cm)
    • Rubber Feet Molded floor protectors
    • Resistance lb (kg) 1 arm: 75 lbs (34 kg)
      2 arms: 150 lbs (68 kg)
    • Maximum User Weight lbs (kg) 350 lbs (159 kg)
    Product Dimensions & Weight
    • Machine Weight lb (kg) 394 lbs (178.7 kg)
    • Product L x W x H in (cm) 52 x 36 x 77 in
      (132 x 91.4 x 195.5 cm)
    Shipping Dimensions & Weight
    • Shipping Weight lb (kg) 431 lbs (195.4 kg)
    • Shipping L x W x H in (cm) 56 x 36 x 75 in
      (142.2 x 91.4 x 190.5 cm)
    Regulatory Approvals
    • Approvals EN957, CE
    Warranty (US)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
    • Labor 1 Year
    Warranty (International)
    • Frame 10 Years
    • Bearings 3 Years
    • Guide Rods 3 Years
    • Pulleys 3 Years
    • Weight Stacks 3 Years
    • Cables 1 Year
    • Labor 1 Year
    • Upholstery 120 Days
    • Handles and Accessories 120 Days
